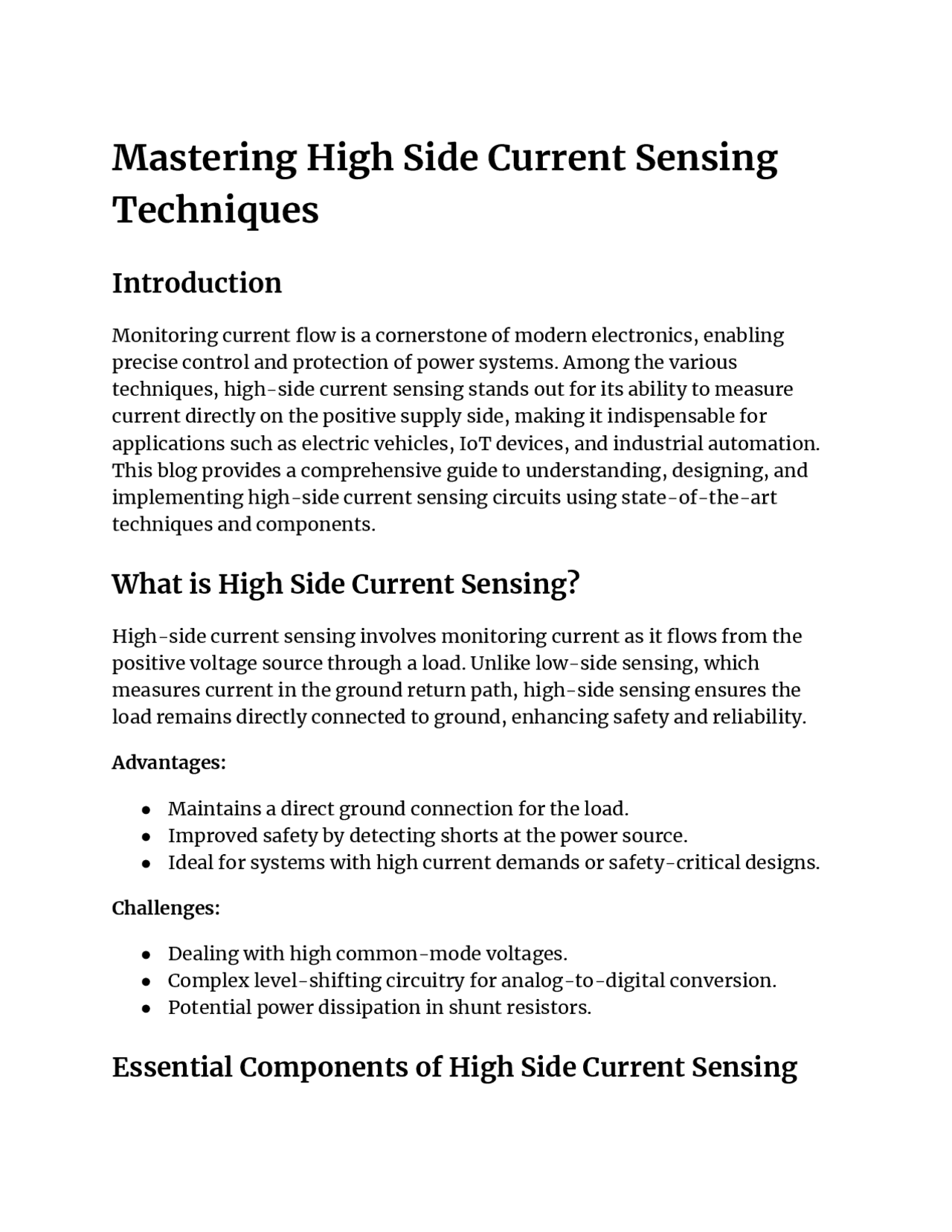

Mastering High Side Current Sensing
Techniques
Introduction
Monitoring current flow is a cornerstone of modern electronics, enabling
precise control and protection of power systems. Among the various
techniques, high-side current sensing stands out for its ability to measure
current directly on the positive supply side, making it indispensable for
applications such as electric vehicles, IoT devices, and industrial automation.
This blog provides a comprehensive guide to understanding, designing, and
implementing high-side current sensing circuits using state-of-the-art
techniques and components.
What is High Side Current Sensing?
High-side current sensing involves monitoring current as it flows from the
positive voltage source through a load. Unlike low-side sensing, which
measures current in the ground return path, high-side sensing ensures the
load remains directly connected to ground, enhancing safety and reliability.
Advantages:
●Maintains a direct ground connection for the load.
●Improved safety by detecting shorts at the power source.
●Ideal for systems with high current demands or safety-critical designs.
Challenges:
●Dealing with high common-mode voltages.
●Complex level-shifting circuitry for analog-to-digital conversion.
●Potential power dissipation in shunt resistors.
Essential Components of High Side Current Sensing
