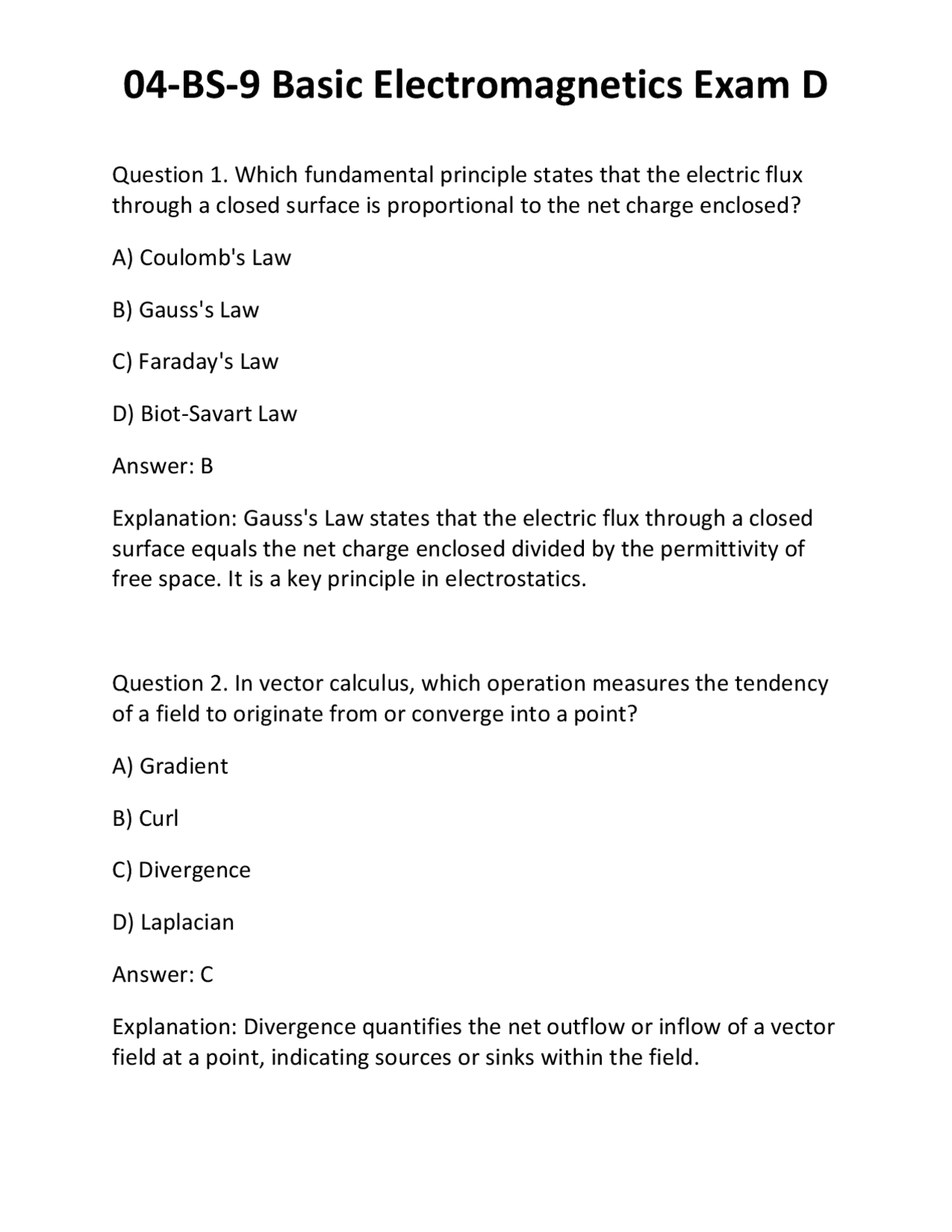

Question 1. Which fundamental principle states that the electric flux through a closed surface is proportional to the net charge enclosed? A) Coulomb's Law B) Gauss's Law C) Faraday's Law D) Biot-Savart Law Answer: B Explanation: Gauss's Law states that the electric flux through a closed surface equals the net charge enclosed divided by the permittivity of free space. It is a key principle in electrostatics. Question 2. In vector calculus, which operation measures the tendency of a field to originate from or converge into a point? A) Gradient B) Curl C) Divergence D) Laplacian Answer: C Explanation: Divergence quantifies the net outflow or inflow of a vector field at a point, indicating sources or sinks within the field.
Question 3. Which unit system is predominantly used in electromagnetics for measuring electric and magnetic quantities? A) SI (International System of Units) B) Imperial Units C) CGS (Centimeter-Gram-Second) System D) MKS (Meter-Kilogram-Second) Answer: A Explanation: The SI system is the standard in electromagnetics, utilizing units such as volts, amperes, ohms, and teslas for consistency and standardization. Question 4. Coulomb’s law describes the force between two point charges. What is the nature of this force? A) Always attractive regardless of charge sign B) Always repulsive regardless of charge sign C) Attractive if charges are opposite, repulsive if same sign D) Independent of the magnitude of charges Answer: C
D) Displacement current in a capacitor Answer: B Explanation: The Biot-Savart law provides a mathematical expression for the magnetic field generated by a steady current element, fundamental in magnetostatics. Question 7. Which Maxwell equation in differential form relates the curl of the electric field to the rate of change of magnetic flux density? A) Gauss's Law for Electricity B) Gauss's Law for Magnetism C) Faraday’s Law of Induction D) Ampère's Law with Maxwell correction Answer: C Explanation: Faraday’s Law states that the curl of the electric field equals the negative rate of change of magnetic flux density, linking time-varying magnetic fields to electric fields. Question 8. In the context of electromagnetic waves, what is the meaning of polarization? A) The direction of wave propagation B) The oscillation direction of the electric field vector
C) The frequency of the wave D) The phase difference between electric and magnetic fields Answer: B Explanation: Polarization describes the orientation of the electric field vector in a wave, such as linear, circular, or elliptical polarization. Question 9. Which boundary condition applies to the tangential component of the electric field at the interface between two different dielectric media? A) It is continuous across the interface B) It is zero on the interface C) It equals the surface charge density divided by permittivity D) It is discontinuous and depends on magnetic properties Answer: A Explanation: The tangential component of the electric field is continuous across the boundary between two dielectric materials, assuming no surface charge. Question 10. The Smith chart is primarily used for which purpose in transmission line analysis? A) Visualizing impedance matching
Question 12. Which property of a material determines its magnetic response in relation to an applied magnetic field? A) Permittivity B) Permeability C) Conductivity D) Dielectric constant Answer: B Explanation: Permeability describes how a material responds to a magnetic field, influencing phenomena like magnetization and inductance. Question 13. In the finite difference time domain (FDTD) method, what is discretized to solve Maxwell’s equations? A) Space and time B) Frequency spectrum C) Material properties only D) Boundary conditions only Answer: A Explanation: FDTD discretizes both space and time to numerically solve Maxwell’s equations, enabling time-domain simulation of electromagnetic fields.
Question 14. Which antenna type is most commonly used for transmitting and receiving radio signals in the VHF and UHF bands? A) Dipole antenna B) Parabolic reflector C) Helical antenna D) Patch antenna Answer: A Explanation: The dipole antenna is simple, efficient, and widely used for VHF and UHF applications due to its straightforward design and good radiation pattern. Question 15. In a waveguide, what property prevents electromagnetic waves from propagating in certain directions? A) Cut-off frequency B) Impedance mismatch C) Reflection coefficient D) Polarization mismatch Answer: A
D) Propagation constant Answer: A Explanation: Characteristic impedance reflects the inherent opposition of a transmission line to alternating current at a given frequency, affecting signal transmission and matching. Question 18. Which boundary condition must be satisfied by the normal component of the magnetic flux density at the interface between two magnetic materials? A) It is continuous across the boundary B) It equals zero at the boundary C) It depends on free surface currents only D) It is discontinuous if permeability differs Answer: A Explanation: The normal component of magnetic flux density (B) remains continuous across the boundary, assuming no free surface magnetic charges. Question 19. Which of the following is a common application of the finite element method (FEM) in electromagnetics? A) Designing complex 3D structures like antennas and waveguides
B) Computing impedance on simplified transmission lines C) Analyzing steady-state DC circuits only D) Generating analytical solutions for Maxwell’s equations Answer: A Explanation: FEM is widely used for complex geometries and boundary value problems in electromagnetics, such as antenna design and waveguide analysis. Question 20. Which physical phenomenon is primarily responsible for electromagnetic wave propagation in free space? A) Oscillating electric charges B) Time-varying electric and magnetic fields coupled together C) Static electric charges D) Steady magnetic fields Answer: B Explanation: Electromagnetic waves propagate through space due to the coupling of oscillating electric and magnetic fields, as described by Maxwell’s equations. Question 21. The phase velocity of an electromagnetic wave in a non- magnetic, lossless medium is given by which expression?
Question 23. Which of the following materials exhibit high magnetic permeability but low electrical conductivity? A) Ferromagnetic materials B) Dielectrics C) Conductors D) Superconductors Answer: A Explanation: Ferromagnetic materials have high permeability, enabling strong magnetic responses, but typically have low electrical conductivity. Question 24. The method of moments (MoM) is primarily used for analyzing which type of electromagnetic problems? A) Radiation and scattering problems involving antennas and scatterers B) Static electric field problems C) Circuit impedance calculations D) Wave propagation in homogeneous media only Answer: A Explanation: MoM is a numerical technique used extensively to analyze electromagnetic scattering, antenna design, and radiation problems by converting integral equations into solvable algebraic equations.
Question 25. In an electromagnetic wave traveling in a lossless medium, what is the relationship between the magnitudes of the electric and magnetic fields? A) ( |E| = c |H| ) B) ( |E| = \mu_0 |H| ) C) ( |E| = \varepsilon_0 |H| ) D) ( |E| \gg |H| ) Answer: A Explanation: In a plane electromagnetic wave in free space, the electric and magnetic fields are related by ( |E| = c |H| ), where ( c ) is the speed of light. Question 26. What is the primary purpose of a waveguide in microwave engineering? A) To confine and direct electromagnetic waves with minimal loss B) To convert electrical signals into optical signals C) To amplify microwave signals D) To generate electromagnetic waves Answer: A
Answer: D Explanation: The continuity equation, derived from Maxwell’s equations, expresses the local conservation of charge by relating current density divergence to the time rate of change of charge density. Question 29. Which concept describes the ability of a material to store electric energy in an electric field? A) Capacitance B) Permeability C) Conductivity D) Inductance Answer: A Explanation: Capacitance quantifies the amount of electric charge stored per unit voltage, representing a material or device's capacity to store electric energy. Question 30. The skin effect in conductors at high frequencies is characterized by: A) Current flowing predominantly near the surface of the conductor B) Uniform current distribution across the conductor cross-section C) Complete suppression of current flow
D) Increased capacitance of the conductor Answer: A Explanation: The skin effect causes high-frequency currents to concentrate near the surface of conductors, increasing resistance and reducing effective cross-sectional conduction. Question 31. Which property of a dielectric material determines how much electric field it can sustain before breakdown? A) Dielectric strength B) Permittivity C) Conductivity D) Permeability Answer: A Explanation: Dielectric strength is the maximum electric field a dielectric material can withstand without undergoing electrical breakdown. Question 32. In the context of electromagnetic wave propagation, what does the term "phase velocity" refer to? A) The speed at which a particular phase of the wave propagates B) The speed of energy transfer in the wave
B) The permeability of the medium only C) The frequency of the wave only D) The electric charge density Answer: A Explanation: Reflection at an interface is determined by the impedance mismatch between two media; greater mismatch results in higher reflection coefficients. Question 35. Which of the following best describes the concept of "impedance matching" in transmission lines? A) Making the load impedance equal to the characteristic impedance to maximize power transfer B) Ensuring the line is perfectly insulated C) Reducing the electrical length of the transmission line D) Increasing the physical length of the transmission line for better performance Answer: A Explanation: Impedance matching involves designing the load impedance to equal the characteristic impedance, thereby minimizing reflections and maximizing power transfer.
Question 36. The magnetic scalar potential is primarily used in the analysis of: A) Magnetostatic problems with no free currents B) Electromagnetic wave propagation C) Time-varying electric fields D) Conductive loss calculations Answer: A Explanation: The scalar potential is useful in magnetostatics when dealing with regions free of currents, simplifying the magnetic field analysis. Question 37. Which numerical method is best suited for solving large- scale electromagnetic scattering problems involving complex geometries? A) Method of Moments (MoM) B) Finite Difference Time Domain (FDTD) C) Finite Element Method (FEM) D) Analytical solutions Answer: C
