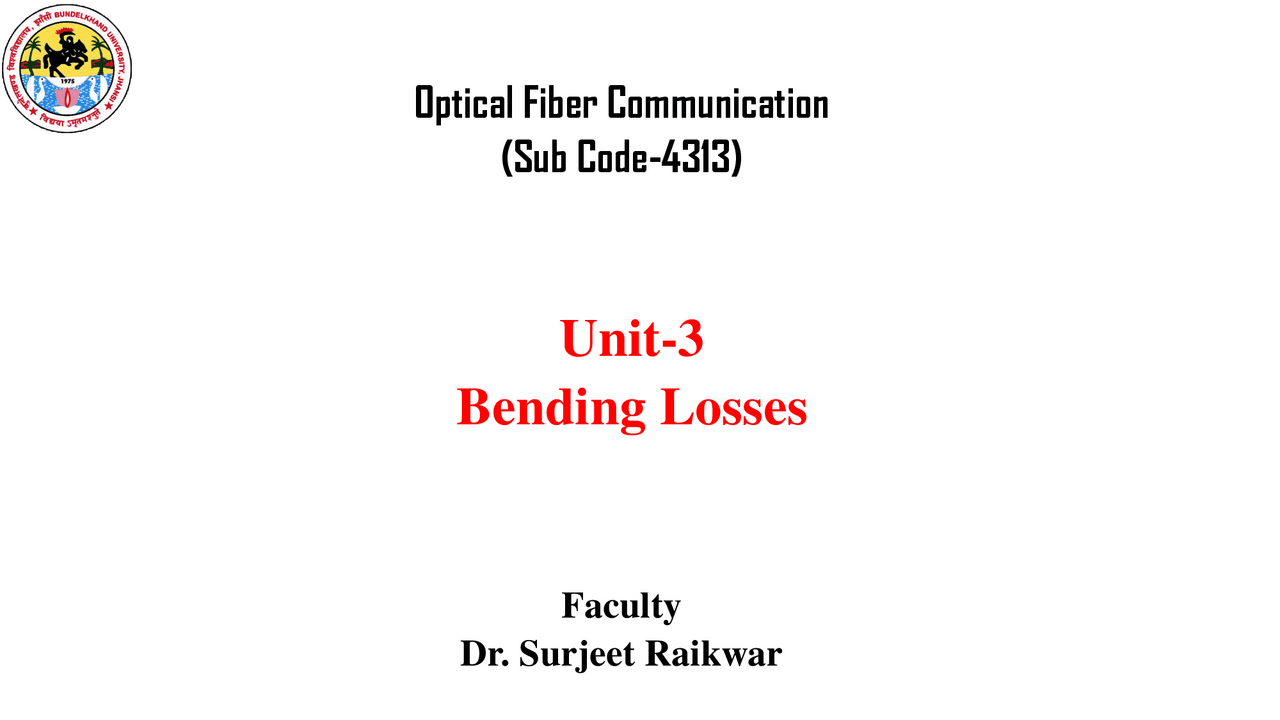

Optical Fiber Communication

(Sub Code-4313)

Faculty

Dr. Surjeet Raikwar

Unit- 3

Bending Losses

The strength of optical signals transmitted

through a fiber can be degraded due to various

factors like absorption, scattering, bending

loss, etc. Fiber bending losses are the

radiative losses that occur in optical fibers due

to its bending as shown in figure 1. It occur

when the fiber optic cable is bent too tightly

or too sharply, causing some of the light to

escape from the fiber core. This results in a

loss of signal strength and a decrease in

overall performance.

Fiber bending losses

In general, smaller diameter fibers are more susceptible to bend losses than larger

diameter fibers because they have a smaller area for the light to travel through,

which increases the amount of light that comes in contact with the fiber's cladding.

And also, shorter wavelengths of light are more susceptible to bend losses than

longer wavelengths as they have a higher refractive index and experience more

bending when traveling through the fiber.

There are several different types of fiber bend losses, including -

Macro-bending losses

Micro-bending losses

Macro-bending losses

Macro-bending losses refer to the attenuation of light signals in optical fibers due to large-

scale bends or curvatures, typically with radii greater than 10 mm.

Causes of Macro-Bending Losses:

1. Mode coupling: Energy transfer between modes

2. Mode filtering: Attenuation of higher-order modes

3. Radiation losses: Light escapes from fiber core

4. Fiber deformation: Changes in fiber shape and refractive index

Factors Affecting Macro-Bending Losses:

1. Bend radius (R) and curvature

2. Fiber diameter (d) and numerical aperture (NA)

3. Wavelength (λ) and polarization

4. Fiber material and coating

5. Temperature (T) and environmental conditions

Micro-bending losses

Micro-bending refers to small-scale bends or curvatures in optical fibers, typically with radii

less than 1 mm.

Causes of Micro-bending:

1. Fiber coating and jacket imperfections

2. Cable design and manufacturing defects

3. Installation and handling errors

4. Environmental factors

(temperature, humidity, vibration)

Effects of Micro-bending:

1. Attenuation and signal degradation

2. Increased noise and crosstalk

3. Reduced system reliability and performance

4. Limitations on fiber routing and installation

Mitigation Techniques:

1. Fiber design optimization (e.g., micro-bend-resistant fibers)

2. Coating and jacket optimization

3. Cable design and manufacturing improvements

4. Installation and handling best practices

5. Compensation techniques (e.g., amplification, equalization)
