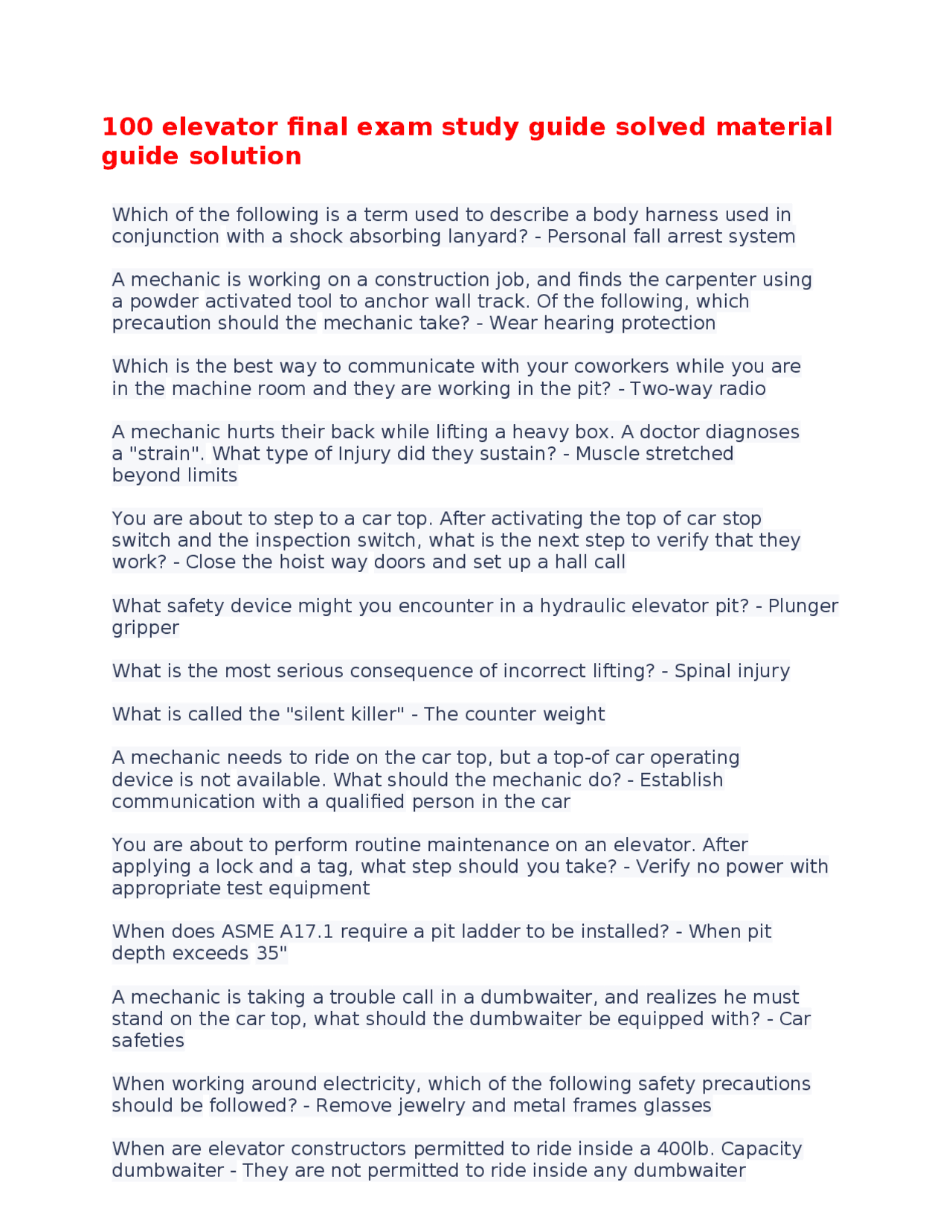

100 elevator final exam study guide solved material
guide solution
Which of the following is a term used to describe a body harness used in
conjunction with a shock absorbing lanyard? - Personal fall arrest system
A mechanic is working on a construction job, and finds the carpenter using
a powder activated tool to anchor wall track. Of the following, which
precaution should the mechanic take? - Wear hearing protection
Which is the best way to communicate with your coworkers while you are
in the machine room and they are working in the pit? - Two-way radio
A mechanic hurts their back while lifting a heavy box. A doctor diagnoses
a "strain". What type of Injury did they sustain? - Muscle stretched
beyond limits
You are about to step to a car top. After activating the top of car stop
switch and the inspection switch, what is the next step to verify that they
work? - Close the hoist way doors and set up a hall call
What safety device might you encounter in a hydraulic elevator pit? - Plunger
gripper
What is the most serious consequence of incorrect lifting? - Spinal injury
What is called the "silent killer" - The counter weight
A mechanic needs to ride on the car top, but a top-of car operating
device is not available. What should the mechanic do? - Establish
communication with a qualified person in the car
You are about to perform routine maintenance on an elevator. After
applying a lock and a tag, what step should you take? - Verify no power with
appropriate test equipment
When does ASME A17.1 require a pit ladder to be installed? - When pit
depth exceeds 35"
A mechanic is taking a trouble call in a dumbwaiter, and realizes he must
stand on the car top, what should the dumbwaiter be equipped with? - Car
safeties
When working around electricity, which of the following safety precautions
should be followed? - Remove jewelry and metal frames glasses
When are elevator constructors permitted to ride inside a 400lb. Capacity
dumbwaiter - They are not permitted to ride inside any dumbwaiter
pf3
pf4
pf5
pf8
pf9
pfa

Partial preview of the text

Download Elevator Final Exam Study Guide: Solved Material and more Exams Mechanics in PDF only on Docsity!

100 elevator final exam study guide solved material

guide solution

Which of the following is a term used to describe a body harness used in conjunction with a shock absorbing lanyard? - Personal fall arrest system A mechanic is working on a construction job, and finds the carpenter using a powder activated tool to anchor wall track. Of the following, which precaution should the mechanic take? - Wear hearing protection Which is the best way to communicate with your coworkers while you are in the machine room and they are working in the pit? - Two-way radio A mechanic hurts their back while lifting a heavy box. A doctor diagnoses a "strain". What type of Injury did they sustain? - Muscle stretched beyond limits You are about to step to a car top. After activating the top of car stop switch and the inspection switch, what is the next step to verify that they work? - Close the hoist way doors and set up a hall call What safety device might you encounter in a hydraulic elevator pit? - Plunger gripper What is the most serious consequence of incorrect lifting? - Spinal injury What is called the "silent killer" - The counter weight A mechanic needs to ride on the car top, but a top-of car operating device is not available. What should the mechanic do? - Establish communication with a qualified person in the car You are about to perform routine maintenance on an elevator. After applying a lock and a tag, what step should you take? - Verify no power with appropriate test equipment When does ASME A17.1 require a pit ladder to be installed? - When pit depth exceeds 35" A mechanic is taking a trouble call in a dumbwaiter, and realizes he must stand on the car top, what should the dumbwaiter be equipped with? - Car safeties When working around electricity, which of the following safety precautions should be followed? - Remove jewelry and metal frames glasses When are elevator constructors permitted to ride inside a 400lb. Capacity dumbwaiter - They are not permitted to ride inside any dumbwaiter

Who is ultimately responsible for ensuring adequate lighting at a work site? - You Your mechanic asks you to perform a job site inspection and you find a serious OSHA violation. Who would you notify first? - Your mechanic What are the two most common causes of accidents to members of the general public on elevators? - Trips and falls, and being struck by the doors Before shortening a governor rope, what safety steps should be taken? - LOTO and support tension sheave You aren't sure if a particular hoistway is considered a permit-required confined space. Where can you find more information? - OSHA 29 CFR 1926 code You arrive at the machine room to replace a thrust bearing and find the lights are not working. What should you do? - Do not start work until the lighting is restored After locking out and tagging out the electrical system, what safety step must be taken before entering an escalator truss? - Install a mechanical lock A mechanic is about to lubricate a governor tension sheave in a traction elevator pit. Before beginning work, what must be done? - Lock out and tag out An elevator constructor is asked to check on something in the pit. When must barriers be installed? - When hoistway door will be open more than 5" When is public safety an elevator constructors responsibility? - During all work-related activities When carrying a screwdriver in your pocket on a car top, what safety factors must be considered? - It doesn't matter; you should never carry a screw driver in your pocket You are ordering wood planking to provide overhead protection for a temporary working platform. At a minimum, how thick must the wood be? - 2" Which organization' s code prohibits storing anything on top of the car? - ASME You are modernizing an elevator where the Public is present. What are the barricade requirements? - Solid barricade at least 8' high, fully enclosing the work area Why did the elevator mechanic direct the apprentice not to run gasoline generator in an enclosed parking garage? - The risk of exposure to Carbon

When using power tools in older buildings without ground led outlets, what precaution must you take? - Verify a positive ground and use an adapter plug with grounding wire In the elevator industry, why are fiberglass ladders the most common type of ladders used? - They are non-conductive When would a mechanic be required to replace an escalator comb or comb plate? - When teeth are broken Along with spring buffers, limit switches, and cylinder head packing, what else would be found in a conventional hydraulic elevator pit? - Drip collection pan or oil return system When lifting heavy objects, what is the best lifting technique to use? - Back straight, legs bent When performing any work in a traction elevator pit, which hazard is known as the silent killer - Counterweight Which conveyance system is described as one in which a "car" or "cab" is moved up or down a hoistway by suspension means? - Traction elevator What must elevator constructors do before using chemical solutions or cleaning fluids? - Read SDS You are asked to install additional lighting in the hoistway. What type of extension cord should you use? - Three-wire In which type of conveyance system is the energy applied by means of a liquid under pressure? - Hydraulic elevator Refer to the figure. An apprentice is setting up a ladder to access a landing 12 feet above his level. What is dimension B? - 3 feet Prior to using the elevator car sling as a running platform, what must be operational and tested? - Governor and safeties Which entity requires all employees be given information and training on the long and short term health effects of the chemicals they work with? - OSHA What type of fire extinguisher is required in the machine room? - ABC When moving heavy parts or machinery, which if the following is most important? - Establishing good communication with coworkers

What size must a dumbwaiter cab enclosure be to transport people? - Dumbwaiter s may only transport materials, not people While working on a moving walk, where are barriers required? - At the points embarkation and disembarkation At which point on the lifeline should your lanyard be attached? - Above your shoulder A construction crew arrives to work on Monday morning and finds the overhead machine room floor is being poured. What precautions shoot be taken? - Avoid working in the hoistway What are 2 types of mechanical drawings used in elevator installations? - Layout drawing, detail drawing You are installing a V-belt drive pulley on a 40 horse motor for a hydraulic pump unit. What type of acre is needed to lock down the pulley to motor shaft? - Hexagonal socket with cup head screws You must order enough wire to complete installation of a duplex. Where would you find the information that would determine how much wire is needed? - Electrical layout In the metric system, how is the measurement of volume identified? - Liter Refer to print 1. Which view shows the pit depth? - A. Elevation view You are installing rails in a new building. Which drawing will you reference? - Rail installation detail drawing What part of the job folder would contain information regarding elevator speed, capacity, and loading class? - Abstract When replacing typical rollers on guides, what is the appropriate tool and fastener to be used? - Snap ring pliers/ snap rings What method should an elevator constructor use to check the well hole depth? - Drop a weight led line to the bottom and measure the line What is the simplest locking device used to prevent loosening due to vibrations? - Jam type nuts When installing pipe, what type of threads would you use to create a proper seal? - Pipe threads What information is typically provided in a job folder? - Contract speed, car platform thickness, machine groove type

When installing an escalator, what is the most common type of measurement system used? - Metric On the plan drawing, the main guide rails are shown in relation to the location of what? - Column line What is the acceptable tolerance (in inches) for the installation of guide rails on a job where the layout drawing does not specify a maximum or minimum dimension? - Plus or minus 1/64" What needs to be done prior to surveying the hoistway? - Install plumb line With regard to prints, what is another term for arias view? - Plan view What is the term for viewing an object straight on from many sides, with each side being at right angles to its adjacent side? - Orthographic projection What dangerous gas is given off by a running gasoline engine? - Carbon monoxide Why must you LOTO the main disconnect witch before checking the oil reservoir? - So the pump will not start What do you need to be certain of before getting on top of a dumbwaiter - That it can support your weight and it has safeties What makes a hydraulic elevator pit dangerous? - The car can come down without power What is the function of a ground fault circuit interrupter? - Detect an imbalance in current between the hot and neutral wires What are the main hazards in the machine room of a heated traction elevator? - Electrical and mechanical hazards Which of the following best describes the danger posed by the counter weight assembly when you are riding the car top? - It runs close by in the opposite direction What is the most serious consequence of incorrect lifting? - Spinal injury Why must you place a hydraulic elevator car on support posts before servicing the packing head? - Because a hydraulic elevator is supported by a column of oil What is the lowest amount of electrical current that can be fatal? - 0. amperes How do you determine the correct angle from the vertical for placing a ladder? - Measure out a distance of 1/4 the height

Where would you find hoistway access switches mounted? - At a terminal landing What is the safest way to lubricate hoist ropes? - With a rope lubricator What device must be in working condition in order to use an elevator car sling as a running platform - The governor and safeties Many older buildings contain fireproofing materials made of which hazardous substances? - Asbestos What are the three levels of reaction to an electrical shock? - Perception, surprise, freeze What is the first thing you must do before performing any service on an escalator? - Place barricades at the upper and lower ends What are the two most obvious dangers in the machine room? - Electricity and moving machinery What is the name of the document that lists the hazards of substance? - Safety data sheet Who is responsible for seeing that barricades are kept in place? - Everyone on the job What is a "walk-in" pit? - A pit with an access door at floor level of the pit What is the maximum capacity of a dumbwaiter? - 500lbs What supports a hydraulic elevator? - The column of oil inside the jack What amount of force, in the direction of the hoistway, must the approved barricade be able to withstand? - 200lbs What is the required height for OSHA approved barricade? - 42" What three factors determine the severity of injury from contact with electricity? - The route through the body, current, and exposure time Ties must be capable of which of the following - Resisting both tension and compressive forces If a scaffold grade plank is used for a sill - It must never be used as a component of a scaffold platform

What is the maximum allowable height of the top rail of a guardrail system? - 45 inches How often must scaffolding be inspected before it can be used? - Before each work shift Each suspended scaffold installation should hav me a/an - Emergency plan Any scaffold or accessories that are damaged shall be - Repaired and replaced How many means of breaking must a hoist have? - 2 When using a suspended scaffold, when is it ok to unhook your fall arrest? - When you have safely excited the platform The center line of the top rail of a guard rail must be? - 36" to 45" What is the minimum strength of the top rail of a guardrail system for a suspended platform? - 100lbs What safety factor is required for suspended scaffold? - 4: When normal voice communication cannot be used what is required? - 2- way communication devices The secondary brake on winding drum must be manually reset once it trips - True The anchor point for a lifeline must be capable of supporting for each safety like attached to it - 5000 pounds What statement best describes a layout drawing? - Overall view showing how large pieces and assemblies are placed in a building Which of the following best describes the final layout drawing? - A mechanical drawing showing plan and elevation views of the elevator installation Which document would provide information on the number and color of doors for an installation? - Job abstract What is the purpose of the elevation view found in the final layouts? - To show vertical locations and dimensions of elevator components How many possible views are available from drawings using orthographic projections? - Six What are the two major categories of construction drawings used in the elevator trade?
