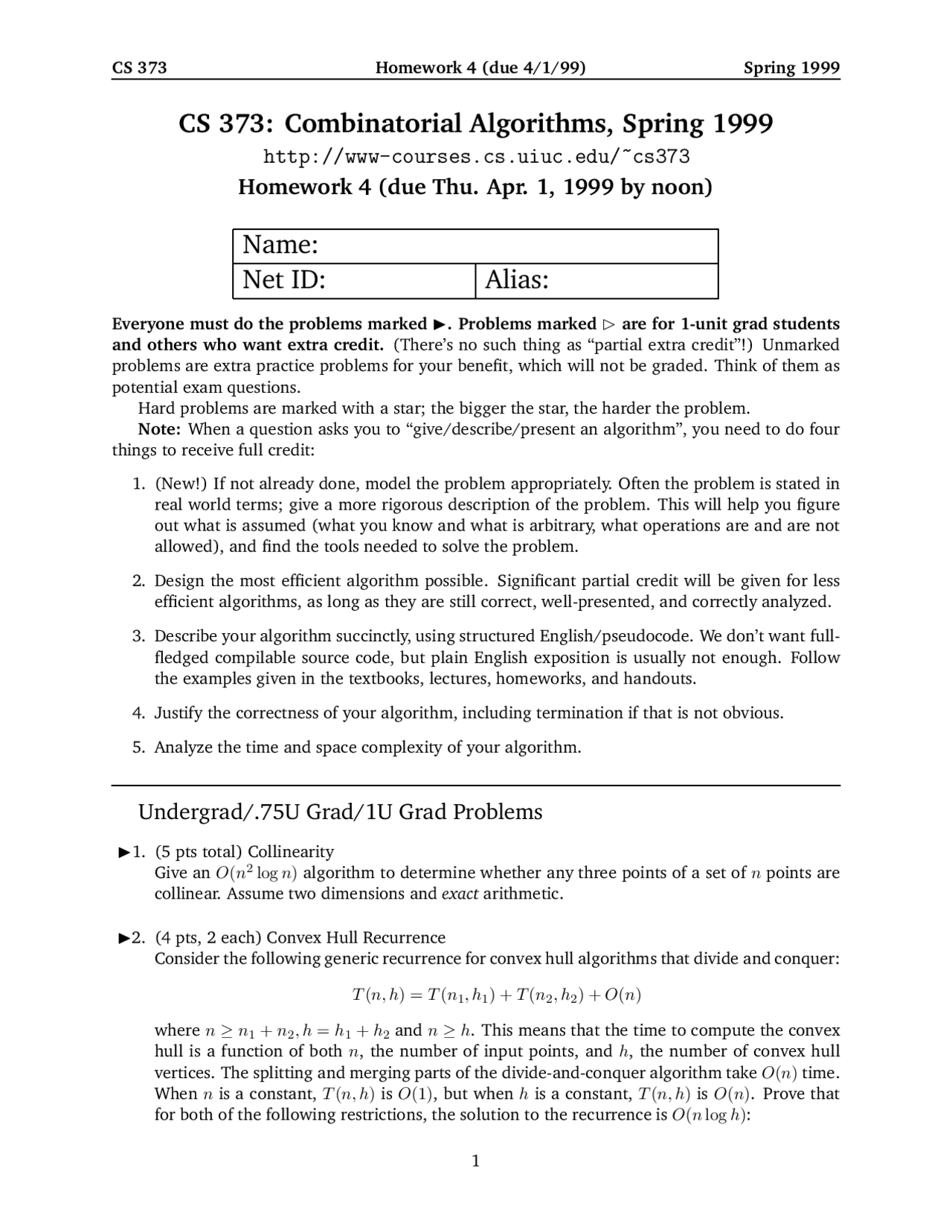

CS 373 Homework 4 (due 4/1/99) Spring 1999
CS 373: Combinatorial Algorithms, Spring 1999
http://www-courses.cs.uiuc.edu/~cs373
Homework 4 (due Thu. Apr. 1, 1999 by noon)
Name:
Net ID: Alias:
Everyone must do the problems marked . Problems marked are for 1-unit grad students
and others who want extra credit. (There’s no such thing as “partial extra credit”!) Unmarked
problems are extra practice problems for your benefit, which will not be graded. Think of them as
potential exam questions.
Hard problems are marked with a star; the bigger the star, the harder the problem.
Note: When a question asks you to “give/describe/present an algorithm”, you need to do four
things to receive full credit:
1. (New!) If not already done, model the problem appropriately. Often the problem is stated in
real world terms; give a more rigorous description of the problem. This will help you figure
out what is assumed (what you know and what is arbitrary, what operations are and are not
allowed), and find the tools needed to solve the problem.
2. Design the most efficient algorithm possible. Significant partial credit will be given for less
efficient algorithms, as long as they are still correct, well-presented, and correctly analyzed.
3. Describe your algorithm succinctly, using structured English/pseudocode. We don’t want full-
fledged compilable source code, but plain English exposition is usually not enough. Follow
the examples given in the textbooks, lectures, homeworks, and handouts.
4. Justify the correctness of your algorithm, including termination if that is not obvious.
5. Analyze the time and space complexity of your algorithm.
Undergrad/.75U Grad/1U Grad Problems
1. (5 pts total) Collinearity
Give an O(n2log n)algorithm to determine whether any three points of a set of npoints are
collinear. Assume two dimensions and exact arithmetic.
2. (4 pts, 2 each) Convex Hull Recurrence
Consider the following generic recurrence for convex hull algorithms that divide and conquer:
T(n, h) = T(n1, h1) + T(n2, h2) + O(n)
where nn1+n2, h =h1+h2and nh. This means that the time to compute the convex
hull is a function of both n, the number of input points, and h, the number of convex hull
vertices. The splitting and merging parts of the divide-and-conquer algorithm take O(n)time.
When nis a constant, T(n, h)is O(1), but when his a constant, T(n, h)is O(n). Prove that
for both of the following restrictions, the solution to the recurrence is O(nlog h):
1
pf3

Partial preview of the text

Download CS 373 Homework 4, Spring 1999 and more Assignments Computer Science in PDF only on Docsity!

CS 373: Combinatorial Algorithms, Spring 1999

http://www-courses.cs.uiuc.edu/~cs

Homework 4 (due Thu. Apr. 1, 1999 by noon)

Name:

Net ID: Alias:

Everyone must do the problems marked ◮. Problems marked  are for 1-unit grad students

and others who want extra credit. (There’s no such thing as “partial extra credit”!) Unmarked problems are extra practice problems for your benefit, which will not be graded. Think of them as potential exam questions. Hard problems are marked with a star; the bigger the star, the harder the problem. Note: When a question asks you to “give/describe/present an algorithm”, you need to do four things to receive full credit:

  1. (New!) If not already done, model the problem appropriately. Often the problem is stated in real world terms; give a more rigorous description of the problem. This will help you figure out what is assumed (what you know and what is arbitrary, what operations are and are not allowed), and find the tools needed to solve the problem.
  2. Design the most efficient algorithm possible. Significant partial credit will be given for less efficient algorithms, as long as they are still correct, well-presented, and correctly analyzed.
  3. Describe your algorithm succinctly, using structured English/pseudocode. We don’t want full- fledged compilable source code, but plain English exposition is usually not enough. Follow the examples given in the textbooks, lectures, homeworks, and handouts.
  4. Justify the correctness of your algorithm, including termination if that is not obvious.
  5. Analyze the time and space complexity of your algorithm.

Undergrad/.75U Grad/1U Grad Problems

◮1. (5 pts total) Collinearity

Give an O(n^2 log n) algorithm to determine whether any three points of a set of n points are collinear. Assume two dimensions and exact arithmetic.

◮2. (4 pts, 2 each) Convex Hull Recurrence

Consider the following generic recurrence for convex hull algorithms that divide and conquer:

T (n, h) = T (n 1 , h 1 ) + T (n 2 , h 2 ) + O(n)

where n ≥ n 1 + n 2 , h = h 1 + h 2 and n ≥ h. This means that the time to compute the convex hull is a function of both n, the number of input points, and h, the number of convex hull vertices. The splitting and merging parts of the divide-and-conquer algorithm take O(n) time. When n is a constant, T (n, h) is O(1), but when h is a constant, T (n, h) is O(n). Prove that for both of the following restrictions, the solution to the recurrence is O(n log h):

(a) h 1 , h 2 < 34 h (b) n 1 , n 2 < 34 n

◮3. (5 pts) Circle Intersection

Give an O(n log n) algorithm to test whether any two circles in a set of size n intersect.

◮4. (5 pts total) Staircases

You are given a set of points in the first quadrant. A left-up point of this set is defined to be a point that has no points both greater than it in both coordinates. The left-up subset of a set of points then forms a staircase (see figure).

(a) (3 pts) Give an O(n log n) algorithm to find the staircase of a set of points. (b) (2 pts) Assume that points are chosen uniformly at random within a rectangle. What is the average number of points in a staircase? Justify. Hint: you will be able to give an exact answer rather than just asymptotics. You have seen the same analysis before.

Only 1U Grad Problems

1. (6 pts, 2 each) Ghostbusters and Ghosts

A group of n ghostbusters is battling n ghosts. Each ghostbuster can shoot a single energy beam at a ghost, eradicating it. A stream goes in a straight line and terminates when it hits a ghost. The ghostbusters must all fire at the same time and no two energy beams may cross. The positions of the ghosts and ghostbusters is fixed in the plane (assume that no three points are collinear).

(a) Prove that for any configuration ghosts and ghostbusters there exists such a non-crossing matching. (b) Show that there exists a line passing through one ghostbuster and one ghost such that the number of ghostbusters on one side of the line equals the number of ghosts on the same side. Give an efficient algorithm to find such a line. (c) Give an efficient divide and conquer algorithm to pair ghostbusters and ghosts so that no two streams cross.
