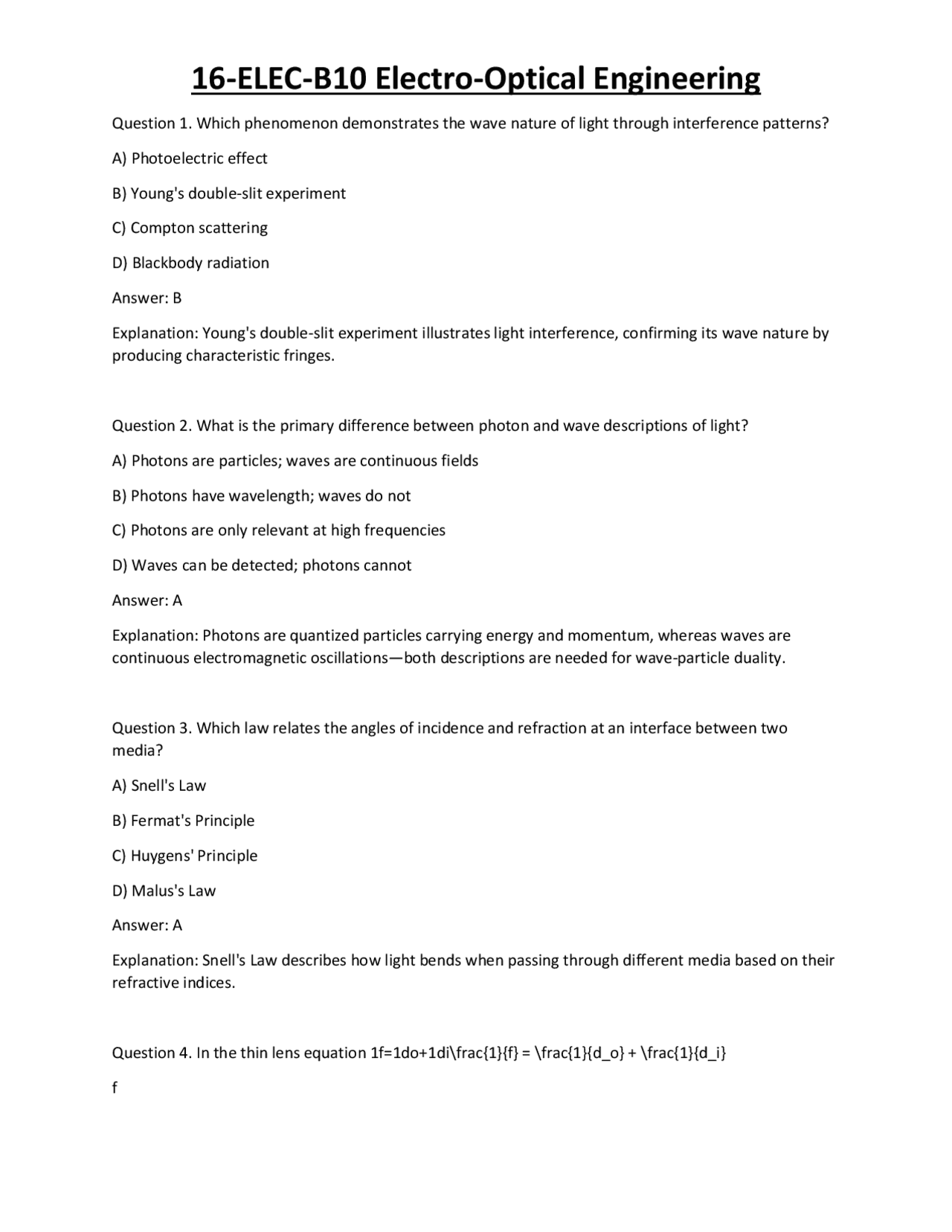

Question 1. Which phenomenon demonstrates the wave nature of light through interference patterns? A) Photoelectric effect B) Young's double-slit experiment C) Compton scattering D) Blackbody radiation Answer: B Explanation: Young's double-slit experiment illustrates light interference, confirming its wave nature by producing characteristic fringes. Question 2. What is the primary difference between photon and wave descriptions of light? A) Photons are particles; waves are continuous fields B) Photons have wavelength; waves do not C) Photons are only relevant at high frequencies D) Waves can be detected; photons cannot Answer: A Explanation: Photons are quantized particles carrying energy and momentum, whereas waves are continuous electromagnetic oscillations—both descriptions are needed for wave-particle duality. Question 3. Which law relates the angles of incidence and refraction at an interface between two media? A) Snell's Law B) Fermat's Principle C) Huygens' Principle D) Malus's Law Answer: A Explanation: Snell's Law describes how light bends when passing through different media based on their refractive indices. Question 4. In the thin lens equation 1f=1do+1di\frac{1}{f} = \frac{1}{d_o} + \frac{1}{d_i} f
1 = d o 1 + d i 1 , what does dod_od o represent? A) Image distance B) Object distance C) Focal length D) Magnification Answer: B Explanation: dod_od o is the object distance from the lens, used in calculating the image position and size.
Question 8. What type of polarization involves the electric field vector rotating in a circle as the wave propagates? A) Linear polarization B) Circular polarization C) Elliptical polarization D) Unpolarized light Answer: B Explanation: Circular polarization has the electric field rotating in a circle, resulting from phase-shifted orthogonal components. Question 9. Which term defines the coherence of a light source where the phase difference between waves remains constant over time? A) Spatial coherence B) Temporal coherence C) Both A and B D) Spectral width Answer: B Explanation: Temporal coherence refers to the stability of phase over time, essential for interference effects. Question 10. What is radiant flux measured in? A) Watts (W) B) Lumens (lm) C) Candela (cd) D) Joules (J) Answer: A Explanation: Radiant flux (also called radiated power) is the total electromagnetic energy emitted per second, measured in watts. Question 11. Which law describes the spectral distribution of blackbody radiation?
A) Wien's Displacement Law B) Planck's Law C) Stefan-Boltzmann Law D) Snell's Law Answer: B Explanation: Planck's Law provides the spectral radiance of a blackbody at a given temperature, explaining intensity distribution. Question 12. The refractive index of an optical material is primarily related to which property? A) Absorption coefficient B) Speed of light in the material C) Scattering centers D) Nonlinear response Answer: B Explanation: The refractive index quantifies how much the light slows down in the material, affecting refraction. Question 13. Which light source operates based on stimulated emission and requires population inversion? A) Incandescent lamp B) LED C) Laser D) Fluorescent lamp Answer: C Explanation: Lasers rely on stimulated emission and population inversion to produce coherent, monochromatic light. Question 14. Which type of laser uses a gas mixture like helium and neon? A) Solid-state laser B) Gas laser
Explanation: The Pockels effect is a linear electro-optic effect where the refractive index changes proportionally to the applied electric field. Question 18. Which phenomenon involves the interaction of light with acoustic waves to modulate or deflect the beam? A) Pockels effect B) Kerr effect C) Acousto-optic effect D) Faraday effect Answer: C Explanation: The acousto-optic effect involves the modulation of light by sound waves, enabling devices like AOMs. Question 19. Which principle allows optical fibers to confine light through total internal reflection? A) Diffraction B) Refraction at the core-cladding interface C) Coherence of light sources D) Polarization effects Answer: B Explanation: Total internal reflection occurs at the core-cladding boundary when light hits at angles greater than the critical angle, confining it within the fiber. Question 20. In a step-index fiber, what is the primary characteristic? A) Gradual change in refractive index across the core B) Uniform core refractive index with a sharp boundary to cladding C) Multimode propagation only D) No dispersion effects Answer: B Explanation: Step-index fibers have a uniform core refractive index with a sudden change at the cladding boundary, simplifying light propagation modeling.
Question 21. Which of the following is a typical attenuation mechanism in optical fibers? A) Spontaneous emission B) Rayleigh scattering C) Stimulated emission D) Thermal radiation Answer: B Explanation: Rayleigh scattering, caused by microscopic density fluctuations, is a major source of attenuation in optical fibers. Question 22. Which modulation technique encodes data by varying the amplitude of the optical carrier? A) ASK (Amplitude Shift Keying) B) FSK (Frequency Shift Keying) C) PSK (Phase Shift Keying) D) QAM (Quadrature Amplitude Modulation) Answer: A Explanation: ASK modulates the amplitude of the carrier wave to encode information. Question 23. Wavelength Division Multiplexing (WDM) primarily increases which aspect of an optical communication link? A) Power output B) Data rate and capacity C) Signal-to-noise ratio D) Fiber attenuation Answer: B Explanation: WDM allows multiple wavelengths to be transmitted simultaneously, increasing overall data capacity. Question 24. Which imaging device converts light into electronic signals by capturing charge in an array of pixels?
B) Thermal detector C) Photomultiplier tube D) CCD sensor Answer: B Explanation: Thermal detectors measure temperature by detecting blackbody radiation emitted by objects. Question 28. What is a major advantage of OLED displays over traditional LCDs? A) They require backlighting B) They emit light directly and can be made flexible C) They are less efficient D) They use liquid crystals to modulate light Answer: B Explanation: OLEDs emit light directly from organic materials, allowing for flexible, thin, and high- contrast displays. Question 29. Which optical element is used to change the polarization state of light via phase delay? A) Polarizer B) Wave plate C) Beam splitter D) Diffraction grating Answer: B Explanation: Wave plates introduce a phase shift between orthogonal polarization components, altering polarization. Question 30. In the context of optical system design, what does the term "signal-to-noise ratio (SNR)" refer to? A) The ratio of signal power to background noise power B) The maximum signal strength achievable C) The ratio of optical power to electrical power
D) The efficiency of light transmission in a fiber Answer: A Explanation: SNR measures the quality of a signal relative to background noise, critical for system performance. Question 31. Which nonlinear optical process involves the generation of new frequencies when intense light interacts with a nonlinear medium? A) Second harmonic generation B) Total internal reflection C) Rayleigh scattering D) Diffraction grating formation Answer: A Explanation: Second harmonic generation converts photons into double the frequency (half the wavelength) in nonlinear crystals. Question 32. Which of the following is an advantage of coherent laser light over incoherent sources? A) Broader spectral linewidth B) High monochromaticity and directionality C) Lower power output D) Less susceptibility to diffraction Answer: B Explanation: Coherent lasers produce monochromatic, highly directional beams suitable for precision applications. Question 33. The Kerr effect is characterized by which type of electro-optic response? A) Linear change in refractive index with electric field B) Quadratic change in refractive index with electric field C) Rotation of polarization plane D) Absorption of light in nonlinear media Answer: B
Question 37. Which optical component is primarily used in optical communication systems to amplify signals without converting them to electrical signals? A) Laser diode B) Optical amplifier (e.g., EDFA) C) Photodiode D) Modulator Answer: B Explanation: EDFA (Erbium-Doped Fiber Amplifier) amplifies optical signals directly in the fiber. Question 38. Which principle allows a fiber optic sensor to measure strain or temperature? A) Changes in light intensity due to absorption B) Variation in interference or Bragg wavelength due to physical changes C) Emission of fluorescence light D) Changes in thermal conductivity Answer: B Explanation: Fiber sensors often rely on shifts in interference patterns or Bragg gratings caused by strain or temperature variations. Question 39. Which spectral region is primarily used in thermal imaging systems? A) Visible spectrum B) Near-infrared C) Mid-infrared (thermal IR) D) Ultraviolet Answer: C Explanation: Thermal imaging detectors operate mainly in the mid-infrared region, detecting blackbody radiation emitted by objects. Question 40. Which property of a laser beam makes it ideal for precise surgical procedures? A) Low coherence B) High divergence
C) Monochromaticity and high intensity D) Broad spectral width Answer: C Explanation: The coherence and monochromaticity of laser light allow for precise, focused energy delivery in medical applications. Question 41. What is the main purpose of an optical isolator? A) To amplify the signal B) To prevent back reflections that could damage the source C) To split the beam into multiple paths D) To change polarization state Answer: B Explanation: Optical isolators allow light to pass in one direction only, protecting laser sources from back reflections. Question 42. Which of the following is a key advantage of photonic integrated circuits (PICs)? A) Larger size and higher power consumption B) Integration of multiple optical functions on a single chip C) Use only in free-space optical systems D) Limited to fiber optic components only Answer: B Explanation: PICs integrate multiple optical components on a single chip, leading to compact, efficient systems. Question 43. Which emerging field involves the study of light-matter interactions at the quantum level? A) Classical optics B) Quantum optics C) Geometric optics D) Nonlinear classical optics Answer: B
Question 47. In optical communication, what does the term "power budget" refer to? A) Total power transmitted by the source B) The difference between transmitted power and received minimum detectable power C) The maximum power the fiber can handle D) The power loss due to scattering only Answer: B Explanation: The power budget accounts for all losses and ensures the received power exceeds the receiver's sensitivity. Question 48. Which device is primarily used to convert electrical signals into optical signals in fiber optic systems? A) Photodiode B) Laser diode C) Photomultiplier D) CCD sensor Answer: B Explanation: Laser diodes are used as optical transmitters, converting electrical signals into coherent light. Question 49. What is the main advantage of using wavelength division multiplexing (WDM) in optical fibers? A) Increased transmission speed within a single wavelength B) Simultaneous transmission of multiple signals at different wavelengths C) Reduced fiber attenuation D) Simplifies the fiber fabrication process Answer: B Explanation: WDM allows multiple data channels to be transmitted simultaneously by multiplexing different wavelengths. Question 50. Which type of imaging system is most suitable for non-invasive, real-time surface topography measurements?
A) OCT (Optical Coherence Tomography) B) Thermal imaging C) Confocal microscopy D) Interferometry-based profilometry Answer: D Explanation: Interferometry-based profilometry provides high-resolution, non-contact surface measurements in real time. Question 51. Which of the following is a typical application of laser-induced breakdown spectroscopy (LIBS)? A) Material identification and analysis B) Thermal imaging C) Fiber coupling D) Optical data storage Answer: A Explanation: LIBS uses laser pulses to ablate material and analyze emitted light for composition analysis. Question 52. Which display technology uses liquid crystals modulated by electric fields to control light transmission? A) LED display B) LCD (Liquid Crystal Display) C) OLED display D) Plasma display Answer: B Explanation: LCDs operate by controlling liquid crystal alignment with electric fields to modulate light passing through or reflected. Question 53. Which optical property describes the measure of a material's ability to disperse light into its constituent colors? A) Absorption coefficient
Answer: A Explanation: The Faraday rotator rotates polarization by applying a magnetic field, used in isolators and circulators. Question 57. Which nonlinear optical process is responsible for converting infrared laser light into visible wavelengths? A) Second harmonic generation B) Sum-frequency generation C) Difference-frequency generation D) Both B and C Answer: D Explanation: Sum- and difference-frequency generation can convert infrared to visible wavelengths in nonlinear media. Question 58. In fiber-optic communication, what is modal dispersion caused by? A) Different wavelengths spreading over time B) Different propagation modes having different velocities C) Absorption losses in the fiber material D) Spontaneous emission noise Answer: B Explanation: Modal dispersion results from multiple modes traveling at different speeds, causing pulse broadening. Question 59. Which component in an optical link is used to convert an optical signal back into an electrical signal? A) Laser diode B) Photodiode C) Optical amplifier D) Modulator Answer: B
Explanation: Photodiodes detect incoming light and convert it into electrical current. Question 60. Which type of optical detector is most suitable for high-speed, high-sensitivity applications? A) Thermal detector B) Avalanche photodiode (APD) C) Photoconductor D) CCD sensor Answer: B Explanation: Avalanche photodiodes offer internal gain and fast response, suitable for high-speed, sensitive detection. Question 61. Which effect describes the change in refractive index of a material in response to an applied electric field? A) Photoelastic effect B) Electro-optic effect C) Acousto-optic effect D) Faraday effect Answer: B Explanation: The electro-optic effect involves refractive index modulation by electric fields, used in modulators. Question 62. Which device utilizes the photoelastic effect to modulate light with sound waves? A) Acousto-optic modulator B) Pockels cell C) Kerr cell D) Faraday rotator Answer: A Explanation: Acousto-optic modulators use the photoelastic effect to diffract and modulate light via sound waves.
