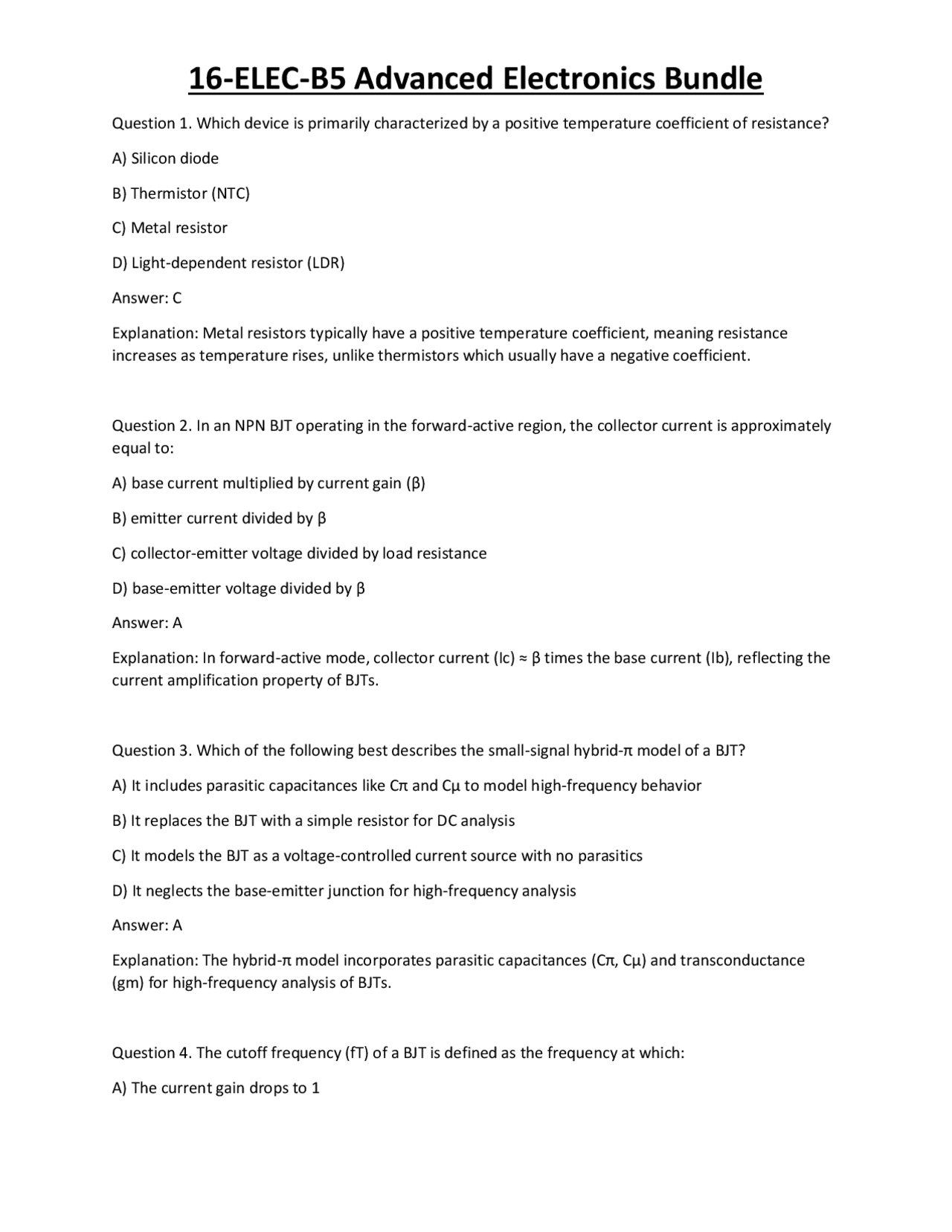

Question 1. Which device is primarily characterized by a positive temperature coefficient of resistance? A) Silicon diode B) Thermistor (NTC) C) Metal resistor D) Light-dependent resistor (LDR) Answer: C Explanation: Metal resistors typically have a positive temperature coefficient, meaning resistance increases as temperature rises, unlike thermistors which usually have a negative coefficient. Question 2. In an NPN BJT operating in the forward-active region, the collector current is approximately equal to: A) base current multiplied by current gain (β) B) emitter current divided by β C) collector-emitter voltage divided by load resistance D) base-emitter voltage divided by β Answer: A Explanation: In forward-active mode, collector current (Ic) ≈ β times the base current (Ib), reflecting the current amplification property of BJTs. Question 3. Which of the following best describes the small-signal hybrid-π model of a BJT? A) It includes parasitic capacitances like Cπ and Cμ to model high-frequency behavior B) It replaces the BJT with a simple resistor for DC analysis C) It models the BJT as a voltage-controlled current source with no parasitics D) It neglects the base-emitter junction for high-frequency analysis Answer: A Explanation: The hybrid-π model incorporates parasitic capacitances (Cπ, Cμ) and transconductance (gm) for high-frequency analysis of BJTs. Question 4. The cutoff frequency (fT) of a BJT is defined as the frequency at which: A) The current gain drops to 1
B) The voltage gain drops to 1 C) The collector current becomes zero D) The input impedance is maximized Answer: A Explanation: fT is the transition frequency where the current gain of the BJT falls to unity, indicating the maximum frequency for gain operation. Question 5. Which FET device is normally operated by applying a voltage to the gate to control the conduction channel? A) BJT B) JFET C) Thyristor D) Diac Answer: B Explanation: JFETs are voltage-controlled devices where the gate voltage modulates the depletion region, controlling the channel conduction. Question 6. In a MOSFET, channel length modulation causes: A) Changes in threshold voltage with drain voltage B) The output resistance to vary with drain voltage in saturation C) The gate capacitance to decrease with frequency D) The drain current to be independent of drain voltage Answer: B Explanation: Channel length modulation affects the effective channel length, causing the drain current to increase slightly with increasing drain voltage in saturation, modeled as an output resistance. Question 7. Which special semiconductor device is primarily used for switching applications and is characterized by latching behavior? A) SCR (Silicon Controlled Rectifier) B) Photodiode
Answer: B Explanation: The dominant pole usually sets the high-frequency cutoff point in multi-stage amplifiers, shaping the frequency response. Question 11. The gain-bandwidth product of an op-amp is: A) Constant for a given op-amp B) Dependent on the input signal amplitude C) Variable with frequency D) Dependent on the power supply voltage Answer: A Explanation: The gain-bandwidth product (GBW) is a constant for a given op-amp, representing the trade-off between gain and bandwidth. Question 12. In a negative feedback amplifier, increasing feedback typically results in: A) Increased gain and decreased bandwidth B) Decreased gain and increased bandwidth C) Increased gain and increased bandwidth D) Decreased gain and decreased bandwidth Answer: B Explanation: Negative feedback reduces the gain but increases the bandwidth of the amplifier, improving linearity and stability. Question 13. An ideal operational amplifier has which of the following characteristics? A) Infinite open-loop gain and input impedance B) Zero input bias current and zero input offset voltage C) Infinite bandwidth and zero output impedance D) All of the above Answer: D Explanation: Ideal op-amps are modeled with infinite gain, infinite input impedance, zero offset, infinite bandwidth, and zero output impedance.
Question 14. The primary purpose of a Schmitt trigger in circuit design is to: A) Generate sinusoidal signals B) Provide hysteresis for noise immunity C) Perform analog multiplication D) Serve as a power amplifier Answer: B Explanation: Schmitt triggers introduce hysteresis, making them suitable for clean digital switching in noisy environments. Question 15. The oscillation condition in a Colpitts oscillator is primarily determined by: A) The Barkhausen criteria involving loop gain and phase shift B) The Q-factor of the tank circuit only C) The biasing of the transistor in class A D) The amplitude of the input signal Answer: A Explanation: Oscillations occur when the loop gain magnitude is unity and the total phase shift is 0° or 360°, satisfying the Barkhausen criteria. Question 16. Power efficiency in a Class A amplifier is generally: A) Very high, about 90% or more B) Moderate, around 50% C) Low, typically less than 25% D) Not relevant for power amplifiers Answer: C Explanation: Class A amplifiers are inefficient because they conduct throughout the entire cycle, often with efficiencies below 25%. Question 17. Which of the following is a common topology for a switched-mode power supply? A) Buck converter
Answer: A Explanation: Instrumentation amplifiers are designed to precisely amplify small differential signals while rejecting common-mode noise. Question 21. Which sensor principle is based on the change in resistance with temperature? A) Thermistor (NTC or PTC) B) Photodiode C) Piezoelectric sensor D) Strain gauge Answer: A Explanation: Thermistors operate on the principle that resistance varies with temperature, used for temperature measurement. Question 22. In high-frequency circuit analysis, the skin effect causes: A) Current to concentrate near the conductor surface at high frequencies B) Resistance to decrease with frequency C) Capacitance to increase with frequency D) Inductive reactance to become negligible Answer: A Explanation: Skin effect causes high-frequency currents to flow near the surface of conductors, increasing effective resistance. Question 23. The reflection coefficient in transmission lines relates to: A) The ratio of reflected to incident wave amplitudes B) The impedance of the source only C) The phase shift of the transmitted wave D) The power loss in the line Answer: A Explanation: The reflection coefficient quantifies how much of the wave is reflected back due to impedance mismatch at the load.
Question 24. Flicker noise, also known as 1/f noise, is most prominent in: A) Low-frequency operation of semiconductors B) High-frequency RF circuits only C) Passive components only D) Power supply lines exclusively Answer: A Explanation: Flicker noise dominates at low frequencies in semiconductors and is characterized by its inverse frequency dependence. Question 25. In CMOS logic, the static power dissipation is primarily due to: A) Leakage currents during steady state B) Switching transients only C) Capacitor charging and discharging D) External power supply noise Answer: A Explanation: Static power in CMOS arises mainly from leakage currents when the device is not switching. Question 26. A dynamic RAM (DRAM) stores data using: A) Capacitor charge and discharge B) Flip-flops C) Magnetic fields D) Ferroelectric materials Answer: A Explanation: DRAM stores each bit as charge in a capacitor, which requires periodic refreshing. Question 27. An op-amp comparator operates in which mode? A) Non-linear, with saturation depending on input polarity B) Linear amplification with high gain
Explanation: SMPS are more efficient and compact due to their switching operation, reducing heat dissipation. Question 31. An R-2R ladder DAC architecture primarily offers: A) High linearity and ease of construction B) High speed but low resolution C) Non-linear transfer characteristics D) Simple analog filtering Answer: A Explanation: R-2R ladder DACs provide linear conversion with straightforward resistor network implementation. Question 32. Quantization error in an ADC results from: A) The finite number of discrete levels representing the analog input B) The sampling rate limitations C) The non-linearity of the converter D) External noise sources only Answer: A Explanation: Quantization error arises because the continuous analog input is approximated by a finite set of discrete digital levels. Question 33. The primary function of an optocoupler (optoisolator) is to: A) Electrically isolate different sections of a circuit while allowing signal transfer B) Convert digital signals to optical signals C) Amplify weak optical signals D) Serve as a power rectifier Answer: A Explanation: Optocouplers provide galvanic isolation between high- and low-voltage sections by using light to transfer signals.
Question 34. Which of the following is a typical application of a photodiode? A) Light detection and optical communication B) Voltage regulation C) Power switching in inverters D) Temperature sensing Answer: A Explanation: Photodiodes are used for detecting light in applications like optical communication and sensing. Question 35. In high-frequency circuit design, S-parameters are primarily used to: A) Describe the linear behavior of RF components B) Measure the DC resistance of a circuit C) Calculate the transient response of a circuit D) Determine the power dissipation Answer: A Explanation: S-parameters characterize how RF signals are transmitted and reflected in high-frequency components. Question 36. Flicker noise is most significant at: A) Low frequencies B) High frequencies C) Very high voltages D) Low temperatures Answer: A Explanation: Flicker noise (1/f noise) dominates at low frequencies in semiconductors. Question 37. The primary reason for using a Darlington pair configuration is to: A) Achieve high current gain at the expense of bandwidth B) Reduce input impedance
Explanation: Buck-Boost converters can step the voltage both up and down, providing flexible output regulation. Question 41. The main purpose of a flyback converter is to: A) Isolate and step voltage levels in power supplies B) Provide high efficiency for high-current loads C) Convert AC to DC directly D) Regulate voltage in linear fashion Answer: A Explanation: Flyback converters are used for electrical isolation and voltage step-up or step-down in switched-mode power supplies. Question 42. In a differential amplifier, the common-mode rejection ratio (CMRR) indicates: A) The ability to reject common-mode signals relative to differential signals B) The ratio of differential gain to common-mode gain C) The maximum allowable common-mode voltage D) The input impedance for common signals Answer: A Explanation: CMRR measures how effectively the amplifier suppresses signals common to both inputs, critical for accurate differential measurements. Question 43. The main reason for using a Wilson current mirror is to: A) Improve output current accuracy and compliance voltage B) Increase input impedance significantly C) Reduce power consumption in bias circuits D) Simplify the circuit topology Answer: A Explanation: Wilson current mirrors provide better accuracy and output compliance due to improved transistor matching and feedback.
Question 44. The primary advantage of sigma-delta ADCs over successive approximation ADCs is: A) Higher resolution and better noise shaping at low frequencies B) Faster conversion times C) Simpler circuitry D) Lower power consumption in all cases Answer: A Explanation: Sigma-delta ADCs are suitable for high-resolution, low-frequency applications due to their noise shaping capabilities. Question 45. The primary function of a common-mode choke in analog circuits is to: A) Suppress common-mode noise signals B) Amplify differential signals C) Provide biasing for differential pairs D) Limit the current in the circuit Answer: A Explanation: Common-mode chokes reduce electromagnetic interference and noise that appear equally on both lines. Question 46. In high-frequency RF design, the characteristic impedance of a transmission line is: A) The ratio of voltage to current of a traveling wave B) The physical width of the transmission line C) Always equal to 50 Ω D) Independent of the dielectric material used Answer: A Explanation: Characteristic impedance (Z0) is determined by the line’s physical and dielectric properties, representing the ratio of voltage to current for a traveling wave. Question 47. Flicker noise in semiconductors is primarily caused by: A) Fluctuations in the number of carriers in the channel B) Thermal agitation of lattice ions
Answer: A Explanation: Anti-log amplifiers produce an output proportional to the antilog (exponential) of the input, used in logarithmic signal processing. Question 51. Which of the following is a common application of a Wien bridge oscillator? A) Generating sinusoidal signals with stable frequency B) Digital clock generation C) High-power RF transmission D) Pulse-width modulation (PWM) control Answer: A Explanation: Wien bridge oscillators are well-known for producing stable sinusoidal waveforms at desired frequencies. Question 52. In a Buck converter, the inductor current: A) Rises when the switch is on and falls when the switch is off B) Remains constant throughout the switching cycle C) Is independent of the duty cycle D) Is purely sinusoidal at all times Answer: A Explanation: During switch-on, inductor current increases; during switch-off, it decreases, smoothing the output voltage. Question 53. The primary disadvantage of a linear regulator is: A) Low efficiency, especially with large voltage drops B) High electromagnetic interference (EMI) C) Complex design and high cost D) Limited load current capability Answer: A Explanation: Linear regulators dissipate excess voltage as heat, leading to low efficiency when the voltage difference is large.
Question 54. Which of the following ADC architectures is best suited for high-speed, moderate- resolution applications? A) Flash ADC B) Successive approximation ADC C) Sigma-delta ADC D) Dual-slope ADC Answer: A Explanation: Flash ADCs provide the fastest conversion times suitable for high-speed applications but at higher hardware complexity. Question 55. An instrumentation amplifier typically uses: A) Three op-amps with high input impedance and high CMRR B) A single op-amp with gain set by a resistor C) Digital logic gates D) A transistor array for high power amplification Answer: A Explanation: Instrumentation amplifiers use three op-amps to achieve high input impedance and high CMRR, ideal for precise differential measurements. Question 56. The principal advantage of a phase-locked loop (PLL) is: A) To synchronize an output oscillator with a reference signal B) To generate unmodulated sinusoidal signals C) To amplify low-frequency signals D) To filter out high-frequency noise Answer: A Explanation: PLLs lock the phase of an output oscillator to a reference, enabling frequency synthesis and synchronization. Question 57. In a MOSFET, the body effect refers to:
D) To perform voltage regulation Answer: A Explanation: Relays use electromagnetic actuation to switch circuits, providing galvanic isolation between control and load circuits. Question 61. Which of the following is a typical application of a phototransistor? A) Light detection with current amplification B) Voltage regulation C) Power switching in high-current circuits D) Temperature sensing Answer: A Explanation: Phototransistors convert light into current with internal amplification, suitable for optical sensing. Question 62. The primary purpose of a band-pass filter in analog signal processing is to: A) Pass signals within a specific frequency range and attenuate others B) Block all signals outside the passband C) Convert AC signals to DC D) Amplify signals at a single frequency only Answer: A Explanation: Band-pass filters allow signals within a certain frequency range to pass while attenuating frequencies outside that range. Question 63. Which of the following is a characteristic of a silicon diode at its forward conduction region? A) It has a forward voltage drop of approximately 0.7 V B) It behaves as an open circuit C) It exhibits negative resistance D) It requires reverse bias to conduct Answer: A
Explanation: Silicon diodes typically have a forward voltage around 0.7 V when conducting. Question 64. Which device is used for high-speed switching and is characterized by low saturation voltage and high current capability? A) IGBT (Insulated Gate Bipolar Transistor) B) SCR C) BJT in saturation D) Triac Answer: A Explanation: IGBTs combine the high-speed switching capability of MOSFETs with the high-current handling of BJTs, making them ideal for power inverters. Question 65. In power electronics, the term "crossover distortion" is mainly associated with: A) Class B and AB push-pull amplifiers B) Class A amplifiers C) Switching regulators D) Digital logic circuits Answer: A Explanation: Crossover distortion occurs in class B and AB push-pull amplifiers when the circuit transitions between conduction states of the two devices. Question 66. The primary advantage of a Buck-Boost converter over a Buck converter is: A) It can regulate output voltage both above and below input voltage B) It has higher efficiency at all loads C) It is simpler to control D) It uses fewer components Answer: A Explanation: Buck-Boost converters can step voltage up or down, providing versatile voltage regulation. Question 67. The main function of a sigma-delta ADC is:
