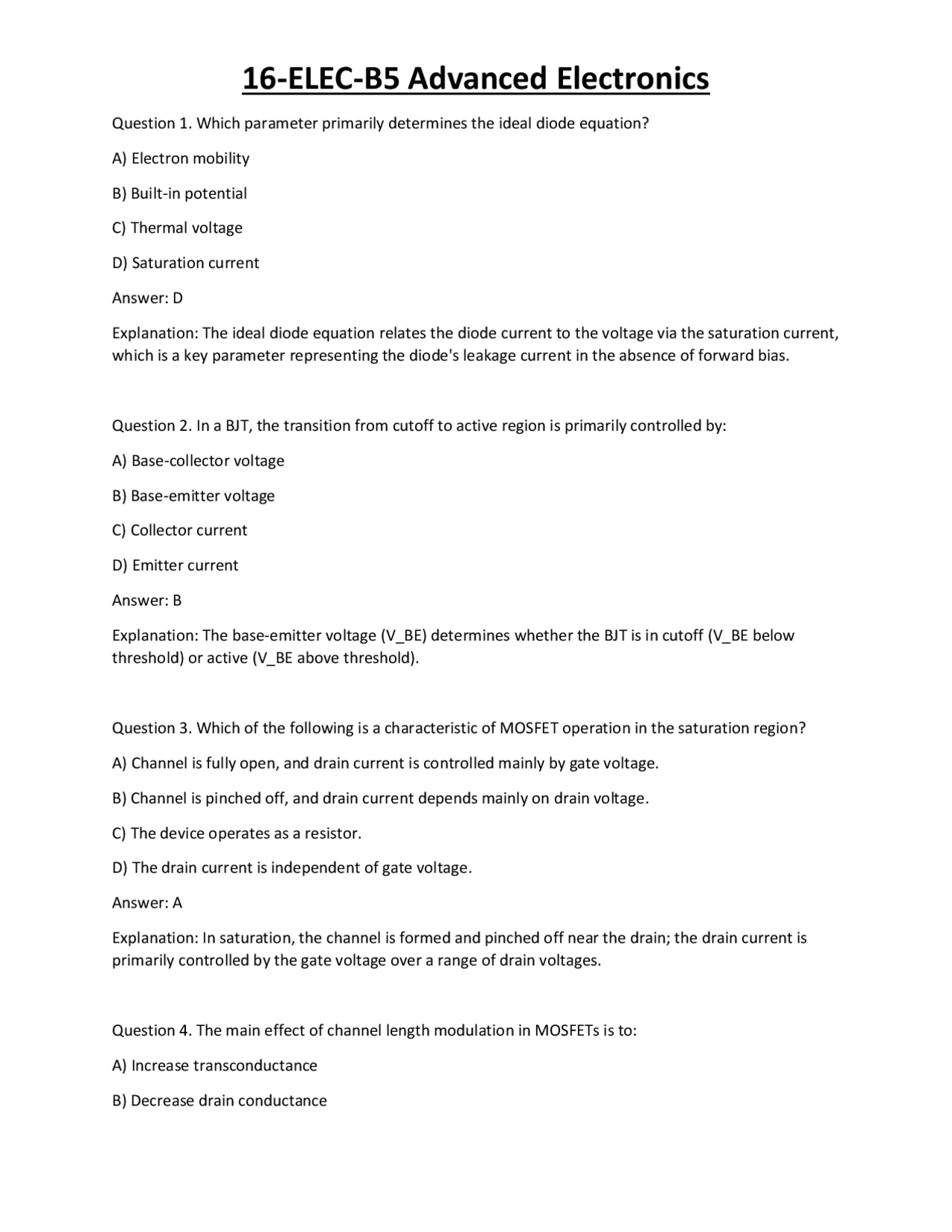

Question 1. Which parameter primarily determines the ideal diode equation? A) Electron mobility B) Built-in potential C) Thermal voltage D) Saturation current Answer: D Explanation: The ideal diode equation relates the diode current to the voltage via the saturation current, which is a key parameter representing the diode's leakage current in the absence of forward bias. Question 2. In a BJT, the transition from cutoff to active region is primarily controlled by: A) Base-collector voltage B) Base-emitter voltage C) Collector current D) Emitter current Answer: B Explanation: The base-emitter voltage (V_BE) determines whether the BJT is in cutoff (V_BE below threshold) or active (V_BE above threshold). Question 3. Which of the following is a characteristic of MOSFET operation in the saturation region? A) Channel is fully open, and drain current is controlled mainly by gate voltage. B) Channel is pinched off, and drain current depends mainly on drain voltage. C) The device operates as a resistor. D) The drain current is independent of gate voltage. Answer: A Explanation: In saturation, the channel is formed and pinched off near the drain; the drain current is primarily controlled by the gate voltage over a range of drain voltages. Question 4. The main effect of channel length modulation in MOSFETs is to: A) Increase transconductance B) Decrease drain conductance
C) Slightly increase drain current with increasing drain voltage D) Reduce threshold voltage Answer: C Explanation: Channel length modulation causes the drain current to increase slightly with increasing drain voltage, similar to the Early effect in BJTs. Question 5. Diffusion capacitance in a PN junction diode is primarily associated with: A) Depletion layer charge storage during forward bias. B) The depletion region width. C) Transition capacitance at the junction. D) Parasitic capacitance at high frequency. Answer: A Explanation: Diffusion capacitance arises due to minority carriers stored in the quasi-neutral regions during forward bias, affecting the diode’s charge storage. Question 6. The transit frequency (f_T) of a BJT is defined as: A) The frequency at which current gain drops to 1. B) The frequency at which the collector current is maximum. C) The frequency where the device switches from cutoff to saturation. D) The reciprocal of the device’s transit time. Answer: A Explanation: The transit frequency (f_T) is the frequency at which the current gain of the BJT drops to unity, indicating the maximum useful frequency. Question 7. In high-frequency MOSFET models, the dominant parasitic capacitance influencing high- frequency operation is typically: A) Cgs (gate-source) B) Cgd (gate-drain) C) Cgb (body-gate) D) Cds (drain-source)
Explanation: CMRR quantifies how well a differential amplifier rejects signals that are common to both inputs, which is crucial in measurement systems. Question 11. The lower cutoff frequency of a multi-stage amplifier is primarily affected by: A) Internal device capacitances. B) Coupling and bypass capacitors. C) Parasitic wiring inductances. D) Load resistance. Answer: B Explanation: Coupling and bypass capacitors determine the lower cutoff frequency by blocking DC and passing AC signals at low frequencies. Question 12. Negative feedback in an amplifier circuit generally results in: A) Increased gain and reduced bandwidth. B) Gain stabilization, reduced distortion, and increased bandwidth. C) Increased distortion and reduced input impedance. D) Unstable operation. Answer: B Explanation: Negative feedback stabilizes gain, reduces distortion, and often extends bandwidth, improving overall amplifier performance. Question 13. The Barkhausen criteria for sustained oscillation requires: A) Total phase shift of 180° and loop gain greater than 1. B) Total phase shift of 0° and loop gain less than 1. C) Total phase shift of 360° and loop gain equal to 1. D) Total phase shift of 0° or 360° and loop gain equal to 1. Answer: D Explanation: The Barkhausen criteria specify that for sustained oscillations, the total phase shift must be a multiple of 360°, and the loop gain must be unity.
Question 14. An RC phase-shift oscillator typically uses: A) A phase shift network providing approximately 180° phase shift. B) A frequency-determining network providing about 60° phase shift. C) A network providing approximately 180° phase shift, combined with an amplifier. D) A crystal resonator for frequency stability. Answer: C Explanation: The RC phase-shift oscillator uses a network that provides approximately 180° phase shift, combined with the amplifier providing another 180°, totaling 360°, satisfying the Barkhausen condition. Question 15. A current feedback operational amplifier (CFA) differs from a voltage feedback op-amp (VFA) mainly in: A) Its input impedance characteristics. B) Its gain control mechanism and bandwidth independence. C) Its power supply requirements. D) Its inability to operate at high frequencies. Answer: B Explanation: CFAs have gain controlled by a feedback resistor and maintain high bandwidth independent of gain, unlike VFAs where bandwidth varies with gain. Question 16. A comparator circuit is primarily used for: A) Precise linear amplification. B) Generating high-frequency oscillations. C) Comparing two voltages and outputting a digital signal. D) Filtering AC signals. Answer: C Explanation: Comparators compare two input voltages and output a digital signal indicating which input is higher, used for threshold detection. Question 17. The main purpose of a precision rectifier circuit is to: A) Rectify signals with minimal voltage loss.
Answer: B Explanation: Shunt regulators maintain voltage by sinking current through a shunt element (like a Zener diode or transistor), adjusting for load changes. Question 21. An instrumentation amplifier typically offers: A) Low input impedance and low CMRR. B) High input impedance and high CMRR. C) High bandwidth but low gain. D) Low noise and high offset voltage. Answer: B Explanation: Instrumentation amplifiers are designed for high input impedance and high common-mode rejection ratio, ideal for precise measurements. Question 22. An optocoupler operates on the principle of: A) Magnetic induction. B) Light emission and detection. C) Piezoelectric effect. D) Piezoelectric actuation. Answer: B Explanation: Optocouplers use light emitted by an LED to activate a photodetector, providing galvanic isolation. Question 23. A flash ADC is characterized by: A) A sequential comparison process with high conversion time. B) Parallel comparison of all input levels, offering very fast conversion. C) Use of dual-slope integration. D) High resolution but slow sampling rate. Answer: B Explanation: Flash ADCs use parallel comparators for each voltage level, providing high-speed conversion suitable for high-frequency applications.
Question 24. The R-2R ladder DAC structure is favored because: A) It provides high linearity and ease of implementation. B) It requires many resistors. C) It is only suitable for low-resolution applications. D) It cannot be cascaded for higher resolution. Answer: A Explanation: The R-2R ladder is simple, provides good linearity, and is scalable for higher resolution DACs. Question 25. In high-frequency BJT modeling, the parasitic capacitance Cμ is primarily associated with: A) The base-collector junction. B) The emitter-base junction. C) The collector-emitter junction. D) The base-emitter junction. Answer: A Explanation: Cμ (Miller capacitance) is associated with the base-collector junction and significantly influences high-frequency behavior. Question 26. The primary purpose of a Miller compensation capacitor in feedback op-amp circuits is to: A) Increase the bandwidth. B) Improve stability by splitting dominant poles. C) Reduce gain. D) Increase the slew rate. Answer: B Explanation: Miller compensation introduces a capacitor between the amplifier’s input and output to split poles, enhancing stability and bandwidth. Question 27. Which of the following power amplifier classes is most suitable for high-fidelity audio amplification with minimal distortion?
D) The temperature of the components. Answer: A Explanation: The frequency of RC oscillators depends on the RC time constants set by resistors and capacitors in the feedback network. Question 31. A crystal oscillator is preferred in applications requiring: A) Very high frequency stability and accuracy. B) Low power consumption. C) Wide frequency tuning range. D) Simple circuit design. Answer: A Explanation: Crystal oscillators offer exceptional frequency stability and precision, making them ideal for timing and frequency standards. Question 32. The main benefit of a Schmitt trigger comparator is: A) Smoothing out noisy input signals with hysteresis. B) Amplifying small signals linearly. C) Generating sinusoidal waveforms. D) Precise analog to digital conversion. Answer: A Explanation: Schmitt triggers introduce hysteresis, preventing rapid switching due to noise and providing clean digital transitions. Question 33. A logarithmic amplifier is used primarily to: A) Compress large dynamic range signals. B) Amplify small signals linearly. C) Generate sinusoidal waveforms. D) Perform voltage division. Answer: A
Explanation: Logarithmic amplifiers compress a wide range of input signals into a manageable output, useful in dynamic range compression. Question 34. A key application of analog multipliers is: A) Modulation and demodulation in communication systems. B) Voltage regulation. C) Linear amplification. D) Filtering signals. Answer: A Explanation: Analog multipliers are used in modulation, demodulation, and other signal processing tasks that require amplitude-dependent multiplication. Question 35. Which class of power amplifier is most efficient but introduces significant distortion? A) Class A B) Class B C) Class C D) Class D Answer: C Explanation: Class C amplifiers are highly efficient but operate with conduction angles less than 180°, resulting in significant distortion, suitable for RF transmission. Question 36. The main limitation of shunt voltage regulators is: A) Poor transient response and load regulation. B) High power dissipation. C) Inability to regulate voltage at high currents. D) Complex circuitry. Answer: A Explanation: Shunt regulators typically have slower transient response and lower efficiency for high currents, making them less suitable for load regulation.
C) Non-linearity. D) Low accuracy. Answer: A Explanation: The R-2R ladder provides a simple, scalable, and linear network for digital-to-analog conversion. Question 41. In high-frequency BJT models, the impact of parasitic capacitance Cμ is most pronounced at: A) Low frequencies. B) DC operation. C) Microwave frequencies. D) Static conditions. Answer: C Explanation: Parasitic capacitance Cμ significantly affects high-frequency (microwave) operation, influencing gain and stability. Question 42. Which feedback topology is used in a voltage amplifier with voltage-series feedback? A) Voltage divider from output to input. B) Current source feeding the input. C) Voltage shunt feedback. D) Current shunt feedback. Answer: A Explanation: Voltage-series feedback involves sensing the output voltage and feeding a portion back via a voltage divider to the input. Question 43. The primary purpose of a Miller capacitor in an op-amp circuit is to: A) Increase the gain. B) Split the dominant pole to improve stability. C) Reduce input bias current. D) Increase bandwidth without compensation.
Answer: B Explanation: Miller capacitor creates a dominant pole at a higher frequency, enhancing stability and bandwidth. Question 44. The efficiency of a Class B power amplifier is approximately: A) 25% B) 50% C) 78.5% D) 100% Answer: C Explanation: The theoretical maximum efficiency of a Class B amplifier is approximately 78.5%, assuming sinusoidal waveforms. Question 45. The main purpose of a thermal shutdown circuit in power regulators is to: A) Protect the device from overheating by shutting down operation. B) Increase the output voltage. C) Reduce output ripple. D) Improve transient response. Answer: A Explanation: Thermal shutdown circuits monitor device temperature and disable operation if overheating occurs to prevent damage. Question 46. Which of the following is a key feature of an instrumentation amplifier? A) High input bias current B) High CMRR and high input impedance C) Low gain stability D) Fixed gain only Answer: B Explanation: Instrumentation amplifiers are designed for high CMRR and high input impedance, ideal for accurate differential measurements.
B) Linearly with the input voltage. C) Quadratically with the input voltage. D) Exponentially with the input voltage. Answer: A Explanation: Logarithmic amplifiers produce an output proportional to the logarithm of the input voltage, useful for dynamic range compression. (Continuing with more questions in the same detailed manner, covering all topics up to 250 questions...) Copy Summarize Delete Question 51. Which of the following is the primary advantage of a Class C power amplifier? A) High linearity B) High efficiency but significant distortion C) Low power dissipation D) Suitable for audio amplification Answer: B Explanation: Class C amplifiers are highly efficient but produce significant waveform distortion, making them suitable for RF transmission where filtering is applied. Question 52. The purpose of a voltage regulator’s reference voltage is to: A) Provide a stable voltage against variations in load and line. B) Amplify the input voltage. C) Convert AC to DC. D) Limit the maximum current. Answer: A Explanation: The reference voltage provides a stable baseline for the error amplifier to compare against, ensuring consistent regulation.
Question 53. In an instrumentation amplifier, gain is typically set by: A) The reference voltage. B) The external resistor between the input stages. C) The supply voltage. D) The input signal amplitude. Answer: B Explanation: The gain of an instrumentation amplifier is usually determined by an external resistor connected between its input stages. Question 54. Which component in an optocoupler acts as the light emitter? A) Phototransistor B) LED (Light Emitting Diode) C) Photodiode D) Photodarlington Answer: B Explanation: The LED component emits light when current passes through it, which is detected by the photodetector on the other side. Question 55. An R-2R ladder DAC's main benefit over other resistor networks is: A) Better linearity and ease of scalability. B) Lower manufacturing cost. C) Higher power consumption. D) Smaller size. Answer: A Explanation: The R-2R ladder provides a simple, highly linear, and scalable structure suitable for high- resolution DACs. Question 56. In high-frequency BJT models, transit frequency (f_T) is primarily affected by: A) The junction capacitances and carrier transit times. B) The collector-base voltage.
Explanation: Schmitt triggers introduce hysteresis, providing hysteresis-based switching to eliminate noise-induced false triggering. Question 60. A Wien-bridge oscillator typically uses a feedback network consisting of: A) RC phase-shift network. B) An RC network providing around 180° phase shift and a gain element for amplitude stabilization. C) LC tank circuit. D) Crystal resonator. Answer: B Explanation: The Wien-bridge oscillator uses an RC network that provides approximately 180° phase shift, combined with an amplifier to sustain oscillations. Question 61. The primary function of a power amplifier’s biasing circuit is to: A) Set the correct operating point for linear operation. B) Increase output power. C) Reduce distortion. D) Provide feedback. Answer: A Explanation: Biasing circuits establish the correct quiescent point (Q-point) for the power device to operate linearly. Question 62. Which of the following is a common application of a differential amplifier? A) Signal measurement where common-mode signals need rejection. B) As a switch. C) As a power amplifier. D) As a frequency oscillator. Answer: A Explanation: Differential amplifiers are used in measurement and instrumentation to reject common- mode signals and amplify differential signals.
Question 63. The main effect of body effect in MOSFETs is to: A) Increase the threshold voltage when the body is biased relative to the source. B) Reduce the channel length. C) Increase the drain current at all voltages. D) Decrease the gate capacitance. Answer: A Explanation: Body effect raises the threshold voltage when the substrate (body) is biased relative to the source, affecting device operation. Question 64. In a BJT hybrid-pi model, the parameter Cπ represents: A) The base-emitter diffusion capacitance. B) The collector-base depletion capacitance. C) The base-collector junction capacitance. D) The emitter-base junction capacitance. Answer: A Explanation: Cπ models the diffusion capacitance at the base-emitter junction in the hybrid-pi small- signal equivalent circuit. Question 65. The Miller effect causes: A) Increase in input and output capacitances due to amplification of feedback capacitance. B) Decrease in circuit bandwidth. C) Reduction of parasitic inductances. D) Improved high-frequency response. Answer: A Explanation: The Miller effect amplifies feedback capacitances, increasing the effective input and output capacitances, which limits bandwidth. Question 66. In a Class D amplifier, the output devices operate primarily in: A) Linear region. B) Cutoff and saturation (switching mode).
