Engineering Exam E

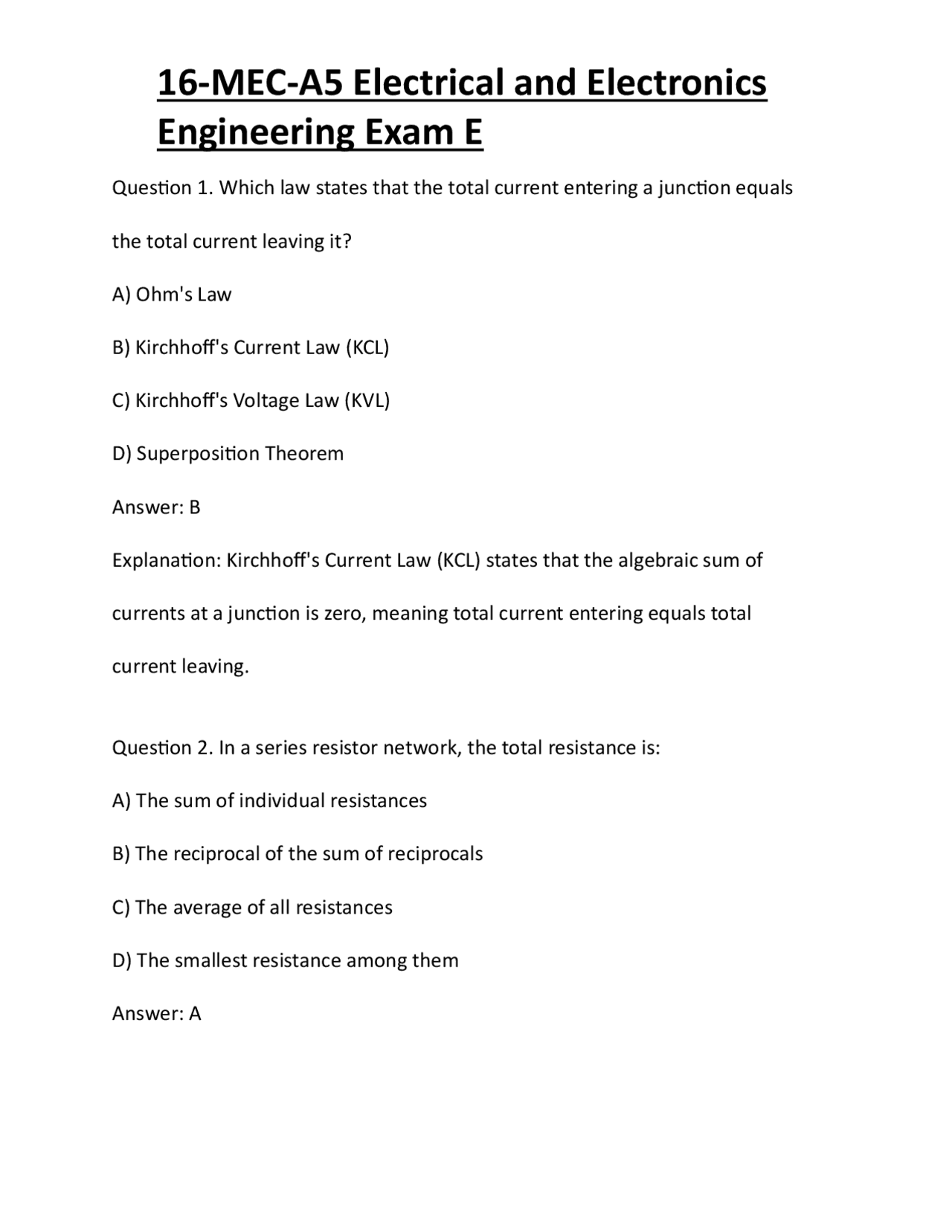

Question 1. Which law states that the total current entering a junction equals the total current leaving it? A) Ohm's Law B) Kirchhoff's Current Law (KCL) C) Kirchhoff's Voltage Law (KVL) D) Superposition Theorem Answer: B Explanation: Kirchhoff's Current Law (KCL) states that the algebraic sum of currents at a junction is zero, meaning total current entering equals total current leaving. Question 2. In a series resistor network, the total resistance is: A) The sum of individual resistances B) The reciprocal of the sum of reciprocals C) The average of all resistances D) The smallest resistance among them Answer: A
Engineering Exam E
Explanation: In series, resistances add directly, so total resistance is the sum of individual resistances. Question 3. The Thevenin equivalent circuit simplifies a complex network into a voltage source in series with a: A) Inductor B) Resistor C) Capacitor D) Diode Answer: B Explanation: Thevenin’s theorem replaces a network with a single voltage source in series with a resistor, simplifying analysis. Question 4. Which of the following is used to convert a voltage source with a series resistor into a current source with a parallel resistor? A) Ohm's Law B) Source transformation C) KVL D) KCL
Engineering Exam E
Answer: B Explanation: Wye-Delta (Y-Δ) transformation converts between Y and Δ configurations for simplifying resistor networks. Question 7. The energy stored in a capacitor is given by: A) 12CV2\frac{1}{2}CV^221 CV 2 B) CVCV CV C) Q22C\frac{Q^2}{2C}2 CQ 2 D) Both A and C are correct Answer: D Explanation: Both 12CV2\frac{1}{2}CV^221 CV 2 (energy in a capacitor) and Q22C\frac{Q^2}{2C}2 CQ 2 are equivalent expressions for stored energy. Question 8. The time constant τ\tau τ in an RC circuit is: A) RCRC RC B) 1RC\frac{1}{RC} RC 1 C) R+CR + C R + C D) RC\frac{R}{C} CR Answer: A
Engineering Exam E
Answer: A Explanation: The time constant τ\tau τ for an RC circuit is RCRC RC , indicating the rate of charging/discharging. Question 9. In a series RLC circuit at resonance, the impedance is: A) Minimum and purely resistive B) Maximum and purely reactive C) Zero D) Infinite Answer: A Explanation: At resonance, the inductive and capacitive reactances cancel, leaving impedance purely resistive and at minimum. Question 10. The phasor representation of sinusoidal voltages and currents simplifies analysis by converting: A) Time domain signals to frequency domain B) Differential equations to algebraic equations C) Reactive components into complex impedances D) All of the above
Engineering Exam E
C) VLL=Vph3V_{LL} = \frac{V_{ph}}{\sqrt{3}} VLL =3 Vph D) VLL=3VphV_{LL} = 3 V_{ph} VLL =3 Vph Answer: A Answer: A Explanation: In a balanced Wye system, line-to-line voltage is 3\sqrt{3} times the phase voltage. Question 13. The bandwidth of a band-pass filter is defined as: A) The frequency range where the gain is maximum B) The frequency range between the cutoff points where the gain drops by 3 dB C) The difference between the upper and lower cutoff frequencies D) Both B and C Answer: D Answer: D Explanation: Bandwidth is the frequency range between cutoff points where the gain drops by 3 dB, and it equals the difference between upper and lower cutoff frequencies.
Engineering Exam E
Question 14. The primary purpose of a rectifier circuit is to: A) Convert AC to DC B) Amplify signals C) Filter noise D) Store energy in magnetic fields Answer: A Answer: A Explanation: Rectifiers convert alternating current (AC) into pulsating or steady direct current (DC). Question 15. A Zener diode is primarily used for: A) Rectification B) Voltage regulation C) Signal amplification D) Clipping and clamping Answer: B Answer: B Explanation: Zener diodes operate in breakdown region to maintain a constant voltage across their terminals, used for voltage regulation.
Engineering Exam E
Explanation: The hybrid-π model simplifies small-signal AC analysis of BJTs, representing their behavior with hybrid parameters. Question 18. The voltage gain of a common-emitter BJT amplifier is typically: A) Less than 1 B) Approximately 1 C) Greater than 1 D) Zero Answer: C Answer: C Explanation: Common-emitter amplifiers provide voltage gains greater than unity, making them suitable for voltage amplification. Question 19. An enhancement-type MOSFET is normally: A) On at zero gate voltage B) Off at zero gate voltage C) Always conducting D) Not used in amplification Answer: B
Engineering Exam E
Answer: B Explanation: Enhancement-mode MOSFETs are normally off at zero gate voltage and require biasing to turn on. Question 20. The main advantage of a multistage amplifier over a single- stage amplifier is: A) Higher voltage gain and better frequency response B) Reduced noise C) Lower power consumption D) Simpler circuitry Answer: A Answer: A Explanation: Cascading multiple stages increases overall gain and can improve frequency response, but increases complexity. Question 21. In an operational amplifier (op-amp), the ideal input impedance is: A) Zero B) Infinite
Engineering Exam E
B) Reduce distortion and stabilize gain C) Convert AC to DC D) Generate oscillations Answer: B Explanation: Feedback reduces distortion, stabilizes gain, and can modify bandwidth, depending on feedback type. Question 24. In digital electronics, Gray code is preferred over binary code for: A) Data encoding in asynchronous systems to prevent errors during transition B) Arithmetic operations C) Memory addressing D) Data storage in registers Answer: A Answer: A Explanation: Gray code changes only one bit between successive values, reducing errors during transitions.
Engineering Exam E
Question 25. The Boolean expression A+A‾BA + \overline{A}B A + AB simplifies to: A) A+BA + B A + B B) A⋅BA \cdot B A ⋅ B C) BB B D) AA A Answer: A Answer: A Explanation: Applying Boolean algebra, A+A‾B=A+BA + \overline{A}B = A + B A + AB = A + B. Question 26. The operation of a 4-bit binary ripple counter is characterized by: A) Synchronous counting B) Asynchronous counting with propagation delay C) Parallel load capability D) No counting capability Answer: B Answer: B
Engineering Exam E
Answer: B Answer: B Explanation: Maxwell’s equations describe the behavior of electric and magnetic fields and how they propagate as electromagnetic waves. Question 29. Coulomb's Law describes the force between: A) Magnetic poles B) Electric charges C) Current-carrying conductors D) Magnetic conductors Answer: B Answer: B Explanation: Coulomb's Law quantifies the electrostatic force between point charges. Question 30. The magnetic flux density BB B in a magnetic circuit is analogous to which electrical quantity? A) Voltage B) Current
Engineering Exam E
C) Resistance D) Magnetic flux Φ\PhiΦ Answer: D Explanation: Magnetic flux density BB B relates to magnetic flux Φ\PhiΦ via Φ=B×Area\Phi = B \times \text{Area}Φ= B ×Area. Question 31. The displacement current term was introduced by Maxwell to account for: A) Magnetic fields in steady currents B) Changing electric fields in dielectric media C) Static electric charges D) Magnetic monopoles Answer: B Answer: B Explanation: Displacement current accounts for changing electric fields in Maxwell's equations, enabling the continuity of current in varying fields. Question 32. The power factor in an AC circuit is defined as: A) cos ϕ\cos \phicos ϕ where ϕ\phi ϕ is the phase angle between voltage
Engineering Exam E
Question 34. The primary purpose of a circuit breaker is to: A) Limit current flow during normal operation B) Protect the system during faults by disconnecting the circuit C) Reduce voltage fluctuations D) Convert AC to DC Answer: B Answer: B Explanation: Circuit breakers disconnect power during faults to prevent damage and ensure safety. Question 35. In a three-phase system, the power delivered per phase in a balanced system is proportional to: A) VphIphcos ϕV_{ph} I_{ph} \cos \phi VphIph cos ϕ B) VLILV_{L} I_{L} VLIL C) Vph×ILV_{ph} \times I_{L} Vph × IL D) VLIphsin ϕV_{L} I_{ph} \sin \phi VLIph sin ϕ Answer: A Answer: A Explanation: Power per phase in a balanced system is VphIphcos ϕV_{ph}
Engineering Exam E
I_{ph} \cos \phi VphIph cos ϕ , where VphV_{ph} Vph and IphI_{ph} Iph are phase voltage and current. Question 36. The stability of a control system is often analyzed using the: A) Nyquist criterion B) Bode plot C) Routh-Hurwitz criterion D) Both A and C Answer: D Answer: D Explanation: Both Nyquist plot and Routh-Hurwitz criterion are used to assess system stability. Question 37. The transient response of a first-order system to a unit step input is characterized by: A) An exponential rise or decay B) Oscillations C) A sinusoidal response D) No change in output
