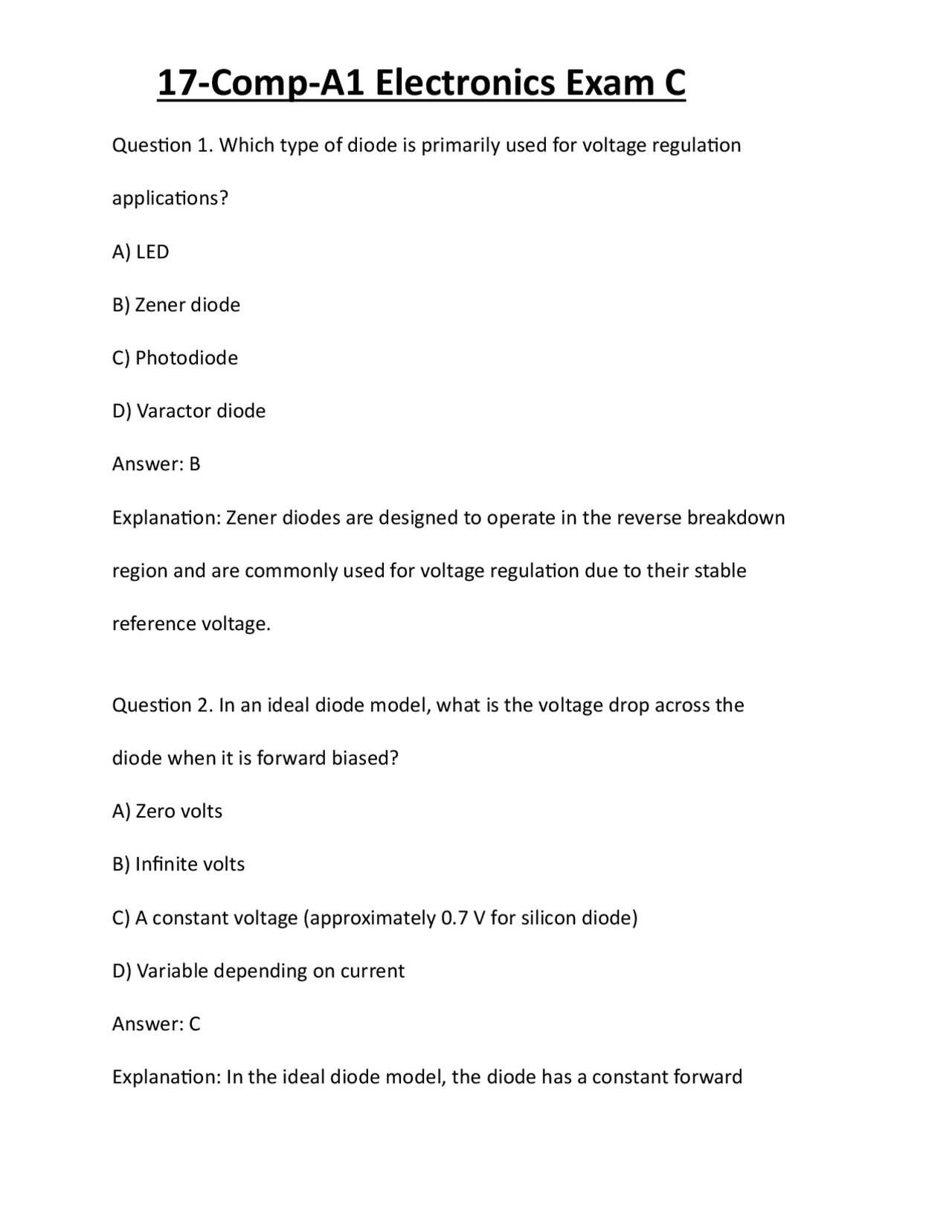

Question 1. Which type of diode is primarily used for voltage regulation applications? A) LED B) Zener diode C) Photodiode D) Varactor diode Answer: B Explanation: Zener diodes are designed to operate in the reverse breakdown region and are commonly used for voltage regulation due to their stable reference voltage. Question 2. In an ideal diode model, what is the voltage drop across the diode when it is forward biased? A) Zero volts B) Infinite volts C) A constant voltage (approximately 0.7 V for silicon diode) D) Variable depending on current Answer: C Explanation: In the ideal diode model, the diode has a constant forward
voltage drop (about 0.7 V for silicon), representing a voltage threshold for conduction. Question 3. Which rectifier configuration provides full-wave rectification using a center-tapped transformer? A) Half-wave rectifier B) Full-wave bridge rectifier C) Full-wave center-tapped rectifier D) Voltage multiplier Answer: C Explanation: The full-wave center-tapped rectifier uses a center-tapped transformer and two diodes to conduct in alternating half-cycles, providing full-wave rectification. Question 4. The ripple factor of a half-wave rectifier with a capacitor filter is approximately: A) 1. B) 0. C) 0. D) 0.48 for ideal conditions
Explanation: Clamp circuits use diodes to fix the voltage level of a waveform to a specific reference, effectively "clamping" it within a set range. Question 7. Which of the following best describes the NPN transistor's operation in active mode? A) Both junctions are reverse biased B) Base-Emitter junction is forward biased; Collector-Base junction is reverse biased C) Both junctions are forward biased D) Base-Collector junction is forward biased; Base-Emitter junction is reverse biased Answer: B Explanation: In active mode, an NPN BJT has its base-emitter junction forward biased and collector-base junction reverse biased, allowing controlled current flow. Question 8. In a common-emitter configuration, increasing the base current results in: A) Decreased collector current B) Increased collector current
C) No change in collector current D) Decreased collector-emitter voltage Answer: B Explanation: In a common-emitter amplifier, an increase in base current leads to an increase in collector current, due to transistor current amplification. Question 9. The hybrid-pi model for BJTs is primarily used for analyzing: A) Large-signal behavior B) Small-signal AC behavior C) Power dissipation D) Thermal stability Answer: B Explanation: The hybrid-pi model simplifies the analysis of small-signal AC responses of BJTs by representing their behavior with equivalent circuit elements. Question 10. Which biasing method provides the most stable Q-point against temperature variations in BJTs? A) Fixed bias
A) Enhancement-type needs a negative gate bias to conduct B) Depletion-type needs a positive gate bias to conduct C) Enhancement-type turns on with zero gate bias; depletion-type is normally on D) Depletion-type turns on with zero gate bias; enhancement-type is normally off Answer: C Explanation: Enhancement-mode MOSFETs are normally off and turn on when a gate voltage is applied; depletion-mode MOSFETs are normally on and turn off with an appropriate gate bias. Question 13. In a JFET, the channel conductivity is controlled by: A) The base current B) The voltage applied to the gate terminal C) The collector current D) The drain current Answer: B Explanation: In a JFET, the gate voltage modulates the width of the depletion region, controlling the channel conductivity and drain current.
Question 14. Which integrated circuit technology is known for its high speed and low power consumption, suitable for VLSI applications? A) TTL B) CMOS C) ECL D) RTL Answer: B Explanation: CMOS technology offers low power consumption and high density, making it ideal for VLSI circuit fabrication. Question 15. Which of the following is a disadvantage of integrated circuits? A) High manufacturing cost for small quantities B) High power consumption in CMOS devices C) Limited integration density D) Less reliable than discrete components Answer: A Explanation: IC fabrication involves high initial costs, making small-scale production less economical compared to discrete components.
Question 18. Which type of amplifier configuration is best suited for impedance matching where high input impedance and low output impedance are required? A) Common-emitter B) Common-base C) Common-collector (emitter follower) D) Common-gate Answer: C Explanation: The common-collector, or emitter follower, provides high input impedance and low output impedance, ideal for impedance matching. Question 19. The gain-bandwidth product of an operational amplifier is: A) The maximum gain at a specific frequency B) The product of gain and bandwidth, approximately constant for a given op-amp C) The difference between low and high-frequency gains D) The ratio of input to output impedance Answer: B
Explanation: The gain-bandwidth product remains approximately constant for a given op-amp, linking gain and bandwidth inversely. Question 20. Negative feedback in an amplifier generally results in: A) Increased gain and decreased bandwidth B) Reduced gain but increased bandwidth and stability C) Decreased input impedance and increased output impedance D) Increased distortion and reduced linearity Answer: B Explanation: Negative feedback reduces the overall gain but enhances bandwidth, linearity, and stability of the amplifier. Question 21. Which oscillator type uses RC phase shift to produce oscillations? A) Hartley oscillator B) Wien bridge oscillator C) RC phase-shift oscillator D) Colpitts oscillator Answer: C
Explanation: The ripple factor for a full-wave bridge rectifier with capacitor filter is approximately 0.02, indicating very smooth DC output. Question 24. Which of the following is a key advantage of using ICs over discrete components? A) Larger size and weight B) Lower reliability C) Higher integration density and compactness D) Increased power consumption Answer: C Explanation: ICs enable high integration density, resulting in compact, reliable, and mass-producible circuits. Question 25. In Boolean algebra, which law states that A + A = A? A) Identity law B) Idempotent law C) Complement law D) Distributive law Answer: B
Explanation: The idempotent law states that OR or AND of a variable with itself results in the variable itself, e.g., A + A = A. Question 26. The NAND gate is called a universal gate because: A) It can implement any Boolean function B) It is faster than other gates C) It consumes less power D) It is the simplest gate physically Answer: A Explanation: NAND gates are universal because any Boolean function can be implemented using only NAND gates. Question 27. The main purpose of a multiplexer (MUX) in digital circuits is to: A) Perform arithmetic operations B) Select one input from multiple inputs based on select lines C) Encode multiple signals into one D) Convert digital signals to analog signals Answer: B Explanation: A MUX selects one input from many based on control signals, facilitating data routing.
Question 30. In a register, the term 'PISO' refers to: A) Parallel-In Serial-Out B) Serial-In Parallel-Out C) Parallel-In Parallel-Out D) Serial-In Serial-Out Answer: B Explanation: PISO stands for Parallel-In Serial-Out, meaning data is loaded in parallel and shifted out serially. Question 31. In a Johnson counter, the sequence of states is: A) Repetitive and cyclic, with a number of states equal to twice the number of flip-flops B) Non-repetitive and random C) Alternating between two states only D) Based on asynchronous counting only Answer: A Explanation: Johnson counters cycle through a sequence of states with a length twice the number of flip-flops, providing a specific pattern.
Question 32. The primary purpose of a decoder in digital circuits is to: A) Encode data B) Convert binary data into a one-hot code or select one output line based on input C) Generate clock signals D) Store data temporarily Answer: B Explanation: Decoders convert binary input signals into a unique active output line, enabling selection or decoding functions. Question 33. The main advantage of a Synchronous counter over an Asynchronous (ripple) counter is: A) Faster operation and avoiding ripple propagation delay B) Simpler design C) Lower power consumption D) Easier to implement with flip-flops Answer: A Explanation: Synchronous counters use a common clock, ensuring all flip- flops change state simultaneously, reducing propagation delays.
A) AND gate B) OR gate C) NAND gate D) XOR gate Answer: C Explanation: NAND gates are universal; any Boolean function can be constructed solely using NAND gates. Question 37. The Karnaugh map (K-map) is primarily used for: A) Simplifying Boolean expressions with up to 4 variables B) Designing sequential circuits C) Analyzing power consumption D) Implementing flip-flops Answer: A Explanation: K-maps facilitate the simplification of Boolean functions, especially for up to 4 variables, by grouping minterms. Question 38. An SR latch operates based on: A) Edge-triggered inputs B) Level-sensitive inputs
C) Clock signals only D) Multiplexed inputs Answer: B Explanation: SR latch is level-sensitive, meaning its output depends on the current input levels, not on clock edges. Question 39. Which flip-flop is most susceptible to the race-around condition? A) SR flip-flop B) JK flip-flop C) T flip-flop D) D flip-flop Answer: B Explanation: JK flip-flops can experience a race-around condition when both inputs are high at the clock edge, causing unpredictable behavior. Question 40. The primary purpose of a shift register is to: A) Perform serial-to-parallel or parallel-to-serial data conversion B) Store large amounts of data C) Perform logical operations
