3 digit counter Project. | Summaries Digital Logic Design and Programming

Digital Logic Design

Semester Project Report

Digital Counter

Izman Adnan (23BME41) And Rawish Zehra (23BME31).

2nd year, 4th semester

IBET LUMHS, JAMSHORO

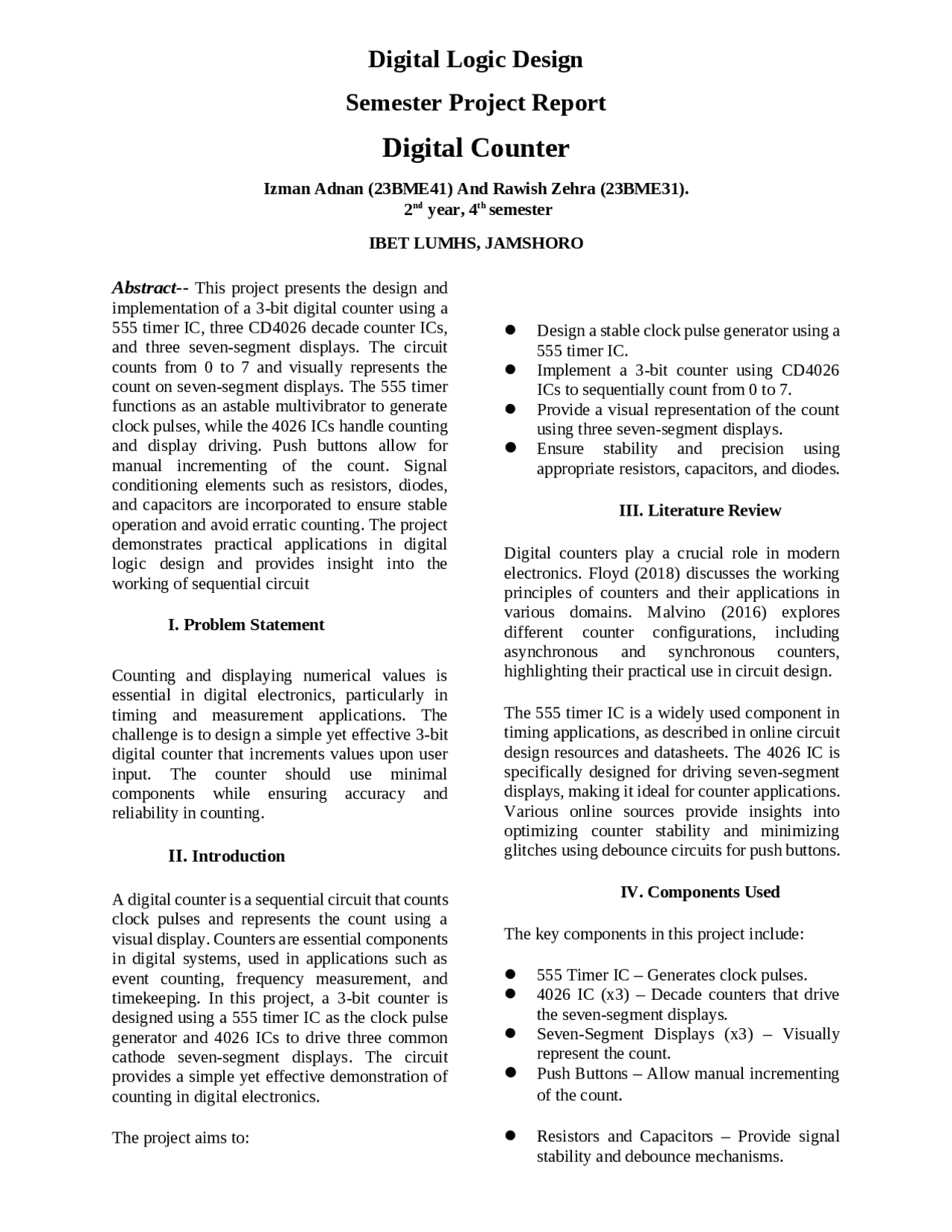

Abstract-- This project presents the design and

implementation of a 3-bit digital counter using a

555 timer IC, three CD4026 decade counter ICs,

and three seven-segment displays. The circuit

counts from 0 to 7 and visually represents the

count on seven-segment displays. The 555 timer

functions as an astable multivibrator to generate

clock pulses, while the 4026 ICs handle counting

and display driving. Push buttons allow for

manual incrementing of the count. Signal

conditioning elements such as resistors, diodes,

and capacitors are incorporated to ensure stable

operation and avoid erratic counting. The project

demonstrates practical applications in digital

logic design and provides insight into the

working of sequential circuit

I. Problem Statement

Counting and displaying numerical values is

essential in digital electronics, particularly in

timing and measurement applications. The

challenge is to design a simple yet effective 3-bit

digital counter that increments values upon user

input. The counter should use minimal

components while ensuring accuracy and

reliability in counting.

II. Introduction

A digital counter is a sequential circuit that counts

clock pulses and represents the count using a

visual display. Counters are essential components

in digital systems, used in applications such as

event counting, frequency measurement, and

timekeeping. In this project, a 3-bit counter is

designed using a 555 timer IC as the clock pulse

generator and 4026 ICs to drive three common

cathode seven-segment displays. The circuit

provides a simple yet effective demonstration of

counting in digital electronics.

The project aims to:

Design a stable clock pulse generator using a

555 timer IC.

Implement a 3-bit counter using CD4026

ICs to sequentially count from 0 to 7.

Provide a visual representation of the count

using three seven-segment displays.

Ensure stability and precision using

appropriate resistors, capacitors, and diodes.

III. Literature Review

Digital counters play a crucial role in modern

electronics. Floyd (2018) discusses the working

principles of counters and their applications in

various domains. Malvino (2016) explores

different counter configurations, including

asynchronous and synchronous counters,

highlighting their practical use in circuit design.

The 555 timer IC is a widely used component in

timing applications, as described in online circuit

design resources and datasheets. The 4026 IC is

specifically designed for driving seven-segment

displays, making it ideal for counter applications.

Various online sources provide insights into

optimizing counter stability and minimizing

glitches using debounce circuits for push buttons.

IV. Components Used

The key components in this project include:

555 Timer IC – Generates clock pulses.

4026 IC (x3) – Decade counters that drive

the seven-segment displays.

Seven-Segment Displays (x3) – Visually

represent the count.

Push Buttons – Allow manual incrementing

of the count.

Resistors and Capacitors – Provide signal

stability and debounce mechanisms.

Partial preview of the text

Download 3 digit counter Project. and more Summaries Digital Logic Design and Programming in PDF only on Docsity!

Digital Logic Design

Semester Project Report

Digital Counter

Izman Adnan (23BME 41 ) And Rawish Zehra (23BME 31 ). 2 nd^ year, 4th^ semester IBET LUMHS, JAMSHORO

Abstract-- This project presents the design and

implementation of a 3-bit digital counter using a 555 timer IC, three CD4026 decade counter ICs, and three seven-segment displays. The circuit counts from 0 to 7 and visually represents the count on seven-segment displays. The 555 timer functions as an astable multivibrator to generate clock pulses, while the 4026 ICs handle counting and display driving. Push buttons allow for manual incrementing of the count. Signal conditioning elements such as resistors, diodes, and capacitors are incorporated to ensure stable operation and avoid erratic counting. The project demonstrates practical applications in digital logic design and provides insight into the working of sequential circuit I. Problem Statement Counting and displaying numerical values is essential in digital electronics, particularly in timing and measurement applications. The challenge is to design a simple yet effective 3-bit digital counter that increments values upon user input. The counter should use minimal components while ensuring accuracy and reliability in counting.

II. Introduction

A digital counter is a sequential circuit that counts clock pulses and represents the count using a visual display. Counters are essential components in digital systems, used in applications such as event counting, frequency measurement, and timekeeping. In this project, a 3-bit counter is designed using a 555 timer IC as the clock pulse generator and 4026 ICs to drive three common cathode seven-segment displays. The circuit provides a simple yet effective demonstration of counting in digital electronics. The project aims to:  Design a stable clock pulse generator using a 555 timer IC.  Implement a 3-bit counter using CD ICs to sequentially count from 0 to 7.  Provide a visual representation of the count using three seven-segment displays.

 Ensure stability and precision using

appropriate resistors, capacitors, and diodes. III. Literature Review Digital counters play a crucial role in modern electronics. Floyd (2018) discusses the working principles of counters and their applications in various domains. Malvino (2016) explores different counter configurations, including asynchronous and synchronous counters, highlighting their practical use in circuit design. The 555 timer IC is a widely used component in timing applications, as described in online circuit design resources and datasheets. The 4026 IC is specifically designed for driving seven-segment displays, making it ideal for counter applications. Various online sources provide insights into optimizing counter stability and minimizing glitches using debounce circuits for push buttons. IV. Components Used The key components in this project include:  555 Timer IC – Generates clock pulses.  4026 IC (x3) – Decade counters that drive the seven-segment displays.  Seven-Segment Displays (x3) – Visually represent the count.

 Push Buttons – Allow manual incrementing

of the count.

 Resistors and Capacitors – Provide signal stability and debounce mechanisms.

 Diode – Prevents unwanted reverse current. V. Methodology Clock Pulse Generation A 555 timer IC is configured in an astable mode to generate continuous pulses. The pulse frequency is determined by selecting appropriate resistor and capacitor values.

Counter Implementation Three 4026 ICs are cascaded to count and drive three seven-segment displays. Each CD4026 IC increments its count upon receiving a clock pulse.
Display Output The seven-segment displays visually represent the count in binary-coded decimal (BCD) format. The common cathode configuration ensures compatibility with the 4026 ICs.
Manual Count Control A push button allows manual incrementing by generating pulses when pressed. Debounce circuitry ensures stable pulse generation to avoid false triggering.
Signal Conditioning Resistors, capacitors, and diodes stabilize the circuit and prevent erratic behavior VI. Results and Observation The implemented counter successfully increments from 000 (0) to 111 (7), displaying the output on three seven-segment displays. The key observations include:  Stable counting achieved using a well- configured 555 timer.  Proper display driving using 4026 ICs without flickering or miscounting.  Manual control works effectively due to the debounce mechanism.

 Reliable circuit stability ensured by adding

appropriate passive components Figure 1 circuit of digital counter VIi. Challenges Faced Some challenges encountered during the project were:

Initially, the seven-segment display was on but not counting because the wrong IC was used for the seven-segment display.
Push button malfunctioning – One of the reasons the counter was not counting properly.
Display flickering – Resolved by adding a capacitor.
Counter speed inconsistency – The first segment counted fast, the second bit was slower than the first, and the third segment was the slowest. This issue arose because we used a simple design without an Arduino, as Arduino ensures proper counting in sequence through the carry mechanism. VIII. Future Improvements To enhance the project, the following improvements can be considered:  Expanding the counter beyond 3 bits by adding additional 4026 ICs.
