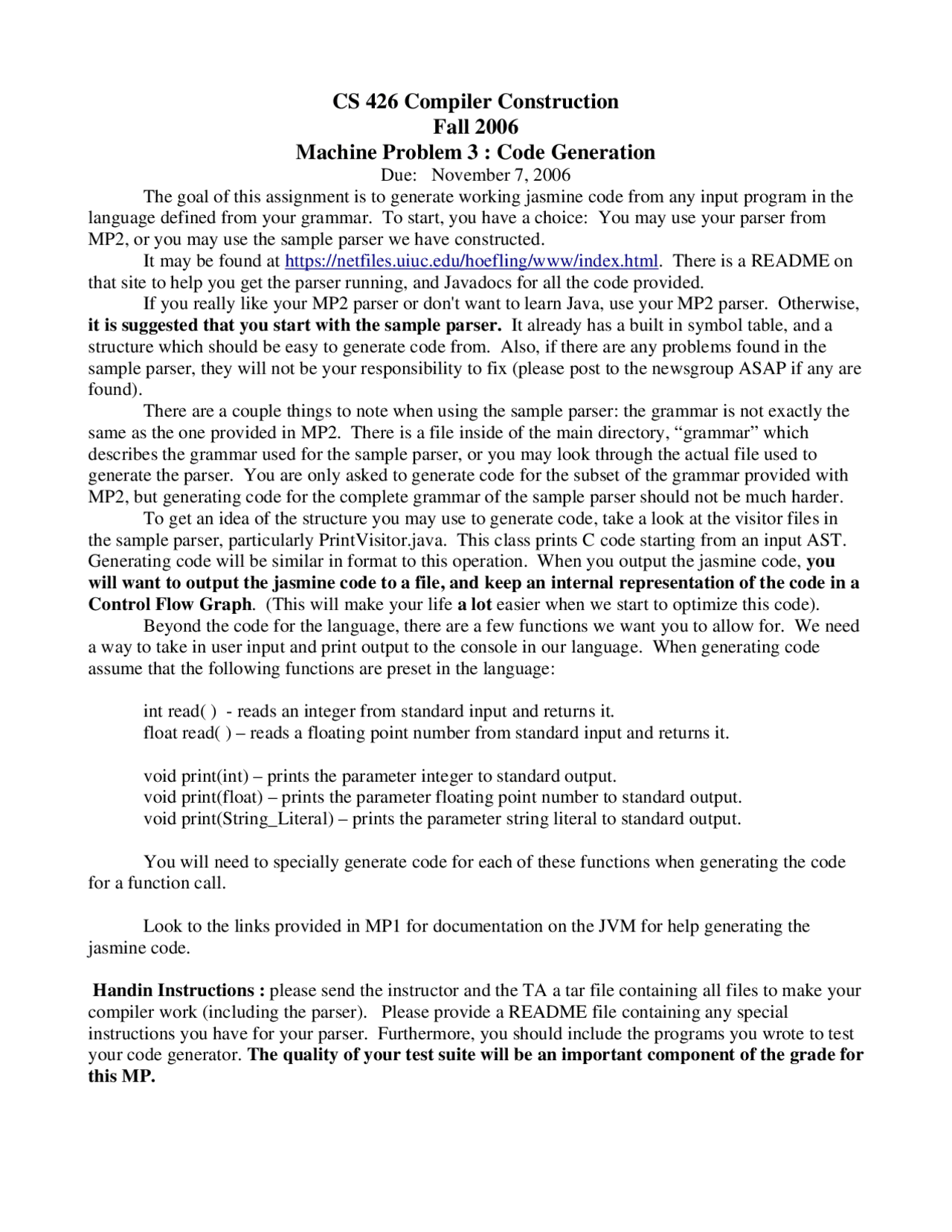

CS 426 Compiler Construction
Fall 2006
Machine Problem 3 : Code Generation
Due: November 7, 2006
The goal of this assignment is to generate working jasmine code from any input program in the
language defined from your grammar. To start, you have a choice: You may use your parser from
MP2, or you may use the sample parser we have constructed.
It may be found at https://netfiles.uiuc.edu/hoefling/www/index.html. There is a README on
that site to help you get the parser running, and Javadocs for all the code provided.
If you really like your MP2 parser or don't want to learn Java, use your MP2 parser. Otherwise,
it is suggested that you start with the sample parser. It already has a built in symbol table, and a
structure which should be easy to generate code from. Also, if there are any problems found in the
sample parser, they will not be your responsibility to fix (please post to the newsgroup ASAP if any are
found).
There are a couple things to note when using the sample parser: the grammar is not exactly the
same as the one provided in MP2. There is a file inside of the main directory, “grammar” which
describes the grammar used for the sample parser, or you may look through the actual file used to
generate the parser. You are only asked to generate code for the subset of the grammar provided with
MP2, but generating code for the complete grammar of the sample parser should not be much harder.
To get an idea of the structure you may use to generate code, take a look at the visitor files in
the sample parser, particularly PrintVisitor.java. This class prints C code starting from an input AST.
Generating code will be similar in format to this operation. When you output the jasmine code, you
will want to output the jasmine code to a file, and keep an internal representation of the code in a
Control Flow Graph. (This will make your life a lot easier when we start to optimize this code).
Beyond the code for the language, there are a few functions we want you to allow for. We need
a way to take in user input and print output to the console in our language. When generating code
assume that the following functions are preset in the language:
int read( ) - reads an integer from standard input and returns it.
float read( ) – reads a floating point number from standard input and returns it.
void print(int) – prints the parameter integer to standard output.
void print(float) – prints the parameter floating point number to standard output.
void print(String_Literal) – prints the parameter string literal to standard output.
You will need to specially generate code for each of these functions when generating the code
for a function call.
Look to the links provided in MP1 for documentation on the JVM for help generating the
jasmine code.
Handin Instructions : please send the instructor and the TA a tar file containing all files to make your
compiler work (including the parser). Please provide a README file containing any special
instructions you have for your parser. Furthermore, you should include the programs you wrote to test
your code generator. The quality of your test suite will be an important component of the grade for
this MP.
