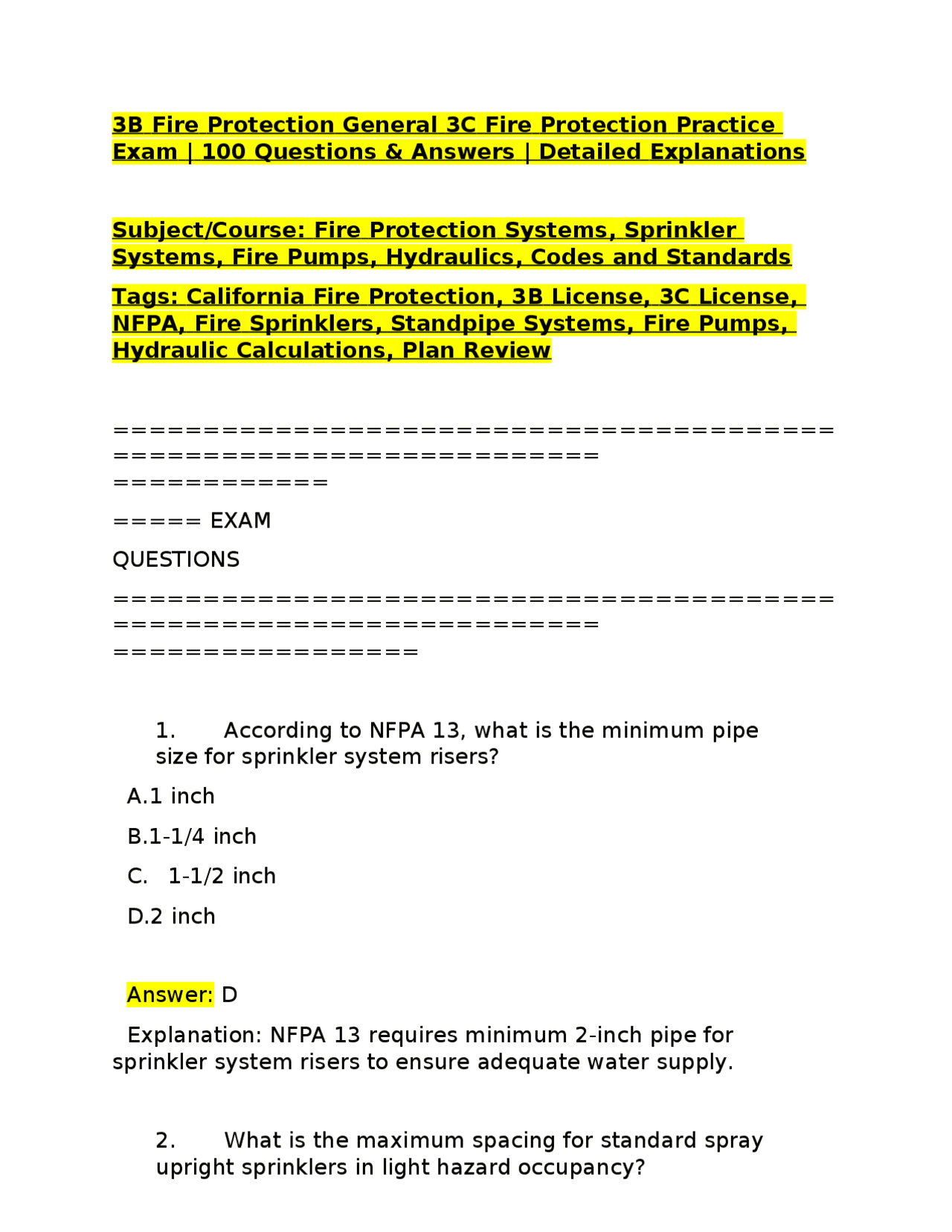

3B Fire Protection General 3C Fire Protection Practice Exam | 100 Questions & Answers | Detailed Explanations Subject/Course: Fire Protection Systems, Sprinkler Systems, Fire Pumps, Hydraulics, Codes and Standards Tags: California Fire Protection, 3B License, 3C License, NFPA, Fire Sprinklers, Standpipe Systems, Fire Pumps, Hydraulic Calculations, Plan Review ======================================== =========================== ============ ===== EXAM QUESTIONS ======================================== =========================== =================
- According to NFPA 13, what is the minimum pipe size for sprinkler system risers? A. 1 inch B.1-1/4 inch C. 1-1/2 inch D. 2 inch Answer: D Explanation: NFPA 13 requires minimum 2-inch pipe for sprinkler system risers to ensure adequate water supply.
- What is the maximum spacing for standard spray upright sprinklers in light hazard occupancy?
A. 12 feet B. 15 feet C. 18 feet D. 20 feet Answer: B Explanation: NFPA 13 allows maximum 15-foot spacing between standard spray sprinklers in light hazard areas.
- According to NFPA 20, what is the minimum duration for fire pump water supply tanks? A. 30 minutes B. 60 minutes C. 90 minutes D. 120 minutes Answer: B Explanation: NFPA 20 requires water supply tanks to provide minimum 60 minutes of pump operation at 150% rated capacity. 4.What type of sprinkler system has water in pipes at all times? A.Wet pipe B.Dry pipe C. Pre-action D.Deluge
- According to NFPA 14, what class of standpipe system has 2-1/2 inch hose connections only? A.Class I B.Class II C. Class III D.Class IV Answer: A Explanation: Class I standpipes have 2-1/2 inch hose connections for fire department use. 8.What is the purpose of a retard chamber in a dry pipe system? A.Delay system operation B.Prevent false trips C. Drain condensation D.All of the above Answer: B Explanation: Retard chambers prevent false trips from minor pressure fluctuations.
- According to NFPA 13, what is the maximum floor area protected by one sprinkler? A. 100 sq ft B. 130 sq ft
C. 225 sq ft D. 400 sq ft Answer: C Explanation: Maximum coverage area for standard spray sprinklers is 225 square feet.
- What type of valve indicates "open" position with rising stem? A.Gate valve B.Butterfly valve C. Check valve D.Ball valve Answer: A Explanation: OS&Y (Outside Screw and Yoke) gate valves indicate position by stem height.
- According to NFPA 20, what is the minimum suction pressure for centrifugal fire pumps? A.Positive pressure B. 0 psi C. -5 psi D.-10 psi Answer: A
A.Measure available water supply B.Test system drainage C. Verify valve operation D.All of the above Answer: D Explanation: Main drain tests verify water supply, valve operation, and drainage capacity.
- According to NFPA 13, what is the maximum distance from sprinkler to wall? A.Half the sprinkler spacing B. 7 feet C. 10 feet D. 12 feet Answer: A Explanation: Maximum distance from sprinkler to wall is half the sprinkler spacing distance.
- What type of sprinkler is designed for concealed spaces? A.Recessed B.Flush C. Concealed D.All of the above
Answer: D Explanation: All these sprinkler types are designed for concealed or aesthetic installations.
- According to NFPA 20, what is the rated speed for electric fire pump drivers? A. 1800 RPM B. 3600 RPM C. Variable based on design D.Determined by manufacturer Answer: B Explanation: Electric motors for fire pumps are typically rated at 3600 RPM.
- What is the minimum pipe size for sprinkler drops? A.3/4 inch B. 1 inch C. 1-1/4 inch D.1-1/2 inch Answer: B Explanation: Minimum 1-inch pipe for sprinkler drops to individual sprinklers.
- According to NFPA 13R, what is the maximum building height for residential sprinkler systems? A. 2 stories
- What is the maximum temperature rating for sprinklers in ordinary hazard areas? A.135°F B.155°F C. 175°F D.212°F Answer: C Explanation: Ordinary hazard areas typically use 175°F rated sprinklers.
- According to NFPA 13, what is the minimum clearance below sprinklers? A. 18 inches B. 24 inches C. 36 inches D. 48 inches Answer: A Explanation: Minimum 18-inch clearance required below sprinklers for proper spray pattern.
- What type of system uses heat detectors to open valves? A.Pre-action B.Deluge C. Dry pipe
D.Wet pipe Answer: B Explanation: Deluge systems use separate detection systems to open water control valves.
- According to NFPA 20, what is the minimum suction pipe size for fire pumps? A.Same size as pump inlet B.One size larger than inlet C. Two sizes larger than inlet D.Determined by flow rate Answer: B Explanation: Suction pipes must be minimum one pipe size larger than pump inlet.
- What is the purpose of an alarm test valve? A.Test waterflow alarms B.Isolate alarm devices C. Drain system for testing D.All of the above Answer: D Explanation: Alarm test valves serve multiple testing and maintenance functions.
C. Shop drawings D.All of the above Answer: D Explanation: Comprehensive documentation required for sprinkler system plan review.
- What is the purpose of a pressure relief valve on fire pumps? A.Protect pump from overpressure B.Maintain system pressure C. Prevent water hammer D.All of the above Answer: A Answer: A Explanation: Pressure relief valves protect fire pumps and systems from excessive pressure.
- According to NFPA 13, what is the maximum spacing for sprinklers under beams? A. 3 feet B. 4 feet C. 5 feet D. 6 feet
Answer: D Explanation: Maximum 6-foot spacing allowed when sprinklers are installed under beams.
- What type of occupancy classification includes manufacturing facilities? A.Light hazard B.Ordinary hazard Group I C. Ordinary hazard Group II D.Extra hazard Answer: C Explanation: Manufacturing facilities typically fall under Ordinary Hazard Group II.
- According to NFPA 20, what is the maximum start time for electric fire pumps? A. 5 seconds B. 10 seconds C. 15 seconds D. 30 seconds Answer: B Explanation: Electric fire pumps must achieve rated speed within 10 seconds of start signal.
- What is the purpose of a check valve in sprinkler systems?
Answer: C Explanation: Attic sprinklers typically require 250°F temperature ratings due to high heat accumulation.
- According to California regulations, how often must sprinkler systems be inspected? A.Monthly B.Quarterly C. Annually D.Every 3 years Answer: C Explanation: Annual inspections required for all sprinkler systems in California.
- What is the purpose of a dry pipe valve trim? A.Control valve operation B.Monitor system pressure C. Test system functions D.All of the above Answer: D Explanation: Dry pipe valve trim includes all components for operation and testing.
- According to NFPA 13, what is the maximum distance between hangers for 2- inch pipe?
A. 8 feet B. 10 feet C. 12 feet D. 15 feet Answer: B Explanation: Maximum 10-foot spacing for hangers on 2-inch sprinkler pipe.
- What type of sprinkler has special deflector for high-piled storage? A.CMSA B.ESFR C. Early Suppression D.Control Mode Answer: A Explanation: CMSA (Control Mode Specific Application) sprinklers are designed for high-piled storage.
- According to NFPA 20, what is the minimum diesel fuel supply for fire pumps? A. 1 hour B. 2 hours C. 4 hours D. 8 hours Answer: D
D.12,000 sq ft Answer: D Explanation: Maximum 12,000 sq ft per fire area in unsprinklered buildings per IBC.
- According to California regulations, what license endorsement is needed for fire pumps? A.General Fire Protection B.Fire Pump Specialist C. No special endorsement D.C-10 Electrical Answer: B Explanation: Fire Pump Specialist endorsement required for fire pump installation and service.
- What is the purpose of an accelerators on dry pipe systems? A.Speed valve operation B.Reduce system filling time C. Equalize pressure D.All of the above Answer: D Explanation: Accelerators improve dry pipe system performance in multiple ways.
- According to NFPA 13, what is the maximum protection area for ESFR sprinklers? A. 100 sq ft B. 196 sq ft C. 225 sq ft D. 400 sq ft Answer: B Explanation: ESFR sprinklers have maximum 196 square foot coverage area.
- What is the minimum flow rate for standpipe hose stations? A. 50 gpm B. 100 gpm C. 250 gpm D. 500 gpm Answer: B Explanation: Minimum 100 gpm flow rate required for standpipe hose stations.
- According to NFPA 20, what is the required weekly fire pump test duration? A. 10 minutes B. 30 minutes C. 60 minutes D.No weekly test required
