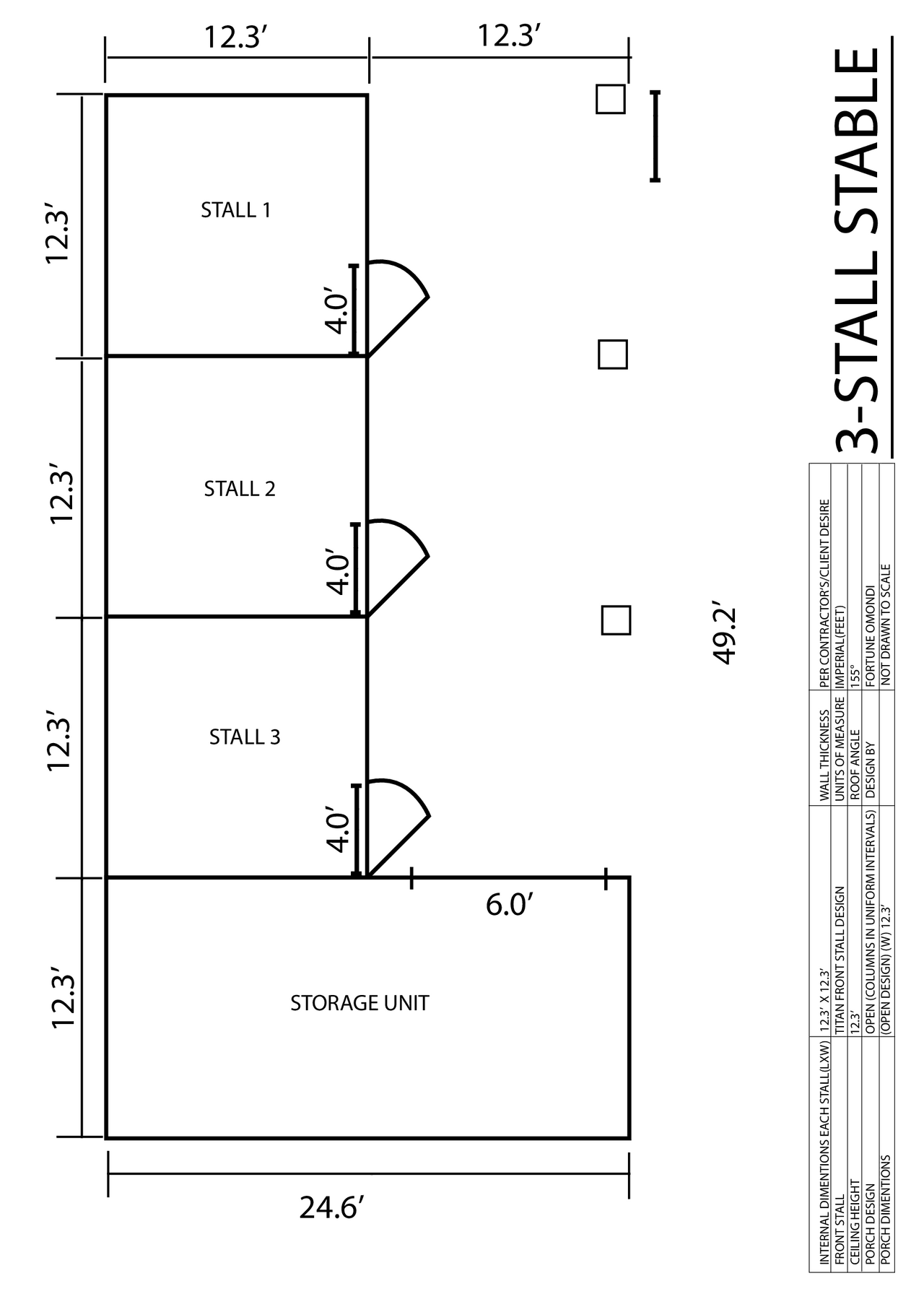

3-STALL STABLE
INTERNAL DIMENTIONS EACH STALL(LXW) 12.3’ X 12.3’ WALL THICKNESS PER CONTRACTOR‘S/CLIENT DESIRE
FRONT STALL TITAN FRONT STALL DESIGN UNITS OF MEASURE IMPERIAL(FEET)
CEILING HEIGHT 12.3’ ROOF ANGLE 155°
PORCH DESIGN OPEN (COLUMNS IN UNIFORM INTERVALS) DESIGN BY FORTUNE OMONDI
PORCH DIMENTIONS (OPEN DESIGN) (W) 12.3’ NOT DRAWN TO SCALE
12.3’
4.0’
4.0’4.0’
6.0’
12.3’ 12.3’
49.2’
24.6’
12.3’
12.3’
12.3’
STALL 1
STALL 2
STALL 3
STORAGE UNIT
