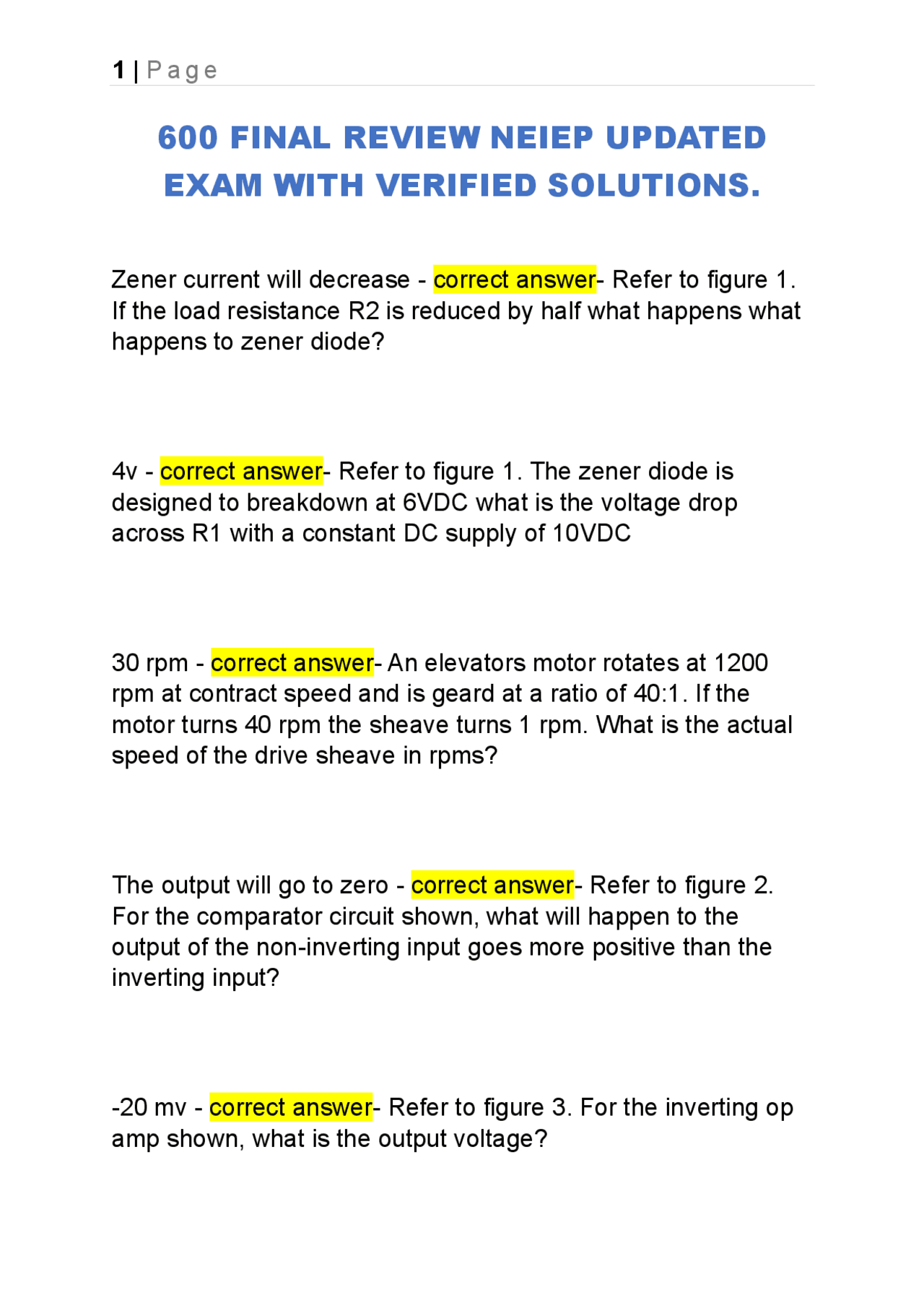

600 FINAL REVIEW NEIEP UPDATED
EXAM WITH VERIFIED SOLUTIONS.
Zener current will decrease - correct answer- Refer to figure 1.
If the load resistance R2 is reduced by half what happens what
happens to zener diode?
4v - correct answer- Refer to figure 1. The zener diode is
designed to breakdown at 6VDC what is the voltage drop
across R1 with a constant DC supply of 10VDC
30 rpm - correct answer- An elevators motor rotates at 1200
rpm at contract speed and is geard at a ratio of 40:1. If the
motor turns 40 rpm the sheave turns 1 rpm. What is the actual
speed of the drive sheave in rpms?
The output will go to zero - correct answer- Refer to figure 2.
For the comparator circuit shown, what will happen to the
output of the non-inverting input goes more positive than the
inverting input?
-20 mv - correct answer- Refer to figure 3. For the inverting op
amp shown, what is the output voltage?
