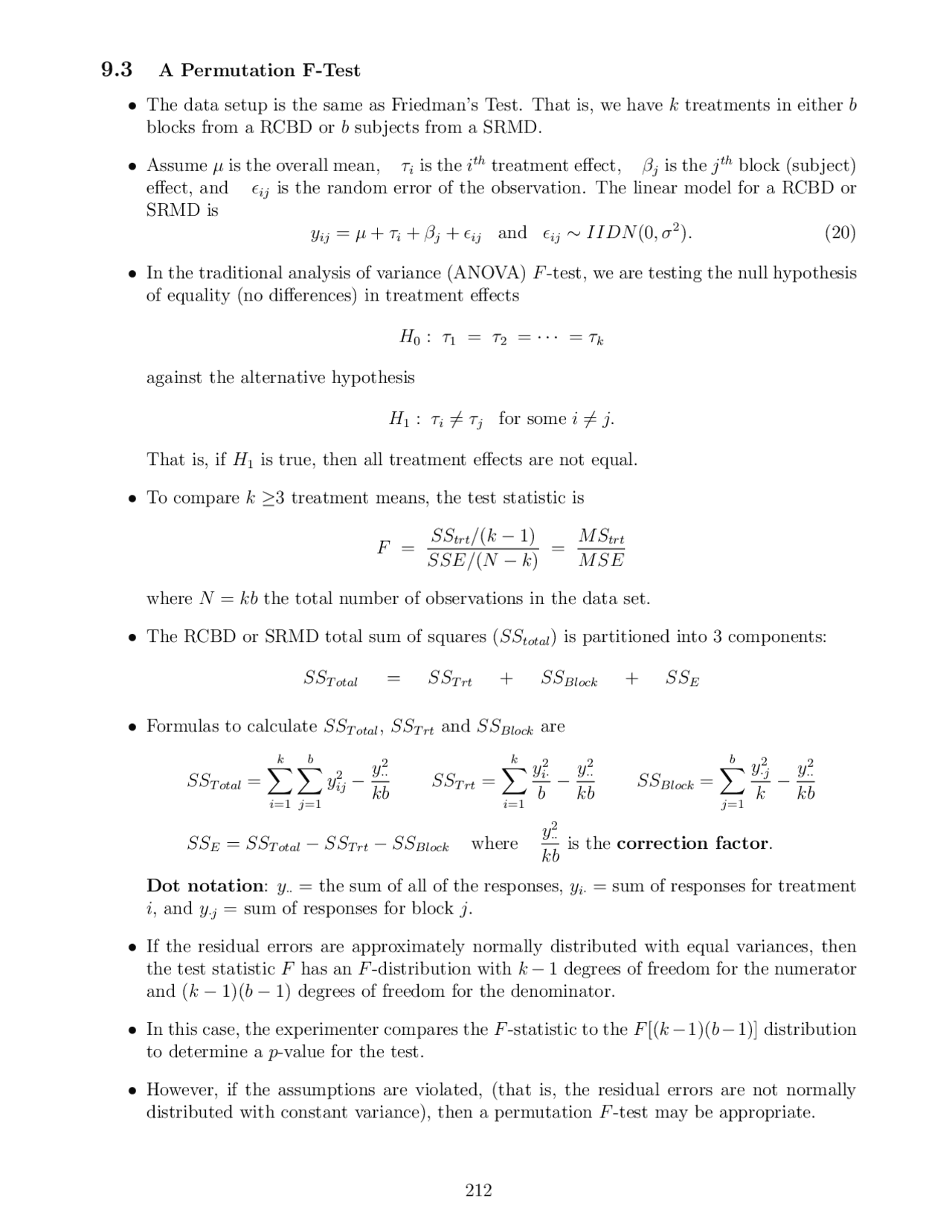

9.3 A Permutation F-Test
- The data setup is the same as Friedman’s Test. That is, we have k treatments in either b blocks from a RCBD or b subjects from a SRMD.
- Assume μ is the overall mean, τi is the ith^ treatment effect, βj is the jth^ block (subject) effect, and ij is the random error of the observation. The linear model for a RCBD or SRMD is yij = μ + τi + βj + ij and ij ∼ IIDN (0, σ^2 ). (20)
- In the traditional analysis of variance (ANOVA) F -test, we are testing the null hypothesis of equality (no differences) in treatment effects
H 0 : τ 1 = τ 2 = · · · = τk
against the alternative hypothesis
H 1 : τi 6 = τj for some i 6 = j.
That is, if H 1 is true, then all treatment effects are not equal.
- To compare k ≥3 treatment means, the test statistic is
F =
SStrt/(k − 1) SSE/(N − k)
M Strt M SE
where N = kb the total number of observations in the data set.
- The RCBD or SRMD total sum of squares (SStotal) is partitioned into 3 components:
SST otal = SST rt + SSBlock + SSE
- Formulas to calculate SST otal, SST rt and SSBlock are
SST otal =
∑^ k
i=
∑^ b
j=
y^2 ij −
y^2 ·· kb
SST rt =
∑^ k
i=
y^2 i· b
y^2 ·· kb
SSBlock =
∑^ b
j=
y^2 ·j k
y ··^2 kb
SSE = SST otal − SST rt − SSBlock where
y^2 ·· kb
is the correction factor.
Dot notation: y·· = the sum of all of the responses, yi· = sum of responses for treatment i, and y·j = sum of responses for block j.
- If the residual errors are approximately normally distributed with equal variances, then the test statistic F has an F -distribution with k − 1 degrees of freedom for the numerator and (k − 1)(b − 1) degrees of freedom for the denominator.
- In this case, the experimenter compares the F -statistic to the F [(k − 1)(b − 1)] distribution to determine a p-value for the test.
- However, if the assumptions are violated, (that is, the residual errors are not normally distributed with constant variance), then a permutation F -test may be appropriate.
The Steps in the Permutation F -Test (Monte-Carlo Approach)
- Calculate the F -statistic from the original data. Call this Fobs.
- Generate a large number Prep of permutations where observations are permuted within each block. That is, we are randomly permuting the treatments to the observations within blocks.
- For each permutation, calculate the F -statistic.
- Find the proportion of this set of Prep permutation F -statistics that are ≥ Fobs. This is the p-value for the Permutation F -test.
R code for Permutation F-Test for RCBD
RCBD data from Table 4.4.3 (Higgins, page 130)
library(lmPerm)
Enter vector of responses
y <- c(120,208,199,194,177,195,207,188,181,164,155,175, 122,137,177,177,160,138,128,128,160,142,157,179)
treatment <- c(1,1,1,1,1,1,2,2,2,2,2,2,3,3,3,3,3,3,4,4,4,4,4,4) block <- c(rep(c(1,2,3,4,5,6),4))
treatment <- as.factor(treatment) block <- as.factor(block)
rcbd <- data.frame(y,block,treatment)
Parametric F-test for a RCBD
summary(aov(y~treatment+block,rcbd))
Permutation Test for RCBD
summary(aovp(y~treatment+block,rcbd))
R output for Permutation F-Test for RCBD
> # Parametric F-test for a RCBD
Df Sum Sq Mean Sq F value Pr(>F) <-- P-value for the treatment 3 5408 1802.8 3.121 0.0575. <-- parametric F-Test block 5 2817 563.4 0.975 0. Residuals 15 8664 577.
Signif. codes: 0 ‘’ 0.001 ‘’ 0.01 ‘’ 0.05 ‘.’ 0.1 ‘ ’ 1
> # Permutation Test for RCBD
Df R Sum Sq R Mean Sq Iter Pr(Prob) <-- P-value for the treatment 3 5408.3 1802.78 1848 0.07251. <-- Permutation F-Test block 5 2816.8 563.37 573 0. Residuals 15 8664.2 577.
Signif. codes: 0 ‘’ 0.001 ‘’ 0.01 ‘’ 0.05 ‘.’ 0.1 ‘ ’ 1
Example of Page’s Test (from Table 4.5.2 in Introduction to Modern Nonparametric Statistics
by J. Higgins).
A researcher reported the scores of 36 children who perform a certain task as part
of an experiment. The children formed 12 blocks of three children such that each
child in the same block were of similar age and gender. In each block, one child
was congenitally blind (Blind), one child could see but his/her eyes were covered
to block sight (Blindfolded), and one child could see without being blindfolded
(Seeing). The results are shown in the following table (where a : b → a years
and b months old).
Age Gender Block Blind Blindfolded Seeing Blind Blindfolded Seeing
5:7 F 1 0 0 0
6:0 M 2 0 8 1
6:4 F 3 0 0 8
6:6 M 5 0 0 8
6:11 F 5 1 2 0
7:9 F 6 8 8 8
7:11 F 7 8 5 8
8:0 F 8 8 6 8
8:5 F 9 0 8 8
8:6 F 10 8 8 8
8:10 F 11 8 3 8
9:6 M 12 8 8 8
The researchers wanted to test the null hypothesis of identical results against the alternative
that blind children tend to score lower than blindfolded children, and that blindfolded children
tend to score lower than seeing children.
9.5 Cochran’s Q Test
7.4 Cochran’s Q Test
R code for Cochran’s Q Test Example
Cochran’s Q Test
library(statmod) library(doBy) library(ade4) library(RVAideMemoire)
y <- c(1,0,0,0, 1,1,1,1, 0,0,0,0, 0,1,1,1, 1,1,1,1, 1,0,0,1, 1,0,1,1, 1,0,0,1, 1,0,0,0, 1,0,0,0, 1,1,1,1)
blocks <- c(1,1,1,1,2,2,2,2,3,3,3,3,4,4,4,4,5,5,5,5,6,6,6,6,7,7,7,7, 8,8,8,8,9,9,9,9,10,10,10,10,11,11,11,11)
treatment <- c(rep(c("MajOp","ActPIP","SubjPIP","SemiPIP"),11))
cochran.qtest(y~treatment|blocks,alpha=.05,p.method="fdr")
SAS code for Cochran’s Q Test Example
- You can use SAS to calculate the Cochran Q statistics and an approximate p-value based on a chi-squared distribution.
- This p-value may not be very accurate when the number of treatments or blocks (or subjects) is not very large.
DM ’LOG;CLEAR;OUT;CLEAR;’;
OPTION PS=60 LS=72 NODATE NONUMBER;
*** Cochran’s Q Test Example ***; ********************************;
*** Analysis by entering ranks within blocks ***;
DATA in; DO patient = 1 TO 11; DO treatment = ’MajOp’, ’ActP ’, ’SubjP’, ’SemiP’; INPUT y @@; OUTPUT; END; END; CARDS; 1 0 0 0 1 1 1 1 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 1 1 0 1 1 1 0 0 1 1 0 0 0 1 0 0 0 1 1 1 1 ; PROC FREQ DATA=in; TABLE patienttreatmenty / NOPRINT CMH; TITLE ’Cochran’’s Q Test’; RUN;
SAS output for Cochran’s Q Test
Cochran’s Q Test
The FREQ Procedure
Summary Statistics for treatment by y Controlling for patient
Cochran-Mantel-Haenszel Statistics (Based on Table Scores)
Statistic Alternative Hypothesis DF Value Prob
1 Nonzero Correlation 1 0.0261 0. 2 Row Mean Scores Differ 3 7.6957 0.0527 <--- 3 General Association 3 7.6957 0.
Total Sample Size = 44
R code for Permutation Test for Cochran’s Q
- We can use a monte-carlo approach to finding a p-value for Cochran’s Q Test instead of using the asymptotic chi-square distribution.
- The idea is to generate randomizations of the 0’s and 1’s within each block or subject, and calculate the Q test statistic for each randomization.
- A large number of randomizations Prep would be performed to generate the ECDF of the Q statistic assuming H 0 is true. This ECDF can then be used to find the p-value. That is, find the proportion of Q values out of the Prep values in the ECDF that are ≥ Q from the observed data.
R output for Permutation Test for Cochran’s Q
> # Permutation Test for Cochran’s Q
> sum(Cvec) [1] 25 > N <- sum(Rvec) [1] 25
> Qdenom [1] 23 > Qnumer [1] 177
> # Cochran’s Q Test Statistic for Observed Data
> Q0 [1] 7.
> # Calculate p-value [1] 0.
R code for Permutation Test for Cochran’s Q
Permutation Test for Cochran’s Q
library(gtools)
Enter the number of permutations to take
Prep = 50000
