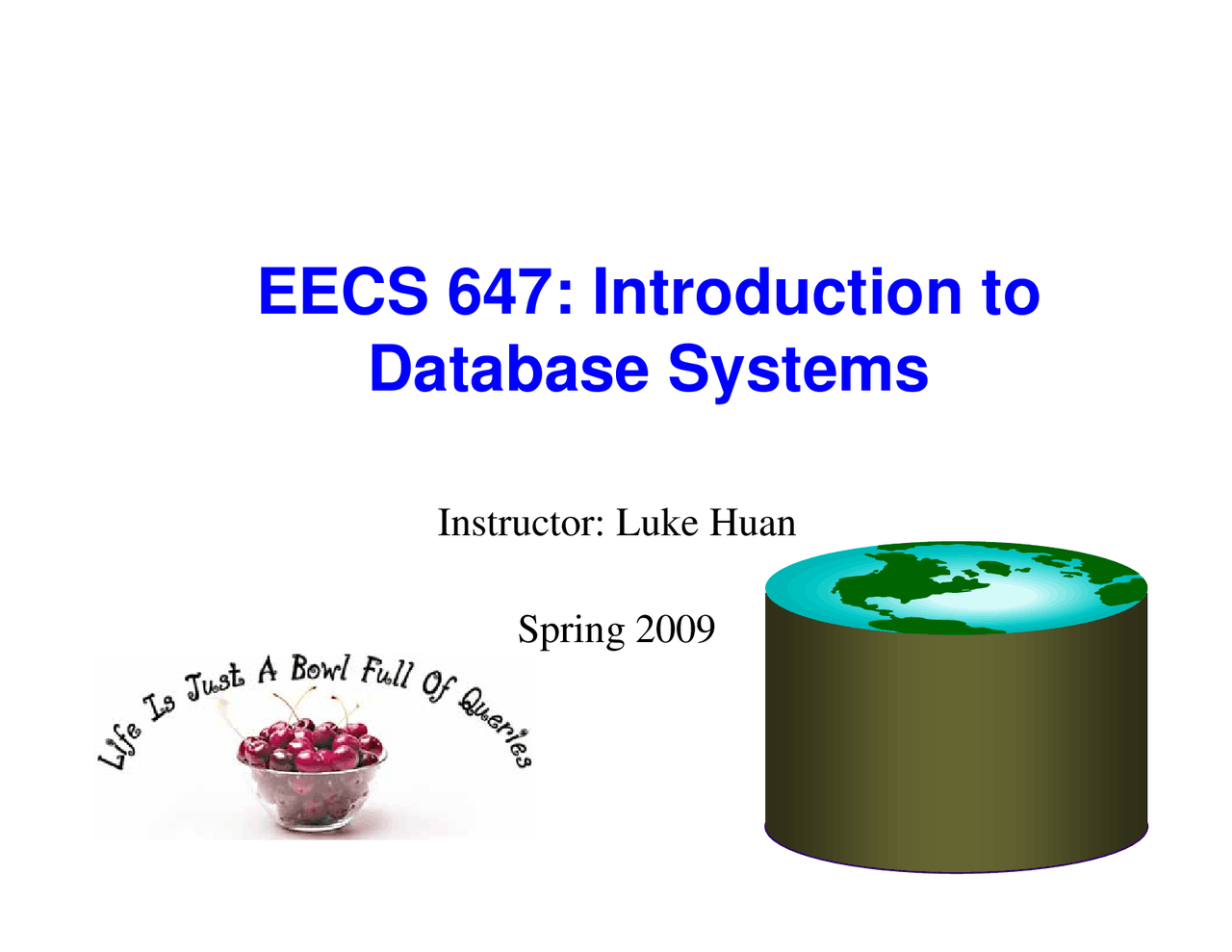

EECS 647: Introduction to

Database Systems

Instructor: Luke Huan

Spring 2009

2/24/

Luke Huan Univ. of Kansas

Stating Points

z^

A database

z^

A database management system

z^

A miniworld

z^

A data model z^

Conceptual model z^

Relational model

Data Independence

z^

Applications insulated from how data is structuredand stored.

z^

Logical data independence

: the capacity to change the

conceptual schema without having to change theexternal schema

z^

Physical data independence

: the capacity to change

the internal schema without having to change theconceptual schema

z^

Q: Why is this particularly important for DBMS?

2/24/

Luke Huan Univ. of Kansas

O.K. So, how to model a miniworld?

z^

Using conceptual model such as ER model

2/24/

Luke Huan Univ. of Kansas

Now you have a draft, how do you improve

your design?

z^

Using integrity constraints z^

Attributes value must come from its domain z^

Every relation mush have a primary key z^

The primary key value in a tuple can not be NULL z^

The foreign key value in a referenced tuple must exist orthe foreign key value in the referencing tuple is NULL

2/24/

Luke Huan Univ. of Kansas

How do you improve relational data base

design (cont.)?

z^

Using functional dependency z^

Non-key FD always leads to redundancy z^

BCNF normal form z^ Pick up a non-key FD, do binary decomposition

z^

First normal form: no attribute may be composite ormulti-valued

z^

(

nd^

normal form and 3

rd^

normal form are coming… )

2/24/

Luke Huan Univ. of Kansas

Review

z^

SELECT

a list of attributes

FROM

a list of relations WHERE

condition

;

z^

Condition may have logical operators AND, OR, NOT

z^

Condition may have comparison operators: <. <=, <>,>=, >

z^

String comparison may use “=” (exactly match) or“LIKE” (matching with regular expressions) z^

%, _, \

z^

(Arithmetic) expressions of attributes are allowed

2/24/

Luke Huan Univ. of Kansas

Examples of bag operations

Bag

Bag

Bag1 UNION ALL Bag

Bag1 EXCEPT ALL Bag

Bag1 INTERSECT ALL Bag

fruit AppleAppleOrange

fruitAppleOrangeOrange fruitAppleAppleAppleOrangeOrangeOrange

fruitApple

fruitAppleOrange

2/24/

Luke Huan Univ. of Kansas

13

Aggregates

z^

Standard SQL aggregate functions:

COUNT

,^ SUM

,^ AVG

,

MIN

,^ MAX

z^

Example: number of students under 18, and theiraverage GPA z^

SELECT

COUNT(*),

AVG(GPA)

FROM

Student WHERE

age

<

18;

z^

COUNT(*)

counts the number of rows

2/24/

Luke Huan Univ. of Kansas

Aggregates with

DISTINCT

z^

Example: How many students are taking classes? z^

SELECT

COUNT

(SID)

FROM

Enroll;

z^

SELECT

COUNT(DISTINCT

SID)

FROM

Enroll;

2/24/

Luke Huan Univ. of Kansas

Operational semantics of

GROUP BY

SELECT

…

FROM

…

WHERE

…

GROUP BY

…

;

z^

Compute

FROM

(×

)

z^

Compute

WHERE

(σ

)

z^

Compute

GROUP BY

: group rows according to the

values of

GROUP BY

columns

z^

Compute

SELECT

for each group (

π)

z^

For aggregation functions with

DISTINCT

inputs, first

eliminate duplicates within the group

)^

Number of groups = number of rows in the final output

2/24/

Luke Huan Univ. of Kansas

Example of computing

GROUP BY

SELECT age, AVG(GPA) FROM Student GROUP BY

age;

Compute

GROUP BY

: group

rows according to thevalues of

GROUP BY

columns

Compute

SELECT

for each

group

Kevin Kim 1306

Susan Wong 1204

Bob Lee

1011

age^2119

Mary Carter 1123

John Smith 1234

gpa

name

sid

Mary Carter 1123

Susan Wong 1204

Bob Lee

1011

age^2119

Kevin Kim 1306

John Smith 1234

gpa

name

sid

age^2122

gpa3.

2/24/

Luke Huan Univ. of Kansas

Restriction on

SELECT

z^

If a query uses aggregation/group by, then every columnreferenced in

SELECT

must be either

z^

Aggregated, or z^

A^

GROUP BY

column

)^

This restriction ensures that any

SELECT

expression

produces only

one

value for each group

2/24/

Luke Huan Univ. of Kansas

Examples of invalid queries

z^

SELECT SID, age FROM Student GROUP BY age; z^

Recall there is one output row per group z^

There can be multiple SID values per group z^

SELECT SID, MAX(GPA) FROM Student; z^

Recall there is only one group for an aggregate query withno

GROUP BY

clause

z^

There can be multiple SID values z^

Wishful thinking (that the output SID value is the oneassociated with the highest GPA) does NOT work
