Course Name: A Level (
nd
Sem) Subject: DCN
Topic: Ethernet contd. Date: 20-05-

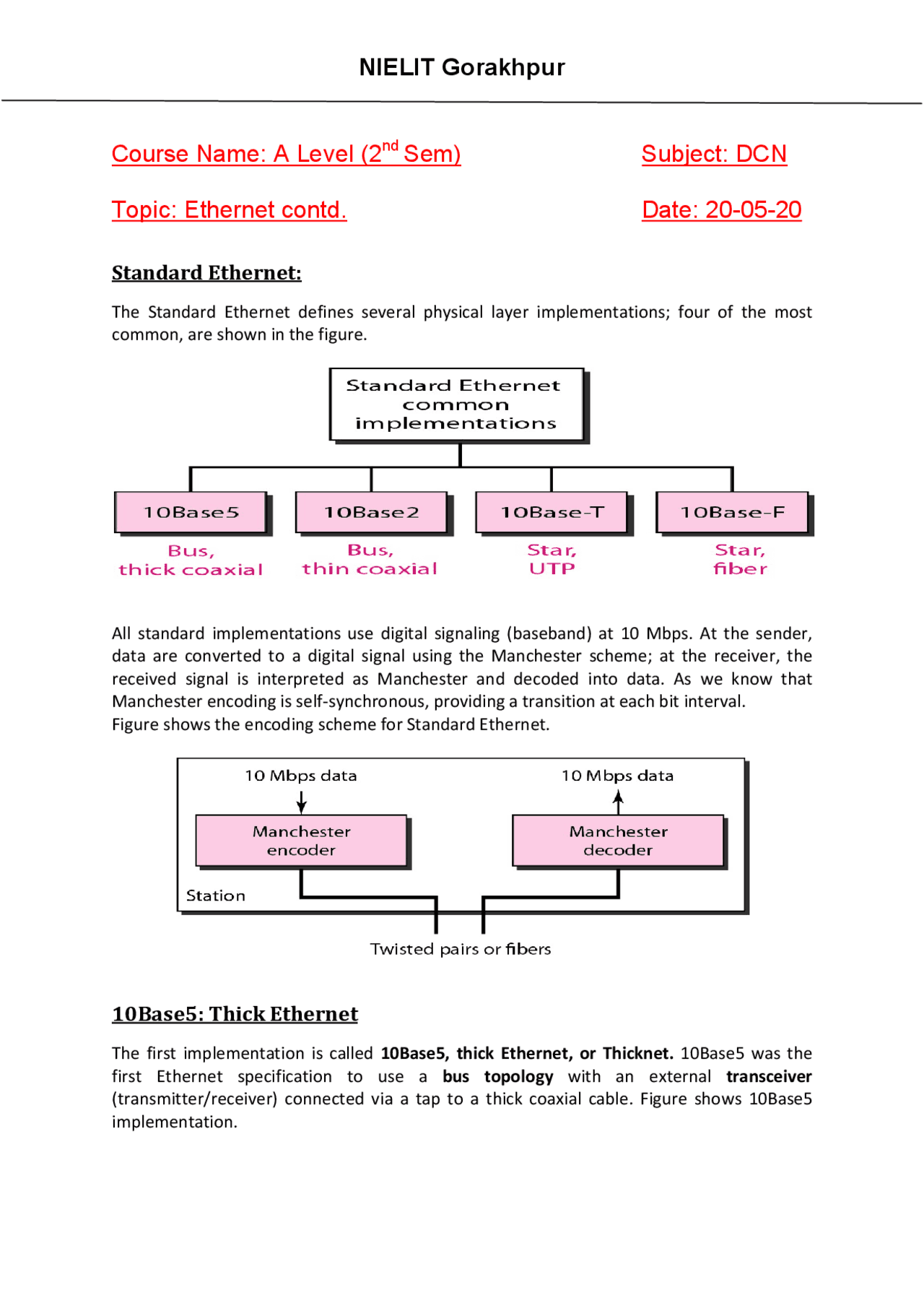

Standard Ethernet:
The Standard Ethernet defines several physical layer implementations; four of the most common, are shown in the figure. All standard implementations use digital signaling (baseband) at 10 Mbps. At the sender, data are converted to a digital signal using the Manchester scheme; at the receiver, the received signal is interpreted as Manchester and decoded into data. As we know that Manchester encoding is self-synchronous, providing a transition at each bit interval. Figure shows the encoding scheme for Standard Ethernet.
10Base5: Thick Ethernet
The first implementation is called 10Base5, thick Ethernet, or Thicknet. 10Base5 was the first Ethernet specification to use a bus topology with an external transceiver (transmitter/receiver) connected via a tap to a thick coaxial cable. Figure shows 10Base implementation.
The transceiver is responsible for transmitting, receiving, and detecting collisions. The transceiver is connected to the station via a transceiver cable that provides separate paths for sending and receiving. This means that collision can only happen in the coaxial cable. The maximum length of the coaxial cable must not exceed 500 m; otherwise, there is excessive degradation of the signal. If a length of more than 500 m is needed, up to five segments, each a maximum of 500 meter, can be connected using repeaters.
10Base2: Thin Ethernet
The second implementation is called 10Base2, thin Ethernet, or Cheapernet. 10Base2 also uses a bus topology, but the cable is much thinner and more flexible. The cable can be bent to pass very close to the stations. In this case, the transceiver is normally part of the network interface card (NIC), which is installed inside the station. Figure shows the 10Base implementation. The collision here occurs in the thin coaxial cable. This implementation is more cost effective than 10Base5 because thin coaxial cable is less expensive than thick coaxial and the tee connections are much cheaper than taps. Installation is simpler because the thin coaxial cable is very flexible. However, the length of each segment cannot exceed 185 m (close to 200 m) due to the high level of attenuation in thin coaxial cable.
Summary of Standard Ethernet implementations
Exercises:
A. What are the common Standard Ethernet implementations? B. Compare and contrast 10Base5 and 10Base2 Ethernet?
