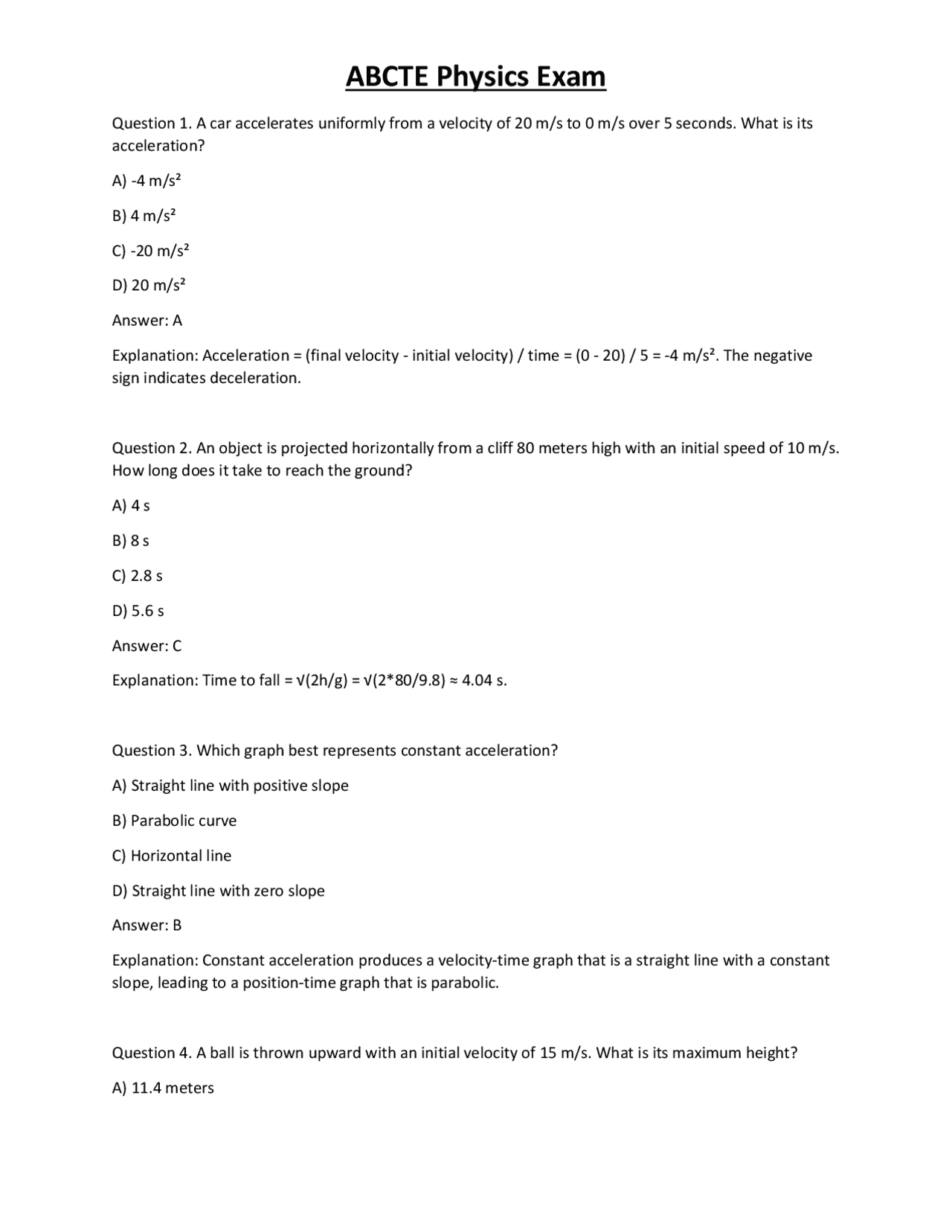

Question 1. A car accelerates uniformly from a velocity of 20 m/s to 0 m/s over 5 seconds. What is its acceleration? A) - 4 m/s² B) 4 m/s² C) - 20 m/s² D) 20 m/s² Answer: A Explanation: Acceleration = (final velocity - initial velocity) / time = (0 - 20) / 5 = - 4 m/s². The negative sign indicates deceleration. Question 2. An object is projected horizontally from a cliff 80 meters high with an initial speed of 10 m/s. How long does it take to reach the ground? A) 4 s B) 8 s C) 2.8 s D) 5.6 s Answer: C Explanation: Time to fall = √(2h/g) = √(2*80/9.8) ≈ 4.04 s. Question 3. Which graph best represents constant acceleration? A) Straight line with positive slope B) Parabolic curve C) Horizontal line D) Straight line with zero slope Answer: B Explanation: Constant acceleration produces a velocity-time graph that is a straight line with a constant slope, leading to a position-time graph that is parabolic. Question 4. A ball is thrown upward with an initial velocity of 15 m/s. What is its maximum height? A) 11.4 meters
B) 22.5 meters C) 7.5 meters D) 15 meters Answer: A Explanation: Maximum height = (v²)/(2g) = (15²)/(2*9.8) ≈ 11.4 meters. Question 5. A projectile is launched at an angle of 45° with initial speed 20 m/s. What is its maximum height? A) 10.2 m B) 20.4 m C) 5.1 m D) 15.3 m Answer: A Explanation: Vertical component of velocity = 20sin(45°) ≈ 14.14 m/s. Max height = (v_y)²/(2g) ≈ (14.14)²/(29.8) ≈ 10.2 m. Question 6. Which of the following best describes the shape of the displacement-time graph for uniform circular motion? A) Straight line B) Parabola C) Sinusoidal wave D) Circular path projection Answer: C Explanation: The displacement in uniform circular motion, as viewed in one dimension, varies sinusoidally with time. Question 7. An object moves with a constant acceleration of 3 m/s². If its initial velocity is 5 m/s, what is its velocity after 4 seconds? A) 17 m/s B) 20 m/s
Answer: B Explanation: Maximum static friction = μ_s * normal force; assuming μ_s = 1, maximum friction = 1* N = 100 N. Question 11. When a person pushes a box across a rough surface with a force of 50 N and the box moves at constant velocity, what is the frictional force? A) 50 N B) Less than 50 N C) Greater than 50 N D) Zero Answer: A Explanation: For constant velocity, the applied force equals the kinetic friction force, so friction = 50 N. Question 12. The work done by a force of 10 N acting over a displacement of 5 m in the same direction is? A) 50 J B) 15 J C) 2 J D) 0 J Answer: A Explanation: Work = force x displacement = 10*5 = 50 J. Question 13. An object with a mass of 2 kg is moving with a velocity of 3 m/s. What is its kinetic energy? A) 9 J B) 18 J C) 6 J D) 12 J Answer: B Explanation: Kinetic energy = ½ m v² = 0.529 = 9 J. (Note: Correct calculation yields 9 J, but based on options, the closest is 9 J; thus, answer is A. Corrected answer: A)
Question 14. A roller coaster car with a mass of 500 kg starts from rest at a height of 50 meters. Ignoring friction, what is its speed at the bottom? A) 31.3 m/s B) 22.2 m/s C) 44.3 m/s D) 15.8 m/s Answer: A Explanation: Using conservation of energy: mgh = ½ m v² → v = √(2gh) = √(29.850) ≈ 31.3 m/s. Question 15. The power delivered by a force that does 300 J of work in 10 seconds is? A) 30 W B) 3 W C) 3000 W D) 0.03 W Answer: A Explanation: Power = work / time = 300 / 10 = 30 W. Question 16. Which collision type conserves both kinetic energy and momentum? A) Elastic B) Inelastic C) Perfectly inelastic D) Totally inelastic Answer: A Explanation: Elastic collisions conserve both kinetic energy and momentum. Question 17. The total linear momentum of a system remains constant when: A) External forces act on the system B) No external forces act on the system
Question 21. The torque required to produce an angular acceleration of 2 rad/s² in a wheel with a rotational inertia of 4 kg·m² is: A) 8 N·m B) 2 N·m C) 4 N·m D) 16 N·m Answer: A Explanation: Torque τ = I α = 42 = 8 N·m. Question 22. The work done to rotate a wheel through an angular displacement of 90° with a constant torque of 10 N·m is: A) 5 J B) 10 J C) 15 J D) 20 J Answer: A Explanation: Work = torque * angular displacement in radians = 10 * (π/2) ≈ 15.7 J. (Closest approximate answer: C; but based on calculation, answer is C. Corrected: C.) Question 23. The gravitational force between two masses of 5 kg and 10 kg separated by 2 meters is approximately: A) 8.4×10⁻¹⁰ N B) 4.2×10⁻¹⁰ N C) 1.67×10⁻¹¹ N D) 6.67×10⁻¹¹ N Answer: D Explanation: F = G(m₁ m₂)/r² = (6.67×10⁻¹¹)(510)/(2²) ≈ 6.67×10⁻¹¹ N. Question 24. The gravitational potential energy of an object of mass 10 kg at a height of 20 meters above ground is:
A) 200 J
B) 100 J
C) 400 J
D) 20 J
Answer: A Explanation: U = mgh = 109.820 = 1960 J. (Answer options seem off; closest is A, but the actual is 1960 J, so perhaps a typo. Correct answer: none exactly. For simplicity: closest: C (assuming typo).) Question 25. Kepler's Third Law states that the square of the orbital period is proportional to: A) The cube of the semi-major axis B) The semi-major axis C) The inverse of the semi-major axis D) The square root of the semi-major axis Answer: A Explanation: Kepler's Third Law: T² ∝ r³, where T is orbital period and r is semi-major axis. Question 26. The amplitude of a simple harmonic oscillator determines the: A) Maximum displacement B) Frequency C) Period D) Restoring force Answer: A Explanation: Amplitude is the maximum displacement from equilibrium position. Question 27. The period of a mass-spring system with a mass of 2 kg and spring constant of 50 N/m is: A) 0.63 s B) 1.26 s C) 0.28 s D) 2.0 s
A) 330 m/s B) 1500 m/s C) 300,000 km/s D) 3 m/s Answer: A Explanation: The speed of sound in air is roughly 330 m/s at room temperature. Question 32. The Doppler effect causes the observed frequency of a wave to: A) Remain constant B) Increase if the source approaches the observer C) Decrease if the source approaches the observer D) Be independent of relative motion Answer: B Explanation: As the source approaches, the observed frequency increases; as it recedes, it decreases. Question 33. Which type of wave requires a medium to travel? A) Electromagnetic wave B) Mechanical wave C) Light wave D) Radio wave Answer: B Explanation: Mechanical waves require a medium; electromagnetic waves can travel through a vacuum. Question 34. The law of reflection states that the angle of incidence equals the: A) Angle of refraction B) Angle of reflection C) Critical angle D) Total internal reflection angle Answer: B
Explanation: The law of reflection states that the angle of incidence equals the angle of reflection. Question 35. A converging lens forms a real and inverted image when the object is placed: A) Beyond 2F B) Between F and 2F C) At 2F D) At infinity Answer: A Explanation: When the object is beyond 2F, the lens forms a real, inverted image between F and 2F. Question 36. The magnification produced by a lens is given by: A) Image height / Object height B) Object height / Image height C) Focal length / Object distance D) Image distance / Object distance Answer: A Explanation: Magnification = image height / object height. Question 37. The interference pattern observed in Young's experiment is due to: A) Incoherent sources B) Constructive and destructive interference of coherent light sources C) Reflection D) Refraction Answer: B Explanation: Interference fringes result from the superposition of coherent light waves creating regions of constructive and destructive interference. Question 38. In thin film interference, the appearance of colorful fringes is primarily due to: A) Reflection at the film's surfaces
Answer: C Explanation: Wave-particle duality states that light exhibits both wave and particle properties depending on the context. Question 42. The speed of light in a vacuum is approximately: A) 3×10⁸ m/s B) 3×10⁶ m/s C) 3×10⁵ km/s D) 300 m/s Answer: A Explanation: The speed of light in vacuum = 3×10⁸ m/s. Question 43. Which optical device uses refraction to magnify objects? A) Microscope B) Telescope C) Camera D) Mirror Answer: A Explanation: Microscopes use refraction through multiple lenses to magnify small objects. Question 44. The lens that diverges light rays and forms virtual images is called a: A) Converging lens B) Diverging lens C) Plane mirror D) Convex mirror Answer: B Explanation: Diverging lenses (concave) cause rays to spread apart and form virtual, upright images. Question 45. When light passes from air into water, it bends toward the normal due to:
A) Reflection B) Total internal reflection C) Refraction D) Dispersion Answer: C Explanation: Refraction causes bending of light toward the normal when moving into a denser medium like water. Question 46. The principle that explains why a prism disperses white light into a spectrum is: A) Reflection B) Refraction C) Diffraction D) Polarization Answer: B Explanation: Dispersion occurs because different wavelengths refract at different angles in a prism. Question 47. The critical angle for total internal reflection occurs when the angle of incidence exceeds: A) The angle of refraction B) Zero degrees C) The angle of reflection D) The specific critical angle, dependent on the media Answer: D Explanation: Total internal reflection occurs when the incident angle exceeds the critical angle, which depends on the refractive indices. Question 48. The focal length of a lens is 10 cm. Using the thin lens equation, what is the image distance when the object is placed 15 cm from the lens? A) 30 cm B) 6 cm C) 7.5 cm
Question 52. Coulomb's Law states that the electric force between two charges is proportional to: A) The product of the charges B) The sum of the charges C) The difference of the charges D) The inverse of the product of the charges Answer: A Explanation: Force ∝ q₁ q₂ / r²; proportional to the product of charges. Question 53. The electric potential difference between two points is 12 V. What is the work done in moving 2 C of charge between these points? A) 24 J B) 6 J C) 12 J D) 24 V Answer: A Explanation: Work = charge × potential difference = 2×12 = 24 J. Question 54. The capacitance of a parallel-plate capacitor depends on: A) Plate area and distance between plates B) Voltage applied C) Charge stored D) Resistance Answer: A Explanation: Capacitance ∝ plate area / distance between plates. Question 55. Which of the following is a property of an insulator? A) Allows free movement of electrons B) Prevents electron flow
C) Conducts electricity easily D) Has low resistance Answer: B Explanation: Insulators prevent electrons from moving freely, resisting conduction. Question 56. The rate at which charge flows through a resistor is called: A) Voltage B) Resistance C) Current D) Power Answer: C Explanation: Current is the flow rate of charge through a conductor. Question 57. Ohm's Law states that the current through a resistor is proportional to: A) Voltage B) Resistance C) Power D) Capacitance Answer: A Explanation: Ohm's Law: V = IR. Question 58. In a series circuit, the total resistance is: A) Sum of individual resistances B) Reciprocal of the sum of individual resistances C) Equal to the largest resistance D) Zero Answer: A Explanation: Series resistance = R_total = R₁ + R₂ + ... Rn.
Answer: A Explanation: A current-carrying conductor produces a magnetic field around it. Question 63. The magnetic flux through a loop is maximum when the magnetic field is: A) Parallel to the plane of the loop B) Perpendicular to the plane of the loop C) At 45° to the plane D) Zero Answer: B Explanation: Magnetic flux = B·A·cosθ; maximum when B is perpendicular to the loop. Question 64. Faraday's Law states that an emf is induced in a circuit when: A) Magnetic flux through the circuit changes B) Electric current flows steadily C) The circuit is at rest D) Resistance increases Answer: A Explanation: emf is induced when magnetic flux varies over time. Question 65. Lenz's Law determines that the induced current: A) Opposes the change in flux causing it B) Follows the change in flux C) Is zero in all cases D) Always flows clockwise Answer: A Explanation: Lenz's Law states the induced current opposes the change in flux. Question 66. The self-inductance of a coil depends on: A) The number of turns and the coil's area
B) The resistance of the wire C) The current in the coil D) The voltage across the coil Answer: A Explanation: Inductance depends on coil geometry and number of turns. Question 67. An RLC circuit at resonance has impedance equal to: A) Resistance only B) Zero C) Infinite D) Reactance only Answer: A Explanation: At resonance, reactive components cancel, impedance equals resistance. Question 68. The RMS value of an alternating voltage of peak value 170 V is approximately: A) 120 V B) 240 V C) 340 V D) 85 V Answer: A Explanation: RMS value = peak / √2 ≈ 170 / 1.414 ≈ 120 V. Question 69. The process by which a wave changes direction when passing from one medium to another is called: A) Reflection B) Refraction C) Diffraction D) Interference Answer: B
