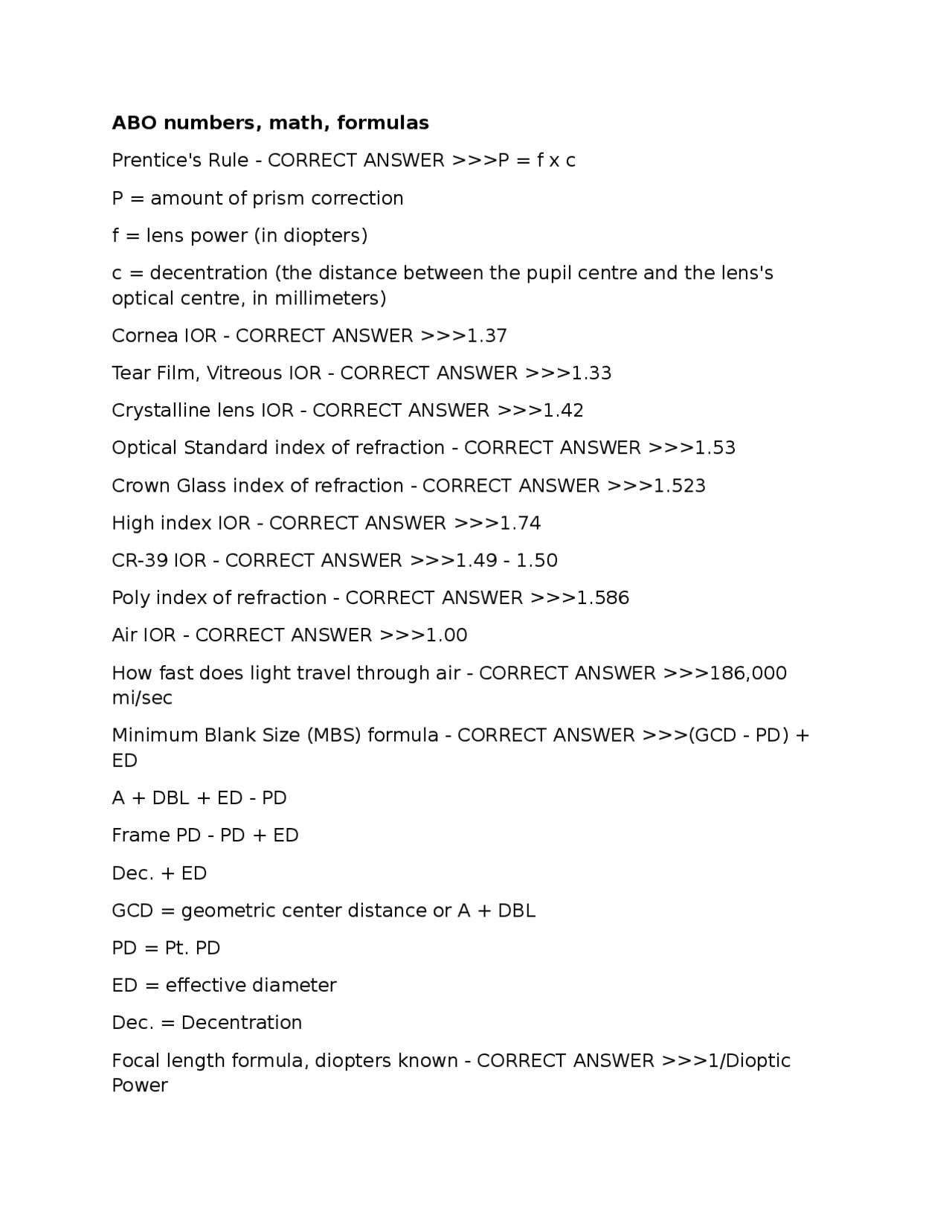

ABO numbers, math, formulas
Prentice's Rule - CORRECT ANSWER >>>P = f x c
P = amount of prism correction
f = lens power (in diopters)
c = decentration (the distance between the pupil centre and the lens's
optical centre, in millimeters)
Cornea IOR - CORRECT ANSWER >>>1.37
Tear Film, Vitreous IOR - CORRECT ANSWER >>>1.33
Crystalline lens IOR - CORRECT ANSWER >>>1.42
Optical Standard index of refraction - CORRECT ANSWER >>>1.53
Crown Glass index of refraction - CORRECT ANSWER >>>1.523
High index IOR - CORRECT ANSWER >>>1.74
CR-39 IOR - CORRECT ANSWER >>>1.49 - 1.50
Poly index of refraction - CORRECT ANSWER >>>1.586
Air IOR - CORRECT ANSWER >>>1.00
How fast does light travel through air - CORRECT ANSWER >>>186,000
mi/sec
Minimum Blank Size (MBS) formula - CORRECT ANSWER >>>(GCD - PD) +
ED
A + DBL + ED - PD
Frame PD - PD + ED
Dec. + ED
GCD = geometric center distance or A + DBL
PD = Pt. PD
ED = effective diameter
Dec. = Decentration
Focal length formula, diopters known - CORRECT ANSWER >>>1/Dioptic
Power
pf3
pf4
pf5

Partial preview of the text

Download ABO numbers, math, formulas and more Exams Advanced Education in PDF only on Docsity!

ABO numbers, math, formulas Prentice's Rule - CORRECT ANSWER >>>P = f x c P = amount of prism correction f = lens power (in diopters) c = decentration (the distance between the pupil centre and the lens's optical centre, in millimeters) Cornea IOR - CORRECT ANSWER >>>1. Tear Film, Vitreous IOR - CORRECT ANSWER >>>1. Crystalline lens IOR - CORRECT ANSWER >>>1. Optical Standard index of refraction - CORRECT ANSWER >>>1. Crown Glass index of refraction - CORRECT ANSWER >>>1. High index IOR - CORRECT ANSWER >>>1. CR-39 IOR - CORRECT ANSWER >>>1.49 - 1. Poly index of refraction - CORRECT ANSWER >>>1. Air IOR - CORRECT ANSWER >>>1. How fast does light travel through air - CORRECT ANSWER >>>186, mi/sec Minimum Blank Size (MBS) formula - CORRECT ANSWER >>>(GCD - PD) + ED A + DBL + ED - PD Frame PD - PD + ED Dec. + ED GCD = geometric center distance or A + DBL PD = Pt. PD ED = effective diameter Dec. = Decentration Focal length formula, diopters known - CORRECT ANSWER >>>1/Dioptic Power

Dioptic Power formula, foci known - CORRECT ANSWER >>>1/Focal Length (m) Anisometropia - CORRECT ANSWER >>>Difference of 2 diopters between OD & OS What is the Radius of a 1 diopter curve? - CORRECT ANSWER >>>530mm Radius formula - CORRECT ANSWER >>>530/Power = R Power formula - CORRECT ANSWER >>>530/Radius = Diop. Vertical Decentration formula - CORRECT ANSWER >>>Seg.ht. - B/ OC height - (B measurement / 2) How much HORIZONTAL prism tolerance is allowed? - CORRECT ANSWER >>>2/3 of a diopter -or-

How much VERTICAL prism tolerance is allowed? - CORRECT ANSWER >>>1/3 of a diopter -or-

Base Curve tolerance - CORRECT ANSWER >>>+/-0. Sphere Tolerance up to 6.50 - CORRECT ANSWER >>>+/- 0. Sphere Tolerance above 6.50 - CORRECT ANSWER >>>+/- 2% Cylinder Axis Tolerance >1.50 - CORRECT ANSWER >>>+/-2° Cylinder Axis Tolerance >0.50 / less than or equal to 1.50 - CORRECT ANSWER >>>+/-3° Cylinder Axis Tolerance >0.25 / less than or equal to 0.50 - CORRECT ANSWER >>>+/-7° Cylinder Axis Tolerance >0.00 / less than or equal to 0.25 - CORRECT ANSWER >>>+/-14° Drop ball test for Safety lenses - CORRECT ANSWER >>>5/8ths in. diameter, weighing 0.56 oz. dropped 50ft

CR-39 IOR - CORRECT ANSWER >>>1.

Poly IOR - CORRECT ANSWER >>>1. Hi Index IOR - CORRECT ANSWER >>>1. Dress Drop Ball - CORRECT ANSWER >>>5/8ths in. diameter, weighing 0. oz. dropped 50ft Safety Drop Ball, diameter and weight - CORRECT ANSWER >>>1" diameter, dropped 50" Ht of drop ball fall - CORRECT ANSWER >>>50 inches Total weight of drop ball apparatus - CORRECT ANSWER >>>27 lbs ANSI - CORRECT ANSWER >>>Started 1915. American National Standards Institute Cornea Index IOR - CORRECT ANSWER >>>1. Anterior/Aqueous Chamber IOR - CORRECT ANSWER >>>1. Crystalline Lens IOR - CORRECT ANSWER >>>1. 1 inch = cm? - CORRECT ANSWER >>>2.54 cm Height of 20/20 line on Snellen chart - CORRECT ANSWER >>>8.87 cm MBS =? - CORRECT ANSWER >>>2 x D + ED =? D = decentration ED = effective diameter Prism - CORRECT ANSWER >>>Plus wide- Base out Plus narrow- in Plus high- up Plus low- down Minus wide- in Minus narrow- out Minus high- down Minus low- up Average eye size - CORRECT ANSWER >>>1 1/8 inches long

3-5 mm - CORRECT ANSWER >>>Average pupil size under normal lighting conditions 186,000 - CORRECT ANSWER >>>Speed of light in miles per second Visible light - CORRECT ANSWER >>> The amount of horizontal decentration required in each eye - CORRECT ANSWER >>>(GCD - PD) / 2 GCD = geometric center distance or A + DBL PD = Pt. PD Vogel's Rule: - CORRECT ANSWER >>>Rule-of-thumb for predicting base curves: For plus powers: Base = Sphere Power + 6. For minus powers: Base = Sphere power / 2 + 6. % of cyl. power at 90° away from principal meridian - CORRECT ANSWER >>>100% of Cylinder felt % of cyl. power at 60°/120° away from principal meridian - CORRECT ANSWER >>>75% of Cylinder felt % of cyl. power at 45°/135° away from principal meridian - CORRECT ANSWER >>>50% of Cylinder felt % of cyl. power at 30°/150° away from principal meridian - CORRECT ANSWER >>>25% of Cylinder felt % of cyl. power at principal meridian - CORRECT ANSWER >>>0% In a plus lens, what is the relationship between Decentration and Prism Base Direction? - CORRECT ANSWER >>>Decentration and Prism Base Direction are the same in a plus lens. In a minus lens, what is the relationship between Decentration and Prism Base Direction? - CORRECT ANSWER >>>Decentration and Prism Base Direction are the opposite in a minus lens. Vertex Distance formula - CORRECT ANSWER >>>DC = (mmm x (P^2)) 1000
