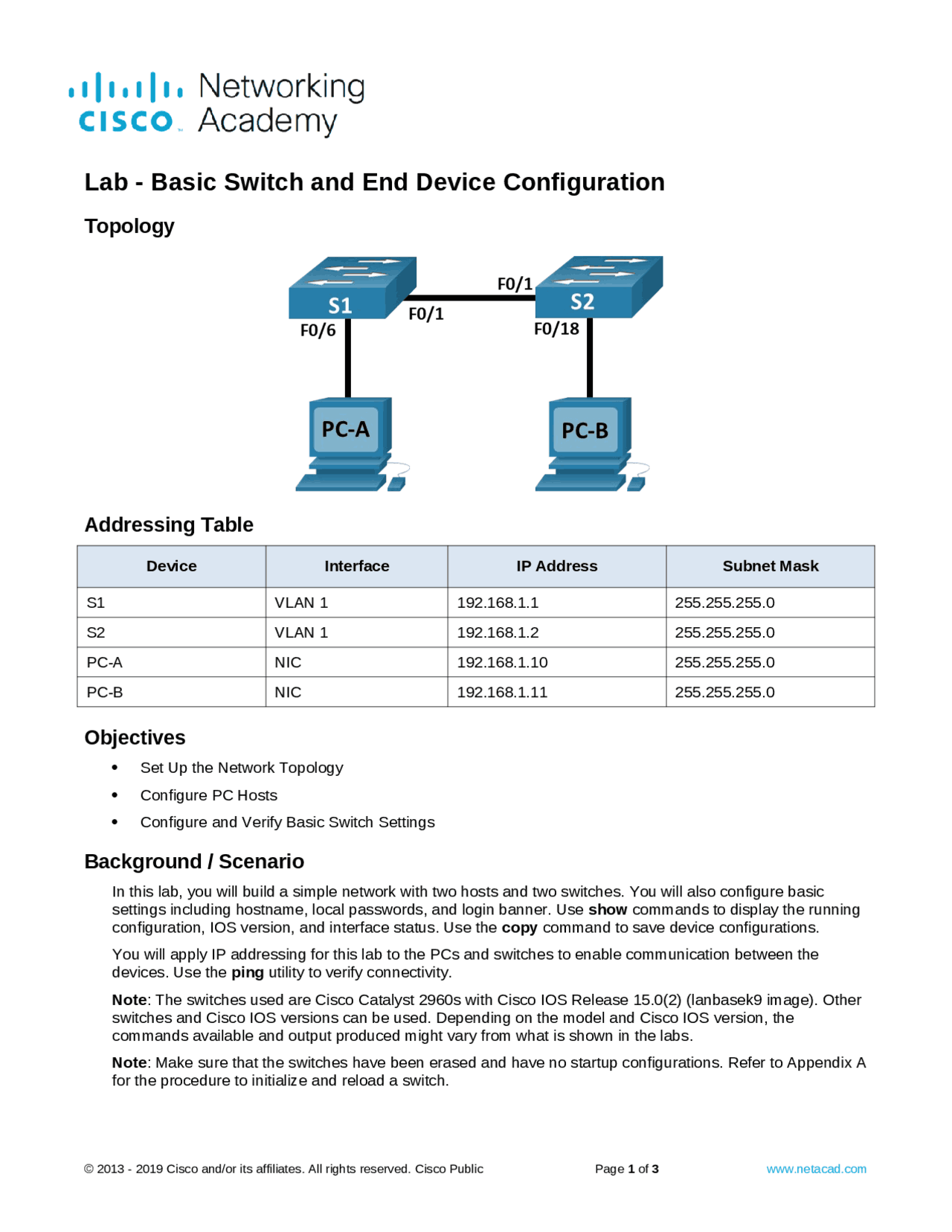

Lab - Basic Switch and End Device Configuration
Topology
Addressing Table
Device Interface IP Address Subnet Mask
S1 VLAN 1 192.168.1.1 255.255.255.0
S2 VLAN 1 192.168.1.2 255.255.255.0
PC-A NIC 192.168.1.10 255.255.255.0
PC-B NIC 192.168.1.11 255.255.255.0
Objectives
Set Up the Network Topology
Configure PC Hosts
Configure and Verify Basic Switch Settings
Background / Scenario
In this lab, you will build a simple network with two hosts and two switches. You will also configure basic
settings including hostname, local passwords, and login banner. Use show commands to display the running
configuration, IOS version, and interface status. Use the copy command to save device configurations.
You will apply IP addressing for this lab to the PCs and switches to enable communication between the
devices. Use the ping utility to verify connectivity.
Note: The switches used are Cisco Catalyst 2960s with Cisco IOS Release 15.0(2) (lanbasek9 image). Other
switches and Cisco IOS versions can be used. Depending on the model and Cisco IOS version, the
commands available and output produced might vary from what is shown in the labs.
Note: Make sure that the switches have been erased and have no startup configurations. Refer to Appendix A
for the procedure to initialize and reload a switch.
2013 - 2019 Cisco and/or its affiliates. All rights reserved. Cisco Public Page 1 of 3www.netacad.com
pf3

Partial preview of the text

Download Lab: Basic Switch and End Device Configuration and more Study Guides, Projects, Research Digital Communication Systems in PDF only on Docsity!

Topology

Addressing Table

Device Interface IP Address Subnet Mask S1 VLAN 1 192.168.1.1 255.255.255. S2 VLAN 1 192.168.1.2 255.255.255. PC-A NIC 192.168.1.10 255.255.255. PC-B NIC 192.168.1.11 255.255.255.

Objectives

 Set Up the Network Topology  Configure PC Hosts  Configure and Verify Basic Switch Settings

Background / Scenario

In this lab, you will build a simple network with two hosts and two switches. You will also configure basic settings including hostname, local passwords, and login banner. Use show commands to display the running configuration, IOS version, and interface status. Use the copy command to save device configurations. You will apply IP addressing for this lab to the PCs and switches to enable communication between the devices. Use the ping utility to verify connectivity. Note : The switches used are Cisco Catalyst 2960s with Cisco IOS Release 15.0(2) (lanbasek9 image). Other switches and Cisco IOS versions can be used. Depending on the model and Cisco IOS version, the commands available and output produced might vary from what is shown in the labs. Note : Make sure that the switches have been erased and have no startup configurations. Refer to Appendix A for the procedure to initialize and reload a switch.

Required Resources

 2 Switches (Cisco 2960 with Cisco IOS Release 15.0(2) lanbasek9 image or comparable)  2 PCs (Windows with terminal emulation program, such as Tera Term)  Console cables to configure the Cisco IOS devices via the console ports  Ethernet cables as shown in the topology

Instructions

Step 1: Set Up the Network Topology

In this step, you will cable the devices together according to the network topology. a. Power on the devices. b. Connect the two switches. c. Connect the PCs to their respective switches. d. Visually inspect network connections.

Step 2: Configure PC Hosts

a. Configure static IP address information on the PCs according to the Addressing Table. b. Verify PC settings and connectivity.

Step 3: Configure and Verify Basic Switch Settings

a. Console into the switch. Enter the global configuration mode. Open Configuration Window b. Give the switch a name according to the Addressing Table. c. Prevent unwanted DNS lookups. d. Enter local passwords. Use class as the privileged EXEC password and cisco as the password for console access. e. Configure and enable the SVI according to the Addressing Table. f. Enter a login MOTD banner to warn about unauthorized access. g. Save the configuration. h. Display the current configuration. i. Display the IOS version and other useful switch information. j. Display the status of the connected interfaces on the switch. Close Configuration Window. k. Configure switch S2. l. Record the interface status for the following interfaces. Interface S1 Status S1 Protocol S2 Status S2 Protocol F0/1 (^) blank blank blank blank F0/6 (^) blank blank blank blank F0/18 (^) blank blank blank blank VLAN 1 (^) blank blank blank blank
