BIT33703 Fuzzy System Development
Universiti Tun Hussein Onn Malaysia
Faculty of Computer Science & Information Technology

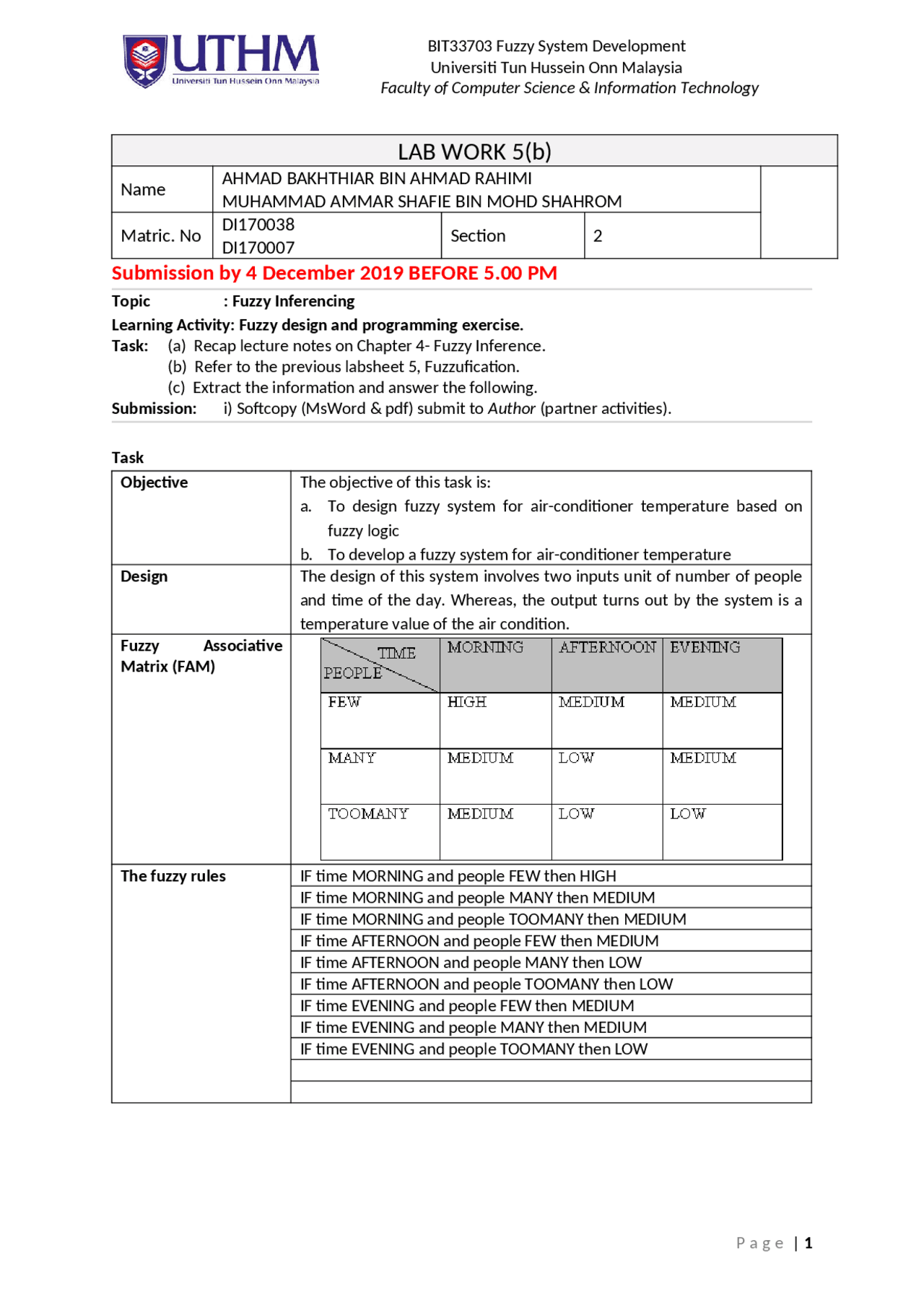

LAB WORK 5(b)
Name AHMAD BAKHTHIAR BIN AHMAD RAHIMI
MUHAMMAD AMMAR SHAFIE BIN MOHD SHAHROM
Matric. No DI170038
DI170007 Section 2
Submission by 4 December 2019 BEFORE 5.00 PM
Topic : Fuzzy Inferencing
Learning Activity: Fuzzy design and programming exercise.
Task: (a) Recap lecture notes on Chapter 4- Fuzzy Inference.
(b) Refer to the previous labsheet 5, Fuzzufication.
(c) Extract the information and answer the following.
Submission: i) Softcopy (MsWord & pdf) submit to Author (partner activities).
Task
Objective The objective of this task is:
a. To design fuzzy system for air-conditioner temperature based on
fuzzy logic
b. To develop a fuzzy system for air-conditioner temperature
Design The design of this system involves two inputs unit of number of people
and time of the day. Whereas, the output turns out by the system is a
temperature value of the air condition.
Fuzzy Associative
Matrix (FAM)
The fuzzy rules IF time MORNING and people FEW then HIGH
IF time MORNING and people MANY then MEDIUM
IF time MORNING and people TOOMANY then MEDIUM
IF time AFTERNOON and people FEW then MEDIUM
IF time AFTERNOON and people MANY then LOW
IF time AFTERNOON and people TOOMANY then LOW
IF time EVENING and people FEW then MEDIUM
IF time EVENING and people MANY then MEDIUM
IF time EVENING and people TOOMANY then LOW
P a g e | 1
