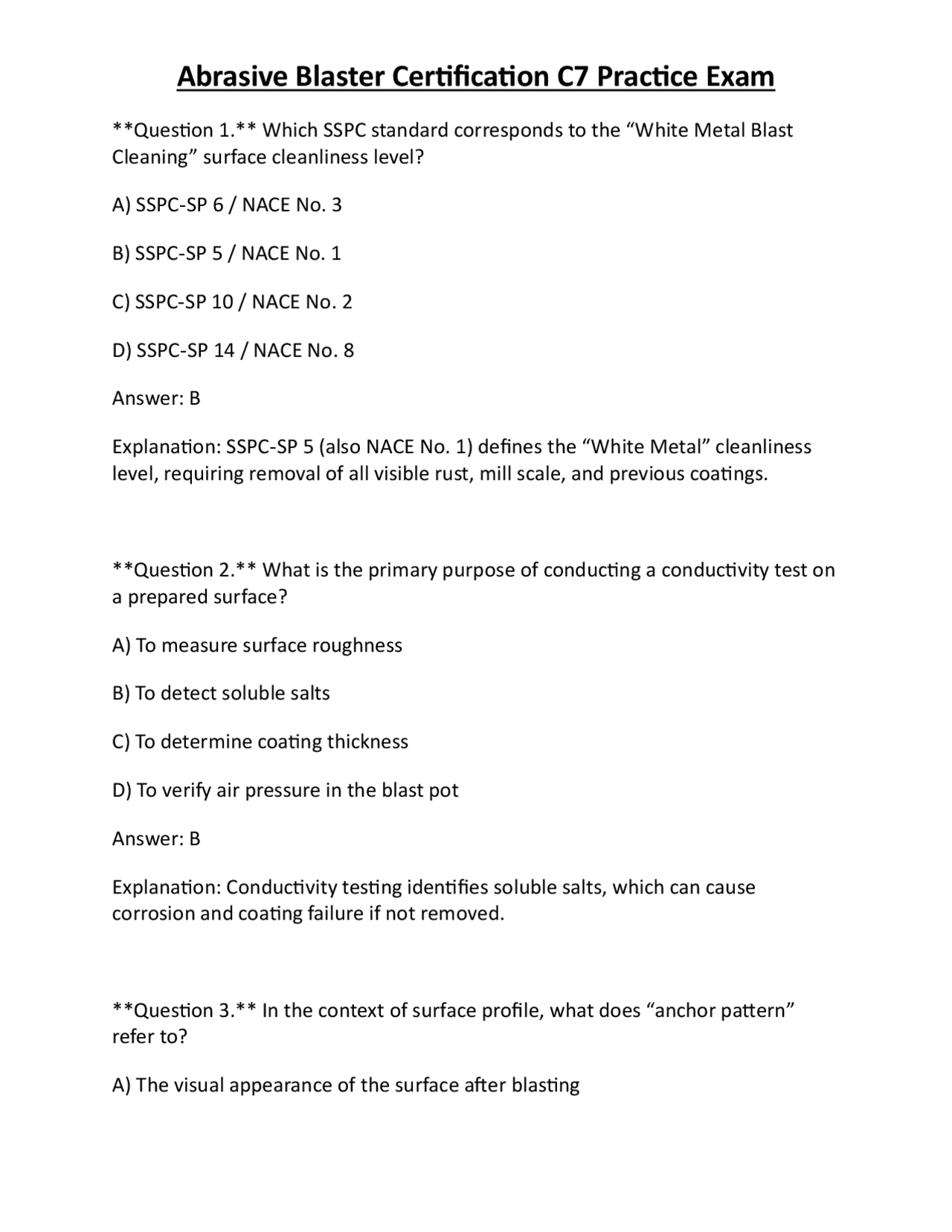

Question 1. Which SSPC standard corresponds to the “White Metal Blast Cleaning” surface cleanliness level? A) SSPC‑SP 6 / NACE No. 3 B) SSPC‑SP 5 / NACE No. 1 C) SSPC‑SP 10 / NACE No. 2 D) SSPC‑SP 14 / NACE No. 8 Answer: B Explanation: SSPC‑SP 5 (also NACE No. 1) defines the “White Metal” cleanliness level, requiring removal of all visible rust, mill scale, and previous coatings. Question 2. What is the primary purpose of conducting a conductivity test on a prepared surface? A) To measure surface roughness B) To detect soluble salts C) To determine coating thickness D) To verify air pressure in the blast pot Answer: B Explanation: Conductivity testing identifies soluble salts, which can cause corrosion and coating failure if not removed. Question 3. In the context of surface profile, what does “anchor pattern” refer to? A) The visual appearance of the surface after blasting
B) The chemical composition of the substrate C) The microscopic peaks and valleys created for mechanical bonding D) The temperature of the abrasive media Answer: C Explanation: An anchor pattern is the surface texture of peaks and valleys that provides mechanical interlock for coatings. Question 4. Which tool is commonly used to measure surface profile in the range of 0.5 – 3 mil? A) Magnetic particle tester B) Keane‑Tator profile comparator C) Ultrasonic thickness gauge D) Digital multimeter Answer: B Explanation: The Keane‑Tator (or ISO) comparator uses calibrated pins to assess profile depth accurately. Question 5. According to SSPC‑VIS 1, what visual condition indicates a “near‑white metal” surface? A) Presence of any visible oil stains B) Less than 5 % of the surface showing rust or mill scale C) Complete removal of all rust, mill scale, and coating D) Uniform gray‑white appearance with no dark spots larger than 1 mm²
Question 8. Which of the following is a key safety concern when using silica sand as an abrasive? A) Excessive wear on the blast pot B) Generation of respirable crystalline silica (RCS) C) Rapid degradation of the abrasive during blasting D) High cost compared to other media Answer: B Explanation: Silica sand can produce respirable crystalline silica, a known carcinogen, requiring strict exposure controls. Question 9. In a wet abrasive blasting system, what is the primary function of water injection? A) To increase the kinetic energy of abrasive particles B) To cool the blast nozzle and prevent overheating C) To suppress dust and reduce airborne contaminants D) To dissolve soluble salts on the substrate surface Answer: C Explanation: Water injection captures dust, creating a mist that dramatically reduces airborne particulate emissions. Question 10. Which component of a dry‑blast system is responsible for removing moisture and oil from the compressed air?
A) Blast pot B) Moisture separator C) Abrasive metering valve D) Air dryer/cooler Answer: D Explanation: The air dryer/cooler removes moisture and oil, ensuring dry, clean air for consistent blasting performance. Question 11. What does the “Blotter Test” assess in an abrasive blasting system? A) Surface profile depth B) Air pressure stability C) Presence of oil and water in the compressed air D) Abrasive flow rate through the nozzle Answer: C Explanation: The blotter test checks for oil and water contamination in the compressed air by examining a blotter paper after exposure. Question 12. Which abrasive size range would typically be selected for achieving a 2 mil surface profile on a steel substrate? A) 0.5 mm (18 grit) B) 1.0 mm (12 grit) C) 3.0 mm (6 grit)
Explanation: The centrifugal force generated by wheel speed determines how much abrasive is flung outward, controlling flow rate. Question 15. Which of the following contaminants is most likely to cause blistering under a coating if not removed? A) Mill scale B) Soluble salts C) Weld spatter D) Oil and grease Answer: B Explanation: Soluble salts attract moisture, leading to blistering and adhesion loss beneath the coating. Question 16. What does the SSPC‑SP 7 / NACE No. 4 standard describe? A) White metal blast cleaning B) Brush‑off blast cleaning C) Near‑white metal blast cleaning D) Industrial blast cleaning Answer: B Explanation: SSPC‑SP 7 (NACE No. 4) defines the “Brush‑off” cleanliness level, removing loose rust and scale but allowing some embedded contaminants.
Question 17. Which abrasive property most directly influences its tendency to break down and become unusable? A) Particle shape B) Hardness C) Color D) Bulk density Answer: B Explanation: Harder abrasives resist breakage; softer abrasives fragment more quickly, reducing effective life. Question 18. When selecting an abrasive for a coating system that requires a “peened” surface, which particle shape is preferred? A) Angular grit B) Spherical shot C) Cubic crystals D) Flake‑like particles Answer: B Explanation: Spherical shot produces a peened, work‑hardened surface ideal for certain protective coatings. Question 19. Which of the following is NOT a typical method for detecting soluble salts on a substrate? A) Visual inspection
Answer: B Explanation: Fine steel grit (0.5 mm) can achieve a shallow 1‑mil profile suitable for zinc‑rich primers without over‑peening. Question 22. What is the primary reason for using a moisture separator in an abrasive blasting system? A) To increase air pressure B) To remove water droplets that can cause media clumping C) To filter out dust particles from the exhaust D) To regulate abrasive flow rate Answer: B Explanation: Moisture separators eliminate water droplets that could cause abrasive media to clump, leading to nozzle blockage. Question 23. Which of the following best describes “recycling” of abrasive media? A) Adding fresh abrasive to the system after each pass B) Filtering used media to remove contaminants and re‑use it C) Heating the media to restore hardness D) Mixing different media types to improve performance Answer: B Explanation: Recycling involves cleaning, screening, and re‑classifying used media to remove contaminants before reuse.
Question 24. For a coating system applied to a bridge deck, which surface profile is typically recommended? A) 0.5 mil (smooth) B) 1 mil (light) C) 2 mil (moderate) D) 4 mil (heavy) Answer: C Explanation: Bridge decks often require a 2‑mil profile to ensure adequate mechanical bonding and durability under traffic loads. Question 25. Which of the following is a key advantage of using a venturi‑type nozzle? A) Lower air consumption for the same abrasive flow B) Ability to operate without an air compressor C) Generates a highly focused, narrow pattern D) Eliminates the need for a blast pot Answer: A Explanation: Venturi nozzles use the venturi effect to entrain abrasive efficiently, reducing overall air consumption. Question 26. When blasting a painted surface, which contaminant is most likely to be released as a hazardous vapor?
D) Coal slag 3 mm Answer: C Explanation: Plastic beads are low‑hardness, non‑abrasive media suitable for delicate, non‑ferrous metals like brass. Question 29. In a wet‑blast system, what is the typical water‑to‑abrasive ratio by weight? A) 1: B) 1: C) 10: D) 5: Answer: B Explanation: Wet blasting often uses a 1:1 water‑to‑abrasive ratio to effectively suppress dust while maintaining blasting efficiency. Question 30. Which of the following statements about “soluble salts” is correct? A) They are always visible to the naked eye. B) They can be removed by simple wiping with a dry cloth. C) They are best removed by rinsing with de‑ionized water and drying. D) They have no effect on coating adhesion. Answer: C
Explanation: Soluble salts dissolve in water; rinsing with de‑ionized water followed by thorough drying removes them effectively. Question 31. What is the primary function of an abrasive metering valve in a blast system? A) To regulate air pressure to the nozzle B) To control the flow of abrasive into the blast pot C) To filter contaminants from the compressed air D) To cool the abrasive media during operation Answer: B Explanation: The metering valve precisely controls the rate at which abrasive is fed into the system, ensuring consistent blast performance. Question 32. Which of the following media is most appropriate for removing rust from a steel structure while minimizing metal loss? A) 4 mm steel shot B) 1 mm copper slag C) 0.5 mm steel grit D) 2 mm walnut shells Answer: C Explanation: Fine steel grit (0.5 mm) aggressively removes rust but causes less metal removal compared to larger shot.
C) SSPC‑SP 10
D) SSPC‑SP 14
Answer: D Explanation: SSPC‑SP 14 (NACE No. 8) defines the industrial blast cleaning level, requiring a heavy profile and removal of all contaminants. Question 36. In a centrifugal blast unit, what effect does increasing the wheel diameter have? A) Decreases abrasive flow rate B) Increases the centrifugal force, enhancing abrasive velocity C) Reduces the size of the blast pattern D) Lowers the required air pressure Answer: B Explanation: A larger wheel diameter increases peripheral speed, generating greater centrifugal force and higher abrasive velocity. Question 37. Which of the following media is classified as “non‑metallic specialty” and is commonly used for cleaning historic wood structures? A. Steel grit B. Copper slag C. Walnut shells D. Garnet Answer: C
Explanation: Walnut shells are a non‑metallic, biodegradable media ideal for delicate historic wood without causing damage. Question 38. What is the recommended method for verifying that a surface has achieved the required profile depth after blasting? A. Visual inspection only B. Measuring with a surface profile comparator or replica tape C. Checking the weight of the abrasive consumed D. Listening for the sound of the blast nozzle Answer: B Explanation: Objective measurement using a comparator or replica tape confirms that the target profile depth has been met. Question 39. Which of the following contaminants can be detected by a simple oil‑detecting swab? A. Soluble salts B. Mill scale C. Oil and grease D. Weld spatter Answer: C Explanation: Oil‑detecting swabs change color upon contact with oil or grease, indicating the presence of these contaminants.
B. To remove moisture and oil from compressed air C. To filter out dust particles D. To regulate the flow of abrasive media Answer: B Explanation: Air dryers eliminate moisture and oil, preventing media clumping and nozzle wear. Question 43. Which of the following statements about “soluble salts” is false? A. They can be removed by rinsing with water. B. They are visible as a white powder on the surface. C. They can cause blistering under coatings. D. Conductivity testing is an effective detection method. Answer: B Explanation: Soluble salts are often invisible; they dissolve in water and are detected by conductivity, not by visual observation. Question 44. Which abrasive media is typically used for “brush‑off” cleaning (SSPC‑SP 7) on steel surfaces? A. 4 mm steel shot B. 1 mm steel grit C. 3 mm copper slag D. 0.25 mm glass beads
Answer: B Explanation: Fine steel grit (≈1 mm) provides sufficient cleaning for brush‑off levels without excessive metal removal. Question 45. What is the effect of using a nozzle with a larger throat diameter? A. Increases air consumption and reduces abrasive flow B. Decreases blast pattern width C. Allows higher abrasive throughput at the same pressure D. Reduces the kinetic energy of abrasive particles Answer: C Explanation: A larger throat permits more abrasive to pass through, increasing throughput while maintaining pressure. Question 46. Which of the following is a primary environmental advantage of wet blasting? A. Lower abrasive consumption B. Elimination of dust emissions C. Faster surface preparation time D. Reduced water usage Answer: B Explanation: Wet blasting captures dust in water, significantly reducing airborne particulate emissions.
