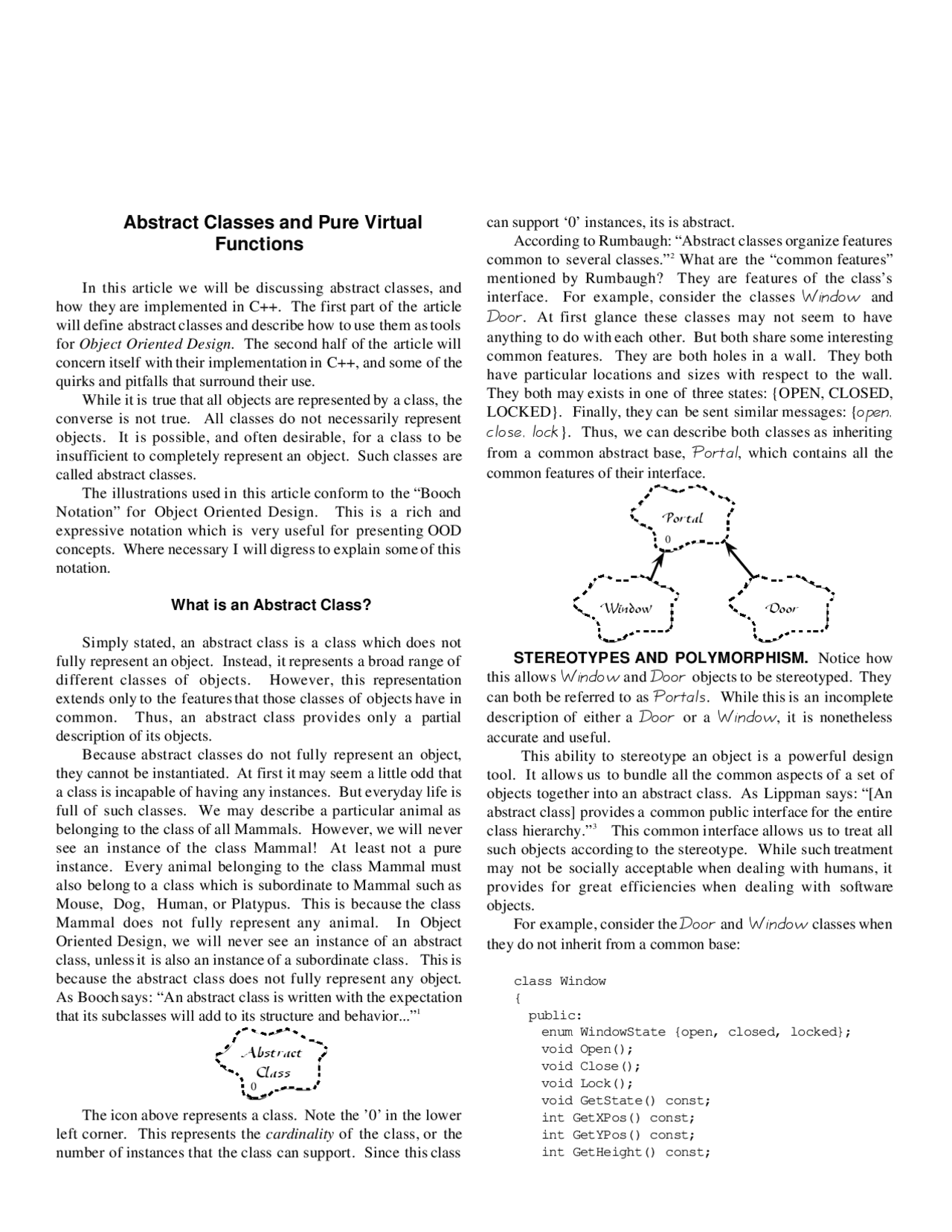

Abstract Classes and Pure Virtual
Functions
In this article we will be discussing abstract classes, and how they are implemented in C++. The first part of the article will define abstract classes and describe how to use them as tools for Object Oriented Design. The second half of the article will concern itself with their implementation in C++, and some of the quirks and pitfalls that surround their use. While it is true that all objects are represented by a class, the converse is not true. All classes do not necessarily represent objects. It is possible, and often desirable, for a class to be insufficient to completely represent an object. Such classes are called abstract classes. The illustrations used in this article conform to the “Booch Notation” for Object Oriented Design. This is a rich and expressive notation which is very useful for presenting OOD concepts. Where necessary I will digress to explain some of this notation.
What is an Abstract Class?
Simply stated, an abstract class is a class which does not fully represent an object. Instead, it represents a broad range of different classes of objects. However, this representation extends only to the features that those classes of objects have in common. Thus, an abstract class provides only a partial description of its objects. Because abstract classes do not fully represent an object, they cannot be instantiated. At first it may seem a little odd that a class is incapable of having any instances. But everyday life is full of such classes. We may describe a particular animal as belonging to the class of all Mammals. However, we will never see an instance of the class Mammal! At least not a pure instance. Every animal belonging to the class Mammal must also belong to a class which is subordinate to Mammal such as Mouse, Dog, Human, or Platypus. This is because the class Mammal does not fully represent any animal. In Object Oriented Design, we will never see an instance of an abstract class, unless it is also an instance of a subordinate class. This is because the abstract class does not fully represent any object. As Booch says: “An abstract class is written with the expectation that its subclasses will add to its structure and behavior...”^1
0
Abstract Class
The icon above represents a class. Note the ’0’ in the lower left corner. This represents the cardinality of the class, or the number of instances that the class can support. Since this class
can support ‘0’ instances, its is abstract. According to Rumbaugh: “Abstract classes organize features common to several classes.” 2 What are the “common features” mentioned by Rumbaugh? They are features of the class’s
interface. For example, consider the classes Window and
Door. At first glance these classes may not seem to have
anything to do with each other. But both share some interesting common features. They are both holes in a wall. They both have particular locations and sizes with respect to the wall. They both may exists in one of three states: {OPEN, CLOSED,
LOCKED}. Finally, they can be sent similar messages: {open,
close, lock}. Thus, we can describe both classes as inheriting
from a common abstract base, Portal, which contains all the
common features of their interface.
Portal
Window Door
0
STEREOTYPES AND POLYMORPHISM. Notice how
this allows Window and Door objects to be stereotyped. They
can both be referred to as Portals. While this is an incomplete
description of either a Door or a Window, it is nonetheless
accurate and useful. This ability to stereotype an object is a powerful design tool. It allows us to bundle all the common aspects of a set of objects together into an abstract class. As Lippman says: “[An abstract class] provides a common public interface for the entire class hierarchy.” 3 This common interface allows us to treat all such objects according to the stereotype. While such treatment may not be socially acceptable when dealing with humans, it provides for great efficiencies when dealing with software objects.
For example, consider the Door and Window classes when
they do not inherit from a common base:
class Window { public: enum WindowState {open, closed, locked}; void Open(); void Close(); void Lock(); void GetState() const; int GetXPos() const; int GetYPos() const; int GetHeight() const;
int GetWidth() const; private: WindowState itsState; int itsXPos, itsYPos, itsWidth, itsHeight; };
class Door { public: enum DoorState {open, closed, locked}; void Open(); void Close(); void Lock(); void GetState() const; int GetXPos() const; int GetYPos() const; int GetHeight() const; int GetWidth() const; private: DoorState itsState; int itsXPos, itsYPos, itsWidth, itsHeight; };
These two classes are horribly redundant. They cry for some form of unification. That unification is supplied by creating the abstract base class.
class Portal { public: enum PortalState {open, closed, locked}; virtual void Open() = 0; virtual void Close() = 0; virtual void Lock() = 0; void GetState() const; int GetXPos() const; int GetYPos() const; int GetHeight() const; int GetWidth() const; private: PortalState itsState; int itsXPos, itsYPos, itsWidth, itsHeight; };
class Window : public Portal { public: virtual void open(); virtual void close(); virtual void lock(); };
class Door : public Portal {
public: virtual void open(); virtual void close(); virtual void lock(); };
The efficiencies that we gained are obvious. Several of the Portal member functions can be reused. The declarations for
Door and Window are terse and understandable in terms of the
functionality of Portal. Moreover, both Window and Door
can be stereotyped as a Portal when convenient. For example:
void TornadoWarning(List<Portal> thePortals) { ListIterator<Portal> i(thePortals); for (; !i.Done(); i++) { (*i)->Open(); } }
Forgive the obvious license with the semantics of the
ListIterator. Clearly this method for opening all Doors and
Windows is superior to handling each type separately. As the
application matures, more types of Portals will probably be
added. However, since the TornadoWarning function deals with all species of Portals, it will not have to change. Thus, the polymorphic behavior of the abstract class Portal provides a more maintainable and robust design.
It should be stressed that forcing Door and Window to
inherit from Portal is not necessary to the proper functioning of
the application. The application could be designed without the
abstract class. However, creating the abstract Portal class
results in a superior design which promotes polymorphism, and code reuse.
Designing Applications with Abstract Classes
During the first stages of a design, we usually have a good idea of the concrete classes that we need. As the design is refined, we should begin to find common features amongst some of these classes. These common features are not always obvious. They may come from different parts of the design, and may have different names and configurations. It sometimes takes a careful eye to spot them. For example, Jim, Bill and Bob are working on the design of the software that will control a car crushing machine. Jim is responsible for the control panel, Bill for the hydraulics control and Bob for the servo motors.
Actuator
Variable Actuator
Motor
Indicator Valve
0
0
This provides us with the opportunity to derive other variable controlled actuators from the common base. For example, we could create a variable brightness lamp, or a variable speed fan.
EVOLUTION OF CONCRETE CLASSES. As the iterative process of design continues to add more and more detail to the application model, classes which had been concrete will tend to become abstract. As we incorporate more of the details of the application into the design, classes which had been specific become the generalities for the new details. For example, as the car crusher design proceeds, Bill discovers that he needs a safety valve which opens automatically when a pressure limit is exceeded. Bill could
simply derive SafetyValve from the current Valve class.
However, this assumes that the the SafetyValve is going to
share all the features of the simple valve. This may not be the case. Bill might be better off creating an abstract class to
represent all valves, and then deriving SimpleValve and
SafetyValve from that common base.
Actuator
Variable Actuator
Motor
Indicator Valve
0
0 0
Simple Valve
Safety Valve
By taking this tack, Bill has created a generalization which fits not only his existing concrete valve classes, but any new valve class that may be needed in the future. This process of factoring common elements, higher and higher into the inheritance hierarchy as the design progresses, is typical. The more details that are added to the design, the more abstract classes are created to deal with the common generalities.
PURE INTERFACES. Note that abstract classes define features which are common to the interfaces of their derived classes. But what implementation should be provided by the abstract class? For example, what is the implementation for Actuator::Activate(). There is no sensible implementation! It is only the derived classes that know how to deal with the Activate method. Indicator::Activate() turns on a real indicator lamp. SimpleValve::Activate() causes a real life valve to open. Motor:Activate() turns on a real motor. But Actuator::Activate() can’t do anything because it doesn’t have anything “real” to interface to. Thus, Actuator:: Activate() is a pure interface devoid of any implementation. It is the pure interfaces within an abstract class which define the common features encapsulated within it. They are the basis for the polymorphic behavior of abstract classes. The impure interfaces , those interfaces which have implementations, contain the code which is re-used by all the derived classes.
Pure Virtual Functions
In C++, pure interfaces are created by declaring pure virtual functions. A pure virtual function is declared as follows:
virtual void Activate() = 0;
The “= 0” on the end of the declaration is supposed to represent the fact that the function has no implementation.
However, as we will see, implementations are sometimes provided. In C++, a class with a pure virtual function is an abstract class. The language provides special semantics for abstract classes. It enforces the constraint that abstract classes cannot have any instances. Thus the compiler will not allow an instance of an abstract class to be created. If you attempt to declare or create one, the compiler will complain:
Actuator myActuator; // error Actuator* myActuator = new Actuator; // error;
This constraint does not, however, prevent you from declaring pointers and references to abstract classes. The compiler allows such constructs, and will allow them to refer to instances of concrete classes which have the abstract class somewhere in their inheritance hierarchy.
Actuator* myActuator = new Indicator; Actuator& anActuator = *(new Indicator);
Such pointers and references are very useful for taking advantage of the polymorphic attributes of abstract classes. The pure virtual functions of the abstract class are bound to the implementations defined in the instances to which they refer.
myActuator->Activate(); // Turn on indicator. anActuator.Deactivate();// Turn off indicator.
Including a pure virtual function in a class is the only way to tell the compiler that the class is abstract. This is sometimes considered to be a limitation. It has been suggested that an ‘abstract’ keyword be added to the language so that classes could explicitly be declared abstract.
abstract class Actuator; // suggested syntax.
However, in my opinion, this would create a redundancy in the language. A truly abstract class must contain a pure interface; otherwise, it would be instantiable.
INHERITING PURE VIRTUAL FUNCTIONS. Pure virtual functions behave differently depending upon the version of the compiler you are using. Cfront 2.0 did not allow pure virtual functions to be inherited by derived classes. If the base class had a pure virtual function, then that function had to be declared in the derived classes, either in pure form or in impure form. Thus:
class Valve : public Actuator { public:
virtual void Activate() = 0; virtual void Deactivate() = 0; };
This restriction was relaxed in the 2.1 version of the compiler, so pure virtual function can be inherited without specifically being declared. If they are not declared in the derived class, they are inherited in pure form, making the derived class abstract.
class Valve : public Actuator { // This class is abstract. // It inherits the pure virtual functions // Activate() and Deactivate() };
INSTANCES OF ABSTRACT CLASSES. Although it is impossible to explicitly create an instance of an abstract class, such instances can temporarily exist during construction or destruction. Instances under construction are only as complete as the currently executing constructor has made them. Instances under destruction are only as complete as the executing destructor has left them. Because these instances are incomplete, the language prevents the virtual mechanism from calling any virtual functions in classes which either have not been constructed yet, or have been destructed already. What might happen if a pure virtual function of such an incomplete object were called? The language specification (Arm 10.3) says that calling a pure virtual function from a constructor of destructor is undefined. This means that if f() is defined as pure virtual in class C, then calling f() from a constructor or destructor of C is an error. For exmaple, let us assume that the designer of Actuator wanted to initialize the instance in the deactivated state. To do this he called Deactivate() in the constructor:
Actuator::Actuator() { Deactivate(); }
But Deactivate() is defined as pure virtual in Actuator. So this is an error. In fact, it is an error that compilers can easilty detect, so most will issue some kind of error message. However, it is unreasonable to expect a compiler to detect all the myriad ways in which pure virtual functions can be invoked from constructors or destructors. The error can be hidden by a slight, and very reasonable modification to the example above.
class Actuator
pure virtual function Validatable::IsValid(), then the immediate derivatives of Validatable can obey the superclass protocol.
int Validatable::IsValid() { return 1; }
PURE VIRTUAL DESTRUCTORS. There is one aspect of pure virtual functions which the language specification does not define very well. This is the behavior of pure virtual destructors. Pure virtual destructors are an oddity. They are, I suspect, an accident of syntax rather than a designed feature. They look like this:
class OddClass { public: virtual ~OddClass()=0; // valid but strange. };
A destructor is not a normal function, it cannot be inherited (ARM 12.4), it cannot be overridden and it cannot be hidden. A virtual destructor is not a normal virtual function. It does not share the same name as the base class destructor, and it is not inherited. A pure virtual function is meant to be inherited, its is the interface for a feature which is to be defined in a derived class. So what is a pure virtual destructor? It is not an interface for a destructor which is to be defined by a derived class, because destructors cannot be inherited. It is not a function without an implementation, becauseit will be called as the destructor for the class, and so it must be implemented. The only guaranteed feature of a pure virtual destructor is that it makes the class that contains it abstract.
Using Abstract Classes
Although programs are not allowed to instantiate abstract classes, in every other way they can be used to manipulate normal objects. Classes may contain pointers or references to abstract classes.
class ActuatorTimer { public: ActuatorTimer(Actuator&); void SetTimer(int); int GetTimer() const; void Start(); private: Actuator& itsActuator;
};
This declaration shows the interface of a class which will activate an actuator for a specified period of time, and then turn it off again. Any derivative of Actuator can be used as an argument to the ActuatorTimer constructor. The specified Actuator will be polymorphically activated and deactivated by the ActuatorTimer class.
Summary
Abstract classes provide a powerful design technique which promotes code re-use and polymorphism. According to Coplien: “The power of the object paradigm in supporting reuse lies in abstract base classes.” 5 Abstract classes are produced by factoring out the common features of the concrete classes of the application. Although such factorings are sometimes hard to find, the effort put into finding them is usually well worth the benefits of the extra maintainability and reusability. In general, common features should be factored out and moved as high as possible in the inheritance structure. In C++, pure virtual function are used to specify the pure interfaces of abstract classes. An abstract class in C++ must have at least one pure virtual function. Although pure virtual functions typically have no implementation, C++ allows implementations to be given to them. The user must take care not to invoke pure virtual functions in the constructors or destructors of an abstract class. Although abstract classes cannot be instantiated, they can be used in every other way to represent normal objects. They can be contained or passed by reference, and their interface can be used to invoke their intrinsically polymorphic behavior.
References
(^1) Booch,Object Oriented Design with Applications,
Benjamin/Cummings, 1991 (^2) Rumbaugh, et. al.Object-Oriented Modeling and
Design, Prentice-Hall, (^3) Lippman,C++ Primer, second edition, Addison-
Wesley, 1991 (^4) Wirfs-Brock, et. al.Designing Object-Oriented
Software, Prentice-Hall, 1990 (^5) Coplien,Advanced C++ Programming Styles and
Idioms, Addison-Wesley, 1992
