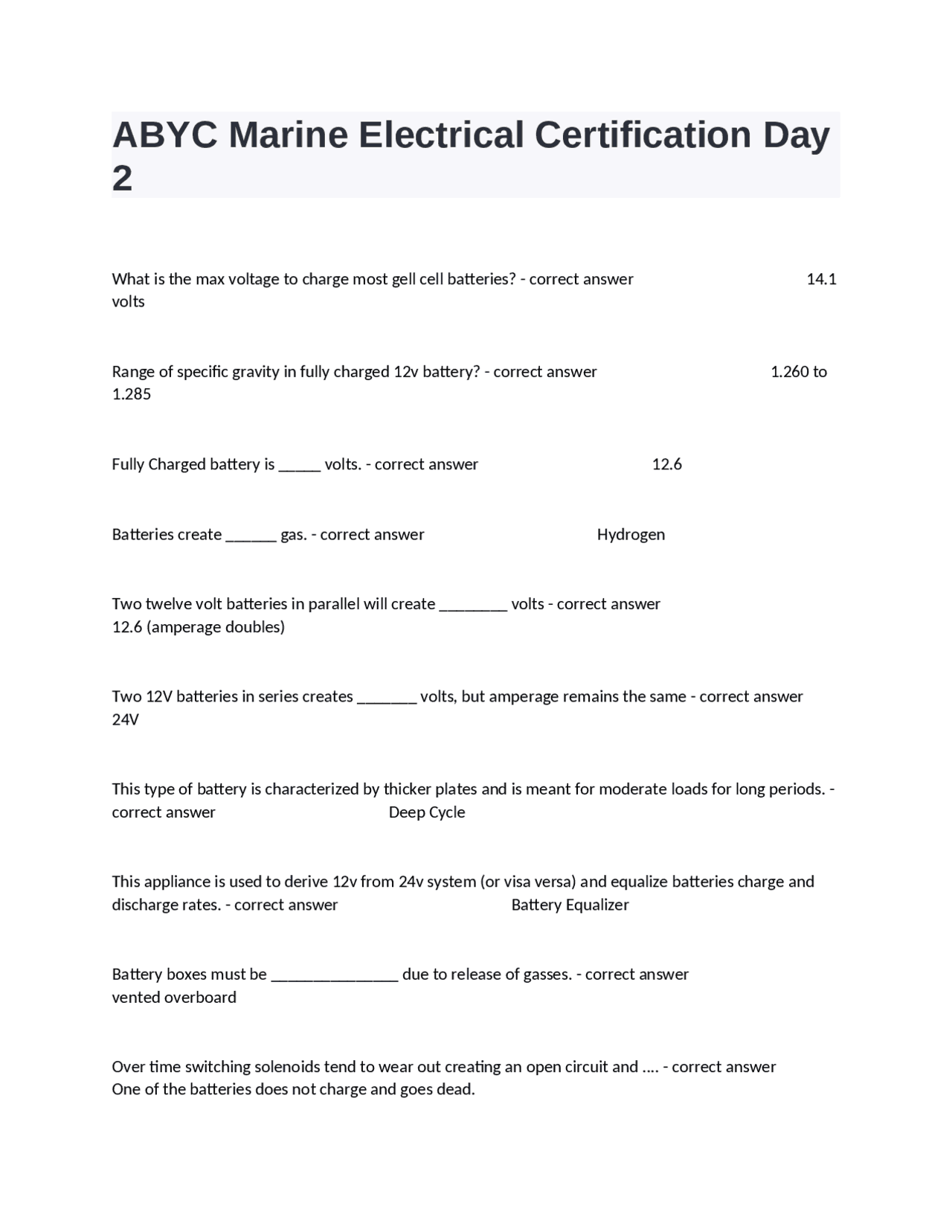

ABYC Marine Electrical Certification Day
2
What is the max voltage to charge most gell cell batteries? - correct answer 14.1
volts
Range of specific gravity in fully charged 12v battery? - correct answer 1.260 to
1.285
Fully Charged battery is _____ volts. - correct answer 12.6
Batteries create ______ gas. - correct answer Hydrogen
Two twelve volt batteries in parallel will create ________ volts - correct answer
12.6 (amperage doubles)
Two 12V batteries in series creates _______ volts, but amperage remains the same - correct answer
24V
This type of battery is characterized by thicker plates and is meant for moderate loads for long periods. -
correct answer Deep Cycle
This appliance is used to derive 12v from 24v system (or visa versa) and equalize batteries charge and
discharge rates. - correct answer Battery Equalizer
Battery boxes must be _______________ due to release of gasses. - correct answer
vented overboard
Over time switching solenoids tend to wear out creating an open circuit and .... - correct answer
One of the batteries does not charge and goes dead.
