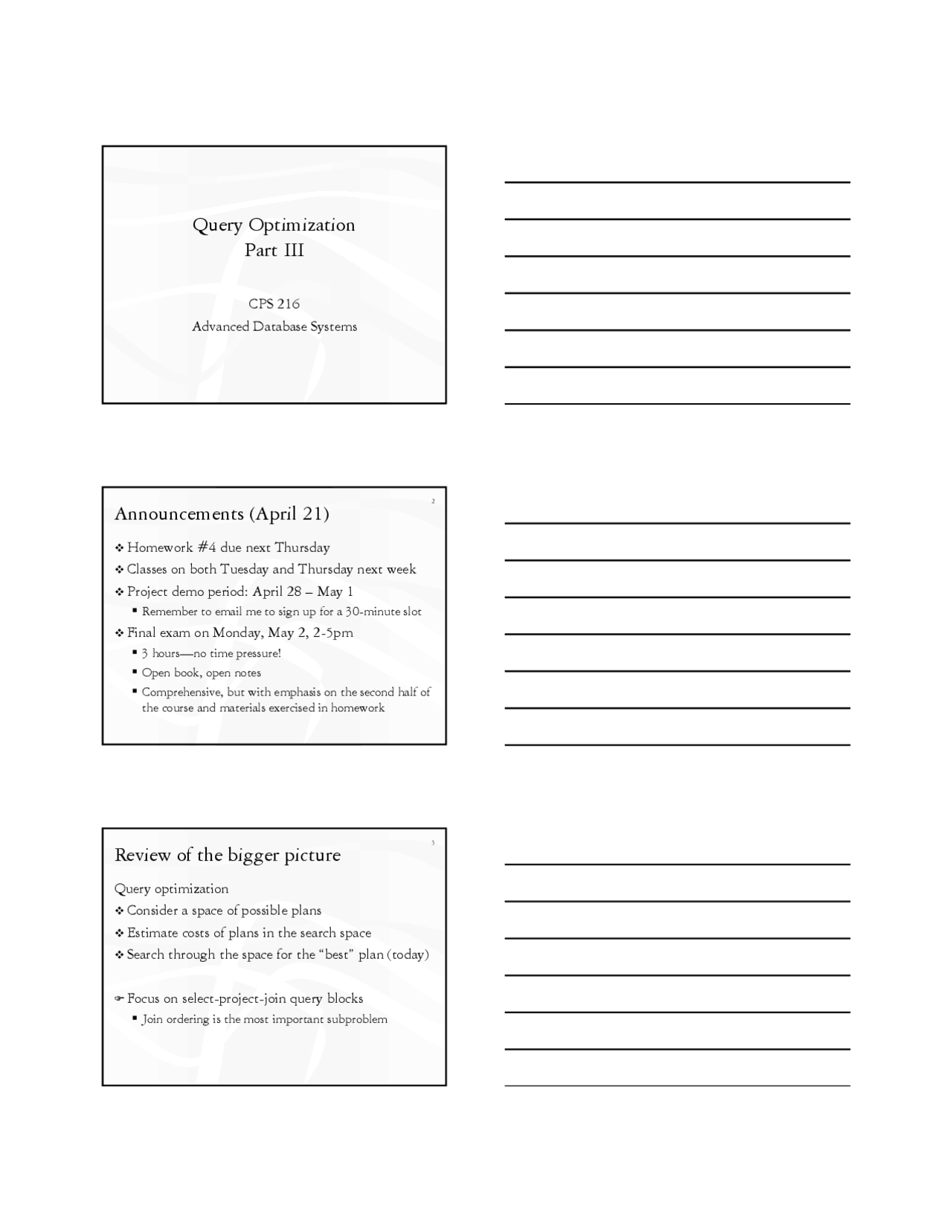

Query Optimization
Part III
CPS 216
Advanced Database Systems
2
Announcements (April 21)
Homework #4 due next Thursday
Classes on both Tuesday and Thursday next week
Project demo period: April 28 – May 1
Remember to email me to sign up for a 30-minute slot
Final exam on Monday, May 2, 2-5pm
3 hours—no time pressure! Open book, open notes Comprehensive, but with emphasis on the second half of the course and materials exercised in homework
3
Review of the bigger picture
Query optimization
Consider a space of possible plans
Estimate costs of plans in the search space
Search through the space for the “best” plan (today)
) Focus on select-project-join query blocks
Join ordering is the most important subproblem
Search space
“Bushy” plan example:
Search space is huge: 30240 bushy plans for a six-
table join
More if we consider:
Multiway joins Different join methods Placement of selection and projection operators
R 2 R 1 R 3 R (^4) R 5
5
Left-deep plans
Heuristic: consider only “left-deep” plans, in which only the left child can be a join
How many left-deep plans are there for R 1 L R (^) n?
R 2 R 1
R 3
R 4
R 5
6
A greedy algorithm
S 1 , …, Sn Say selections have been pushed down; i.e., Si = σ p Ri Start with the pair Si , Sj with the smallest estimated size for Si Sj
Repeat until no table is left: Pick Sk from the remaining tables such that the join of Sk and the current result yields an intermediate result of the smallest size
Current subplan
…, Sk , Sl , Sm , …
Remaining tables to be joined
Pick most efficient join method
Sk
Minimize expected size
Complexity?
Dealing with interesting orders
When picking the best plan
Comparing their costs is not enough
- Plans are not totally ordered by cost anymore Comparing interesting orders is also needed
- Plans are now partially ordered
- Plan X is better than plan Y if
- Cost of X is lower than Y
- Interesting orders produced by X subsume those produced by Y
Need to keep a set of optimal plans for joining every
combination of k tables
At most one for each interesting order
11
System-R algorithm
Pass 1: Find the best single-table plans Pass 2: Find the best two-table plans by considering each single-table plan (from Pass 1) as the outer input and every other table as the inner input … Pass k : Find the best k -table plans by considering each ( k –1)-table plan (from Pass k –1) as the outer input and every other table as the inner input …
Heuristics Push selections and projections down Process cross products at the end
12
Reasoning about predicates
SELECT * FROM R , S , T
WHERE R. A = S. A AND S. A = T. A ;
Looks like a cross product between R and T
No join condition
A good optimizer should be able to detect this case
and consider the possibility of joining R with T first
System-R algorithm example
SELECT SID, CID
FROM Student, Enroll, Course WHERE Student.age < 10 AND Student.SID = Enroll.SID AND Enroll.CID = Course.CID AND Course.title LIKE ‘%data%’;
Primary keys/indexes Student(SID), Enroll(CID, SID), Course(CID) Ordered, secondary indexes Student(age), Course(title)
14
Example: pass 1
Plans for { Student } S1: Table scan, then filter ( age < 10); cost 100; result ordered by SID S2: Index scan using condition ( age < 10); cost 5; result ordered by age Plans for { Enroll } E1: Table scan; cost 1000; result ordered by CID , SID
Plans for { Course } C1: Table scan, then filter ( title LIKE ’%data%’); cost 40; result ordered by CID C2: Index scan with filter ( title LIKE ’%data%’); cost 60; result ordered by title
SELECT SID, CID FROM Student, Enroll, Course WHERE Student.age < 10 AND Student.SID = Enroll.SID AND Enroll.CID = Course.CID AND Course.title LIKE ‘%data%’;
15
Example: pass 2
Plans for { Student , Enroll }
Extending best plans for { Student }
- From S1 (table scan, then filter ( age < 10))
- Block-based nested loop join with Enroll ; cost 1100
- Sort Enroll by SID , and merge join; cost 3100; ordered by SID ← no longer an interesting order
- … …
- From S2 (index scan using condition ( age < 10))
- Block-based nested loop join with Enroll ; cost 1005
- … … Extending best plans for { Enroll } … …
☻
SELECT SID, CID FROM Student, Enroll, Course WHERE Student.age < 10 AND Student.SID = Enroll.SID AND Enroll.CID = Course.CID AND Course.title LIKE ‘%data%’;
Optimizer “blow-up”
A 20-way join will easily choke an optimizer using
the System-R algorithm
Solutions
Heuristics-based query optimization Randomized query optimization (Ioannidis & Kang, SIGMOD 1990) Genetic programming (PostgreSQL)
20
Search space revisited
Cost
Space of plans
Plan Transformations
Global optimum
Local optimum
21
Transformations
Relational algebra equivalences (or query rewrite rules in general):
Join method choice: R method1 S → R method2 S
Join commutativity: R S → S R
Join associativity: ( R S ) T → R ( S T )
Left join exchange: ( R S ) T → R ( T S )
Right join exchange: R ( S T ) → S ( R T )
) Why the last two redundant rules?
Iterative improvement
Repeat until some stopping condition (e.g., time
runs out):
Start with a random plan Repeatedly go downhill (i.e., pick a neighbor with a lower cost randomly) to get to a local optimum
Return the smallest local optimum found
23
Simulated annealing
Start with a plan and an initial temperature
Repeat until temperature is 0:
Repeat until some equilibrium (e.g., a fixed number of iterations):
- Move to a random neighbor of the plan (an uphill move is allowed with probability e –^ ∆cost^ ⁄^ temperature) - Larger → smaller probability - Lower temperature → smaller probability Reduce temperature
Return the plan visited with the lowest cost
24
Two-phase optimization
Phase I: run iterative improvement for a while to
find a good local optimum
Phase II: run simulated annealing with a low initial
temperature to get more improvements
Why does this heuristic tend to work better than
both iterative improvement and simulated
annealing?
