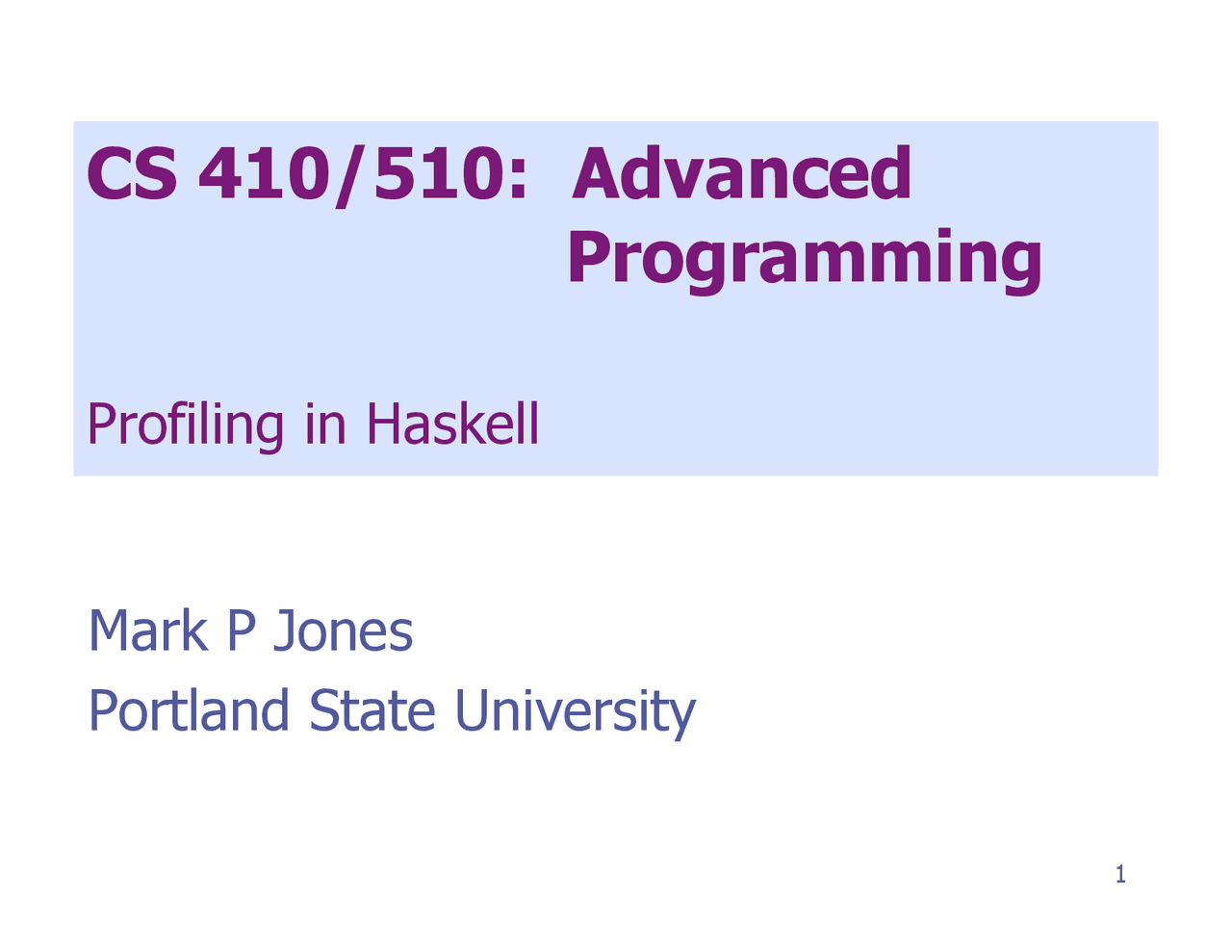

CS 410/510: Advanced

Programming

Profiling in Haskell

Mark P Jones

Portland State University

What makes a good program?

! " Qualitative factors:

!" Correctness

!" Maintainability, readability,

understandability, portability, flexibility, …

!" Use of appropriate abstractions and idioms

! " Quantitative factors:

!" Performance, Predictability, …

!" Time, Memory, Disk, Bandwidth, …

Profiling Tools:

! " Two broad approaches:

!" Instrumentation

!" Sampling

! " Standard Advice:

!" Focus on writing qualitatively good code first

!" Once that’s working, use profiling tools to

identify performance hot-spots and obtain

quantitatively good code

Form Follows Function:

expr, term, atom :: Parser Int expr = term "+" expr -- return (l+r) | term "-" expr -- return (l-r) | term term = atom "" term -- return (lr) | atom "/" term -- return (ldivr) | atom atom = "-" atom -- return (negate x) | "(" expr ")" -- return n | number

Parsing Examples:

Parsing> parse expr "1+2" [3] Parsing> parse expr "(1+2) * 3" [] Parsing> parse expr "(1+2)3" [9] Parsing> parse expr "((1+2)3)+1" [10] Parsing> parse expr "(((1+2)3)+1)8" [80] Parsing> parse expr "((((1+2)3)+1)8)" [80] Parsing>

Execution Statistics in Hugs:

! " Mechanisms:

!" Enable the collection of execution statistics

using :set +s

!" Turn on messages when garbage collection

occurs using :set +g

!" Change total heap size (when loading Hugs)

using hugs –hSize

! " Measures:

!" Cells : a chunk of memory

!" Reductions : a single rewrite step

Observing Garbage Collection:

Parsing> :set TOGGLES: groups begin with +/- to turn options on/off resp. s Print no. reductions/cells after eval … OTHER OPTIONS: (leading + or - makes no difference) hnum Set heap size (cannot be changed within Hugs) … Current settings: +squR - tgl.QwkIT -h1000000 - p"%s> " -r$$ -c … Parsing> length [1..200000] {{Gc:979946}}{{Gc:979945}}{{Gc:979947}}{{Gc:979946}}{{Gc: 979947}} 200000 (4200043 reductions, 5598039 cells, 5 garbage collections) {{Gc:979983}}Parsing>

Observing Garbage Collection:

$ hugs -h100000 +gs … Hugs> length [1..200000] {{Gc:86831}}{{Gc:86830}}{{Gc:86832}}{{Gc:86833}}{{Gc:86828}}… {{Gc:86828}}{{Gc:86829}}{{Gc:86828}}{{Gc:86828}} 200000 (4200054 reductions, 5598125 cells, 64 garbage collections) {{Gc:86866}}Hugs> :q $ hugs -h8M +gs … Hugs> length [1..200000] 200000 (4200054 reductions, 5598125 cells) {{Gc:7986866}}Hugs>:q

Observations:

! " Note that: 100000 – 86866 = 13134 = 26379 – 13245

! " So we can conclude that Hugs:

!" uses 13134 cells for internal state

!" needs at least 26379 cells to load

! " Possible profile of memory usage during startup:

26, 13134

Heap size, Residency, Allocation: ! " Heap size measures maximum capacity ! " Residency measures amount of memory that is actually in use at any given time ! " Haskell programs allocate constantly (and, simultaneously, create garbage) ! " Total allocation may exceed heap size

Parsing> :set +s Parsing> parse expr (addParens 1 "1") [1] (15060 reductions, 20628 cells) Parsing> parse expr (addParens 2 "1") [1] (137062 reductions, 187767 cells) Parsing> parse expr (addParens 3 "1") [1] (1234954 reductions, 1691736 cells, 1 garbage collection) Parsing> parse expr (addParens 4 "1") [1] (11115840 reductions, 15227127 cells, 15 garbage collections) Parsing> parse expr (addParens 5 "1") [1] (100043656 reductions, 137045268 cells, 139 garbage collections) Parsing> Rapid increases in reductions and cell counts

$ hugs -h26379 +sg Hugs> :l altParsing.lhs Parsing> :gc Garbage collection recovered 6462 cells Parsing> parse expr "1" [1] (1367 reductions, 1881 cells) {{Gc:6304}}Parsing> parse expr (addParens 1 "1") {{Gc:6218}}{{Gc:6213}}{{Gc:6217}}[1] (15073 reductions, 20665 cells, 3 garbage collections) {{Gc:6281}}Parsing> parse expr (addParens 5 "1") {{Gc:6044}}{{Gc:6072}}{{Gc:6066}}{{Gc:6076}}{{Gc:6072}}{{Gc: 6081}}{{Gc:6063}}{{Gc:6085}}{{Gc:6068}}{{Gc:6090}}{{Gc:6062}}... {{Gc:6113}}{{Gc:6078}}{{Gc^C:6048}}{Interrupted!} (16505831 reductions, 22610720 cells, 3713 garbage collections) {{Gc:6048}}Parsing> Memory is not the problem here:

Analysis (2):

19 parens reductions cells log reds log cells 1 15060 20628 4.177824972 4. 2 137062 187767 5.136917065 5. 3 1234954 1691736 6.091650781 6. 4 11115840 15227127 7.045942287 7. 5 100043656 137045268 8.000189554 8.

Why Exponential Behavior?

expr, term, atom :: Parser Int expr = do l <- term; string "+"; r <- expr; return (l+r) ||| do l <- term; string "-"; r <- expr; return (l-r) ||| term term = do l <- atom; string ""; r <- term; return (lr) ||| do l <- atom; string "/"; r <- term; return (ldivr) ||| atom atom = do string "-"; x <- atom; return (negate x) ||| do string "("; n <- expr; string ")"; return n ||| number Recall this grammar …
