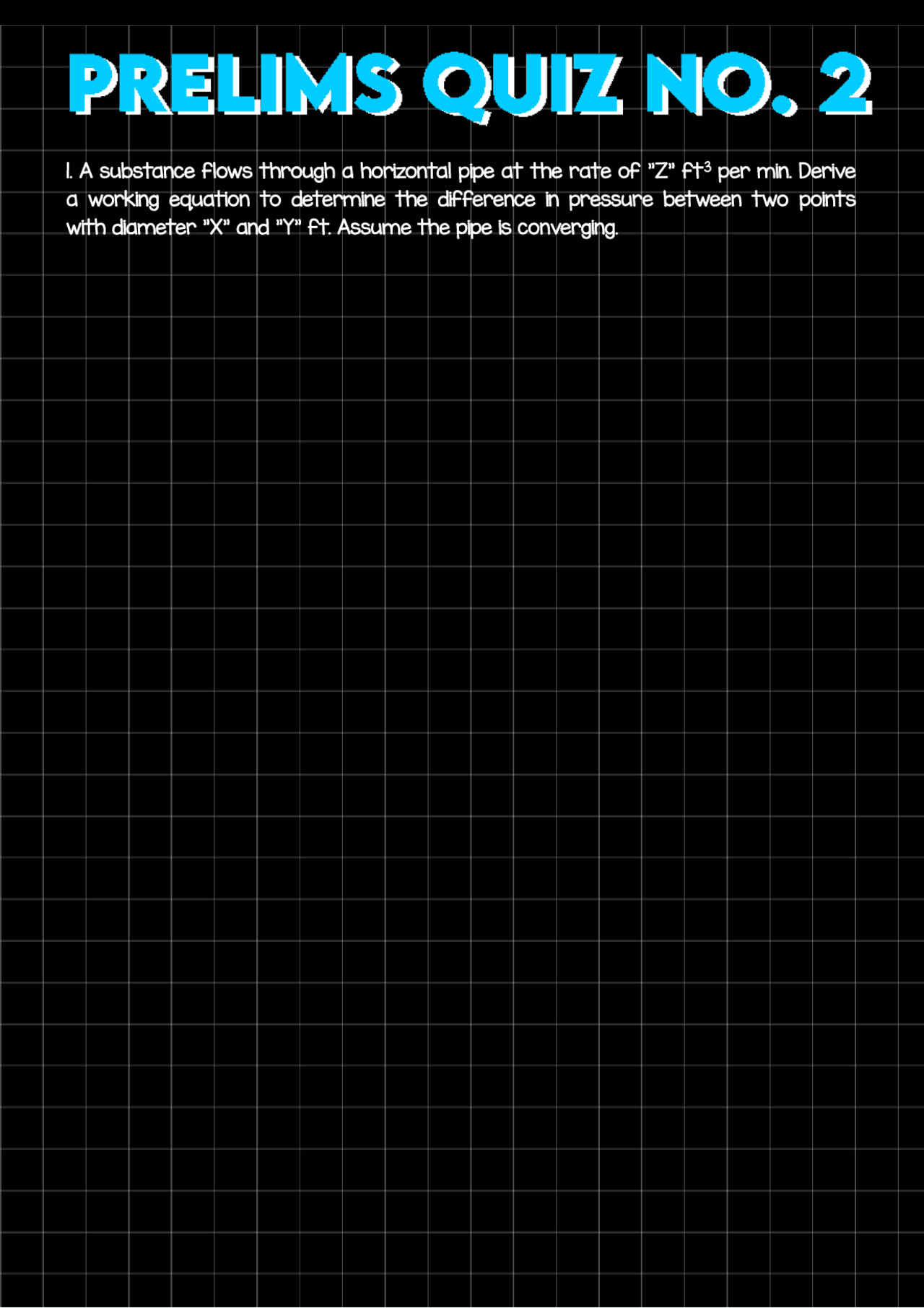

1. A substance flows through a horizontal pipe at the rate of "Z" ft3 per min. Derive
a working equation to determine the difference in pressure between two points
with diameter "X" and "Y" ft. Assume the pipe is converging.
