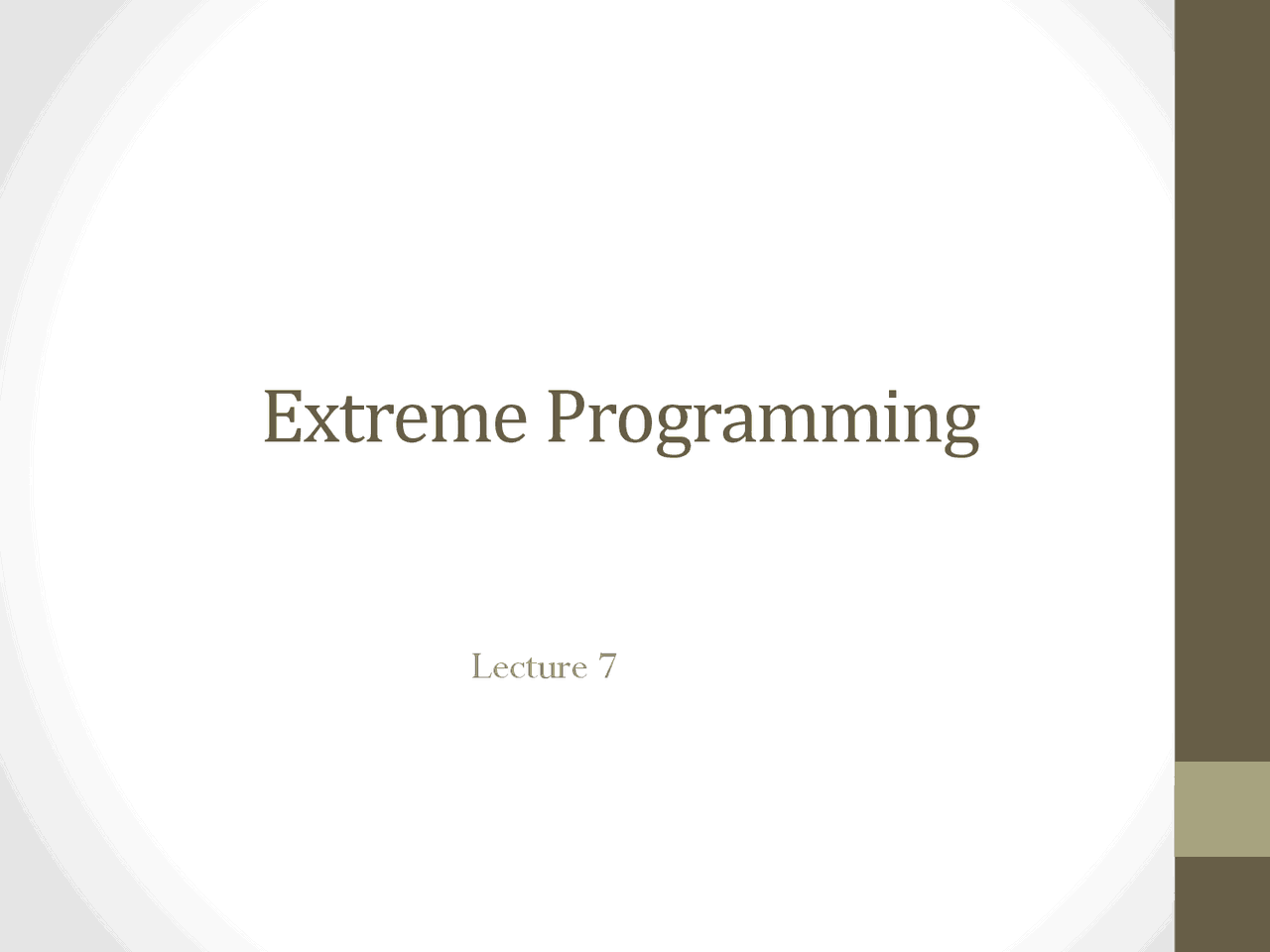

Extreme Programming

Lecture 7

Recap

• Activities in XP
• XP Values
• XP Practices

Planning

Planning is done during release planning and iteration planning. The rules are same for both. In Release planning,

• Business and the team are the players.
• Story cards are used.
• User stories are written by the customer on story cards.
• User stories are written by the customer on story cards.
• Business is decided on the priority of the functionality for implementation.
• Estimates are given by the team based on the story cards.
• Short (frequent small) releases are to be planned
• Release schedule is to be created with mutual agreement.
• The next release is to be divided into iterations.

In Iteration planning

• The team members are the players.
• Task cards are used.
• For each story selected for the iteration, the task cards are produced.
• The team members have to estimate the tasks based on the task cards.
• Each team member is assigned with task cards.
• Each team member has to then re-estimate based on his or her assignment, for - Accepting the work. - Taking responsibility of the completion of the work. - Getting feedback about the actual time taken. - Improving the estimates. - Respecting those estimates.

Designing

The rules of designing are −

• Choose a metaphor for the system and evolve it as development progresses.
• Keep the design simple.
• No functionality is added early.
• Put as much architecture in place now as you need to meet your current needs, and trust that you can put more in later
• Refactor whenever and wherever possible.

Coding

The rules of coding are −

• The business (who represents the customer) should always be available.
• Developers should write all the code in accordance with rules emphasizing communication through the code.
• Pair programming should be ensured.
• Coding standards are to be followed.
• All code must have unit tests.
• Write a unit test first, before the code is written for each piece of the system so that it is much easier and faster to create your code. The combined time it takes to create a unit test and create some code to make it pass is about the same as just coding it up straight away. It eases regression testing.

Testing

The rules of testing are −

• All codes must pass all unit tests before it is released.
• Tests are to be written when a defect is found.
• Acceptance tests are to be run often.

Test-Driven Development (TDD)

• Test-driven development starts with developing test for each

one of the features. The test might fail as the tests are developed

even before the development. Development team then develops

and refactors the code to pass the test.

• Test-driven development is related to the test-first programming

evolved as part of extreme programming concepts.

Context of Testing:

• Valid inputs
• Invalid inputs
• Errors, exceptions, and events
• Boundary conditions
• Everything that might break Benefits of TDD:
• Much less debug time
• Code proven to meet requirements
• Tests become Safety Net
• Near zero defects
• Shorter development cycles

Misconceptions about TDD Misconception (^) Clarification TDD is all about testing and test automation. TDD is a development methodology using Test-First approach. TDD does not involve any design. TDD includes critical analysis and design based on the requirements. The design emerges during development. TDD is only at Unit level. TDD can be used at the integration and system levels. TDD cannot be used by traditional testing projects. TDD became popular with Extreme Programming and is being used in other Agile methodologies. However, it can be used in traditional testing projects as well. TDD is a tool. TDD is a development methodology, and after every new Unit Test passes, it is added to the Automation Test Suite as all the tests need to be run whenever a new code is added or existing code is modified and also after every refactoring. Thus, Test Automation Tools supporting TDD facilitate this process. TDD means handing Acceptance tests to the developers. TDD does not mean handing Acceptance Tests to the developers.
