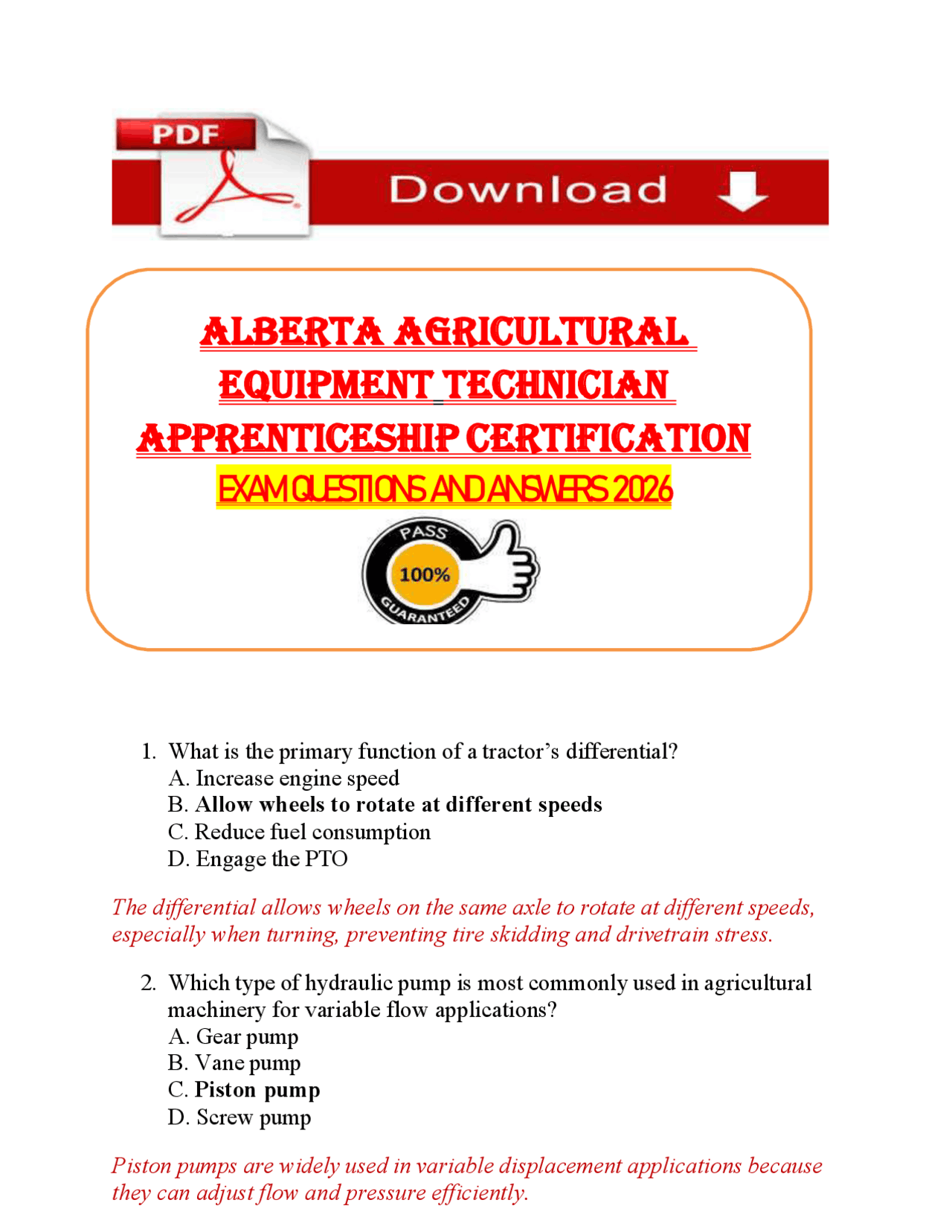

Download Agricultural Equipment, Technician Exam, Apprenticeship Certification, Practice Questions, and more Exams Agricultural policy in PDF only on Docsity!
- What is the primary function of a tractor’s differential? A. Increase engine speed B. Allow wheels to rotate at different speeds C. Reduce fuel consumption D. Engage the PTO
The differential allows wheels on the same axle to rotate at different speeds, especially when turning, preventing tire skidding and drivetrain stress.
- Which type of hydraulic pump is most commonly used in agricultural machinery for variable flow applications? A. Gear pump B. Vane pump C. Piston pump D. Screw pump
Piston pumps are widely used in variable displacement applications because they can adjust flow and pressure efficiently.
ALBERTA AGRICULTURAL
EQUIPMENT TECHNICIAN
APPRENTICESHIP CERTIFICATION
EXAMQUESTIONSANDANSWERS
- What does the term “bleeding the brakes” refer to? A. Replacing brake pads B. Removing air from the brake system C. Adding brake fluid D. Adjusting brake pedal height
C. Reduce hydraulic fluid temperature D. Maintain PTO speed
A torque converter allows smooth transmission of engine torque, enabling controlled acceleration without stalling.
- Which gear type is most suitable for transmitting motion between non- parallel, non-intersecting shafts? A. Spur gear B. Helical gear C. Bevel gear D. Worm gear
Worm gears transmit motion between shafts at right angles and are used where high reduction ratios are needed.
- What is the main function of the Positive Crankcase Ventilation (PCV) system? A. Increase fuel efficiency B. Reduce coolant temperature C. Remove blow-by gases from the crankcase D. Control hydraulic pressure
The PCV system prevents pressure buildup and recirculates gases to the intake for combustion, reducing emissions.
- When checking tire pressure, which factor must be considered? A. Engine RPM B. Hydraulic fluid level C. Manufacturer’s recommended pressure D. Ambient light
Correct tire pressure ensures proper traction, wear, and load handling.
- Which type of battery is most commonly used in agricultural equipment? A. Lithium-ion B. Lead-acid
C. Nickel-metal hydride D. Alkaline
Lead-acid batteries provide reliable starting power and are cost-effective for heavy-duty applications.
- Which safety practice is essential before servicing hydraulic systems? A. Increase system pressure B. Drain engine oil C. Release system pressure D. Disconnect PTO
Hydraulic fluid under pressure can cause serious injury; always relieve pressure before service.
- What is the purpose of the PTO (Power Take-Off) shaft? A. Increase fuel efficiency B. Control braking C. Transmit engine power to implements D. Adjust tire pressure
The PTO allows external implements to be powered by the tractor’s engine.
- What type of lubrication is most appropriate for high-speed, lightly loaded bearings? A. Grease B. Oil C. Graphite D. None
Oil provides proper lubrication and cooling for high-speed, lightly loaded bearings.
- A diesel engine emits black smoke. What is the most likely cause? A. Low coolant B. Excess fuel or incomplete combustion
Hydrostatic transmissions provide smooth, variable speed control without clutch engagement.
- Which instrument measures engine compression? A. Torque wrench B. Tachometer C. Compression gauge D. Hydrometer
Compression testing helps assess the condition of pistons, rings, and valves.
- What is the first step in a lockout/tagout procedure? A. Clean the area B. Shut down the equipment and isolate energy sources C. Wear gloves D. Remove guards
Lockout/tagout ensures machinery cannot be started accidentally during maintenance.
- What is the main purpose of a relief valve in a hydraulic system? A. Increase flow B. Reduce pump noise C. Limit system pressure D. Filter contaminants
Relief valves protect components from overpressure by diverting excess fluid.
- Which type of welding is most commonly used for repairing agricultural steel components? A. TIG B. MIG C. SMAW (stick welding) D. Laser welding
Stick welding is versatile, portable, and suitable for thick steel in agricultural equipment.
- When replacing a hydraulic hose, which factor is most critical? A. Color B. Brand C. Pressure rating and size D. Length only
Using a hose with proper pressure rating ensures safety and system reliability.
- What is the purpose of a radiator cap in a cooling system? A. Add oil B. Maintain system pressure and prevent boiling C. Filter coolant D. Increase engine speed
The radiator cap maintains a sealed, pressurized system, raising coolant boiling point for effective cooling.
- Which component converts mechanical motion to hydraulic pressure? A. Cylinder B. Pump C. Reservoir D. Filter
Hydraulic pumps take mechanical energy and convert it into pressurized fluid for system operation.
- What is the ideal method for inspecting a PTO shaft for wear? A. Spin it freely B. Measure RPM C. Checkz7splines and bearings for wear or damage D. Check tire pressure
Inspecting splines and bearings ensures safe and reliable PTO operation.
- Which component prevents reverse flow in a hydraulic system? A. Relief valve B. Accumulator
Ammeter measures the flow of electrical current in amperes.
- What is the purpose of an oil cooler in a hydraulic system? A. Increase fluid pressure B. Remove debris C. Reduce fluid temperature D. Increase flow speed
Lowering hydraulic fluid temperature prevents overheating and maintains viscosity for proper operation.
- When performing preventive maintenance, which action should be done regularly? A. Paint the equipment B. Lubricate moving parts C. Upgrade software D. Disconnect PTO
Regular lubrication reduces wear and extends equipment life.
- Which type of engine valve arrangement is most common in modern diesel tractors? A. Overhead camshaft (OHC) B. Overhead valve (OHV) C. Side valve D. Rotary valve
OHV designs are durable and allow efficient airflow in diesel engines.
- What does the term “backhoe swing radius” refer to? A. Bucket width B. Arc of rotation of the boom C. Hydraulic pressure D. Engine RPM
Swing radius is the distance covered by the rotating arm of the backhoe, important for safe operation.
- Which system uses a battery, alternator, and voltage regulator? A. Fuel system B. Hydraulic system C. Electrical charging system D. PTO system
The charging system maintains battery charge and provides electricity for vehicle operation.
- Which type of brake system is commonly used on large agricultural tractors? A. Drum brakes only B. Disc brakes only C. Wet disc brakes D. Air brakes
Wet disc brakes are immersed in oil, providing cooling, durability, and consistent braking in heavy equipment.
- What is the recommended procedure for storing batteries during the off-season? A. Leave connected B. Store upside down C. Fully charged in a cool, dry place D. Drain electrolyte
Proper storage prevents sulfation, maintains charge, and extends battery life.
- Which hydraulic component stores energy to maintain system pressure? A. Pump B. Relief valve C. Filter D. Accumulator
Accumulators store fluid under pressure to maintain consistent system performance and absorb shocks.
C. Single or dual-plate friction clutch D. Torque converter only
Friction clutches provide reliable engagement and can handle high torque loads typical in tractors.
- What is the function of a hydraulic filter? A. Increase pressure B. Reduce temperature C. Remove contaminants from fluid D. Control speed
Clean hydraulic fluid prevents wear and damage to pumps, valves, and cylinders.
- What is indicated by excessive engine oil consumption? A. Low coolant B. Worn piston rings or valve seals C. High fuel pressure D. Clogged air filter
Excessive oil consumption typically results from internal engine wear, causing oil to enter the combustion chamber.
- Which component is used to convert AC voltage from an alternator to DC for the battery? A. Starter motor B. Rectifier C. Solenoid D. Regulator
A rectifier uses diodes to change AC output from the alternator into DC suitable for battery charging.
- Which inspection checks for leaks in a hydraulic system? A. Oil pressure test B. Compression test C. Visual inspection and pressure test D. Torque test
Leaks are detected by visual inspection of hoses, fittings, and components, often verified under system pressure.
- What is the primary hazard when working under a raised implement? A. Heat B. Dust C. Crushing from falling equipment D. Noise
Improper support can result in implements collapsing; always use stands or blocks to secure equipment.
- Which type of transmission is commonly used for variable speed control in tractors without a clutch? A. Manual B. Hydrostatic C. CVT belt D. Planetary
Hydrostatic transmissions use variable displacement pumps and motors to provide smooth, clutch-free speed control.
- What is the purpose of a glow plug in a diesel engine? A. Lubricate cylinders B. Preheat combustion chamber for easier starting C. Increase fuel efficiency D. Reduce emissions
Glow plugs heat the combustion chamber, ensuring fuel ignites efficiently in cold conditions.
- Which type of filter removes fine particles from engine oil? A. Air filter B. Fuel filter C. Oil filter D. Hydraulic filter
High coolant temperatures can result from leaks, low coolant, clogged radiators, or overworked engines.
- Which type of hydraulic cylinder provides linear motion? A. Rotary actuator B. Pump C. Single- or double-acting cylinder D. Motor
Hydraulic cylinders convert pressurized fluid into straight-line movement.
- What is the purpose of a torque arm in agricultural machinery? A. Reduce tire wear B. Increase fuel efficiency C. Transfer torque and prevent axle rotation D. Control PTO speed
Torque arms stabilize drive components and prevent unwanted rotation under load.
- Which tool measures internal engine clearances such as valve lash? A. Micrometer B. Torque wrench C. Feeler gauge D. Dial indicator
Feeler gauges are thin metal strips used to measure small gaps with high accuracy.
- What is the main hazard of diesel fuel spills? A. Slippery surfaces and fire risk B. Electrical shock C. Noise D. Low traction
Diesel is flammable and creates slick surfaces, posing fire and slip hazards.
- Which type of gear reduces speed while increasing torque? A. Spur gear B. Worm gear C. Reduction gear D. Helical gear
Reduction gears decrease rotational speed while increasing torque output for heavy loads.
- What is the purpose of a hydraulic accumulator? A. Increase engine RPM B. Lubricate hydraulic pump C. Store energy and dampen pressure fluctuations D. Filter fluid
Accumulators provide reserve hydraulic energy and smooth system pressure spikes.
- Which condition can cause hydraulic overheating? A. Low fuel pressure B. Excessive flow, restricted lines, or overworked system C. High tire pressure D. Low brake fluid
Overheating damages seals and reduces fluid life, often caused by excessive system demand or restrictions.
- When inspecting drive belts, which factor is most critical? A. Color B. Tension and wear C. Brand D. Length only
Proper tension and condition prevent slipping, noise, and premature failure.
- Which component controls flow direction in a hydraulic system? A. Pump B. Filter
- Which welding defect is caused by contamination or moisture? A. Undercut B. Lack of fusion C. Porosity D. Spatter
Porosity is caused by trapped gases in the weld due to moisture, dirt, or oil.
- What is indicated by smoke from a tractor’s exhaust during startup only? A. Clogged fuel filter B. Overheating C. Cold engine combustion or rich fuel mixture D. Low brake fluid
Temporary smoke during startup is usually caused by cold engine conditions and rich fuel delivery.
- Which type of lubrication is recommended for PTO shafts? A. Hydraulic fluid B. Engine oil C. Grease D. None
Grease reduces wear and prevents corrosion on PTO splines and universal joints.
- What is the purpose of a fan clutch on a tractor? A. Reduce fuel consumption B. Increase engine speed C. Control fan speed according to engine temperature D. Lubricate bearings
Fan clutches improve cooling efficiency and reduce unnecessary engine load.
- Which inspection method is used to detect cylinder head warpage? A. Oil pressure test B. Straightedge and feeler gauge measurement
C. Compression test D. Torque test
Checking for warpage ensures proper sealing between the head and engine block.
- What is the main function of a pressure relief valve in hydraulics? A. Increase flow B. Lubricate cylinders C. Protect system from overpressure D. Control temperature
Relief valves prevent component damage by diverting fluid when pressure exceeds safe limits.
- Which hydraulic component converts mechanical motion into rotational motion? A. Cylinder B. Pump C. Hydraulic motor D. Valve
Hydraulic motors take pressurized fluid and convert it to rotary motion for implements or wheels.
- Which safety measure is essential when welding in confined spaces? A. Wear loose clothing B. No ventilation needed C. Ensure adequate ventilation and gas monitoring D. Remove fire extinguisher
Confined spaces can accumulate hazardous fumes; proper ventilation and safety monitoring are critical.
- What is the function of an alternator in a tractor? A. Start the engine B. Store energy
