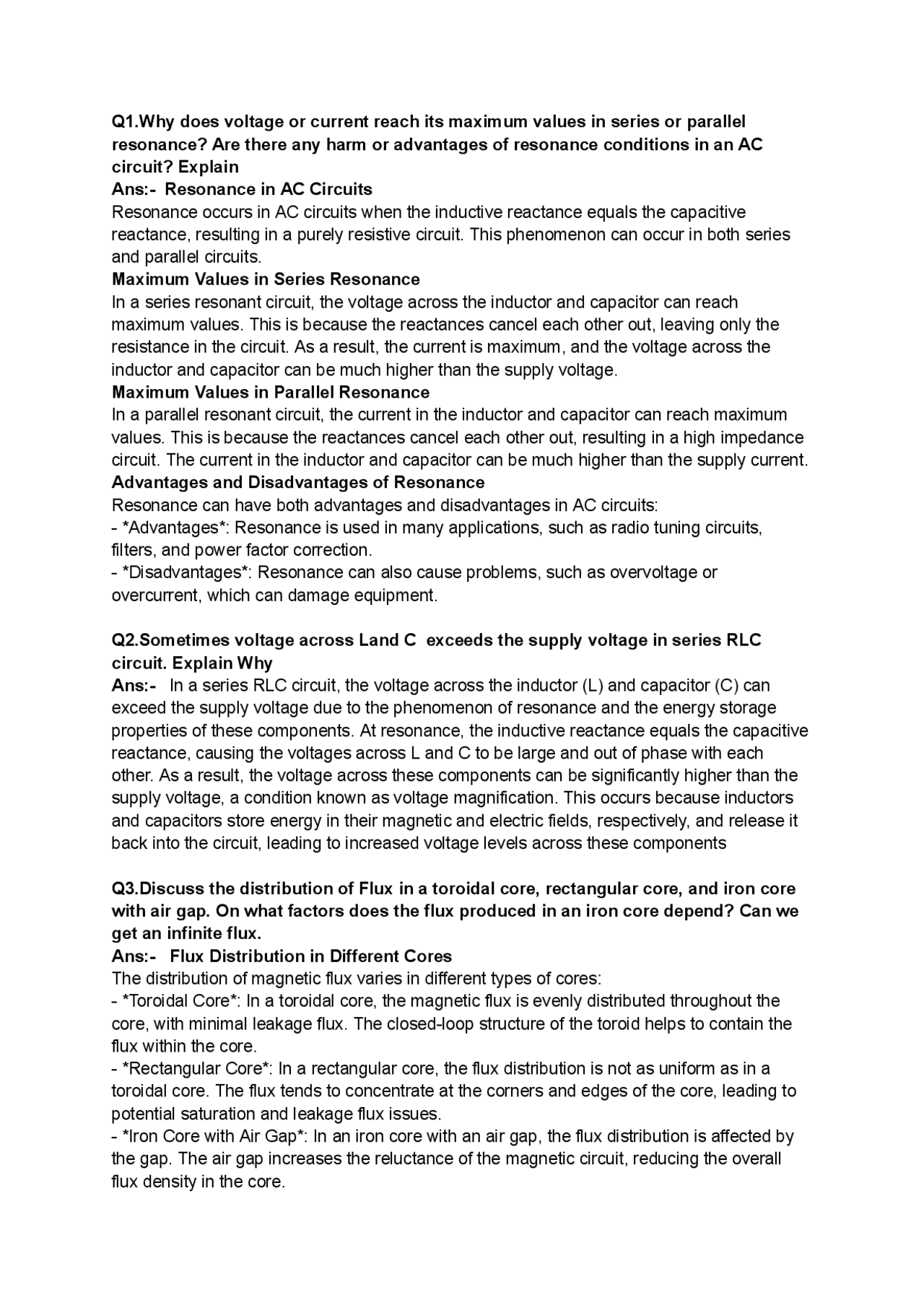

Q1.Why does voltage or current reach its maximum values in series or parallel resonance? Are there any harm or advantages of resonance conditions in an AC circuit? Explain Ans:- Resonance in AC Circuits Resonance occurs in AC circuits when the inductive reactance equals the capacitive reactance, resulting in a purely resistive circuit. This phenomenon can occur in both series and parallel circuits. Maximum Values in Series Resonance In a series resonant circuit, the voltage across the inductor and capacitor can reach maximum values. This is because the reactances cancel each other out, leaving only the resistance in the circuit. As a result, the current is maximum, and the voltage across the inductor and capacitor can be much higher than the supply voltage. Maximum Values in Parallel Resonance In a parallel resonant circuit, the current in the inductor and capacitor can reach maximum values. This is because the reactances cancel each other out, resulting in a high impedance circuit. The current in the inductor and capacitor can be much higher than the supply current. Advantages and Disadvantages of Resonance Resonance can have both advantages and disadvantages in AC circuits:
- Advantages: Resonance is used in many applications, such as radio tuning circuits, filters, and power factor correction.
- Disadvantages: Resonance can also cause problems, such as overvoltage or overcurrent, which can damage equipment.
Q2.Sometimes voltage across Land C exceeds the supply voltage in series RLC circuit. Explain Why Ans:- In a series RLC circuit, the voltage across the inductor (L) and capacitor (C) can exceed the supply voltage due to the phenomenon of resonance and the energy storage properties of these components. At resonance, the inductive reactance equals the capacitive reactance, causing the voltages across L and C to be large and out of phase with each other. As a result, the voltage across these components can be significantly higher than the supply voltage, a condition known as voltage magnification. This occurs because inductors and capacitors store energy in their magnetic and electric fields, respectively, and release it back into the circuit, leading to increased voltage levels across these components
Q3.Discuss the distribution of Flux in a toroidal core, rectangular core, and iron core with air gap. On what factors does the flux produced in an iron core depend? Can we get an infinite flux. Ans:- Flux Distribution in Different Cores The distribution of magnetic flux varies in different types of cores:
- Toroidal Core: In a toroidal core, the magnetic flux is evenly distributed throughout the core, with minimal leakage flux. The closed-loop structure of the toroid helps to contain the flux within the core.
- Rectangular Core: In a rectangular core, the flux distribution is not as uniform as in a toroidal core. The flux tends to concentrate at the corners and edges of the core, leading to potential saturation and leakage flux issues.
- Iron Core with Air Gap: In an iron core with an air gap, the flux distribution is affected by the gap. The air gap increases the reluctance of the magnetic circuit, reducing the overall flux density in the core.
Factors Affecting Flux in an Iron Core The flux produced in an iron core depends on several factors:
- Magnetomotive Force (MMF): The MMF, which is the product of the number of turns and the current, determines the strength of the magnetic field.
- Core Material: The type of core material, its permeability, and its saturation point all impact the flux density.
- Core Geometry: The shape and size of the core, including any air gaps, affect the flux distribution and density.
- Frequency: The frequency of the magnetic field can impact the flux density, particularly in cores with high-frequency applications. Limitations of Flux Production It is not possible to achieve infinite flux in a magnetic core due to physical limitations:
- Saturation: Magnetic materials have a saturation point, beyond which further increases in MMF do not result in significant increases in flux density.
- Reluctance: The reluctance of the magnetic circuit, including any air gaps, limits the flux density.
- Material Properties: The properties of the core material, such as permeability and saturation point, determine the maximum flux density that can be achieved..
Q4A transformer is loaded with a load having some resistance, some inductance, and some capacitance. The value of inductive reactance is more than capacitive reactance. Draw and explain the phasor diagram of transformer and comment on its power factor Ans:- Let's discuss the phasor diagram of a transformer loaded with a resistive-inductive-capacitive (RLC) load where the inductive reactance exceeds the capacitive reactance. In such a case, the load is effectively inductive. The phasor diagram would show the primary and secondary voltages and currents, with the secondary current lagging behind the secondary voltage due to the inductive nature of the load. The power factor of the transformer would be lagging, indicating that the current is lagging behind the voltage. The extent of the lag would depend on the difference between the inductive and capacitive reactances. Since the inductive reactance is more than the capacitive reactance, the overall power factor would be less than unity and lagging.
Q5Why are DC machines still used in our day today life? Explain with suitable example. Ans:- DC Machines in Modern Life Despite the widespread use of AC systems, DC machines are still employed in various applications due to their unique characteristics and advantages. Some reasons for their continued use include:
- Control and Flexibility: DC machines offer excellent speed control and flexibility, making them suitable for applications that require precise control, such as robotics, CNC machines, and electric vehicles.
- High Starting Torque: DC machines can provide high starting torque, which is essential for applications like traction, hoists, and cranes.
- Simple and Reliable: DC machines are relatively simple in design and construction, making them reliable and easy to maintain.
Conclusion The laminated silicon steel core offers significant advantages in terms of reduced losses, lower temperature rise, and higher efficiency. However, it comes at a higher cost. The solid iron core, while less expensive, has higher losses, increased temperature rise, and lower efficiency. The choice of core material depends on the specific application requirements and the trade-off between cost and performance.
Q7Compare a Transformer and an Induction Motor Ans:- Similarities
*- *** Electromagnetic Induction: Both transformers and induction motors operate based on the principle of electromagnetic induction, where a changing magnetic field induces an electromotive force (EMF).
- AC Operation: Both devices are designed to operate with alternating current (AC). **Differences
- *** Purpose*: A transformer is used to transfer electrical energy from one circuit to another through electromagnetic induction, typically for voltage transformation. An induction motor, on the other hand, converts electrical energy into mechanical energy.
- Construction: A transformer consists of primary and secondary windings around a common magnetic core. An induction motor has a stator with windings and a rotor that can be either squirrel-cage or wound type.
- Operation: A transformer operates based on the principle of mutual induction, where the primary winding induces a voltage in the secondary winding. An induction motor operates based on the principle of electromagnetic induction, where the stator windings induce a current in the rotor, generating torque. Key Characteristics
- Transformer:
- No moving parts
- High efficiency
- Used for voltage transformation
- Induction Motor:
- Rotating parts (rotor)
- Converts electrical energy to mechanical energy
- Used for driving mechanical loads Applications
- Transformer: Power transmission and distribution, voltage regulation, and isolation.
- Induction Motor: Industrial drives, pumps, fans, conveyors, and other applications where mechanical energy is required.
Q8Why do we mostly use squirrel cage rotor in Induction Motor? Explain.(Answer in paragraph) Ans:- Squirrel cage rotors are predominantly used in induction motors due to their simplicity, reliability, and ruggedness. The absence of brushes, commutators, and windings in the rotor eliminates maintenance requirements and reduces the risk of wear and tear, making them a low-maintenance option. Additionally, the simple and robust design of the squirrel cage rotor makes it less prone to damage from vibrations and environmental factors, increasing its reliability. The cost-effectiveness of squirrel cage rotors also contributes to their widespread adoption, as they are generally less expensive to manufacture than wound rotors. Overall,
the combination of simplicity, reliability, and cost-effectiveness makes squirrel cage rotors a popular choice for many induction motor applications.
Q9How does the rotor rotate in an induction motor? Explain Ans:- In an induction motor, the rotor rotates due to the interaction between the magnetic field generated by the stator windings and the rotor conductors. When the stator windings are energized with an alternating current, a rotating magnetic field is produced. This field induces an electromotive force (EMF) in the rotor conductors, causing a current to flow. The interaction between the rotor current and the stator magnetic field generates a Lorentz force, which acts on the rotor conductors and causes the rotor to rotate in the same direction as the stator magnetic field. The rotor speed is slightly less than the synchronous speed of the stator magnetic field, resulting in a slip that enables the motor to operate. This fundamental principle of electromagnetic induction allows the induction motor to convert electrical energy into mechanical energy.
Q10. (i). Production of various torques in Analog Instrumens ( answer in paragraph) Ans:- .In analog instruments, three primary torques are essential for accurate measurement and operation. The deflecting torque is produced by the interaction between the magnetic field and the current-carrying coil, causing the pointer to deflect in proportion to the measured quantity. The controlling torque, provided by springs or other means, opposes the deflecting torque and ensures the pointer returns to its zero position when the measured quantity is zero. Additionally, a damping torque is produced by air friction, eddy currents, or other means, which reduces oscillations and ensures a steady reading by slowing down the pointer's movement. The balance between these torques enables accurate and reliable measurements in analog instruments.
(ii) Why is Ammeter always connected in series and Voltmeter is always connected in parallel?(Answer in paragraph) Ans:- An ammeter is connected in series with a circuit to measure current because it needs to carry the entire current being measured, allowing it to accurately determine the flow of electrons. Connecting it in series ensures that all the current passes through the ammeter, enabling precise measurement. In contrast, a voltmeter is connected in parallel with a circuit to measure voltage because it needs to measure the potential difference across a component or circuit without affecting the current flow. By connecting in parallel, the voltmeter can measure the voltage drop without disrupting the circuit's operation, providing an accurate reading of the voltage. This configuration allows both instruments to fulfill their respective functions without compromising the circuit's performance.
(iii) Q.Conversion of Galvanometer into (i) Voltmeter (ii) Ammeter (Answer in paragraph) Ans:- A galvanometer can be converted into a voltmeter or an ammeter by adding specific circuit components. To convert a galvanometer into a voltmeter, a high resistance is connected in series with the galvanometer. This series resistance limits the current through the galvanometer, allowing it to measure voltage accurately across a circuit element. The value of the series resistance is determined based on the desired voltage range and the galvanometer's characteristics. On the other hand, to convert a galvanometer into an
Squirrel Cage Rotor
- Construction: The squirrel cage rotor consists of a cylindrical core with parallel slots, containing copper or aluminum bars short-circuited at both ends by end rings.
- Advantages:
- Simple and rugged construction
- Low maintenance
- Cost-effective
- High efficiency
- Disadvantages:
- Limited starting torque
- High starting current Wound Rotor
- Construction: The wound rotor has a laminated core with a three-phase winding, usually connected in a star configuration, with the ends brought out to slip rings.
- Advantages:
- High starting torque
- Low starting current
- Adjustable speed
- Disadvantages:
- More complex and expensive construction
- Requires regular maintenance
- Less efficient than squirrel cage rotors The choice of rotor type depends on the specific application, considering factors like starting torque, speed control, and maintenance requirements. Squirrel cage rotors are widely used for their simplicity and reliability, while wound rotors are preferred for applications requiring high starting torque or adjustable speed.
Q14.Classify the DC Machines based on excitation. Write its terminal equations.( A Ans:- DC machines can be classified based on excitation into two main categories : separately excited and self-excited. Separately excited DC machines have their field winding supplied from an external DC source, allowing for independent control of the field current. Self-excited DC machines, on the other hand, have their field winding connected to the armature, and the field current is generated by the machine itself. Types of Self-Excited DC Machines Self-excited DC machines can be further classified into:
- Shunt-wound DC machines, where the field winding is connected in parallel with the armature.
- Series-wound DC machines, where the field winding is connected in series with the armature.
- Compound-wound DC machines, which combine both shunt and series windings. Terminal Equations The terminal equations for DC machines vary depending on the type of excitation and connection. For a separately excited DC motor, the terminal equation is Vt = Eb + IaRa, where Vt is the terminal voltage, Eb is the back EMF, Ia is the armature current, and Ra is the armature resistance. For a DC generator, the terminal equation is Vt = Eg - IaRa, where Eg is the generated EMF. These equations describe the relationship between the terminal voltage, armature current, and back EMF or generated EMF in DC machines.
Q15Why the primary current of a transformer change if the secondary is loaded? Explain. Ans:- When a transformer is loaded on the secondary side, the current flowing through the secondary winding creates a magnetic field that opposes the primary winding's magnetic field. This opposition causes a change in the primary winding's impedance, resulting in an increase in the primary current. According to Lenz's law, the secondary current generates a magneto-motive force (MMF) that opposes the primary MMF. To maintain the magnetic flux, the primary winding draws more current from the supply to counterbalance the demagnetizing effect of the secondary current. This increase in primary current ensures that the magnetic flux in the core remains relatively constant, allowing the transformer to transfer power from the primary to the secondary side efficiently. As a result, the primary current changes to accommodate the load on the secondary side, reflecting the power demand of the load.
Q16.Draw and explain the phasor diagram of transformer on no load and on load at lagging power factor? Ans:- Phasor Diagrams of Transformer No-Load Condition When a transformer is on no-load, the secondary winding is open-circuited, and no current flows through it. The primary winding draws a small no-load current (I0) to establish the magnetic flux in the core. The no-load current has two components: the magnetizing component (Im) and the core loss component (Ic). The phasor diagram shows the applied voltage (V1) as the reference phasor, with the no-load current (I0) lagging behind it due to the inductive nature of the transformer. On-Load Condition at Lagging Power Factor When the transformer is loaded, the secondary current (I2) flows, and the primary current (I1) increases to balance the load. For a lagging power factor load, the secondary current lags behind the secondary voltage (V2). The primary current (I1) also lags behind the applied voltage (V1). The phasor diagram shows the primary voltage (V1) as the reference phasor, with the primary current (I1) lagging behind it. The secondary current (I2) is reflected to the primary side, and the primary current (I1) is the phasor sum of the no-load current (I0) and the load component of the primary current.
Q17.Give a Brief comparison between an Electrical system and a Magnetic Systems.(Answer in paragraph) Ans:- Electrical and magnetic systems are closely related yet distinct. An electrical system involves the flow of electric charge (current) through conductors, driven by voltage, and is governed by Ohm's law and Kirchhoff's laws. In contrast, a magnetic system involves the flow of magnetic flux, driven by magnetomotive force (MMF), and is governed by Ampere's law and Faraday's law. While electrical systems typically involve physical movement of charges, magnetic systems involve the interaction of magnetic fields. Both systems can store energy, but electrical systems store energy in electric fields (capacitors), whereas magnetic systems store energy in magnetic fields (inductors). Understanding the similarities and differences between these systems is crucial for designing and analyzing electromagnetic devices like transformers, motors, and generators.
Q21.Explain the mechanism of torque production in an induction motor.(Answer in p Ans:- In an induction motor, torque is produced through the interaction between the magnetic field generated by the stator windings and the currents induced in the rotor conductors. When the stator windings are connected to an AC supply, a rotating magnetic field is created, which induces an electromotive force (EMF) in the rotor conductors. The induced EMF causes currents to flow in the rotor, and according to Lenz's law, these currents generate a magnetic field that interacts with the stator field. The interaction between the two magnetic fields produces a torque that causes the rotor to rotate. The rotor tries to follow the rotating stator field, and as it does, it experiences a continuous torque, resulting in rotation. The speed of the rotor is always slightly less than the synchronous speed of the stator field, resulting in slip, which is essential for the induction motor to produce torque.
Q22.Describe different types of rotor construction employed in an induction Motor. Explain the applications of each type.(Answer in paragraph) Ans:- .Induction motors typically employ two types of rotor constructions: squirrel cage and wound rotor. Squirrel cage rotors are the most common type, consisting of a cylindrical core with parallel slots containing copper or aluminum bars short-circuited at both ends by end rings. They are simple, rugged, and low-maintenance, making them suitable for applications like pumps, fans, and conveyor systems where high starting torque is not required. Wound rotors, on the other hand, have a laminated core with a three-phase winding connected to slip rings, allowing for external resistance to be added to the rotor circuit. This design provides high starting torque and adjustable speed, making it suitable for applications like cranes, hoists, and heavy-duty machinery that require high starting torque or speed control. The choice of rotor construction depends on the specific application requirements, including starting torque, speed control, and maintenance needs.
Q23. What is an induction motor? How is it different from a d.c. motor? Explain.(Answer in paragraph) Ans:- An induction motor is an AC electric motor that uses electromagnetic induction to produce rotation. It consists of a stator with windings connected to an AC supply, generating a rotating magnetic field, and a rotor with conductors that induce currents due to the changing magnetic field. The interaction between the stator field and the rotor currents produces torque, causing the rotor to rotate. Unlike DC motors, which require a direct current supply and commutators to switch the current flow, induction motors operate on AC supply and do not need commutators or brushes. Instead, the current in the rotor is induced by the changing magnetic field, making induction motors simpler, more rugged, and low-maintenance compared to DC motors. Additionally, induction motors are widely used in industrial applications due to their reliability, efficiency, and ability to operate directly from AC power sources.
Q24.Define synchronous speed and slip. Why does an induction motor always run at speeds less than synchronous speed?(Answer in paragraph) Ans:- .Synchronous speed is the speed of the rotating magnetic field in an induction motor, determined by the frequency of the AC supply and the number of poles in the motor. Slip is the difference between the synchronous speed and the actual rotor speed, expressed as a percentage of the synchronous speed. An induction motor always runs at speeds less than synchronous speed because the rotor needs to slip behind the rotating magnetic field to induce currents in the rotor conductors. If the rotor were to reach synchronous speed, there
would be no relative motion between the rotor conductors and the magnetic field, resulting in no induced currents and no torque production. Therefore, the motor would not be able to produce torque and sustain rotation at synchronous speed, making slip essential for the operation of an induction motor. The slip allows the motor to generate torque and maintain rotation, albeit at a speed slightly less than the synchronous speed.
Q25.explain various characteristics of different types of d.c. motors and discuss the application of each type of motor. Ans:- Characteristics and Applications of DC Mot ors DC motors are widely used in various applications due to their high starting torque, ease of speed control, and reliability. There are several types of DC motors, each with distinct characteristics and applications.
- Separately Excited DC Motor
- Characteristics: Constant field current, independent of armature current.
- Applications: Suitable for applications requiring precise speed control, such as in robotics, CNC machines, and traction systems.
- Shunt-Wound DC Motor
- Characteristics: Field winding connected in parallel with armature, providing constant speed and good speed regulation.
- Applications: Used in applications requiring constant speed, such as conveyor belts, pumps, and machine tools.
- Series-Wound DC Motor
- Characteristics: Field winding connected in series with armature, providing high starting torque and variable speed.
- Applications: Suitable for applications requiring high starting torque, such as cranes, hoists, and traction systems.
- Compound-Wound DC Motor
- Characteristics: Combination of shunt and series windings, providing a balance between starting torque and speed regulation.
- Applications: Used in applications requiring a balance between starting torque and speed regulation, such as elevators, printing presses, and heavy-duty machinery.
The choice of DC motor type depends on the specific application requirements, including starting torque, speed control, and reliability. Each type of DC motor has its strengths and weaknesses, and selecting the right one ensures optimal performance and efficiency.
Q26.Why is compounding done? What are the various types of compounding? Draw and explain various characteristics of a d.c. compound generator.(Answer in para Ans:- Compounding is done in DC generators to improve their voltage regulation by combining the characteristics of series and shunt wound generators. There are two main types of compounding: cumulative compounding, where the series field aids the shunt field, and differential compounding, where the series field opposes the shunt field. In a DC compound generator, the cumulative compounding provides a rising voltage characteristic with increasing load, making it suitable for applications like arc welding and lighting systems. The characteristics of a DC compound generator include a combination of the shunt and series field effects, resulting in improved voltage regulation and stability. The generator's output voltage can be controlled by adjusting the level of compounding, allowing for flexibility in various applications. The characteristics curves show the relationship between the load
- Power supplies: DC shunt generators can be used as power supplies for applications requiring a stable voltage.
- Lighting systems: DC shunt generators can be used to power lighting systems where a constant voltage is required.
- Battery charging: DC shunt generators can be used for battery charging applications where a stable voltage is required. The characteristics of DC shunt generators make them suitable for applications where a relatively constant voltage is required. They are widely used due to their simplicity, reliability, and relatively good voltage regulation.
Q29.Explain the mechanism of torque production in a d.c. motor and derive the torque equation.( Answer in paragraph) Ans:- In a DC motor, torque is produced through the interaction between the magnetic field generated by the stator poles and the current-carrying armature conductors. When a current flows through the armature conductors, they experience a force due to the interaction with the magnetic field, resulting in a torque that causes the armature to rotate. The torque produced is directly proportional to the product of the magnetic flux per pole, the armature current, and the number of poles. The torque equation can be derived as T = (P × φ × Z × Ia) / (2 × π × A), where T is the torque, P is the number of poles, φ is the magnetic flux per pole, Z is the number of armature conductors, Ia is the armature current, and A is the number of parallel paths in the armature winding. This equation shows that the torque produced in a DC motor depends on the magnetic flux, armature current, and motor design parameters.
Q30.Discuss the classification d.c. machines on the basis of their excitation.(Answer Ans:- DC machines can be classified based on their excitation into several types, including separately excited, shunt-wound, series-wound, and compound-wound machines. Separately excited DC machines have their field winding connected to a separate DC power source, allowing for independent control of the field current. Shunt-wound DC machines have their field winding connected in parallel with the armature, providing a constant field current. Series-wound DC machines have their field winding connected in series with the armature, resulting in a field current that varies with the armature current. Compound-wound DC machines have both shunt and series field windings, allowing for a combination of constant and variable field currents. This classification based on excitation determines the characteristics and applications of DC machines, including their suitability for specific tasks such as speed control, torque production, and voltage regulation. Each type of excitation has its strengths and weaknesses, and selecting the right one depends on the specific requirements of the application.
Q31.Derive the e.m.f. equation of a d.c. generator from fundamentals Ans:- Derivation of EMF Equation of a DC Generator The electromotive force (EMF) induced in a DC generator can be derived from the fundamental principles of electromagnetic induction. Let's consider a DC generator with P poles, φ magnetic flux per pole, Z armature conductors, N speed in rpm, and A number of parallel paths in the armature winding. The EMF induced in each conductor is given by e = φ × (P × N) / (60 × A). The total EMF induced in the armature winding is the sum of the EMFs induced in each conductor, given by E = (φ × Z × N × P) / (60 × A). Simplifying the equation, we get E = (φ × Z × P × N) / 60A.
This is the EMF equation of a DC generator, which shows that the induced EMF depends on the magnetic flux, speed, number of poles, and armature winding configuration.
Q32.Using the concept of mechanical drag and back e.m.f., show that a d.c. machine is a converter of energy for converting electrical energy into mechanical energy and vice versa. Ans:- Energy Conversion in DC Machines A DC machine can operate as both a motor and a generator, converting energy between electrical and mechanical forms. Motor Operation When a DC machine operates as a motor, electrical energy is supplied to the armature, producing a torque that drives the machine mechanically. The back EMF (Eb) opposes the applied voltage (V), and the armature current (Ia) is determined by the difference between V and Eb. The mechanical load on the motor creates a drag that slows it down, reducing the back EMF and allowing more current to flow. This increased current produces more torque to overcome the mechanical load, demonstrating the conversion of electrical energy into mechanical energy. Generator Operation When a DC machine operates as a generator, mechanical energy is supplied to the armature, causing it to rotate within the magnetic field and induce an EMF. The induced EMF drives current through the load, converting the mechanical energy into electrical energy. The mechanical drag on the generator, due to the electromagnetic torque opposing the rotation, requires more mechanical energy to maintain the rotation, demonstrating the conversion of mechanical energy into electrical energy.
- In both cases, the DC machine acts as an energy converter, transforming electrical energy into mechanical energy (motor operation) or mechanical energy into electrical energy (generator operation). The back EMF and mechanical drag play crucial roles in this energy conversion process, enabling the machine to adapt to changing loads and maintain energy balance.
Q33.. Explain the principle, construction and applications of an auto-transformer, What are its drawbacks? Ans:- Auto-Transformer: Principle, Construction, and Applications. An autotransformer is a type of electrical transformer that uses a single winding to transfer electrical energy between two circuits. Principle. The auto-transformer works on the principle of electromagnetic induction, where a portion of the primary winding is shared with the secondary circuit. The voltage transformation ratio is determined by the ratio of the number of turns in the primary and secondary sections of the winding. Construction. An auto-transformer consists of a single coil with multiple taps, allowing for different voltage levels to be obtained. The coil is wound on a magnetic core, and the taps are connected to the primary and secondary circuits. Applications Auto-transformers are used in various applications, including:
- Voltage regulation: Auto-transformers can be used to regulate voltage levels in power systems.
- Starting of induction motors: Auto-transformers can be used to reduce the voltage applied to induction motors during starting.
- All-day efficiency is particularly important for distribution transformers, which experience varying loads throughout the day. It provides a more comprehensive measure of a transformer's efficiency, considering both the load and no-load losses. By optimizing transformer design and operation for all-day efficiency, energy losses can be minimized, and overall system performance can be improved.
Q37.Describe the purpose and the procedure of conducting the open and short circuit tests on a single-phase transformer. Ans:- Open-Circuit and Short-Circuit Tests on Single-Phase Transformers Open-Circuit Test (No-Load Test) The open-circuit test is conducted to determine the core losses (iron losses) and magnetizing current of a transformer. The procedure involves:
- Connecting the primary winding to a variable voltage source.
- Keeping the secondary winding open-circuited.
- Applying rated voltage to the primary winding.
- Measuring the input power, current, and voltage. The core losses are calculated from the input power, and the magnetizing current is determined from the measured current. Short-Circuit Test (Full-Load Copper Loss Test ) The short-circuit test is conducted to determine the copper losses (I^2R losses) of a transformer. The procedure involves:
- Short-circuiting the secondary winding.
- Applying a reduced voltage to the primary winding to circulate full-load current.
- Measuring the input power, current, and voltage. The copper losses are calculated from the input power, and the equivalent resistance and reactance of the transformer can be determined. These tests provide essential information for determining transformer efficiency, voltage regulation, and equivalent circuit parameters, without actually loading the transformer.
Q38.Develop the equivalent circuit of a 1-4 transformer and discuss the significance of each of the elements in the circuit. Ans:- Equivalent Circuit of a Single-Phase Transformer The equivalent circuit of a single-phase transformer consists of several elements that represent the transformer's characteristics. The circuit includes:
- Primary winding resistance (R1) and leakage reactance (X1), representing the resistance and magnetic leakage of the primary winding.
- Magnetizing reactance (Xm) and core loss resistance (Rc), representing the magnetizing current and core losses.
- Secondary winding resistance (R2') and leakage reactance (X2'), referred to the primary side.
The equivalent circuit provides a simplified representation of the transformer's behavior, allowing for analysis of its performance under various load conditions. Each element in the circuit plays a significant role in determining the transformer's characteristics, such as voltage regulation, efficiency, and losses. By analyzing the equivalent circuit, engineers can design and optimize transformers for specific applications.
Q39.Draw and explain the phasor diagram of a transformer on no-load and on full load conditions Ans:- Phasor Diagrams of Transformers No-Load Condition The phasor diagram of a transformer on no-load shows the relationship between the primary voltage (V1), primary current (I0), and flux (Φ). The primary current (I0) lags behind the primary voltage (V1) due to the magnetizing reactance (Xm). The core loss component (Ic) is in phase with the primary voltage (V1), while the magnetizing component (Im) lags behind the primary voltage (V1) by 90 degrees. The primary current (I0) is the vector sum of Ic and Im.
Full-Load Condition The phasor diagram of a transformer on full-load shows the relationship between the primary voltage (V1), primary current (I1), secondary current (I2), and flux (Φ). The primary current (I1) is the vector sum of the magnetizing current (I0) and the load component (I2'). The load component (I2') is related to the secondary current (I2) and is in phase with the secondary voltage (E2). The primary voltage (V1) and secondary voltage (E2) are related by the turns ratio. The phasor diagram shows the effect of the load on the transformer's operation, including the voltage drops due to the winding resistances and leakage reactances.
The phasor diagrams provide a visual representation of the transformer's operation, allowing for analysis of its performance under different load conditions.
Q40.Why are transformers required to be cooled? What are the different methods used for cooling? Discuss. Ans:- Transformer Cooling Transformers generate heat during operation due to electrical and magnetic losses, which can cause temperature rise and damage the insulation, leading to reduced lifespan or even failure. Cooling is essential to dissipate this heat and maintain a safe operating temperature.
Methods of Cooling
- Natural Air Cooling: Transformers are designed to dissipate heat through natural convection and radiation.
- Forced Air Cooling: Fans or blowers are used to circulate air and enhance heat dissipation.
- Oil Cooling: Transformers are immersed in oil, which absorbs heat and transfers it to a cooling system.
- Oil-Immersed Water Cooling: Water is circulated through a heat exchanger to cool the oil.
- Forced Oil Cooling: Oil is pumped through a heat exchanger or radiator to dissipate heat.
The choice of cooling method depends on the transformer's size, rating, and application. Effective cooling ensures reliable operation, extends transformer lifespan, and prevents overheating-related failures.
- No losses (copper, core, or other losses)
- Perfect magnetic coupling (no leakage flux)
- Infinite permeability of the core material
- Zero winding resistance
Ideal transformers are used as a reference for designing and analyzing real-world transformers, helping engineers optimize performance and efficiency.
Q44.Discuss the principle of operation of a transformer? Where is it used? Ans:- Principle of Operation of a Transformer A transformer operates on the principle of electromagnetic induction, where an alternating current (AC) in the primary winding creates a magnetic field that induces a voltage in the secondary winding. The primary and secondary windings are magnetically coupled through a common core, allowing energy to be transferred between the two circuits.
When an AC current flows through the primary winding, it generates a magnetic flux that links with the secondary winding, inducing an electromotive force (EMF). The ratio of the primary and secondary voltages is determined by the turns ratio of the windings, allowing transformers to step up or step down voltages.
Applications of Transformers Transformers are widely used in various applications, including:
- Power transmission and distribution systems
- Electrical power generation and substations
- Industrial power distribution and control systems
- Electronic devices and equipment (e.g., power supplies, audio equipment)
- Renewable energy systems (e.g., solar, wind power)
Transformers play a crucial role in modern electrical systems, enabling efficient transmission and distribution of electrical energy over long distances and providing a means to adjust voltage levels for various applications.
Q45.What is magnetic hysteresis? Explain why eddy current and hysteresis losses occur in an iron core? On what factors do these losses depend? How can these losses be minimized? Ans:- Magnetic Hysteresis Magnetic hysteresis refers to the lagging of the magnetic flux density (B) behind the magnetizing force (H) in a ferromagnetic material, resulting in a loop-shaped curve when plotting B vs. H. This hysteresis loop represents the energy lost due to the reorientation of magnetic domains during each cycle of magnetization.
Eddy Current Losses Eddy current losses occur in an iron core due to the induction of electrical currents (eddy currents) by the changing magnetic flux. These currents flow in closed loops within the core material, generating heat and causing energy loss.
Hysteresis Losses Hysteresis losses occur due to the internal friction between magnetic domains as they rotate or reorient during each cycle of magnetization. This friction generates heat and causes energy loss.
Factors Affecting Losses Both eddy current and hysteresis losses depend on:
- Frequency of the magnetic field
- Magnetic flux density
- Type of core material
- Thickness of laminations (for eddy current losses)
Minimizing Losses To minimize these losses:
- Use laminated cores to reduce eddy currents
- Select core materials with low hysteresis loss (e.g., silicon steel, ferrites)
- Optimize core design and geometry
- Use thinner laminations for higher frequency applications
By understanding and minimizing these losses, engineers can design more efficient magnetic devices, such as transformers and inductors
Q46 .Explain Ampere's law and Ampere's circuital Law. Also explain constant flux theorem. An:- Ampere's Law Ampere's law relates the magnetic field (B) to the current (I) that produces it. It states that the line integral of the magnetic field around a closed loop is proportional to the total current passing through the loop.
Ampere's Circuital Law Ampere's circuital law is a more specific application of Ampere's law, which states that the line integral of the magnetic field (H) around a closed loop is equal to the total current (I) enclosed by the loop. Mathematically, it is expressed as ∮H·dl = I.
Constant Flux Theorem (also known as Constant Flux Linkage Theorem ) The constant flux theorem states that the total magnetic flux linking a closed loop remains constant if there are no external changes to the magnetic field or the loop's geometry. This theorem is useful in analyzing the behavior of magnetic circuits and transformers, particularly during transient conditions or switching events. It helps in understanding how flux and currents adjust to maintain the constant flux linkage.
Q47.Define m.m.f, flux, reluctance and permeability. Ans:- Magnetic Quantities
- Magnetomotive Force (m.m.f): The driving force that produces magnetic flux in a magnetic circuit, measured in ampere-turns (AT). It is the magnetic pressure that pushes magnetic flux through a magnetic circuit.
