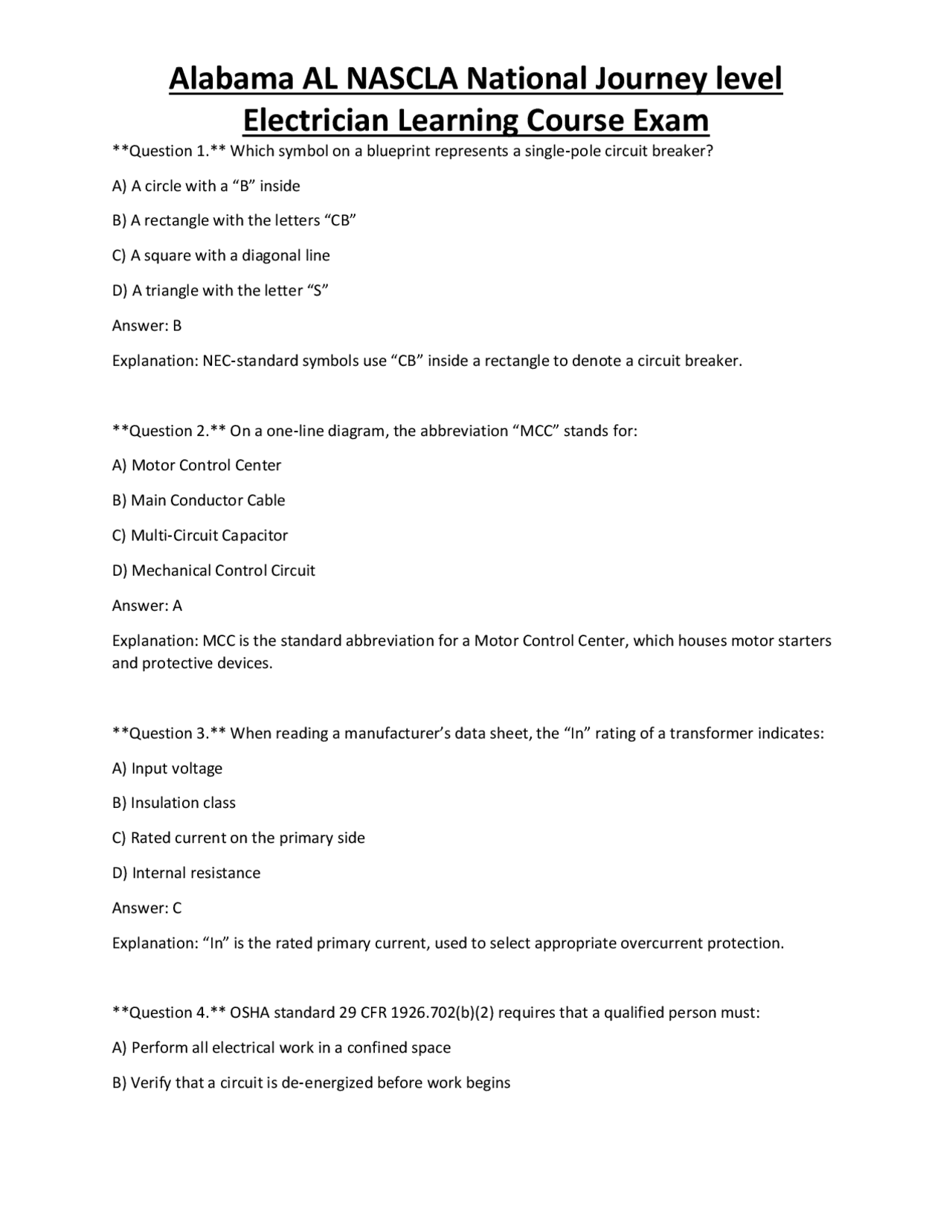

Electrician Learning Course Exam
Question 1. Which symbol on a blueprint represents a single‑pole circuit breaker? A) A circle with a “B” inside B) A rectangle with the letters “CB” C) A square with a diagonal line D) A triangle with the letter “S” Answer: B Explanation: NEC‑standard symbols use “CB” inside a rectangle to denote a circuit breaker. Question 2. On a one‑line diagram, the abbreviation “MCC” stands for: A) Motor Control Center B) Main Conductor Cable C) Multi‑Circuit Capacitor D) Mechanical Control Circuit Answer: A Explanation: MCC is the standard abbreviation for a Motor Control Center, which houses motor starters and protective devices. Question 3. When reading a manufacturer’s data sheet, the “In” rating of a transformer indicates: A) Input voltage B) Insulation class C) Rated current on the primary side D) Internal resistance Answer: C Explanation: “In” is the rated primary current, used to select appropriate overcurrent protection. Question 4. OSHA standard 29 CFR 1926.702(b)(2) requires that a qualified person must: A) Perform all electrical work in a confined space B) Verify that a circuit is de‑energized before work begins
Electrician Learning Course Exam
C) Wear a hard hat at all times on a construction site D) Install GFCI protection on all 120 V receptacles Answer: B Explanation: This clause mandates verification of de‑energization (lockout/tagout) before starting work. Question 5. NFPA 70E defines the “restricted approach boundary” for an arc‑flash hazard as the distance at which: A) No PPE is required B) Only voltage‑rated gloves are needed C) Only arc‑rated clothing is required D) No person may enter without an electrically rated tool Answer: C Explanation: Within the restricted approach boundary, arc‑rated clothing must be worn, but the flash protection boundary is farther out. Question 6. The purpose of a lockout/tagout (LOTO) device is to: A) Prevent accidental re‑energization of equipment B) Indicate that a circuit is live C) Provide a grounding path for stray currents D) Signal that a circuit is under test Answer: A Explanation: LOTO devices physically secure the disconnecting means to keep equipment de‑energized. Question 7. Which first‑aid step is most appropriate for a victim of electrical shock who is still in contact with the source? A) Apply CPR immediately B) Remove the source using a non‑conductive object C) Pour water on the victim D) Use a metal rod to pull the victim away
Electrician Learning Course Exam
Question 11. A three‑phase, four‑wire wye system provides a line‑to‑neutral voltage of 120 V. The line‑to‑line voltage is: A) 120 V B) 208 V C) 240 V D) 277 V Answer: B Explanation: V_LL = √3 × V_LN = 1.732 × 120 V ≈ 208 V. Question 12. When calculating voltage drop for a 100‑ft run of 12 AWG copper at 20 A, which factor is NOT required? A) Conductor resistance per 1000 ft B) Load power factor C) Temperature correction factor D) Number of conductors in the raceway Answer: D Explanation: Voltage‑drop calculations use resistance, current, length, and temperature, but not the number of conductors unless it affects ampacity. Question 13. A transformer’s “kVA rating” is used to determine: A) The voltage regulation under load B) The maximum apparent power the transformer can deliver C) The efficiency at full load D) The frequency of operation Answer: B Explanation: kVA is the apparent power capacity; it sets the limit for load before overheating. Question 14. Which test instrument is best for measuring high‑resistance insulation of motor windings?
Electrician Learning Course Exam
A) Clamp‑on ammeter B) Megohmmeter (insulation tester) C) Digital multimeter (voltmeter) D) Continuity tester Answer: B Explanation: A megohmmeter applies a high voltage and measures leakage current to assess insulation resistance. Question 15. When using a multimeter to verify the presence of voltage on a 120 V circuit, the meter must be set to: A) 200 mV DC B) 2 kΩ resistance mode C) 200 V AC D) 10 A DC range Answer: C Explanation: The correct setting is AC voltage with a range that includes 120 V, such as 200 V AC. Question 16. A short circuit in a branch circuit will cause the protective device to: A) Trip instantly or open within the device’s instantaneous curve B) Remain closed until a manual reset C) Increase the voltage on the circuit D) Reduce the current to zero without tripping Answer: A Explanation: Short circuits produce high fault currents that exceed the instantaneous trip threshold. Question 17. A GFCI receptacle will not trip if: A) There is a ground‑fault current of 6 mA B) The hot and neutral are reversed C) The load is a purely resistive heater
Electrician Learning Course Exam
Question 21. The NEC defines a “continuous load” as a load that: A) Operates for more than 3 hours continuously B) Has a power factor less than 0. C) Is connected to a dedicated circuit D) Draws more than 80 % of the circuit’s rating Answer: A Explanation: Continuous loads run for 3 hours or more and must be sized at 125 % of the load. Question 22. When calculating the feeder ampacity for a dwelling unit, which demand factor is applied to the first 10 kW of lighting load? A) 100 % B) 80 % C) 70 % D) 50 % Answer: B Explanation: NEC Table 220.42 allows 80 % demand for the first 10 kW of general lighting. Question 23. Which overcurrent protective device is allowed to be used as a “time‑delay” (inverse‑time) breaker for motor circuits? A) Standard non‑time‑delay circuit breaker B) Fuse with a fast‑acting characteristic C) Motor‑rated inverse‑time circuit breaker D) Ground‑fault circuit interrupter Answer: C Explanation: Motor‑rated breakers have an inverse‑time characteristic to accommodate in‑rush currents.
Electrician Learning Course Exam
Question 24. A 20‑amp branch circuit supplying countertop receptacles in a kitchen must be protected by a breaker with what minimum rating? A) 15 A B) 20 A C) 30 A D) 40 A Answer: C Explanation: NEC 210.11(C)(1) requires a 20‑amp small‑appliance branch circuit, but the receptacles are required to be on a 20‑amp circuit; however, a 20‑amp circuit can be protected by a 20‑amp breaker. The correct answer is B. Explanation: The required protection matches the circuit rating; a 20‑amp circuit is protected by a 20 ‑amp breaker. Question 25. The minimum size copper grounding electrode conductor (GEC) for a 100‑A service is: A) #12 AWG B) #10 AWG C) #8 AWG D) #6 AWG Answer: B Explanation: NEC Table 250.122 specifies #10 AWG copper for a 100‑A service. Question 26. In a conduit system, the maximum fill for more than two conductors is: A) 25 % of the conduit’s cross‑sectional area B) 40 % of the conduit’s cross‑sectional area C) 53 % of the conduit’s cross‑sectional area D) 60 % of the conduit’s cross‑sectional area Answer: A Explanation: NEC 310.15(B)(3)(a) limits fill to 40 % for one conductor, 31 % for two, and 25 % for three or more.
Electrician Learning Course Exam
Question 30. The purpose of a “neutral‑to‑ground bond” at the service disconnect is to: A) Prevent neutral current from flowing on grounding conductors downstream B) Allow the neutral to carry fault current indefinitely C) Reduce voltage on the hot conductor D) Increase the system’s impedance Answer: A Explanation: Bonding at the service ensures a single point where neutral and ground are connected, limiting stray currents. Question 31. Which of the following devices is required on a 240‑V, 30‑A dryer circuit? A) GFCI receptacle B) AFCI breaker C) Two‑pole 30‑A circuit breaker D) Single‑pole 30‑A breaker with a handle tie Answer: C Explanation: A 240‑V dryer requires a two‑pole breaker sized for the load. Question 32. A “dedicated equipment space” as defined by NEC 110.26 must be at least: A) 30 in² per circuit breaker B) 3 ft high, 30 in wide, and 36 in deep C) 3 ft wide, 30 in deep, and 6 ft high D) 30 in wide, 30 in deep, and 6 ft high Answer: D Explanation: NEC 110.26 requires a minimum of 30 in wide, 30 in deep, and 6 ft high for equipment space. Question 33. In a three‑phase, four‑wire wye system, the neutral conductor carries current when: A) The load is perfectly balanced B) The load is unbalanced
Electrician Learning Course Exam
C) Only single‑phase loads are present D) Both B and C are correct Answer: D Explanation: Neutral carries the vector sum of unbalanced phase currents and any single‑phase loads. Question 34. The term “ampacity” refers to: A) The voltage rating of a conductor B) The maximum current a conductor can carry continuously under specified conditions C) The resistance of a conductor per foot D) The size of a conduit required for a set of conductors Answer: B Explanation: Ampacity is the allowable continuous current for a conductor based on temperature, insulation, and installation. Question 35. Which of the following is a permissible method for grounding a metal‑clad (MC) cable in a conduit? A) Rely on the cable’s armor as the grounding path B) Install a separate equipment grounding conductor (EGC) inside the conduit C) Use a grounding screw on the box only D) No grounding is required for MC cable Answer: B Explanation: MC cable must have an insulated EGC; the armor alone does not satisfy grounding requirements. Question 36. When installing a receptacle in a garage, the NEC requires GFCI protection because: A) Garages are classified as Class II hazardous locations B) The receptacle is likely to be used for power tools that may be near damp conditions C) All 125‑V, 15‑ and 20‑amp receptacles in garages must be GFCI‑protected D) Both B and C are correct
Electrician Learning Course Exam
Question 40. The minimum clearance between a non‑grounded conductor and a grounded metal raceway is: A) 1 in B) 1/4 in C) 1/2 in D) No clearance required if the raceway is metal Answer: B Explanation: NEC 300.4 requires a 1/4‑in spacing to reduce induced heating. Question 41. When installing a dimmer switch for a 120 V, 15‑A lighting circuit, the dimmer must be rated for at least: A) 5 A B) 10 A C) 15 A D) 20 A Answer: C Explanation: The dimmer must be rated for the circuit’s maximum current, which is 15 A. Question 42. A “panelboard” is defined in the NEC as: A) A device that distributes power to branch circuits and contains overcurrent protection B) A single‑pole switch used for lighting control C) A transformer used for voltage step‑down D) A receptacle assembly for industrial equipment Answer: A Explanation: Panelboards contain breakers or fuses and distribute power to branch circuits. Question 43. Which of the following is NOT a permissible grounding electrode? A) Concrete‑encased electrode (Ufer) B) Metal underground water pipe
Electrician Learning Course Exam
C) Metal roofing material D) Ground rod Answer: C Explanation: Metal roofing is not an approved grounding electrode under NEC 250.52. Question 44. The NEC requires that receptacles in a kitchen be installed no more than how many inches apart on a countertop? A) 12 in B) 24 in C) 36 in D) 48 in Answer: B Explanation: NEC 210.52(C)(1) requires receptacles spaced not more than 24 in apart. Question 45. A “dedicated circuit” is defined as a circuit that supplies: A) Multiple lighting fixtures and receptacles B) Only one specific appliance or piece of equipment C) All outlets on a floor of a dwelling D) Both A and C Answer: B Explanation: Dedicated circuits serve a single appliance or equipment, such as a refrigerator or dryer. Question 46. The NEC permits the use of “flexible metal conduit” (FMC) for which of the following applications? A) Direct burial underground B) Exposed interior wiring in a residential garage C) Outdoor raceways exposed to sunlight D) All of the above Answer: B
Electrician Learning Course Exam
Question 50. In a fire alarm system, the “initiating device” is: A) The central control panel B) The power supply battery C) The smoke detector or pull‑station that detects the fire condition D) The notification appliance (horn or strobe) Answer: C Explanation: Initiating devices sense fire conditions and send a signal to the control panel. Question 51. A “ground‑fault” in a motor circuit is most likely to cause which protective device to operate first? A) Overload relay B) GFCI breaker C) Thermal overload protector D) AFCI breaker Answer: B Explanation: A ground‑fault creates an imbalance that a GFCI detects and trips. Question 52. Which NEC article addresses the installation of low‑voltage signaling and communication circuits? A) Article 300 B) Article 725 C) Article 800 D) Article 210 Answer: C Explanation: Article 800 covers communication circuits, including data and telephone wiring. Question 53. When using a “pigtail” to connect a receptacle ground to a grounding screw in a metal box, the pigtail must be: A) No larger than #14 AWG copper
Electrician Learning Course Exam
B) The same size as the equipment grounding conductor (EGC) supplying the box C) At least #12 AWG copper regardless of circuit size D) Made of aluminum Answer: B Explanation: The pigtail must be sized to match the EGC feeding the box. Question 54. The NEC permits the use of a “single‑pole” breaker on a multi‑wire branch circuit (MWBC) only if: A) The breaker has a common trip handle B) The circuit supplies only lighting loads C) The breaker is rated at 15 A or less D) The circuit is protected by a GFCI device Answer: A Explanation: MWBCs must have a common‑trip breaker to ensure simultaneous disconnect of both ungrounded conductors. Question 55. Which of the following is a requirement for a “wet‑type” enclosure used outdoors? A) Must be rated at least NEMA 3R B) Must be painted with rust‑inhibiting paint C) Must be installed at least 6 ft above grade D) Must contain a built‑in GFCI outlet Answer: A Explanation: NEMA 3R enclosures protect against rain and sleet for outdoor use. Question 56. A “breaker’s interrupting rating” of 10 kA means the device can safely interrupt a fault current of up to: A) 1 kA B) 5 kA C) 10 kA
Electrician Learning Course Exam
Question 60. When a circuit breaker trips, the correct sequence to restore power is: A) Reset the breaker, then verify the fault is cleared B) Verify the fault is cleared, then reset the breaker C) Replace the breaker without checking the circuit D) Turn off all downstream loads before resetting Answer: B Explanation: The fault must be corrected before resetting to avoid repeated trips. Question 61. The NEC defines a “service disconnect” as: A) The main breaker located inside the building B) Any breaker that disconnects a branch circuit C) The first means of disconnect from the utility service D) A switch that isolates a single appliance Answer: C Explanation: The service disconnect is the first point of isolation for the entire service. Question 62. Which of the following is a correct method for identifying a grounded (neutral) conductor in a 4‑wire cable? A) White or gray insulation B) Green insulation C) Bare copper only D) Red insulation Answer: A Explanation: NEC 200.6 designates white or gray for grounded conductors. Question 63. The “adjustment factor” in NEC Table 310.15(B)(3)(a) is applied when: A) Conductors are installed in a conduit with more than three current‑carrying conductors
Electrician Learning Course Exam
B) Conductors are buried directly in the earth C) Conductors are run in a raceway with ambient temperature of 86 °F D) Conductors are made of aluminum Answer: A Explanation: The adjustment factor accounts for increased heat when more than three conductors share a conduit. Question 64. For a 120 V, 20‑A circuit supplying a bathroom vanity light and a GFCI receptacle, the minimum conductor size is: A) #14 AWG copper B) #12 AWG copper C) #10 AWG copper D) #8 AWG copper Answer: B Explanation: 20‑A circuits require at least #12 AWG copper per NEC 240.4(D). Question 65. Which of the following devices is required to be installed on a 240 V, 30‑A electric range circuit? A) GFCI breaker B) AFCI breaker C) Two‑pole 30‑A breaker with a ground fault protection device (GFPD) if required by local code D) No special device; a standard two‑pole 30‑A breaker is sufficient Answer: D Explanation: NEC does not require GFCI or AFCI on a range circuit; a standard two‑pole breaker is used. Question 66. The term “derating” in the context of conductor ampacity means: A) Increasing the size of the conductor to reduce voltage drop B) Reducing the allowable current due to temperature, number of conductors, or other factors C) Changing the insulation type to a higher temperature rating
