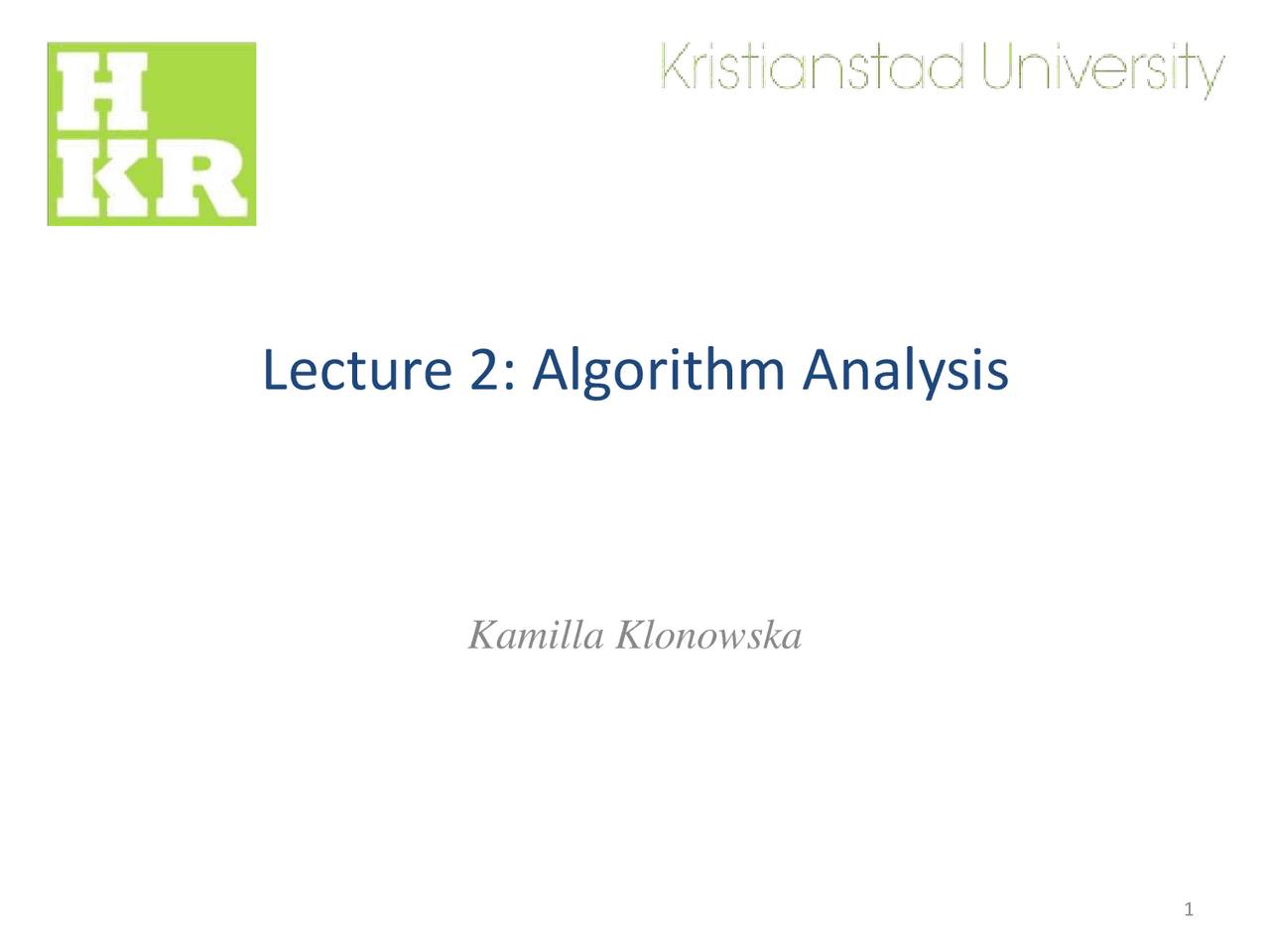

Lecture 2: Algorithm Analysis

Kamilla Klonowska

Outlines

• What to analyze and why to analyze algorithms?
• Big-Oh notation and computation
• How to check the algorithm analysis?
• Exercises and practices on algorithm analysis
• Chapter 2

Running Time

• Check the following program fragments.

• Guess which one takes longer time? Why?

//fragment 1

for ( int i = 0; i< n ; i ++) sum ++;

//fragment 2

for ( int i = 0; i < n; i ++) for ( int j = 0; j < n; j ++) sum ++;

Running Time

• Running time of an algorithm is related to
  • The size of problem, or amount of data, input size N
  • Speed of the computer
  • Architecture of the computer
  • Compiler used (optimized or not)
• Algorithm analysis
  • find out the asymptotic relation between running time and size N
  • T ( N )

Running Time for moderate inputs

Figure 2. Plot ( N vs. time) of various algorithms

Numerical calculation

n log 2 n n nlog 2 n n 2 2 n* 2 1 2 2 4 4 16 4 16 64 256 6.5 × 104 64 6 64 384 4096 1.84 × 10 19 1.84 × 10 19 μsec = 2.14 × 10 8 days = 5845 centuries

Big-Oh Notation

• Definition T ( N ) = O ( f ( N ) ) if there are positive integers c and n 0 such that T ( N ) ≤ c f ( N ) when N ≥ n 0
• How to read it? T ( N ) = O ( f ( N ) ): T of N is Big-Oh of f ( N )
• How to understand? The growth rate of T ( N ) is less than or equal to that of f ( N ).

Graphical Explanation

• T ( N ) = O ( f ( N ) ) if there are positive integers c and n 0 such that T ( N ) ≤ c f ( N ) when N ≥ n 0
• Curves for T(N) and c f ( N ) intersect at N = n 0.
• For all points to the right of the vertical line (at N = n 0 ), T ( N ) ≤ c f ( N )
• Asymptotic, when N is very large

Examples with T ( N ) = 100 N

• Given T ( N ) = 100 N
  • Let f ( N ) = N 3
  • Let c = 1 and n 0 = 10
  • T ( N ) = 100 N ≤ cf ( N ) = N 3 when N ≥ 10
• Conclusion:
  • T ( N ) = 100 N = O ( f ( N ) ) = O ( N 3 )
  • The growth rate of 100 N is less than or equal to that of N 3

Examples with T ( N ) = 100 N

• Given T ( N ) = 100 N
  • Let f ( N ) = N 2
  • Let c = 1 and n 0 = 100
  • T ( N ) = 100 N ≤ cf ( N ) = N 2 when N ≥ 100
• Conclusion
  • T ( N ) = 100 N = O ( f ( N )) = O ( N 2 )
  • The growth rate of 100 N is less than or equal to that of N 2

Examples with T ( N ) = 100 N

• Given T ( N ) = 100 N
  • T ( N ) = O ( N 3 )
  • T ( N ) = O ( N 2 )
  • T ( N ) = O ( N )  T ( N ) = O ( N ) is the best answer, it is more precise

Computations on T ( N ) and problem sizes

• T ( N ) = cN 3
• T (10 N ) = c (10 N ) 3
• T (10 N ) = 1000 c N 3 = 1000 T ( N )  if the problem size is 10 timed, the running time will be 1000 timed!
• T ( N ) = c N 2
• T (10 N ) = c (10 N ) 2
• T (10 N ) = 100 c N 2 = 100 T ( N )  If the problem size is 10 timed, the running time will be 100 timed!
• T ( N ) = c N log N
  • T (10 N ) = c (10 N ) log(10 N )
  • T (10 N ) = 10 c N log(10 N ) = 10 c N log N + 10 c N log10 = 10 T ( N ) + c´ N , where c´ = 10 c log

Some big-oh styles

• If c is a constant , it can be thrown away: T ( N ) = O ( c ) = O (1) T ( N ) = O ( cN ) = O ( N )
• Do not include lower order terms: T ( N ) = O ( N 2 + N ) = O ( N 2 )
• Examples O (1000 N ) = O ( N ) O ( N 2 + 3 N + 2) = O ( N 2 ) O (3 N 3 + 6 N 2 - 4 N + 2) = O (3 N 3 ) = O ( N 3 )

Ex. 2.

• Suppose T 1 ( N ) = O ( f ( N )) and T 2 ( N ) = O ( f ( N )). Which of the following are true? a) T 1 ( N ) + T 2 ( N ) = O ( f ( N )) b) T 1 ( N ) – T 2 ( N ) = o ( f ( N )) c) T 1 ( N ) / T 2 ( N ) = O (1) d) T 1 ( N ) = O ( T 2 ( N )) Think always about worst-case scenario, ex. T 1 ( N ) = N and T 2 ( N ) = 1.
