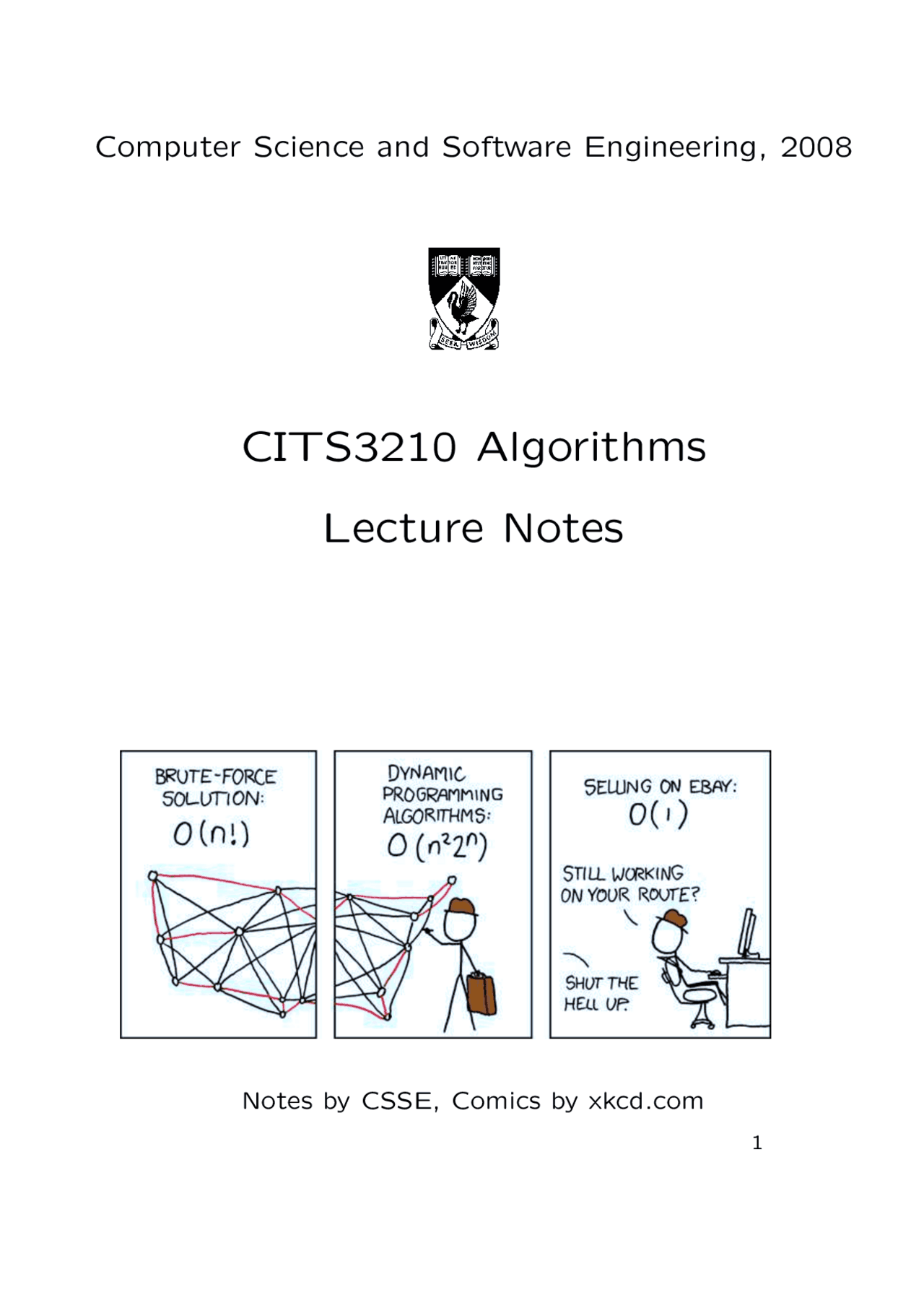

Computer Science and Software Engineering, 2008

CITS3210 Algorithms

Lecture Notes

Notes by CSSE, Comics by xkcd.com

Computer Science and Software Engineering, 2011

CITS3210 Algorithms

Introduction

Notes by CSSE, Comics by xkcd.com

1

Overview

1. Introduction

(a) What are Algorithms?

(b) Design of Algorithms.

(c) Types of Algorithms.

1. Complexity

(a) Growth rates.

(b) Asymptotic analysis, O and Θ.

(c) Average case analysis.

(d) Recurrence relations.

1. Sorting

(a) Insertion Sort.

(b) Merge Sort.

(c) QuickSort.

2

What you should already know?

This unit will require the following basic

knowledge:

1. Java Programming: classes, control

structures, recursion, testing, etc

1. Data Structures: stacks, queues, lists,

trees, etc.

1. Complexity: definition of “big O”, Θ

notation, amortized analysis etc.

1. Some maths: proof methods, such as proof

by induction, some understanding of

continuous functions

What will we be studying?

We will study a collection of algorithms,

examining their design, analysis and sometimes

even implementation. The topics we will cover

will be taken from the following list:

1. Specifying and implementing algorithms.
2. Basic complexity analysis.
3. Sorting Algorithms.
4. Graph algorithms.
5. Network flow algorithms.
6. Computational Geometry.
7. String algorithms.
8. Greedy/Dynamic algorithms.
9. Optimization Algorithms.

The importance of design

By far the most important thing in a program

is the design of the algorithm. It is far more

significant than the language the program is

written in, or the clock speed of the computer.

To demonstrate this, we consider the problem

of computing the Fibonacci numbers.

The Fibonacci sequence is the sequence of

integers starting

which is formally defined by

F

1

= F

2 = 1 and F n

= F

n− 1

+ F

n− 2

Let us devise an algorithm to compute F n

9

The naive solution

The naive solution is to simply write a recursive

method that directly models the problem.

static int fib(int n) {

return (n<3? 1 : fib(n-1) + fib(n-2));

Is this a good algorithm/program in terms of

resource usage?

Timing it on a (2005) iMac gives the following

results (the time is in seconds and is for a loop

calculating F n 10000 times).

Value Time

F

20

F

21

F

22

F

23

Value Time

F

24

F

25

F

26

F

27

How long will it take to compute F 30

, F

40

or

F

50

10

Experimental results

Make a plot of the times taken.

Theoretical results

Each method call to fib() does roughly the

same amount of work (just two comparisons

and one addition), so we will have a very rough

estimate of the time taken if we count how

many method calls are made.

Exercise: Show the number of method calls

made to fib() is 2 F n

Re-design the algorithm

We can easily re-design the algorithm as an

iterative algorithm.

static int fib(int n) {

int f_2; /* F(i+2) */

int f_1 = 1; /* F(i+1) */

int f_0 = 1; /* F(i) */

for (int i = 1; i < n; i++) {

/* F(i+2) = F(i+1) + F(i) */

f_2 = f_1 + f_0;

/* F(i) = F(i+1); F(i+1) = F(i+2) */

f_0 = f_1;

f_1 = f_2;

return f_0;

13

An Iterative Algorithm

An iterative algorithm gives the following

times:

Value Time

F

20

F

21

F

22

F

23

Value Time

F

10

3

F

10

4

F

10

5

F

10

6

14

Another solution?

The Fibonacci sequence is specified by the

homogeneous recurrence relation:

F (n) =

{

1 if n = 1, 2;

F (n − 1) + F (n − 2) otherwise.

In general we can define a closed form for

these recurrence equations:

F (n) = Aα

n

• Bβ

n

where α, β are the roots of

x

2 − x − 1 = 0.

• You need to be able to derive a recurrence

relation that describes an algorithms

complexity.

• You need to be able to recognize that

linear recurrence relations specify

exponential functions.

See CLRS, Chapter 4.

Recurrence Relations

Recurrence relations can be a useful way to

specify the complexity of recursive functions.

For example the linear homogeneous

recurrence relation:

F (n) =

{

1 if n = 1, 2;

F (n − 1) + F (n − 2) otherwise

specifies the sequence 1, 1 , 2 , 3 , 5 , 8 , 13 , .....

In general a linear homogeneous recurrence

relation is given as:

F (1) = c 1

F (2) = c 2

F (k) = c k

F (n) = a 1 F (n − 1) + ... + a k

F (n − k)

For example

F (n) =

{

1 if n = 1, 2;

2 F (n − 1) + F (n − 2) otherwise

specifies the sequence 1, 1 , 3 , 7 , 17 , 41 , ...

A computational problem: Travelling Salesman

Instance: A set of “cities” X together with a

“distance” d(x, y) between any pair x, y ∈ X.

Question: What is the shortest circular route

that starts and ends at a given city and visits

all the cities?

An instance of Travelling Salesman is a list of

cities, together with the distances between the

cities, such as

X = {A, B, C, D, E, F }

d =

A B C D E F

A 0 2 4 ∞ 1 3

B 2 0 6 2 1 4

C 4 6 0 1 2 1

D ∞ 2 1 0 6 1

E 1 1 2 6 0 3

F 3 4 1 1 3 0

21

An algorithm for Sorting

One simple algorithm for Sorting is called

Insertion Sort. The basic principle is that it

takes a series of steps such that after the i-th

step, the first i objects in the array are sorted.

Then the (i + 1)-th step inserts the (i + 1)-th

element into the correct position, so that now

the first i + 1 elements are sorted.

procedure INSERTION-SORT(A)

for j ← 2 to length[A]

do key ← A[j]

! Insert A[j] into the sorted sequence

! A[1... j − 1]

i = j − 1

while i > 0 and A[i] > key

do A[i + 1] ← A[i]

i = i − 1

A[i + 1] ← key

22

Pseudo-code

Pseudo-code provides a way of expressing

algorithms in a way that is independent of any

programming language. It abstracts away other

program details such as the type system and

declaring variables and arrays. Some points to

note are:

• The statement blocks are determined by

indentation, rather than { and } delimiters

as in Java.

• Control statements, such as if...

then...else and while have similar

interpretations to Java.

• The character! is used to indicate a

comment line.

Pseudo-code (contd)

• A statement v ← e implies that expression e

should be evaluated and the resulting value

assigned to variable v. Or, in the case of

v 1 ← v 2 ← e, to variables v 1 and v 2

• All variables should be treated as local to

their procedures.

• Arrays indexation is denoted by A[i] and

arrays are assumed to be indexed from 1 to

N (rather than 0 to N − 1, the approach

followed by Java).

See CLRS (page 19-20) for more details.

But to return to the insertion sort: What do

we actually mean by a good algorithm?

Evaluating Algorithms

There are many considerations involved in this

question.

• Correctness
  1. Theoretical correctness
  2. Numerical stability
• Efficiency
  1. Complexity
  2. Speed

25

Correctness of insertion sort

Insertion sort can be shown to be correct by a

proof by induction.

procedure INSERTION-SORT(A)

for j ← 2 to length[A]

do key ← A[j]

! Insert A[j] into the sorted sequence

! A[1... j − 1]

i = j − 1

while i > 0 and A[i] > key

do A[i + 1] ← A[i]

i = i − 1

A[i + 1] ← key

We do the induction over the loop variable j.

The base case of the induction is:

“the first element is sorted”,

and the inductive step is:

“given the first j elements are sorted after the

j

th iteration, the first j + 1 elements will be

sorted after the j + 1

th iteration.

26

Proof by Induction

To show insertion sort is correct, let p(n) be

the statement “after the n

th iteration, the first

n + 1 elements of the array are sorted”

To show p(0) we simply note that a single

element is always sorted.

Given p(i) is true for all i < n, we must show

that p(n) is true:

After the (n − 1)

th iteration the first n

elements of the array are sorted.

The n

th iteration takes the (n + 1)

th element

and inserts it after the last element that a)

comes before it, and b) is less than it.

Therefore after the n

th iteration, the first n + 1

elements of the array are sorted.

Aside: Proof by Contradiction

Another proof technique you may need is proof

by contradiction.

Here, if you want to show some property p is

true, you assume p is not true, and show this

assumption leads to a contradiction

(something we know is not true, like i < i).

For example, two sorted arrays of integers, L,

containing exactly the same elements, must be

identical.

Proof by contradiction: Suppose M &= N are

two distinct, sorted arrays containing the same

elements. Let i be the least number such that

M [i] &= N [i]. Suppose a = M [i] < N [i]. Since M

and N contain the same elements, and

M [j] = N [j] for all j < i, we must have

a = N [k] for some k > i. But then N [k] < N [i]

so N is not sorted: contradiction.

Numerical Stability

You can be fairly certain of exact results from

a computer program provided all arithmetic is

done with the integers

Z = {... , − 3 , − 2 , − 1 , 0 , 1 , 2 , 3 ,.. .} and you guard

carefully about any overflow.

However the situation is entirely different when

the problem involves real number, because

there is necessarily some round-off error when

real numbers are stored in a computer. A

floating point representation of a number in

base β with precision p is a representation of

the form.

d.ddddd × β

e

where d.ddddd has exactly p digits.

33

Accumulation of errors

Performing repeated calculations will take the

small truncation errors and cause them to

accumulate. The resulting error is known as

roundoff error. If we are careful or lucky, the

roundoff error will tend to behave randomly,

both positive and negative, and the growth of

error will be slow.

Certain calculations however, vastly increase

roundoff error and can cause errors to grow

catastrophically to the point where they

completely swamp the real result.

Two particular operations that can cause

numerical instability are

• Subtraction of nearly equal quantities
• Division by numbers that are nearly

zero

It is important to be aware of the possibility for

roundoff error and to alter your algorithm

appropriately.

34

Efficiency

An algorithm is efficient if it uses as few

resources as possible. Typically the resources

which we are interested in are

• Time, and
• Space (memory)

Other resources are important in practical

terms, but are outside the scope of the design

and analysis of algorithms.

In many situations there is a trade-off between

time and space, in that an algorithm can be

made faster if it uses more space or smaller if

it takes longer.

Although a thorough analysis of an algorithm

should consider both time and space, time is

considered more important, and this course will

focus on time complexity.

Measuring time

How should we measure the time taken by an

algorithm?

We can do it experimentally by measuring the

number of seconds it takes for a program to

run — this is often called benchmarking and is

often seen in popular magazines. This can be

useful, but depends on many factors:

• The machine on which it is running.
• The language in which it is written.
• The skill of the programmer.
• The instance on which the program is

being run, both in terms of size and

which particular instance it is.

So it is not an independent measure of the

algorithm, but rather a measure of the

implementation, the machine and the instance.

Complexity

The complexity of an algorithm is a

“device-independent” measure of how much

time it consumes. Rather than expressing the

time consumed in seconds, we attempt to

count how many “elementary operations” the

algorithm performs when presented with

instances of different sizes.

The result is expressed as a function, giving

the number of operations in terms of the size

of the instance. This measure is not as precise

as a benchmark, but much more useful for

answering the kind of questions that commonly

arise:

• I want to solve a problem twice as

big. How long will that take me?

• We can afford to buy a machine twice

as fast? What size of problem can we

solve in the same time?

The answers to questions like this depend on

the complexity of the algorithm.

37

Example

Suppose you run a small business and have a

program to keep track of your 1024 customers.

The list of customers is changing frequently

and you often need to sort it. Your two

programmers Alice and Bob both come up

with algorithms.

Alice presents an algorithm that will sort n

names using 256n lg n comparisons and Bob

presents an algorithm that uses n

2

comparisons. (Note: lg n ≡ log 2

n)

Your current computer system takes 10

− 3

seconds to make one comparison, and so when

your boss benchmarks the algorithms he

concludes that clearly Bob’s algorithm is

better.

Size Alice Bob

But is he right?

38

Expansion

Alice however points out that the business is

expanding and that using Bob’s algorithm

could be a mistake. As the business expands,

her algorithm becomes more competitive, and

soon overtakes Bob’s.

Size Alice Bob

So Alice’s algorithm is much better placed for

expansion.

A benchmark only tells you about the situation

today, whereas a software developer should be

thinking about the situation both today and

tomorrow!

Hardware improvement

A time-critical application requires you to sort

as many items as possible in an hour. How

many can you sort?

An hour has 3600 seconds, so we can make

3600000 comparisons. Thus if Alice’s

algorithm can sort n A

items, and Bob’s n B

items, then

3600000 = 256n A

lg n A

= n

2

B

which has the solution

n A

= 1352 n B

But suppose that we replace the machines with

ones that are four times as fast. Now each

comparison takes

1

4

× 10

− 3 seconds so we can

make 14400000 comparisons in the same time.

Solving

14400000 = 256n A

lg n A

= n

2

B

yields

n A

= 4620 n B

Notice that Alice’s algorithm gains much more

from the faster machines than Bob’s.

Why is big-O notation useful?

In one sense, big-O notation hides or loses a

lot of useful information. For example, the

functions

f (n) = n

2 / 1000

g(n) = 100 n

2

h(n) = 10

10 n

2

are all O(n

2 ) despite being quite different.

However in another sense, the notation

contains the essential information, in that it

completely describes the asymptotic rate of

growth of the function. In particular it contains

enough information to give answers to the

questions:

• Which algorithm will ultimately be

faster as the input size increases?

• If I buy a machine 10 times as fast,

what size problems can I solve in the

same time?

45

An asymptotically better sorting algorithm

procedure MERGE-SORT(A, p, r)

if p < r

then q ← ,(p + r)/ 2 -

MERGE-SORT(A, p, q)

MERGE-SORT(A, q + 1, r)

MERGE(A, p, q, r)

procedure MERGE(A, p, q, r)

n 1

← q − p + 1; n 2

← r − q

allocate arrays L[1... n 1

• 1] and R[1... n 2

+ 1]

for i ← 1 to n 1

do L[i] ← A[p + i − 1]

for j ← 1 to n 2

do R[j] ← A[q + j]

L[n 1

• 1] ← ∞; R[n 2

+ 1] ← ∞

i ← 1; j ← 1

for k ← p to r

do if L[i] ≤ R[j]

then A[k] ← L[i]

i ← i + 1

else A[k] ← R[j]

j ← j + 1

46

Merge-sort complexity

The complexity of Merge Sort can be shown to

be Θ(nlgn).

The Master Theorem

Merge Sort’s complexity can be described by

the recurrence relation:

F (n) = 2F (n/2) + n, where F (1) = 1.

As this variety of recurrence relation appears

frequently in divide and conquer algorithms it

is useful to have an method to find the

asymptotic complexity of these functions.

The Master Theorem: Let f (n) be a

function described by the recurrence::

f (n) = af (n/b) + cn

d .

where a, b ≥ 1, d ≥ 0 and c > 0 are constants.

Then

f (n) is



 

 

O(n

d ) if a < b

d

O(n

d lgn) if a = b

d

O(n

log b

a ) if a > b

d



 

 

See CLRS, 4.3.

Average case analysis

The major problem with average case analysis

is that we must make an assumption about the

probability distribution of the inputs. For a

problem like Sorting there is at least a

theoretically reasonable choice—assume that

every permutation of length n has an equal

chance of occurring (already we are assuming

that the list has no duplicates).

For example, we can consider each of the 24

permutations when sorting four inputs with

insertion sort:

Comparisons Inputs

3 1234, 2134

4 1243, 1324, 2143, 2314, 3124, 3214

5 1342, 1423, 2341, 2413, 3142, 3241,

4123, 4213

6 1432, 2431, 3412, 3421, 4132, 4231,

4312, 4321

So the weighted average of comparisons is

(3 × 2) + (4 × 6) + (5 × 8) + (6 × 8)

(recall that the best case for four inputs is 3,

whereas the worst case is 6).

49

Inversions

Definition An inversion in a permutation σ is

an ordered pair (i, j) such that

i < j and σ i

> σ j

For example, the permutation σ = 1342 has

two inversions, while σ = 2431 has four.

It is straightforward to see that the number of

comparisons that a permutation requires to be

sorted is equal to the number of inversions in it

(check this!) plus a constant, c.

(For sorting four inputs, c = 3)

So the average number of comparisons

required is equal to the average number of

inversions in all the permutations of length n.

Theorem The average number of inversions

among all the permutations of length n is

n(n − 1)/4.

Thus Insertion Sort takes O(n

2 ) time on

average.

50

An asymptotically worse algorithm

Quicksort is Θ(n

2 ), but it’s average complexity

is better than Merge-sort! (CLRS Chapter 7)

procedure QUICKSORT(A, p, r)

if p < r

then q ← PARTITION(A, p, r)

QUICKSORT(A, p, q − 1)

QUICKSORT(A, q + 1, r)

procedure PARTITION(A, p, r)

x ← A[r]

i ← p − 1

for j ← p to r − 1

do if A[j] ≤ x

then i ← i + 1

exchange A[i] ↔ A[j]

exchange A[i + 1] ↔ A[r]

return i + 1

Input size

The complexity of an algorithm is a measure of

how long it takes as a function of the size of

the input. For Sorting we took the number of

items n, as a measure of the size of the input.

This is only true provided that the actual size

of the items does not grow as their number

increases. As long as they are all some

constant size K, then the input size is Kn. The

actual value of the constant does not matter,

as we are only expressing the complexity in

big-O notation, which suppresses all constants.

But what is an appropriate input parameter for

Travelling Salesman? If the instance has n

cities, then the input itself has size Kn

2 —this

is because we need to specify the distance

between each pair of cities.

Therefore you must be careful about what

parameter most accurately reflects the size of

the input.

Summary (cont.)

1. Insertion sort is a sorting algorithm that

runs in time O(n

2 ).

1. Merge sort is a sorting algorithm that runs

in time O(nlgn).

1. Quicksort is a sorting algorithm that runs

in time O(n

2 ) but is faster than Merge sort

in the average case.

1. Polynomial algorithms (e.g.

O(n), O(nlgn), O(n

k )) are regarded as

feasible.

1. Exponential algorithms (e.g. O(

n ), O(n))

are regarded as infeasible.

Computer Science and Software Engineering, 2011

CITS3210 Algorithms

Graph Algorithms

Notes by CSSE, Comics by xkcd.com

1

Overview

1. Introduction
   • Terminology and definitions
   • Graph representations
2. Tree Search
   • Breadth first search
   • Depth first search
   • Topological sort
3. Minimum Spanning Trees
   • Kruskal’s algorithm
   • Prim’s algorithm
   • Implementations
   • Priority first search
4. Shortest Path Algorithms
   • Dijkstra’s algorithm
   • Bellman-Ford algorithm
   • Dynamic Programming

2

What is a graph?

Definition A graph G consists of a set V (G)

called vertices together with a collection E(G)

of pairs of vertices. Each pair {x, y} ∈ E(G) is

called an edge of G.

Example If

V (G) = {A, B, C, D}

and

E(G) = {{A, B}, {C, D}, {A, D}, {B, C}, {A, C}}

then G is a graph with 4 vertices and 5 edges.

A B

D C

!

!

!

!

!

!

!

!

Isomorphisms

Consider the following two graphs:

A B

D C

!

!

!

!

!

!

!

!

!

!

!

!

!

!

!

!

"

"

"

"

"

"

"

"

"

"

"

"

"

"

"

"

"

"

Apart from the “names” of the vertices and

the geometric positions it is clear that these

two graphs are basically the same — in this

situation we say that they are isomorphic.

Definition Two graphs G 1 and G 2 are

isomorphic if there is a one-one mapping

φ : V (G 1

) → V (G

2

) such that

{φ(x), φ(y)} ∈ E(G 2 ) if and only if

{x, y} ∈ E(G 1

In this case the isomorphism is given by the

mapping

φ(A) = 2 φ(B) = 3 φ(C) = 4 φ(D) = 1

Basic properties of graphs

Let us consider some of the basic terminology

of graphs:

Adjacency If {x, y} ∈ E(G), we say that x and

y are adjacent to each other, and sometimes

write x ∼ y. The number of vertices adjacent

to v is called the degree or valency of v. The

sum of the degrees of the vertices of a graph is

even.

Paths A path of length n in a graph is a

sequence of vertices v 1

∼ v 2

∼ · · · ∼ v n+

such

that (v i

, v i+

) ∈ E(G) and vertices

{v 1

, v 2

,... , v n+

} are distinct.

Cycles A cycle of length n is a sequence of

vertices v 1

∼ v 2

∼ · · · v n ∼ v n+

such that

v 1

= v n+

, (v i

, v i+

) ∈ E(G) and therefore only

vertices {v 1

, v 2

,... , v n } are distinct.

Distance The distance between two vertices x

and y in a graph is the length of the shortest

path between them.

9

Subgraphs

If G is a graph, then a subgraph H is a graph

such that

V (H) ⊆ V (G)

and

E(H) ⊆ E(G)

A spanning subgraph H has the property that

V (H) = V (G) — in other words H has been

obtained from G only by removing edges.

An induced subgraph H must contain every

edge of G whose endpoints lie in V (H) — in

other words H has been obtained from G by

removing vertices and their adjoining edges.

10

Counting Exercises

In the graph G 4

• How many paths are there from 1 to

• How many cycles are there?
• How many spanning subgraphs are

there?

• How many induced subgraphs are

there?

!

!

!

!

!

!

!

! "

"

"

"

"

"

"

"

Connectivity, forests and trees

Connected A graph G is connected if there is

a path between any two vertices. If the graph

is not connected then its connected

components are the maximal induced

subgraphs that are connected.

Forests A forest is a graph that has no cycles.

Trees A tree is a forest with only one

connected component. It is easy to see that a

tree with n vertices must have exactly n − 1

edges.

The vertices of degree 1 in a tree are called

the leaves of the tree.

Directed and weighted graphs

There are two important extensions to the

basic definition of a graph.

Directed graphs In a directed graph, an

edge is an ordered pair of vertices, and hence

has a direction. In directed graphs, edges are

often called arcs.

Directed Tree Each vertex has at most one

directed edge leading into it, and there is one

vertex (the root) which has a path to every

other vertex.

Weighted graphs In a weighted graph, each

of the edges is assigned a weight (usually a

non-negative integer). More formally we say

that a weighted graph is a graph G together

with a weight function w : E(G) → R (then

w(e) represents the weight of the edge e).

13

Distance in weighted graphs

When talking about weighted graphs, we need

to extend the concept of distance.

Definition In a weighted graph X a path

x = x 0

∼ x 1

∼ · · · ∼ x n = y

has weight

i=n− 1 ∑

i=

w(x i

, x i+

The shortest path between two vertices x and

y is the path of minimum weight.

14

Representation of graphs

There are two main ways to represent a graph

— adjacency lists or an adjacency matrix.

Adjacency lists The graph G is represented

by an array of |V (G)| linked lists, with each list

containing the neighbours of a vertex.

Therefore we would represent G 4 as follows:

! 5

! 6

! 3

! 5

! 7

! 2

! 3

! 4

! 6

! 7

! 5

! 2

! 5

! 6

! 1

! 3

! 5

! 2

This representation requires two list elements

for each edge and therefore the space required

is Θ(|V (G)| + |E(G)|).

Note: In general to avoid writing |V (G)| and

|E(G)| we shall simply put V = |V (G)| and

E = |E(G)|.

For comparison...

...the graph G 4

"

"

"

"

"

"

"

" #
