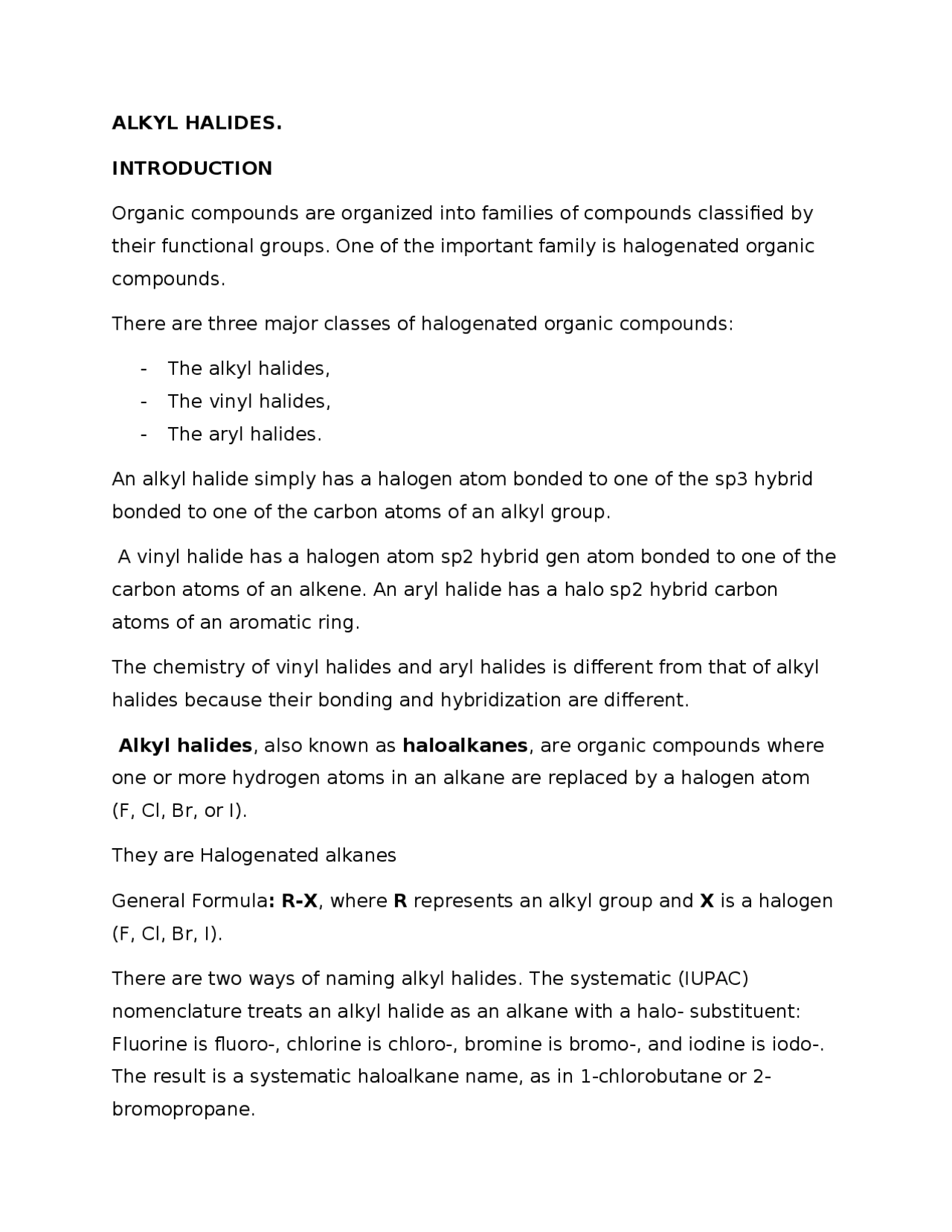

ALKYL HALIDES.
INTRODUCTION
Organic compounds are organized into families of compounds classified by their functional groups. One of the important family is halogenated organic compounds. There are three major classes of halogenated organic compounds:
- The alkyl halides,
- The vinyl halides,
- The aryl halides. An alkyl halide simply has a halogen atom bonded to one of the sp3 hybrid bonded to one of the carbon atoms of an alkyl group. A vinyl halide has a halogen atom sp2 hybrid gen atom bonded to one of the carbon atoms of an alkene. An aryl halide has a halo sp2 hybrid carbon atoms of an aromatic ring. The chemistry of vinyl halides and aryl halides is different from that of alkyl halides because their bonding and hybridization are different. Alkyl halides , also known as haloalkanes , are organic compounds where one or more hydrogen atoms in an alkane are replaced by a halogen atom (F, Cl, Br, or I). They are Halogenated alkanes General Formula : R-X , where R represents an alkyl group and X is a halogen (F, Cl, Br, I). There are two ways of naming alkyl halides. The systematic (IUPAC) nomenclature treats an alkyl halide as an alkane with a halo- substituent: Fluorine is fluoro-, chlorine is chloro-, bromine is bromo-, and iodine is iodo-. The result is a systematic haloalkane name, as in 1-chlorobutane or 2- bromopropane.
Common names are constructed by naming the alkyl group and then the halide, as in “isopropyl bromide.” This is the origin of the term alkyl halide. Common names are useful only for simple alkyl halides. Classification of Alkyl Halides Alkyl halides are classified according to the nature of the carbon atom bonded to the halogen. If the halogen-bearing carbon is bonded to one carbon atom, it is primary (1°) and the alkyl halide is a primary halide. If two carbon atoms are bonded to the halogen-bearing carbon, it is secondary (2°) and the compound is a secondary halide. A tertiary halide (3°) has three other carbon atoms bonded to the halogen- bearing carbon atom. If the halogen-bearing carbon atom is a methyl group (bonded to no other carbon atoms), the compound is a methyl halide. Examples. Other classes A geminal dihalide (Latin, geminus, “twin”) has the two halogen atoms bonded to the same carbon atom. A vicinal dihalide (Latin, vicinus, “neighboring”) has the two halogens bonded to adjacent carbon atoms.
1. Definition: Alkyl halides, also known as haloalkanes, are organic compounds where one or more hydrogen atoms in an alkane are replaced by a halogen atom (F, Cl, Br, or I).
The reactivity depends on the carbon-halogen bond strength (C-I < C- Br < C-Cl < C-F). Iodine-containing alkyl halides are more reactive due to the weaker C-I bond, while fluorine-containing ones are less reactive because of the strong C-F bond.
8. Applications of Alkyl Halides: Solvents: Chloroform (CHCl₃) and carbon tetrachloride (CCl₄) are examples. Refrigerants: Fluorinated alkyl halides, such as Freons, are used in cooling systems. Pesticides: Organohalogen compounds like DDT were used in agriculture (now banned in many countries due to environmental concerns). Synthesis of Pharmaceuticals and Agrochemicals: Alkyl halides are intermediates in the synthesis of various drugs and pesticides ALCOHOLS An alcohol is an organic compound with a hydroxyl (OH) functional group on an aliphatic carbon atom. Because OH is the functional group of all alcohols, they are often represented by the general formula ROH, where R is an alkyl group. Alcohols are common in nature. Most people are familiar with ethyl alcohol (ethanol), the active ingredient in alcoholic beverages, but this compound is only one of a family of organic compounds known as alcohols. An Alcohol may contain one, two or more hydroxyl groups (−OH) that are attached to the carbon atom in an alkyl group or hydrocarbon chain. They are widely used in industries, laboratories, and daily life. Alcohols have diverse properties and uses, from solvents to fuels and disinfectants.
Classification of Alcohols Alcohols are classified based on the type of carbon to which the hydroxyl group is attached
- Primary Alcohols (1°): o The hydroxyl group (-OH) is attached to a carbon atom that is bonded to only one other carbon atom. o Example: Ethanol (CH₃CH₂OH), commonly found in alcoholic beverages.
- Secondary Alcohols (2°): o The hydroxyl group is attached to a carbon atom that is bonded to two other carbon atoms. o Example: Isopropanol (CH₃CHOHCH₃), used as a disinfectant and solvent.
- Tertiary Alcohols (3°): o The hydroxyl group is attached to a carbon atom bonded to three other carbon atoms. o Example: Tert-butanol (C₄H₁₀O), used as a solvent and in the production of chemicals. The IUPAC Nomenclature of alcohols The IUPAC system provides unique names for alcohols, based on rules that are similar to those for other classes of compounds. In general, the name carries the - ol suffix, together with a number to give the location of the hydroxyl group.
- Name the longest carbon chain that contains the carbon atom bearing the group. Drop the final -e from the alkane name and add the suffix -ol to give the root name.
Reactions of Alcohols Alcohols can be synthesized through various methods in both laboratory and industrial settings. Here are some common methods for preparing alcohols:
- Hydration of Alkenes This method involves adding water (H₂O) across the double bond of an alkene, resulting in the formation of an alcohol. Reaction:
RCH=CH2+H2O→acid catalystRCH(OH)CH3 RCH= CH 2 + H 2 Oacid catalyst
RCH( OH) CH 3
Example: Ethene (C₂H₄) can be hydrated to produce ethanol
(CH₃CH₂OH): C2H4+H2O→H₂SO₄CH3CH2OH C 2 H 4 + H 2 OH₂SO₄CH 3 CH 2 OH
Catalysts: Acid catalysts such as sulfuric acid (H₂SO₄) or phosphoric acid (H₃PO₄) are commonly used.
- Reduction of Carbonyl Compounds Reduction of aldehydes, ketones, and carboxylic acids is a major method for alcohol production. a. Reduction of Aldehydes to Primary Alcohols Aldehydes can be reduced to primary alcohols using reducing agents like sodium borohydride (NaBH₄) or lithium aluminum hydride (LiAlH₄).
Reaction: RCHO→NaBH₄ or LiAlH₄RCH2OH RCHONaBH₄ or LiAlH₄ RCH 2 OH
Example: Acetaldehyde (CH₃CHO) can be reduced to ethanol (CH₃CH₂OH). b. Reduction of Ketones to Secondary Alcohols
Ketones can be reduced to secondary alcohols with the same reducing agents.
Reaction: RCOR′→NaBH₄ or LiAlH₄RCH(OH)R′ RCOR′NaBH₄ or LiAlH₄
RCH( OH) R′
Example: Acetone (CH₃COCH₃) is reduced to isopropanol (CH₃CHOHCH₃). c. Reduction of Carboxylic Acids and Esters Carboxylic acids and esters can be reduced to primary alcohols using a stronger reducing agent like lithium aluminum hydride (LiAlH₄). Example:
RCOOH→LiAlH₄etherRCH2OH RCOOHetherLiAlH₄RCH 2 OH Ethanoic acid
(CH₃COOH) is reduced to ethanol (CH₃CH₂OH).
- Grignard Reaction The reaction of Grignard reagents (RMgX, where X is a halogen) with carbonyl compounds forms alcohols. a. Reaction with Aldehydes: Grignard reagents react with aldehydes to give secondary alcohols.
Reaction: RCHO+RMgX→H₂ORCH(OH)R RCHO+ RMgXH₂O RCH( OH) R
b. Reaction with Ketones: Grignard reagents react with ketones to give tertiary alcohols.
Reaction: RCOR′+RMgX→H₂OR−C(OH)−R′−R′′ RCOR′+ RMgXH₂O R− C( OH)− R′
− R′′
c. Reaction with Formaldehyde:
o Primary alcohols can be oxidized to aldehydes and then to carboxylic acids. o Secondary alcohols are oxidized to ketones. o Tertiary alcohols generally resist oxidation without breaking the carbon chain.
- Esterification: o Alcohols react with carboxylic acids in the presence of an acid catalyst to form esters and water. This reaction is widely used in the production of perfumes and flavorings.
- Combustion: o Alcohols can combust in the presence of oxygen to produce carbon dioxide and water. Ethanol, for instance, is used as a biofuel in many countries. Common Alcohols and Their Uses
- Methanol (CH₃OH): o Used as an industrial solvent, antifreeze, and a feedstock for the production of formaldehyde.
- Ethanol (CH₃CH₂OH): o Found in alcoholic beverages. o Used as a solvent, in pharmaceuticals, and as a biofuel.
- Isopropanol (CH₃CHOHCH₃): o Commonly used as rubbing alcohol and in hand sanitizers due to its antiseptic properties.
- Glycerol (C₃H₈O₃): o A triol (alcohol with three hydroxyl groups).
o Used in pharmaceuticals, cosmetics, and as a food additive Ethers Ethers are organic compounds containing an oxygen atom connected to two alkyl or aryl groups (R–O–R'). Their general formula is R–O–R' , where "R" and "R'" can be either the same or different alkyl/aryl groups. Common Nomenclature In the common system, ethers are named by listing the two alkyl or aryl groups (in alphabetical order) attached to the oxygen atom, followed by the word "ether." o Example: CH₃-O-CH₃ is called dimethyl ether. o Example: CH₃-O-C₂H₅ is called ethyl methyl ether. IUPAC Nomenclature: In the IUPAC system, ethers are named as alkoxy alkanes. The smaller alkyl group is named as an "alkoxy" substituent, and the larger alkyl group is named as the parent alkane. o Example: CH₃-O-CH₃ is named methoxymethane. o Example: CH₃-O-C₂H₅ is named methoxyethane. For cyclic ethers (where the oxygen is part of a ring), special names like epoxide , oxirane , or oxetane are used depending on the size of the ring.
- Physical Properties of Ethers Boiling Points : Ethers generally have lower boiling points compared to alcohols of similar molecular weight because they lack hydrogen
Ethers, particularly diethyl ether , can form peroxides (R-O-O-R') when exposed to oxygen in the air. These peroxides are highly explosive, especially when concentrated or distilled. The general reaction is: R−O−R+O2→R−O−O−RR-O-R + O_2 rightarrow R-O-O-RR−O−R+O2→R−O−O−R
3. Reaction with Grignard Reagents: Ethers are commonly used as solvents in reactions involving Grignard reagents (RMgX). They help stabilize the Grignard reagent by coordinating with the magnesium atom through lone pairs on the oxygen.
- Uses of Ethers Ethers have a wide range of applications due to their properties as solvents and their reactivity. 1. As Solvents: Ethers are widely used as solvents in organic reactions because of their ability to dissolve both polar and nonpolar compounds. They are particularly useful in reactions where alcohols or water would be too reactive. Diethyl ether is used as a solvent for Grignard reactions , Wittig reactions , and other organometallic reactions due to its ability to stabilize reactive intermediates. 2. Anesthetic: Diethyl ether was historically used as a general anesthetic in surgery, though its use has largely been replaced by safer and more effective alternatives due to its flammability and slow recovery time.
3. Industrial Uses: Methyl tert-butyl ether (MTBE) is used as a gasoline additive to increase the oxygen content and improve combustion efficiency. Tetrahydrofuran (THF) is used as a solvent in the production of plastics and in the pharmaceutical industry. 4. Laboratory Uses: Ethers, such as dimethyl ether and tetrahydrofuran , are commonly used in organic synthesis as solvents because they dissolve a wide variety of organic compounds and are relatively unreactive. Amines: Amines are organic compounds derived from ammonia (NH₃) by replacing one or more hydrogen atoms with alkyl or aryl groups. They are categorized based on how many of the hydrogen atoms in ammonia have been replaced. Physical Properties of Amines: 1. State : Lower amines (methylamine, ethylamine) are gases, while higher ones are liquids or solids. 2. Smell : Amines generally have a fishy odor. 3. Solubility : Lower amines are soluble in water due to hydrogen bonding, but solubility decreases with increasing molecular weight. 4. Boiling Points : Amines have higher boiling points than hydrocarbons due to intermolecular hydrogen bonding, but lower than alcohols of similar molecular weight. 5. Polarity : Amines are polar molecules due to the presence of a lone pair of electrons on the nitrogen atom.
CH₃NH₂ : Methylamine (Primary amine) CH₃CH₂NH₂ : Ethylamine (Primary amine) (CH₃)₂NH : Dimethylamine (Secondary amine) (CH₃)₃N : Trimethylamine (Tertiary amine) CH₃NHCH₂CH₃ : Ethylmethylamine (Secondary amine with different alkyl groups)
- IUPAC Nomenclature for Amines: In IUPAC nomenclature , amines are named by using the following rules: Primary Amines (R-NH₂):
- The suffix "amine" is added to the parent alkane name.
- The longest carbon chain attached to the nitrogen atom is used as the parent chain.
- The position of the amino group is indicated by a number, if necessary, especially for chains longer than three carbon atoms. Examples : CH₃NH₂ : Methanamine (Methylamine in common name) CH₃CH₂NH₂ : Ethanamine (Ethylamine in common name) CH₃CH₂CH₂NH₂ : Propanamine (n-Propylamine in common name) CH₃CH₂CH(NH₂)CH₃ : 2-Butanamine (for amines with the amino group attached to a middle carbon) Secondary and Tertiary Amines:
- For secondary and tertiary amines, the IUPAC name is based on the longest chain attached to the nitrogen atom, which is named as the parent chain.
- Other alkyl groups attached to the nitrogen are treated as substituents and are prefixed by an "N-" to indicate their attachment to the nitrogen atom. Examples : CH₃NHCH₂CH₃ : N-Methylethanamine (Ethylmethylamine in common name) (CH₃)₂NH : N-Methylmethanamine (Dimethylamine in common name) CH₃CH₂NHCH₂CH₃ : N-Ethylethanamine (Diethylamine in common name) (CH₃)₃N : N,N-Dimethylmethanamine (Trimethylamine in common name) Uses of Amines:
- Dyes : Aromatic amines like aniline are used in the manufacture of dyes (e.g., azo dyes).
- Drugs : Amines are present in many drugs, such as antihistamines, decongestants, and anesthetics.
- Polymers : Polyamides like nylon are synthesized using amines.
- Solvents : Amines like triethylamine are used as solvents and catalysts in organic synthesis.
- Agriculture : Quaternary ammonium compounds are used as herbicides, fungicides, and bactericides. These properties, methods of preparation, and reactions make amines extremely useful in various industries. Thiols: Thiols (also called mercaptans) are sulfur-containing organic compounds that have the functional group –SH (a sulfhydryl group) attached to a carbon
- Grignard Reaction with Sulfur : Grignard reagents (RMgX) react with elemental sulfur followed by hydrolysis to form thiols. Reactions of Thiols:
- Oxidation to Disulfides : Thiols are easily oxidized to form disulfides (R-S-S-R) when exposed to mild oxidizing agents such as iodine (I₂) or oxygen (O₂).
- Reaction with Bases (Formation of Thiolate Ions) : Thiols can be deprotonated by strong bases to form thiolate ions (R-S⁻), which are strong nucleophiles.
- Reaction with Metals : Thiols react with metals like mercury, silver, and copper to form metal thiolates (R-S-M), which are often insoluble compounds.
- Reaction with Aldehydes/Ketones : Thiols can react with carbonyl compounds (aldehydes and ketones) to form hemithioacetals and hemithioketals, which are similar to the reactions of alcohols with carbonyl compounds.
- Thioether Formation : Thiols can react with alkyl halides to form thioethers (R-S-R'). Uses of Thiols:
- Odorant in Natural Gas : Thiols are added to natural gas (which is otherwise odorless) to help detect gas leaks due to their strong, distinctive smell.
- Rubber Vulcanization : Thiols are used in the vulcanization of rubber, a process that improves the strength and elasticity of rubber by forming cross-links between polymer chains.
- Biological Functions : Thiols (especially in the form of cysteine residues in proteins) play essential roles in biological systems. The
disulfide bonds formed between cysteine residues help stabilize protein structures (e.g., insulin, keratin).
- Antioxidants : Thiols can act as antioxidants, helping to protect cells from oxidative damage. Glutathione, a naturally occurring thiol, is a key antioxidant in cellular processes.
- Chemical Industry : Thiols are used as intermediates in the production of various chemicals, including pharmaceuticals, herbicides, and pesticides.
- Protein Folding : In biochemical contexts, thiols help in the folding of proteins by forming and breaking disulfide bonds. Summary Thiols are versatile organic compounds containing a sulfur-hydrogen (–SH) group. They possess a distinctive smell, are weak acids, and can undergo a variety of chemical reactions including oxidation, nucleophilic substitution, and metal-binding. Thiols are valuable in various industries, including chemical synthesis, gas detection, and biological processes. THIOLS Thiols (also called mercaptans) are sulfur-containing organic compounds that have the functional group –SH (a sulfhydryl group) attached to a carbon atom. They are the sulfur analogs of alcohols, with sulfur replacing the oxygen atom of the hydroxyl group in alcohols. Properties of Thiols:
- Odor : Thiols have a characteristic foul smell, often described as resembling rotten eggs or garlic. This property makes them detectable even in very low concentrations (e.g., in natural gas odorization).
