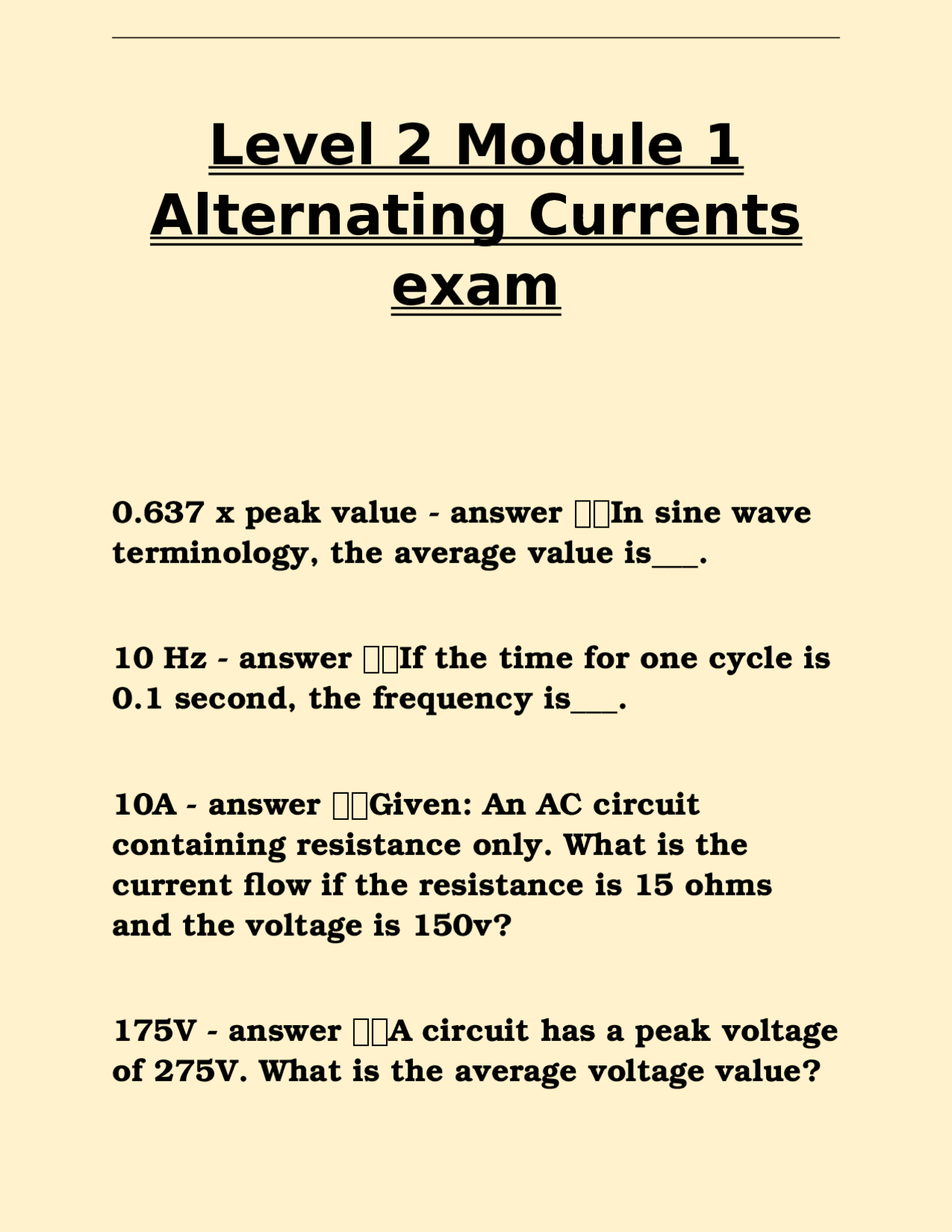

0.637 x peak value - answer โ โ In sine wave terminology, the average value is___. 10 Hz - answer โ โ If the time for one cycle is 0.1 second, the frequency is___. 10A - answer โ โ Given: An AC circuit containing resistance only. What is the current flow if the resistance is 15 ohms and the voltage is 150v? 175V - answer โ โ A circuit has a peak voltage of 275V. What is the average voltage value?
2:1 - answer โ โ What is the step-down turns ratio of a transformer with 200 turns in the primary and 100 turns in the secondary? 340V - answer โ โ Given: A circuit has an rms voltage of 120VAC. What is the peak-to-peak voltage? 400W - answer โ โ Calculate the true power in a 2A series RL circuit with a 100 ohms resistor. 40Hz - answer โ โ What is the hertz rating of an AC circuit if the frequency is 20 cycles per 1/2 second? 45 - answer โ โ Given: A 30-microfarad capacitor in parallel with a 15-microfarad capacitor. The total capacitance is___.
Are 90ยฐ out of phase - answer โ โ If the vector diagram of two AC waveforms is a right angle, then the waves___. Are in phase - answer โ โ If the phase angles of two sine waves are both 0 degrees then the waves___. By some angle between 0ยฐ and 90ยฐ - answer โ โ In a circuit that has both capacitance and resistance, the current will lead the voltage___. Current with respect to time - answer โ โ The self-induced voltage across in inductance is equal to the change in___. Frequency increases - answer โ โ Inductive reactance increases as the___.
Greater than the true power - answer โ โ According to the power triangle, the apparent power is___. Increases - answer โ โ If the area of the plates of a capacitor is increased, the amount of capacitance___. Increases - answer โ โ When frequency decreases, capacitive reactance___. Increasing capacitance - answer โ โ For a given frequency, the capacitive reactance decreases with___. induced high voltage - answer โ โ Opening the secondary of a CT under load will cause a dangerous level of___.
Rms values - answer โ โ Unless otherwise noted, the calculations in AC circuits use___. The same as the applied voltage - answer โ โ In a parallel LC circuit, the voltage across the branches is___. Transformer - answer โ โ Which of the following uses electromagnetic induction to transfer electrical energy from one circuit to another? Unlike-wound transformers - answer โ โ Transformers in which the primary and secondary voltages are 180 out of phase are known as___. XL=2piefL - answer โ โ The formula for inductive reactance is___.
Zero - answer โ โ In an inductive AC circuit, when the applied voltage is at its maximum negative value, the current is___.
