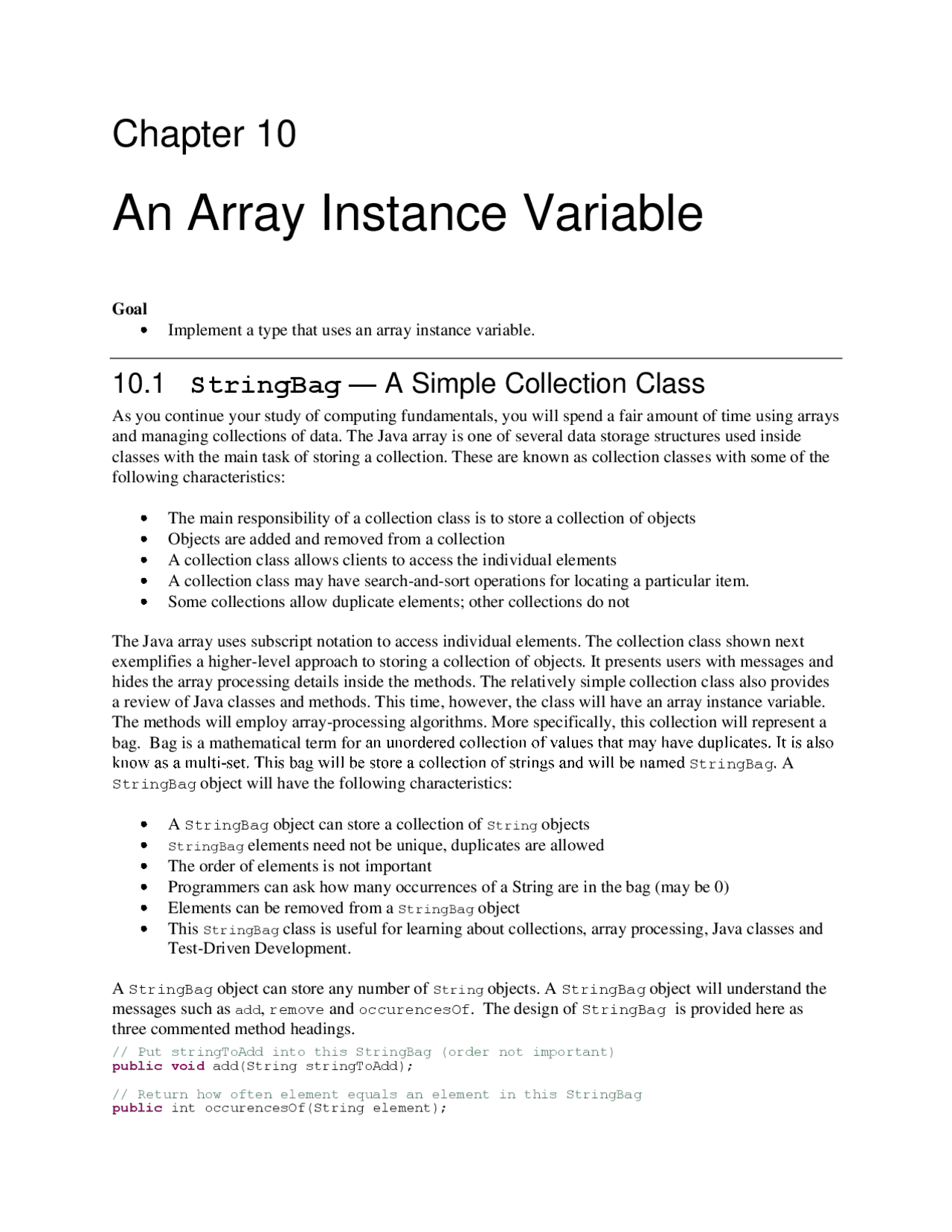

Chapter 10
An Array Instance Variable
Goal
Implement a type that uses an array instance variable.
10.1 StringBag — A Simple Collection Class
As you continue your study of computing fundamentals, you will spend a fair amount of time using arrays
and managing collections of data. The Java array is one of several data storage structures used inside
classes with the main task of storing a collection. These are known as collection classes with some of the
following characteristics:
The main responsibility of a collection class is to store a collection of objects
Objects are added and removed from a collection
A collection class allows clients to access the individual elements
A collection class may have search-and-sort operations for locating a particular item.
Some collections allow duplicate elements; other collections do not
The Java array uses subscript notation to access individual elements. The collection class shown next
exemplifies a higher-level approach to storing a collection of objects. It presents users with messages and
hides the array processing details inside the methods. The relatively simple collection class also provides
a review of Java classes and methods. This time, however, the class will have an array instance variable.
The methods will employ array-processing algorithms. More specifically, this collection will represent a
bag. Bag is a mathematical term for
StringBag A
StringBag object will have the following characteristics:
A StringBag object can store a collection of String objects
StringBag elements need not be unique, duplicates are allowed
The order of elements is not important
Programmers can ask how many occurrences of a String are in the bag (may be 0)
Elements can be removed from a StringBag object
This StringBag class is useful for learning about collections, array processing, Java classes and
Test-Driven Development.
A StringBag object can store any number of String objects. A StringBag object will understand the
messages such as add, remove and occurencesOf. The design of StringBag is provided here as
three commented method headings.
// Put stringToAdd into this StringBag (order not important) public void add(String stringToAdd); // Return how often element equals an element in this StringBag public int occurencesOf(String element);
Chapter 10: Using an Array Instance Variable // Remove one occurrence of stringToRemove if found and return true. // Return false if stringToRemove is not found in this StringBag. public boolean remove(String stringToRemove);
Using Test Driven Development, the tests come first. Which method should be tested first? It's difficult
to implement only one and know it works. If we work on add alone, how do we know an element has
actually been added. One solution is to develop occurencesOf at the same time and verify both are
working together. A test method could add several elements and verify they are there with
occurencesOf. We should also verify contains returns false for elements in the bag. So add(String)
and occurencesOf(String) will be developed first. We'll begin with a unit test with one test method
that adds one element. occurencesOf should return 0 before add and 1 after.
import static org.junit.Assert. assertEquals ; import org.junit.Test; public class StringBagTest { @Test public void testAddAndOccurencesOfForOnlyOneElement () { StringBag friends = new StringBag(); friends.add("Sage"); assertEquals (1, friends.occurencesOf("Sage")); } }
Of course, this unit test will not compile. The class doesn't even exist; nor do the add and
occurencesOf methods; nor does the constructor. The following start at a StringBag type at least
allows the unit test to compile. The assertions will not pass, at least not yet. All methods are written as
stubs a temporary substitute for yet-to-be-developed code.
// A class for storing a multi-set (bag) of String elements. public class StringBag { // Construct an empty StringBag object (no elements stored yet) public StringBag() { // TODO Complete this method } // Add an element to this StringBag public void add(String stringToAdd) { // TODO Complete this method } // Return how often element equals an element in this StringBag public int occurencesOf(String element) { // TODO Complete this method return 0; } } The StringBag Constructor
The private instance variables of the StringBag class include an array named data for storing a
collection of String objects. Each StringBag object also has an integer named n to maintain the number
of meaningful elements that are in the StringBag. The add and occurencesOf methods will need
both instance variables to accomplish their responsibilities. The constructor establishes an empty
StringBag object by setting n to zero. The array capacity is set to the arbitrary initial capacity of 10.
We don’t know how big the collection will grow to when used later (and we will have to deal with that
later).
Chapter 10: Using an Array Instance Variable public int occurencesOf(String element)
Since there is no specified ordering for Bags in general or StringBag in particular, the element passed as
an argument may be located at any index. Also, a value that equals the argument may occur more than
once. Thus each element in indexes 0..n-1 must be compared. It makes the most sense to use the equals
method, assuming equals has been overridden to compare the state of two objects rather than the
reference values. And with String, equals does compare state.
By setting result to 0 below, the occurencesOf method first states there are no elements equal to
element.
// Return how often element equals an element in this StringBag public int occurencesOf(String element) { int result = 0; for ( int subscript = 0; subscript < n; subscript++) { if (element.equals(data[subscript])) result++; } return result; }
The for loop then iterates over every meaningful element in the array. Each time element equals any
array element, result increments by 1. Our first assertion passes.
@Test public void testAddAndOccurencesOfForOnlyOneElement() { StringBag friends = new StringBag(); friends.add("Sage"); assertEquals (1, friends.occurencesOf("Sage")); } Other Test Methods
Another test method verifies that duplicate elements are can exist and are found.
@Test public void testOccurencesOf() { StringBag names = new StringBag(); names.add("Tyler"); names.add("Devon"); names.add("Tyler"); names.add("Tyler"); assertEquals (1, names.occurencesOf("Devon")); assertEquals (3, names.occurencesOf("Tyler")); }
Another test method verifies 0 is returned when the String argument is not in the bag.
@Test public void testOccurencesOfWhenItShyouldReturnZeros() { StringBag names = new StringBag(); assertEquals (0, names.occurencesOf("Devon")); assertEquals (0, names.occurencesOf("Tyler")); names.add("Sage"); names.add("Hayden"); assertEquals (0, names.occurencesOf("Devon")); assertEquals (0, names.occurencesOf("Tyler")); }
Another test method documents that this collection is case sensitive.
@Test public void testOccurencesOfForCaseSensitivity() { StringBag names = new StringBag(); names.add("UPPER"); names.add("Lower");
// Not in the bag (case sensitive) assertEquals (0, names.occurencesOf("upper")); assertEquals (0, names.occurencesOf("lower")); // In the bag assertEquals (1, names.occurencesOf("UPPER")); assertEquals (1, names.occurencesOf("Lower")); }
Yet another test method tries to add 500 strings only to find something goes wrong.
@Test public void testAdding500Elements() { StringBag bag = new StringBag(); for ( int count = 1; count <= 500; count++) { bag.add("Str#" + count); } assertEquals (1, bag.occurencesOf("Str#1")); assertEquals (1, bag.occurencesOf("Str#2")); assertEquals (1, bag.occurencesOf("Str#499")); assertEquals (1, bag.occurencesOf("Str#500")); } java.lang.ArrayIndexOutOfBoundsException: 10 at StringBag.add(StringBag.java:34) at StringBagTest.testAdding500Elements(StringBagTest.java:39)
After 10 adds, n == 10. The attempt to store the 11th element in the StringbBag results in an
ArrayIndexOutOfBounds exception with the attempt to assign an element to data[10].
Before any new String is added, a check should be made to ensure that there is the capacity to add
another element. If the array is filled to capacity (n == data.length) there is not enough room to add
the new element. In this case, we need to increase the array capacity.
The code to increase the capacity of the array could be included in the add method. However this task
is complex enough that it will be placed into a "helper" method named growArray. The add method
changes with a guarded action: grow the array only when necessary.
public void add(String stringToAdd) { // Make sure the array can store a new element if (n == data.length) { growArray(); } // Store the reference into the array data[n] = stringToAdd; // Make sure my_size is always increased by one n++; }
The growArray method will help this add method perform its task with less code. The add method
delegates a well-defined responsibility of growing the array to another method. This makes for more
readable and maintainable code.
private void growArray()
Because growArray is inside class StringBag, any StringBag object can send a growArray message
to itself. The message was sent from this object in add. And because data is an instance variable, any
StringBag object can change data to reference a new array with more capacity. This is done with the
following algorithm:
Instance Variable State of bag
data[0] "A string" data[1] "Another string" data[2] "and still another" data[3] "and a fourth" data[4] null ... ... data[9] null n 4
The algorithm used to remove an element is in these steps (other algorithms also work).
Find the index of an element to remove, or set to -1 if stringToRemove does not exist
If the index != -1, move the element at the end of the array to this index
Decrement n (n--)
The remove algorithm calls the private helper method indexOf that has the purpose of returning an index
of the string to be removed. If the string does not equal an array element, the indexOf method
(discussed later) returns -1. In this case of trying to remove the string "Not in the bag" the method
simply returns false. The method terminated and the first assertion (above) passes.
// Remove an element that equals stringToRemove if found and return true. // Return false if stringToRemove was not found in this StringBag. public boolean remove(String stringToRemove) { // indexOf returns the index of an element that equals stringToRemove // or -1 if stringToRemove is not in this bag. int subscript = indexOf(stringToRemove); if (subscript == -1) return false ; else { //...
In the 2nd^ assertion assertTrue (bag.remove("Another string")); that attempts to remove an element
that does exist, the array will be changed, n will be changed, and indexOf will return true. These
variables that are local to remove indicate the string was found at index 1.
Local Variable State of remove’s Local Variable after a Sequential Search
stringToRemove "Another string" index 1
Once found, the reference stored in data[index] must somehow be removed from the array, which is
currently data[1] or "Another string". The simple way to do this is to move the last element into the spot
where stringToRemove was found. It is okay to destroy the reference in data[1]. This is the object to be
removed from the StringBag. Also, since there is no ordering requirement, it is also okay to move data[n -
1], which is the last meaningful element in the array. When n-- occurs, the 2nd^ reference to the string at
data[n-1] is no longer considered to be in the collection. Although not necessary, this code assigns null to
that 2nd^ unneeded reference.
// Move the last string in the array to where stringToRemove was found. data[subscript] = data[n - 1]; // Mark old array element as no longer holding a reference (not required) data[n - 1] = null ; // Decrease this StringBag's number of elements n--; // Let this method return true to where the message was sent return true ; } } // End method remove
Chapter 10: Using an Array Instance Variable
The state of StringBag now looks like this (three changes are highlighted):
Instance Variable State of bagOfStrings
data[0] "A string"
data[1] "And a fourth" Overwrite "another string"
data[2] "and still another"
data[3] null data[3] is no longer meaningful
data[4] null ... data[9] null
n 3 n is 3 now
Although the elements are not in the same order (this was not a requirement), the same elements exist
after the requested removal. Because the last element has been relocated, n must decrement by 1. There
are now only three, not four, elements in this StringBag object.
The same code works even when removing the last element. The assignment is done. Decreasing n by
one effectively eliminates the last element.
private int indexOf(String element)
The remove method used another method to find the index of an element to remove (or -1 if no element
found). Although this code could have gone in remove, the well-defined responsibility of finding the
index of an element in an array was placed in this private helper method to keep the remove algorithm a
bit simpler. The indexOf method will sequentially search each array element beginning at index 0
until one of two things happen.
1. element equals an array element and that index of that element is returned to method
remove(String element)
2. the loop terminates because there are no more element to examine. In this case, indexOf returns
-1 to method remove(String element)
// Return the index of the first occurrence of stringToRemove. private int indexOf(String element) { // Look at all elements until the string for ( int index = 0; index < n; index++) { if (element.equals(data[index])) return index; } // Otherwise result is not changed from -1. return -1; }
Again we see a helper method declared private because indexOf is currently considered a method that
programmers are not meant to use. It was not in the specification. Here is the complete StringBag
class.
// A class for storing an unordered collection of Strings. // This class was designed to provide practice and review in // implementing methods and classes along with using arrays. public class StringBag { private String[] data; // Stores the collection private int n; // Current number of elements // Construct an empty StringBag object public StringBag() { n = 0; data = new String[10]; // Initial capacity is 10 } // Return the element at the specified index. // Precondition: index >= 0 && index < size()
Chapter 10: Using an Array Instance Variable Other Test Methods
The remove method and its indexOf method are complex. Further testing is appropriate. This test
verifies that all duplicates can be removed.
@Test public void testRemoveWhenDuplicatedO() { StringBag bag = new StringBag(); bag.add("A"); bag.add("B"); bag.add("B"); bag.add("B"); bag.add("A"); assertEquals (3, bag.occurencesOf("B")); assertTrue (bag.remove("B")); assertEquals (2, bag.occurencesOf("B")); assertTrue (bag.remove("B")); assertEquals (1, bag.occurencesOf("B")); assertTrue (bag.remove("B")); assertEquals (0, bag.occurencesOf("B")); // There should be no more Bs assertFalse (bag.remove("B")); assertEquals (0, bag.occurencesOf("lower")); }
Other tests should be made for these situations:
when the bag is empty
when there is one element, try removing an element that is not there
when there is one element, try removing an element that is there
remove all elements when size > 2
@Test public void testRemoveWhenEmpty() { StringBag bag = new StringBag(); assertEquals (0, bag.occurencesOf("B")); assertFalse (bag.remove("Not here")); assertEquals (0, bag.occurencesOf("B")); } @Test public void testRemoveNonExistentElementWhenSizeIsOne() { StringBag bag = new StringBag(); bag.add("Only one element"); assertEquals (1, bag.occurencesOf("Only one element")); assertFalse (bag.remove("Not here")); assertEquals (1, bag.occurencesOf("Only one element")); } @Test public void testRemoveElementWhenSizeIsOne() { StringBag bag = new StringBag(); bag.add("Only one element"); assertEquals (1, bag.occurencesOf("Only one element")); assertTrue (bag.remove("Only one element")); assertEquals (0, bag.occurencesOf("Only one element")); }
@Test public void testRemoveAllElementsWhenSizeGreaterThanTwo() { StringBag bag = new StringBag(); bag.add("A"); bag.add("B"); bag.add("C"); assertTrue (bag.remove("A")); assertTrue (bag.remove("B")); assertTrue (bag.remove("C")); assertEquals (0, bag.occurencesOf("A")); assertEquals (0, bag.occurencesOf("B")); assertEquals (0, bag.occurencesOf("C")); } Self-Check
10-1 What happens when an attempt is made to remove an element that is not in the bag.
10-2 Using the implementation of remove just given, what happens when an attempt is made to
remove an element from an empty StringBag (n == 0 )?
10-3 Must remove always maintain the StringBag elements in the same order as that in which they
were originally added?
10-4 What happens when an attempt is made to remove an element that has two of the same values in
the StringBag?
10-5 Write the output of the following code:
StringBag aBag = new StringBag(); aBag.add("First"); aBag.add("Second"); aBag.add("Third"); System. out .println(aBag.occurencesOf("first")); System. out .println(aBag.occurencesOf("Second")); System. out .println(aBag.remove("First")); System. out .println(aBag.remove("Third")); System. out .println(aBag.remove("Third")); System. out .println(aBag.occurencesOf("first")); System. out .println(aBag.occurencesOf("Second"));
