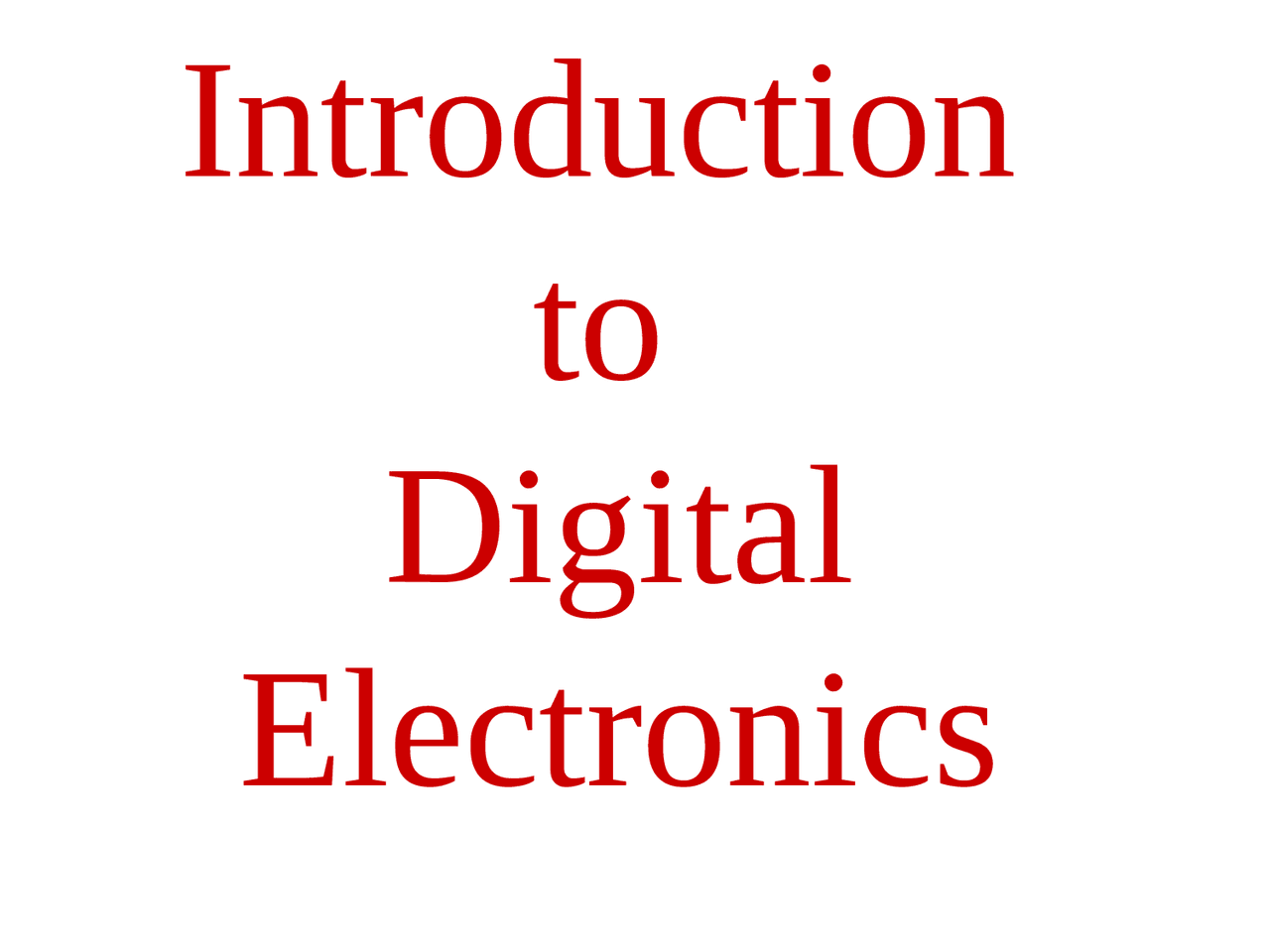

Introduction
to
Digital
Electronics
pf3
pf4
pf5
pf8
pf9
pfa
pfd
pfe
pff
pf12
pf13
pf14
pf15
pf16
pf17
pf18
pf19
pf1a
pf1b
pf1c
pf1d
pf1e
pf1f
pf20
pf21
pf22
pf23
pf24
pf25
pf26
pf27
pf28
pf29
pf2a
pf2b

Partial preview of the text

Download Analog and Digital C - Introduction to Digital Electronics and more Study notes Digital & Analog Electronics in PDF only on Docsity!

Introduction

to

Digital

Electronics

Suplementary Reading

  • (^) Digital Design by - John F. Wakerly
  • (^) www.ddpp.com - you will find some solutions at this site.
  • (^) www.xilinx.com - Xlinix Web site
  • (^) Logic and Computer Design Fundamentals by - M. Morris Mano & Charles R. Kime
  • (^) Digital Design by - M. Morris Mano
  • (^) Digital Logic Circuit Analysis and Design by - Victor P. Nelson, H. Troy Nagle, J. David Irwin & Bill D. Carrol

Analog versus Digital

  • (^) Analog systems process time-varying signals that can take on any value across a continuous range of voltages (in electrical/electronics systems).
  • (^) Digital systems process time-varying signals that can take on only one of two discrete values of voltages (in electrical/electronics systems). - (^) Discrete values are called 1 and 0 (ON and OFF, HIGH and LOW, TRUE and FALSE, etc.)

Representing Information Electronically

  • (^) A light bulb has to represent 4 different information: Bulb off - no student inside Bulb 1/3 lit - 1 student inside Bulb 2/3 lit - 2 student inside Bulb Full lit - 3 student inside
  • (^) A light bulb has to represent 10 different information: - (^) Is it possible to differentiate the ten different light intensity?

Representing Information Electronically

  • (^) “Analog electronics” deals with non-discrete values
  • (^) “Digital electronics” deals with discrete values

Benefits of Digital over Analog

  • (^) Reproducibility
  • (^) Not effected by noise means quality
  • (^) Ease of design
  • (^) Data protection
  • (^) Programmable
  • (^) Speed
  • (^) Economy

Digital Devices

  • Gates
  • Flip-Flops
  • PLDs
  • FPGAs

Gates

  • (^) The most basic digital devices are called gates.
  • (^) Gates got their name from their function of allowing or blocking (gating) the flow of digital information.
  • (^) A gate has one or more inputs and produces an output depending on the input(s).
  • (^) A gate is called a combinational circuit.
  • (^) Three most important gates are: AND, OR, NOT

AND, OR, NOT Gates

What is the

Basic Digital Element

in Electronics

a Switch

Using Switch to represent digital information

Real Switches to represent digital information

5v 5v 1k 10k 5v 4.5v Output Output

Logic levels

  • (^) Undefined region is inherent digital, not analog
  • (^) Switching threshold varies with voltage, temp need “noise margin”
  • (^) Logic voltage levels decreasing with new processors. 5 , 3.3 , 2.5 , 1.8 V
