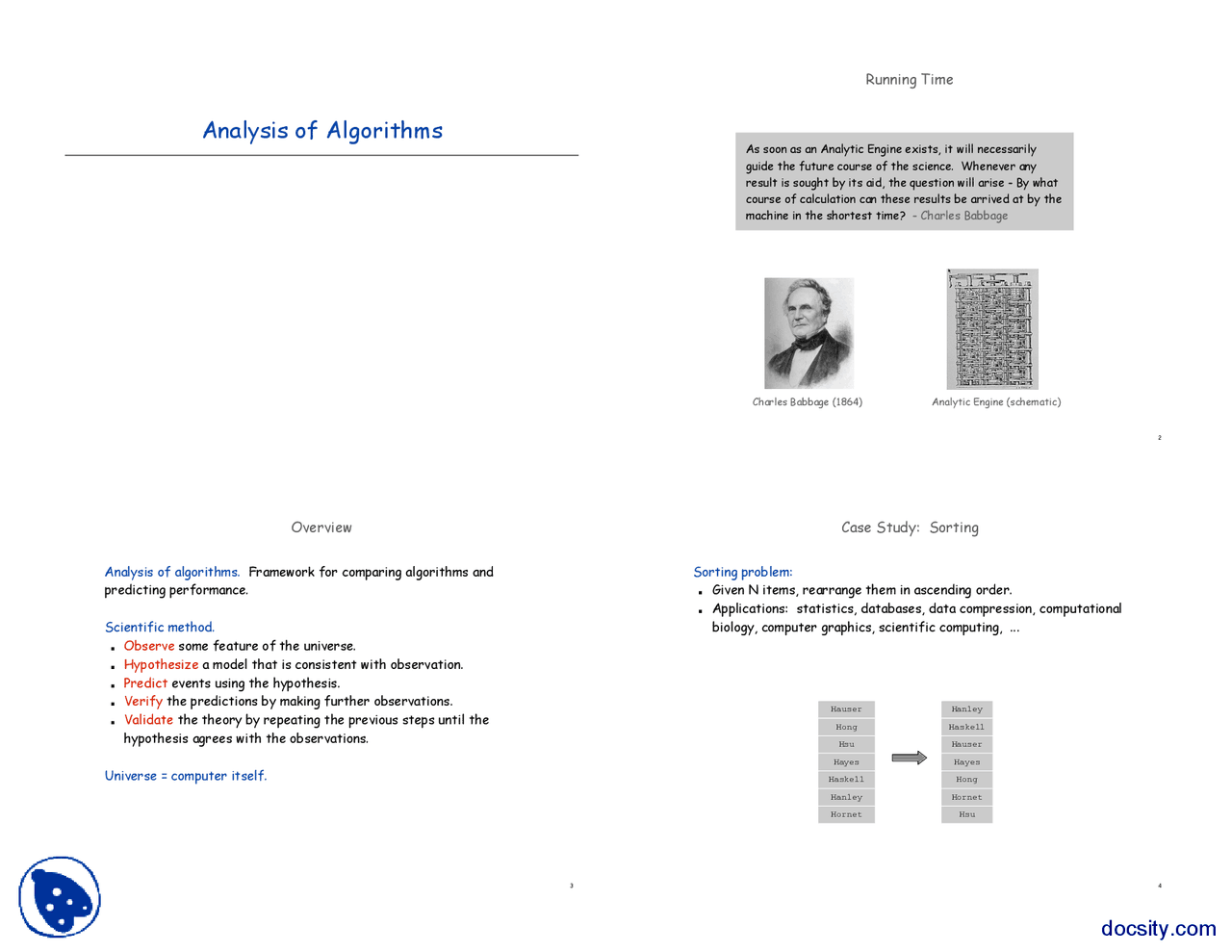

Analysis of Algorithms
2
Running Time
Charles Babbage ( 1864 )
As soon as an Analytic Engine exists, it will necessarily
guide the future course of the science. Whenever any
result is sought by its aid, the question will arise - By what
course of calculation can these results be arrived at by the
machine in the shortest time? - Charles Babbage
Analytic Engine (schematic) 3
Overview
Analysis of algorithms. Framework for comparing algorithms and predicting performance. Scientific method. ! Observe some feature of the universe. ! Hypothesize a model that is consistent with observation. ! Predict events using the hypothesis. ! Verify the predictions by making further observations. ! Validate the theory by repeating the previous steps until the hypothesis agrees with the observations. Universe = computer itself. 4
Case Study: Sorting
Sorting problem: ! Given N items, rearrange them in ascending order. ! Applications: statistics, databases, data compression, computational biology, computer graphics, scientific computing, ... Hanley Haskell Hauser Hayes Hong Hornet Hsu Hauser Hong Hsu Hayes Haskell Hanley Hornet
5 Insertion sort. ! Brute-force sorting solution. ! Move left-to-right through array. ! Exchange next element with larger elements to its left, one-by-one. Insertion Sort
public static void insertionSort(double[] a) {
int N = a.length;
for (int i = 0 ; i < N; i++) {
for (int j = i; j > 0 ; j--) {
if (less(a[j], a[j- 1 ]))
exch(a, j, j- 1 );
else break;
6 Insertion Sort: Observation Observe and tabulate running time for various values of N. ! Data source: N random numbers between 0 and 1. 40 , 000 400 million 20 , 000 99 million 10 , 000 25 million 5 , 000 6. 2 million N Comparisons 80 , 000 16 million 7 Data analysis. Plot # comparisons vs. input size on log-log scale. Regression. Fit line through data points! a Nb. Hypothesis. # comparisons grows quadratically with input size! N^2 /4. Insertion Sort: Experimental Hypothesis slope 8 Insertion Sort: Prediction and Verification Experimental hypothesis. # comparisons! N^2 /4. Prediction. 4 00 million comparisons for N = 40,000. Observations. Prediction. 1 0 billion comparisons for N = 200,000. Observation. 200 , 000 9. 997 billion N Comparisons 40 , 000 399. 7 million 40 , 000 401. 6 million 40 , 000 400. 0 million N Comparisons 40 , 000 401. 3 million
Agrees.
Agrees.
13 Data analysis. Plot time vs. input size on log-log scale. Regression. Fit line through data points! a Nb. Hypothesis. Running time grows quadratically with input size. Insertion Sort: Experimental Hypothesis 14 Timing in Java Wall clock. Measure time between beginning and end of computation. ! Manual: Skagen wristwatch. ! Automatic: Stopwatch.java library.
Stopwatch.tic();
double elapsed = StopWatch.toc();
public class Stopwatch { private static long start; public static void tic() { start = System.currentTimeMillis(); } public static double toc() { long stop = System.currentTimeMillis(); return (stop - start) / 1000. 0 ; } } 15 Measuring Running Time Factors that affect running time. ! Machine. ! Compiler. ! Algorithm. ! Input data. More factors. ! Caching. ! Garbage collection. ! Just-in-time compilation. ! CPU used by other processes. Bottom line. Often hard to get precise measurements. 16 Summary Analysis of algorithms. Framework for comparing algorithms and predicting performance. Scientific method. ! Observe some feature of the universe. ! Hypothesize a model that is consistent with observation. ! Predict events using the hypothesis. ! Verify the predictions by making further observations. ! Validate the theory by repeating the previous steps until the hypothesis agrees with the observations. Remaining question. How to formulate a hypothesis?
Robert Sedgewick and Kevin Wayne • Copyright © 2005 • http://www.Princeton.EDU/~cos 226
How To Formulate a Hypothesis
18
Types of Hypotheses
Worst case running time. Obtain bound on running time of algorithm on any input of a given size N. ! Generally captures efficiency in practice. ! Draconian view, but hard to find effective alternative. Average case running time. Obtain bound on running time of algorithm on random input as a function of input size N. ! Hard to accurately model real instances by random distributions. ! May perform poorly on other distributions. Amortized running time. Worst-case bound on running time of any sequence of N operations. 19
Estimating the Running Time
Total running time: sum of cost " frequency for all of the basic ops. ! Cost depends on machine, compiler. ! Frequency depends on algorithm, input. Cost for sorting. ! A = # exchanges. ! B = # comparisons. ! Cost on a typical machine = 1 1A + 4B. Frequency of sorting ops. ! N = # elements to sort. ! Selection sort: A = N-1, B = N(N-1)/2. Donald Knuth 1974 Turing Award 20 An easier alternative. (i) Analyze asymptotic growth as a function of input size N. (ii) For medium N, run and measure time. (iii) For large N, use (i) and (ii) to predict time. Asymptotic growth rates. ! Estimate as a function of input size N.
- N, N log N, N^2 , N^3 , 2 N, N! ! Ignore lower order terms and leading coefficients.
- Ex. 6N^3 + 17N^2 + 56 is asymptotically proportional to N^3
Asymptotic Running Time
25 Logarithmic Time Logarithmic time. Running time is O(log N). Searching in a sorted list. Given a sorted array of items, find index of query item. O(log N) solution. Binary search.
public static int binarySearch(String[] a, String key) {
int left = 0 ;
int right = a.length - 1 ;
while (left <= right) {
int mid = left + (right - left) / 2 ;
int cmp = key.compareTo(a[mid]);
if (cmp < 0 ) right = mid - 1 ;
else if (cmp > 0 ) left = mid + 1 ;
else return mid;
return - 1 ;
26 Linear Time Linear time. Running time is O(N). Find the maximum. Find the maximum value of N items in an array.
double max = Double.NEGATIVE_INFINITY;
for (int i = 0 ; i < N; i++) {
if (a[i] > max)
max = a[i];
27 Linearithmic Time Linearithmic time. Running time is O(N log N). Sorting. Given an array of N elements, rearrange in ascending order. O(N log N) solution. Mergesort. [stay tuned] Remark. $(N log N) comparisons required. [stay tuned] 28 Quadratic Time Quadratic time. Running time is O(N^2 ). Closest pair of points. Given N points in the plane, find closest pair. O(N^2 ) solution. Enumerate all pairs of points. Remark. $(N^2 ) seems inevitable, but this is just an illusion.
double min = Double.POSITIVE_INFINITY;
for (int i = 0 ; i < N; i++){
for (int j = i+ 1 ; j < N; j++) {
double dx = (x[i] - x[j]);
double dy = (y[i] - y[j]);
if (dxdx + dydy < min)
min = dxdx + dydy;
29 Exponential Time Exponential time. Running time is O(aN) for some constant a > 1. Finbonacci sequence: 1 1 2 3 5 8 13 21 34 55 … O(%N) solution. Spectacularly inefficient! Efficient solution.
public static int F(int N) {
if (n == 0 || n == 1 ) return n;
else return F(n- 1 ) + F(n- 2 );
!
! F ( N ) =^ "^ N 5
$^ % & '^ (^. nearest integer function 30 Summary of Common Hypotheses When N doubles, Complexity Description running time 2 N Exponential algorithm is not usually practical. squares! N^2 Q reulaatdirvaetliyc samlgaollr iptrhombl^ eprmasc.tical^ for^ use^ only^ on quadruples 1 Constant algorithm is independent of input size. does not change increases by a constant Logarithmic algorithm gets slightly slower as N log N grows. N^ L Nin ienapru^ taslg.orithm^ is^ optimal^ if^ you^ need^ to^ process doubles slightly more than N log N Linearithmic algorithm scales to huge problems. doubles
