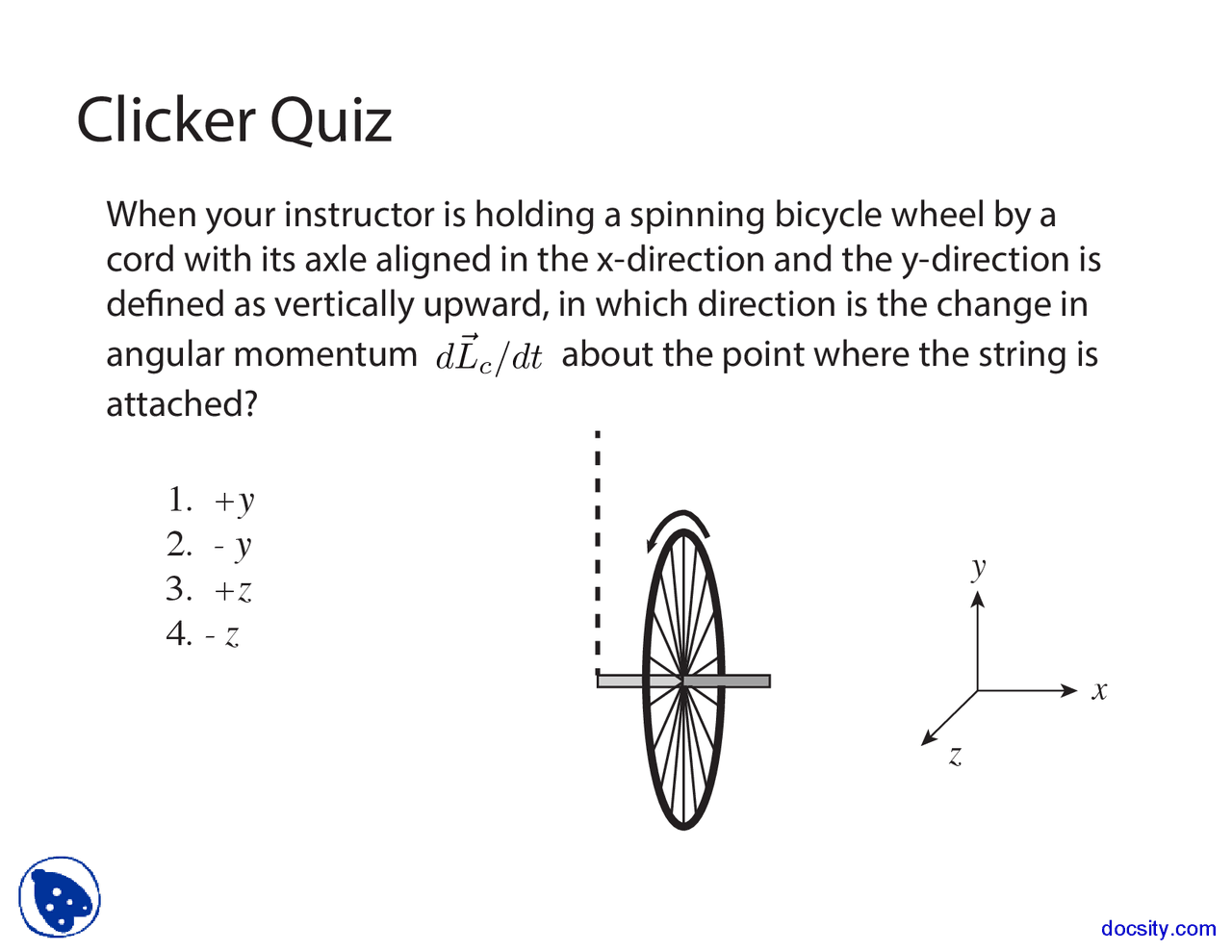

Clicker Quiz
When your instructor is holding a spinning bicycle wheel by a
cord with its axle aligned in the x-direction and the y-direction is
defined as vertically upward, in which direction is the change in
angular momentum about the point where the string is
attached?
x
y
z
dLc/dt
1. +y
2. - y
3. +z
4. - z
docsity.com
pf3
pf4
pf5

Partial preview of the text

Download Angular Momentum - Engineering Physics - Quiz Slides and more Exercises Engineering Physics in PDF only on Docsity!

Clicker Quiz

When your instructor is holding a spinning bicycle wheel by a cord with its axle aligned in the x-direction and the y-direction is defined as vertically upward, in which direction is the change in angular momentum about the point where the string is attached? x y z dLc/dt

  1. +y
  2. - y
  3. +z
  4. - z docsity.com

Lrot,f = Lrot,i + (^) net∆t A wheel of radius R and moment of inertia I is mounted on a low-friction axle. A string is wrapped around the edge, and you pull on it with a force F. At a certain time the angular speed is ω i . (a) After a time interval ∆t, what is the angular speed ω f ?

Clicker Quiz

  1. ωf = ωi + F R∆t
  2. ωf = ωi − F R∆t
  3. ωf = ωi + F R/∆t
  4. ωf = ωi − F R∆t/I
  5. ωf = ωi + F R∆t/I docsity.com

11.8 Rotational Dynamics Clicker Quiz

A cord is wrapped around a flywheel of inertia I = 1/2 mR 2 and radius R. A mass m is suspended by the cord. The system is re- leased from rest and the suspended mass falls. What is the acceleration of the suspended mass m?

  1. g/
  2. 2g/
  3. 2 g
  4. g
  5. 3g/ docsity.com

11.8 Rotational Dynamics Clicker Quiz

A cord is wrapped around a flywheel of inertia I = 1/2 mR 2 and radius R. A mass m is suspended by the cord. The system is re- leased from rest and the suspended mass falls.

How far will the mass fall in ∆t seconds?

  1. ∆y = 4 g 9 ∆t 2
  2. ∆y = g 3 ∆t 2
  3. ∆y = 2 g 3 ∆t 2
  4. ∆y = g 2 ∆t 2
  5. ∆y = 2 g 9 ∆t 2 docsity.com

String is wrapped around an object of mass M and moment of inertia I. With your hand you pull the string straight up with some constant force F such that the center of the object does not move up or down, but the object spins faster and faster. When your hand is a height y 0 above the floor, the object has an angular speed ω i

. When your hand has risen to a height y above the floor, what is the angular speed ω of the object?

  1. ωf = M g(y − y 0 ) I
  • ω 2 i
  1. ωf = M g(y + y 0 ) I
  • ω 2 i
  1. ωf = M g y I
  • ω 2 i
  1. ωf = M g(y − y 0 ) I − ω 2 i
  2. ωf = M g(y − y 0 ) I
  • ωi

Clicker Quiz

docsity.com
