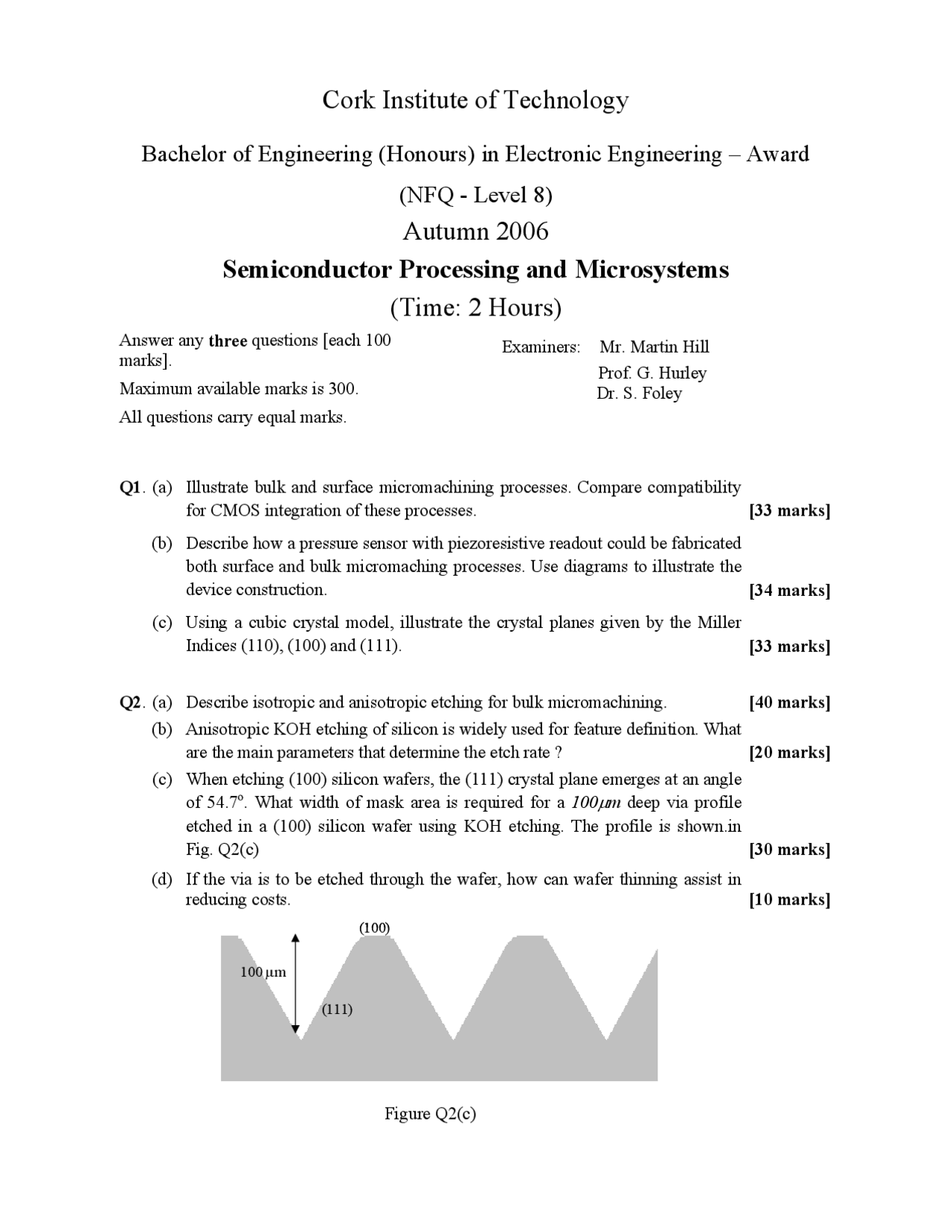

Cork Institute of Technology
Bachelor of Engineering (Honours) in Electronic Engineering – Award
(NFQ - Level 8)
Autumn 2006
Semiconductor Processing and Microsystems
(Time: 2 Hours)
Answer any three questions [each 100
marks].
Maximum available marks is 300.
All questions carry equal marks.
Examiners: Mr. Martin Hill
Prof. G. Hurley
Dr. S. Foley
Q1. (a) Illustrate bulk and surface micromachining processes. Compare compatibility
for CMOS integration of these processes. [33 marks]
(b) Describe how a pressure sensor with piezoresistive readout could be fabricated
both surface and bulk micromaching processes. Use diagrams to illustrate the
device construction. [34 marks]
(c) Using a cubic crystal model, illustrate the crystal planes given by the Miller
Indices (110), (100) and (111). [33 marks]
Q2. (a) Describe isotropic and anisotropic etching for bulk micromachining. [40 marks]
(b) Anisotropic KOH etching of silicon is widely used for feature definition. What
are the main parameters that determine the etch rate ? [20 marks]
(c) When etching (100) silicon wafers, the (111) crystal plane emerges at an angle
of 54.7o. What width of mask area is required for a 100
µ
m deep via profile
etched in a (100) silicon wafer using KOH etching. The profile is shown.in
Fig. Q2(c) [30 marks]
(d) If the via is to be etched through the wafer, how can wafer thinning assist in
reducing costs. [10 marks]
100 µm
(100)
(111)
100 µm
(100)
(111)
Figure Q2(c)
pf3
pf4
pf5

Partial preview of the text

Download Anisotropic - Semiconductor Processing and Microsystems - Exam and more Exams Materials Processing in PDF only on Docsity!

Cork Institute of Technology

Bachelor of Engineering (Honours) in Electronic Engineering – Award

(NFQ - Level 8)

Autumn 2006

Semiconductor Processing and Microsystems

(Time: 2 Hours)

Answer any (^) three questions [each 100 marks].

Maximum available marks is 300.

All questions carry equal marks.

Examiners: Mr. Martin Hill Prof. G. Hurley Dr. S. Foley

Q1. (a) Illustrate bulk and surface micromachining processes. Compare compatibility

for CMOS integration of these processes. [33 marks]

(b) Describe how a pressure sensor with piezoresistive readout could be fabricated both surface and bulk micromaching processes. Use diagrams to illustrate the device construction. [34 marks]

(c) Using a cubic crystal model, illustrate the crystal planes given by the Miller Indices (110), (100) and (111). [33 marks]

Q2. (a) Describe isotropic and anisotropic etching for bulk micromachining. [40 marks]

(b) Anisotropic KOH etching of silicon is widely used for feature definition. What are the main parameters that determine the etch rate? [20 marks] (c) When etching (100) silicon wafers, the (111) crystal plane emerges at an angle

of 54.7o^. What width of mask area is required for a 100 μ m deep via profile

etched in a (100) silicon wafer using KOH etching. The profile is shown.in Fig. Q2(c) [30 marks] (d) If the via is to be etched through the wafer, how can wafer thinning assist in reducing costs. [10 marks]

100 μm

(100)

(111)

100 μm

(100)

(111)

Figure Q2(c)

Q3. (a) Describe a process flow for the fabrication of a post-CMOS surface

micromachined metal-oxide switch. In particular pay attention to process restriction and the effect of stress and stress gradient. [35 marks]

(b) For the capacitive accelerometer (in a 1.5μm polysilicon process) shown in the layout in Fig. Q3(b) calculate the required spring constant of the beams given the information and requirements in the table below? [40 marks] (c) Calculate suitable dimensions for the spring flexures for this requirement. [25 marks]

Required accelerometer resolution 0.4g Inertial mass area 400 μm * 200μm Silicon density 2330 kg/m^3 Capacitance detection 60 interdigitated fingers each of length 100 μm, width 2μm and spacing to substrate fingers of 1μm Minimum detectable capacitance change

150aF (*10 -18^ )

Air permittivity ε 0 8.85 * 10-12^ F/m

Note : Mass is sum of inertial mass and mass of fingers. All fingers not shown in diagram.

Figure 3(b)

Accelerometer anchor

Inertial Mass

Support flexure

Static capacitor fingers (^) Moving capacitor fingers

Accelerometer anchor

Inertial Mass

Support flexure

Static capacitor fingers (^) Moving capacitor fingers

Course DLX

Summer 2005

Subject Semiconductor Processing and Microsystems

Useful Formulae and Constants

Interatomic Spacing

Piezoresistive strain gauge factor

R

δR

G

Moment/curvature relationship

EI

M

For an isotropic beam I, the moment of inertia of the beam cross-section is

bh^3 I =

Cantilever beam bending under end loading with a point force F at endpoint x=L

EI

Fx L x y x 6

EI

FL

y L 3

3 = (^3)

3 (^3 )

( ) L

Ebh L

EI

yL

F

K (^) y = = =

Cantilever beam bending under end moment M

EI

Mx y x 2

2

By superposition with a combined end force and moment

EI

Mx EI

Fx L x y x 6 2

2 2

Axial compression:

L

L

E E

A

F δ σ = = ε= EA

LF

δ L = L

Ebh L

EA

K (^) x = =

2 2 2

h k l

a

d hkl

Stress in thin films

σ total = σ thermal + σ internal + σ external

Thermal strain

Stoney Formula –Curvature due to thin film stress

Stress Gradient Bending

Polysilicon Properties

Elastic Modulus = 165 GPa

Density = 2330 kg/m^3

Aluminium Properties

Elastic Modulus = 77 GPa

Density = 2700 kg/m^3

Silicon Dioxide Properties

Relative Permittivity = 3.

ε th = (αf − αs)(Tdep − Troom )

ν t

E t

s f

s s f

R −

2

( v)L

E
