Questions with Complete Solutions
(Latest 2025)

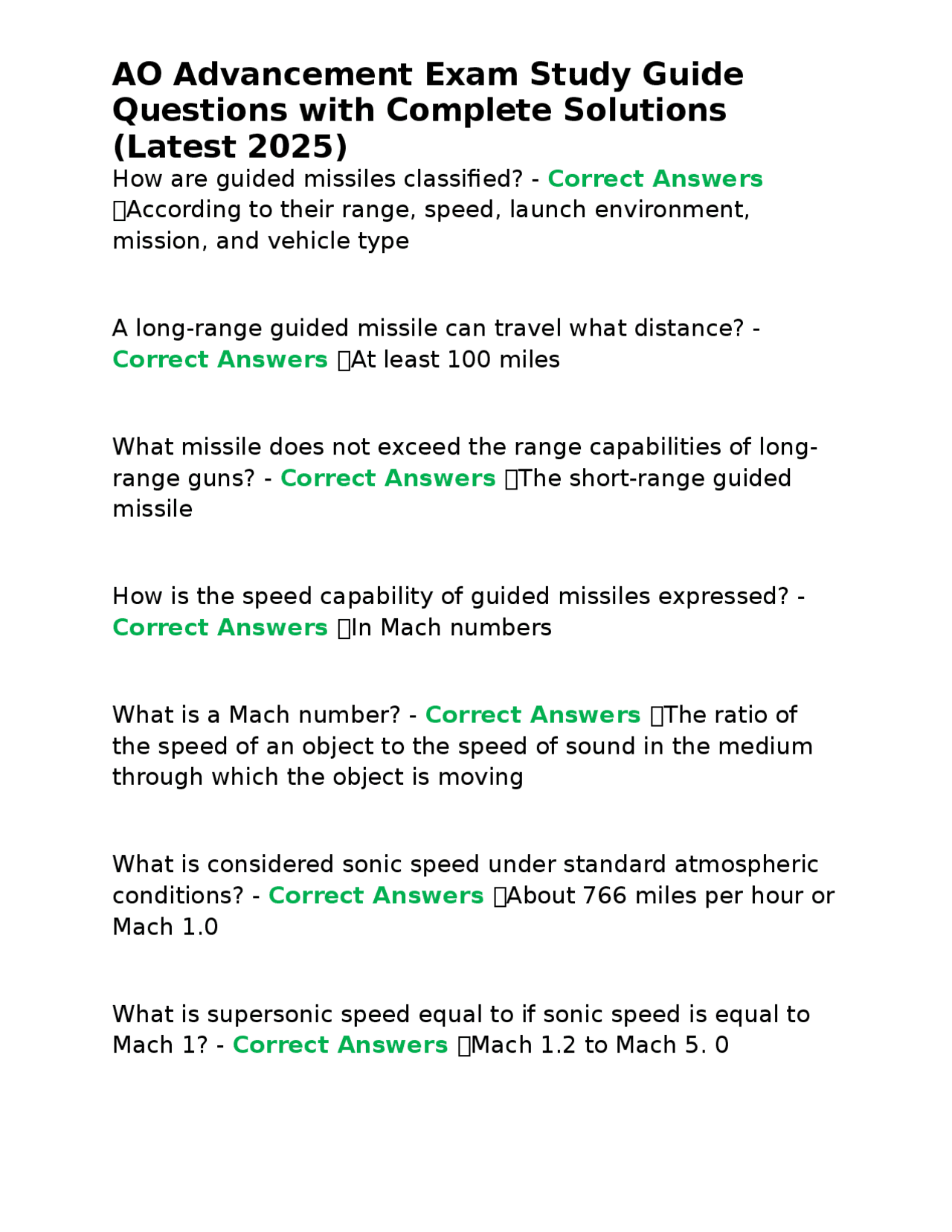

How are guided missiles classified? - Correct Answers ✅According to their range, speed, launch environment, mission, and vehicle type A long-range guided missile can travel what distance? - Correct Answers ✅At least 100 miles What missile does not exceed the range capabilities of long- range guns? - Correct Answers ✅The short-range guided missile How is the speed capability of guided missiles expressed? - Correct Answers ✅In Mach numbers What is a Mach number? - Correct Answers ✅The ratio of the speed of an object to the speed of sound in the medium through which the object is moving What is considered sonic speed under standard atmospheric conditions? - Correct Answers ✅About 766 miles per hour or Mach 1. What is supersonic speed equal to if sonic speed is equal to Mach 1? - Correct Answers ✅Mach 1.2 to Mach 5. 0
Questions with Complete Solutions
(Latest 2025)
How is the speed of a air-launched guided missile determined? - Correct Answers ✅The speed of the launching aircraft is added to the speed of the missile What are the two types of guided missiles? - Correct Answers ✅Service and nonservice missiles What are service missiles? - Correct Answers ✅They are fully operational and fully explosive loaded rounds, designed for service use in time of war What are the two types of nonservice missiles? - Correct Answers ✅Captive air training missiles (CATMs) and dummy air training missiles (DATMs) Which nonservice missile is used for pilot training in aerial target acquisition and aircraft controls/displays? - Correct Answers ✅The CATM Which nonservice missile is used for pilot training during fleet weapon training exercises? - Correct Answers ✅The DATM What is the purpose of dummy air training missiles? - Correct Answers ✅They are ground training missiles used to
Questions with Complete Solutions
(Latest 2025)
What are the three significant color codes used on guided missiles and their components? - Correct Answers ✅Yellow, brown, and blue What do color codes on guided missiles indicate? - Correct Answers ✅The explosive hazard in the missile component Where would you find the serial number in an assembled missile? - Correct Answers ✅The missile serial number is normally the serial number found on the leading component of the missile List the major sections of the guided missile. - Correct Answers ✅The guidance section, control section, armament section, and propulsion section What is considered the "brain" of the missile? - Correct Answers ✅The guidance section The complete missile guidance system includes what two systems? - Correct Answers ✅The electronic sensing system and the control system
Questions with Complete Solutions
(Latest 2025)
Which system carries out the guidance orders initiated by the electronic sensing system? - Correct Answers ✅The control system Name two possible physical influences of a target on which homing systems are based. - Correct Answers ✅Radar reflections and thermal characteristics How are homing systems classified? - Correct Answers ✅As active, semiactive, and passive In what type of homing system is target illumination supplied by a component carried in the missile, such as a radar transmitter? - Correct Answers ✅The active homing system In what type of homing system does the missile get its target illumination from an external source, such as a transmitter carried in the launching aircraft? - Correct Answers ✅The semiactive homing system What components belong to the armament system? - Correct Answers ✅The payload, fuzing, safety and arming (S&A) devices, and target-detecting devices (TDDs)
Questions with Complete Solutions
(Latest 2025)
What are the two basic types of jet propulsion used with guided missiles? - Correct Answers ✅The atmospheric (air- breathing) jet and the thermal jet What is the basic difference between the two propulsion systems? - Correct Answers ✅The atmospheric jet depends on the atmosphere to supply the oxygen for proper fuel burning, and the thermal jet contains its own supply of oxygen and is independent from the atmosphere What are types of atmospheric jet propulsion systems? - Correct Answers ✅The turbojet, pulsejet, and ramjet engines Of the three atmospheric jet propulsion systems, which engine is the only one being used in Navy air-launched missiles? - Correct Answers ✅The turbojet engine List the components of a typical turbojet engine. - Correct Answers ✅An air intake, a mechanical compressor driven by a turbine, a combustion chamber, and an exhaust nozzle What types of propellants are used with thermal jet propulsion systems? - Correct Answers ✅Solid, liquid, and combined propellant systems.
Questions with Complete Solutions
(Latest 2025)
What type of propellant is used in the majority of Navy air- launched guided missiles? - Correct Answers ✅Solid propellant rocket motor What rocket motor contains a single propellant grain made of two types of solid propellant-boost and sustaining? - Correct Answers ✅The dual thrust rocket motor (DTRM) What type of missile is the AIM-7 F/M? - Correct Answers ✅It is a supersonic, air-to-air DTRM, guided missile The AIM-7F/M missile is launched from what aircraft? - Correct Answers ✅F/A-18 aircraft What are the major functional components of the AIM-7F/M missile? - Correct Answers ✅The target seeker and flight control, the rocket motor and warhead Within the radome of the Sparrow III missile, what feature receives and interprets the radar energy reflected from the target? - Correct Answers ✅The target seeker What part of the Sparrow III missile provides control signals and mechanical energy to move the external control surfaces that guide the missile? - Correct Answers ✅The flight control
Questions with Complete Solutions
(Latest 2025)
What section of the Harpoon missile contains the seeker, radar altimeter, mid course guidance unit and power supply?
- Correct Answers ✅The guidance section What components make up the warhead section of the Harpoon missile? - Correct Answers ✅The guided missile fuze, fuze booster, a penetration blast type of explosive, and the pressure probe assembly What section of the Harpoon missile contains the fuel tank and fuel supply system, missile battery, pyrotechnic relay panel, and the turbojet engine? - Correct Answers ✅The sustainer section What types of wings are attached to the sustainer section? - Correct Answers ✅Three BSU-4/B missile wings and one BSU-43/B missile wing What section of the Harpoon missile contains four control actuators, which control the control fins? - Correct Answers ✅The boattail section The AIM-9 series Sidewinder guided missile is equipped with what type of target detection? - Correct Answers ✅Passive infrared target detection
Questions with Complete Solutions
(Latest 2025)
What section of the Sidewinder missile consists of an infrared seeker assembly, an electronic assembly and a gas servo assembly? - Correct Answers ✅The guidance and control section What is the function of the electronic assembly? - Correct Answers ✅It is used for converting detected target information to tracking and guidance command signals What assembly electronically controls and pneumatically operates the four BSU-32/B control fins mounted on the guidance and control section? - Correct Answers ✅The gas servo assembly What item, connected to the guidance and control section, provides the necessary path for the exchange of electronic signals between the missile and aircraft before missile launch? - Correct Answers ✅The umbilical cable What section of the Sidewinder missile detects the presence of an air target within the burst range of the missile warhead and generates an electrical firing signal to the S&A device? - Correct Answers ✅The Target Detector section (TD)
Questions with Complete Solutions
(Latest 2025)
In what way does the laser guidance system work in the Maverick missile? - Correct Answers ✅It has automatic terminal homing on laser energy reflected from the target, which has been illuminated by a laser designator What missile, in conjunction with the launching aircraft's avionics, detects, identifies, and locates enemy radars, displays threat information, and computes target parameters? - Correct Answers ✅The AGM-88A HARM missile What are the three basic modes in which the HARM missile operates? - Correct Answers ✅Self protect, target of opportunity, and pre-brief What provides the mechanical and electrical means of suspending and air-launching a guided missile from an aircraft? - Correct Answers ✅Guided missile launchers What series of guided missile launchers provides a complete launching system for use with the AIM-9 Sidewinder (series) missile? - Correct Answers ✅The LAU-7/A Which of the following are major assemblies of the LAU-7/A (series) missile launcher? - Correct Answers ✅The housing
Questions with Complete Solutions
(Latest 2025)
assembly, nitrogen receiver assembly, mechanism assembly, and power supply What is the main structural member of the LAU-7/A launcher?
- Correct Answers ✅The housing assembly What assembly stores the high-pressure nitrogen (3,200 psig) used to cool the missile's IR detector in the guidance system?
- Correct Answers ✅The nitrogen receiver assembly What is the purpose of the mechanism assembly? - Correct Answers ✅The mechanism assembly is an electromechanical device that holds the missile for takeoffs and landings and releases the missile for launching List the subassemblies of the mechanism assembly. - Correct Answers ✅The electrical harness assembly; the detent, detent lock, detent lock solenoid, and snubbers; and the nitrogen control valve What is the function of the nitrogen control valve? - Correct Answers ✅It is a solenoid-operated shutoff valve that controls the flow of nitrogen from the receiver assembly to the missile
Questions with Complete Solutions
(Latest 2025)
What is the difference between the LAU-116/A guided missile launcher and the LAU-115 series guided missile launcher? - Correct Answers ✅The LAU-116/A launchers are mounted internally in the fuselage structure, the LAU-115 launchers are suspended from bomb racks in the outboard pylons What launcher is used with the HARM, AGM-88, air-to-ground guided missile? - Correct Answers ✅The LAU-118/A guided missile launcher What missiles are carried and launched from the LAU- guided missile launcher? - Correct Answers ✅Both the AIM- 120 series AMRAAM missile and AIM-9 series Sidewinder missile Who is responsible for assembling missile components into complete RFI missiles? - Correct Answers ✅Naval ammunitions depot (NAD) or a naval weapons station (NWS) What is the purpose of mobile missile maintenance units (MMMUs)? - Correct Answers ✅To upgrade missiles from a non-RFI (not ready for issue) status to an RFI status What should be done before connecting igniters in missile motors? - Correct Answers ✅The firing leads should be checked for stray or induced voltages and for static charges
Questions with Complete Solutions
(Latest 2025)
What should you use to clean hydraulic units? - Correct Answers ✅Use only the cleaning solvents or other materials specified in the particular missile publication When leading/handling forward-firing ordnance, what is the desired place you should work? - Correct Answers ✅On the sides of the ordnance What manual is the basic authority for the types of ordnance and ordnance load combinations on each model aircraft? - Correct Answers ✅Naval Air Training and Operating Procedures Standardization (NATOPS) flight/tactical manual To what authority should you submit a change to or request a deviation from a NATOPS flight or tactical manual? - Correct Answers ✅Naval Air Systems Command (NAVAIR) What manual standardizes loading procedures used throughout the Navy and Marine Corps? - Correct Answers ✅The Loading Manual What command resolves conflicts between the weapons/stores loading manuals and other publications? - Correct Answers ✅Naval Air Systems Command
Questions with Complete Solutions
(Latest 2025)
Which of the following weapons may not be loaded on the hangar deck? - Correct Answers ✅AMRAMM, HARM Can you load forward-firing ordnance that requires simultaneous and/or prior electrical connections for loading while aircraft fueling is in progress? - Correct Answers ✅No Fueling, loading and downloading weapons, and installing fuzes and arming wires simultaneously are authorized according to what manual? - Correct Answers ✅The CV NATOPS Manual When is the arming of airborne weapons performed? - Correct Answers ✅After engine turn up but before the aircraft is taxied What weapons are armed in the rearming area? - Correct Answers ✅Retard/nonretarded bombs, CBUs, and fire bombs Who normally performs the arming functions? - Correct Answers ✅The carrier air wing (CVW) arm/dearm crew When are airborne weapons dearmed? - Correct Answers ✅Before or immediately after engine shutdown
Questions with Complete Solutions
(Latest 2025)
When are all forward-firing ordnance dearmed? - Correct Answers ✅Before engine shutdown When is arming or dearming of the aircraft conducted? - Correct Answers ✅Only when the aircraft is at a complete stop, and control of the aircraft has been turned over to the arming crew supervisor Why is the CVW aircraft dearming supervisor always on the flight deck during recovery operations? - Correct Answers ✅He makes sure that a high degree of coordination is maintained between the aircraft directors and the dearming crew What transpires after landing with hung weapons and/or forward firing weapons? - Correct Answers ✅The aircraft is normally safed after taxiing clear of the landing area What is the first step you should take when loading bombs onto parent racks and IMERs/ITERs? - Correct Answers ✅Make sure that the preloading release and control checks have been performed What things should you verify if you are going to load an IMER/ITER? - Correct Answers ✅That an adapter connector
