Exam

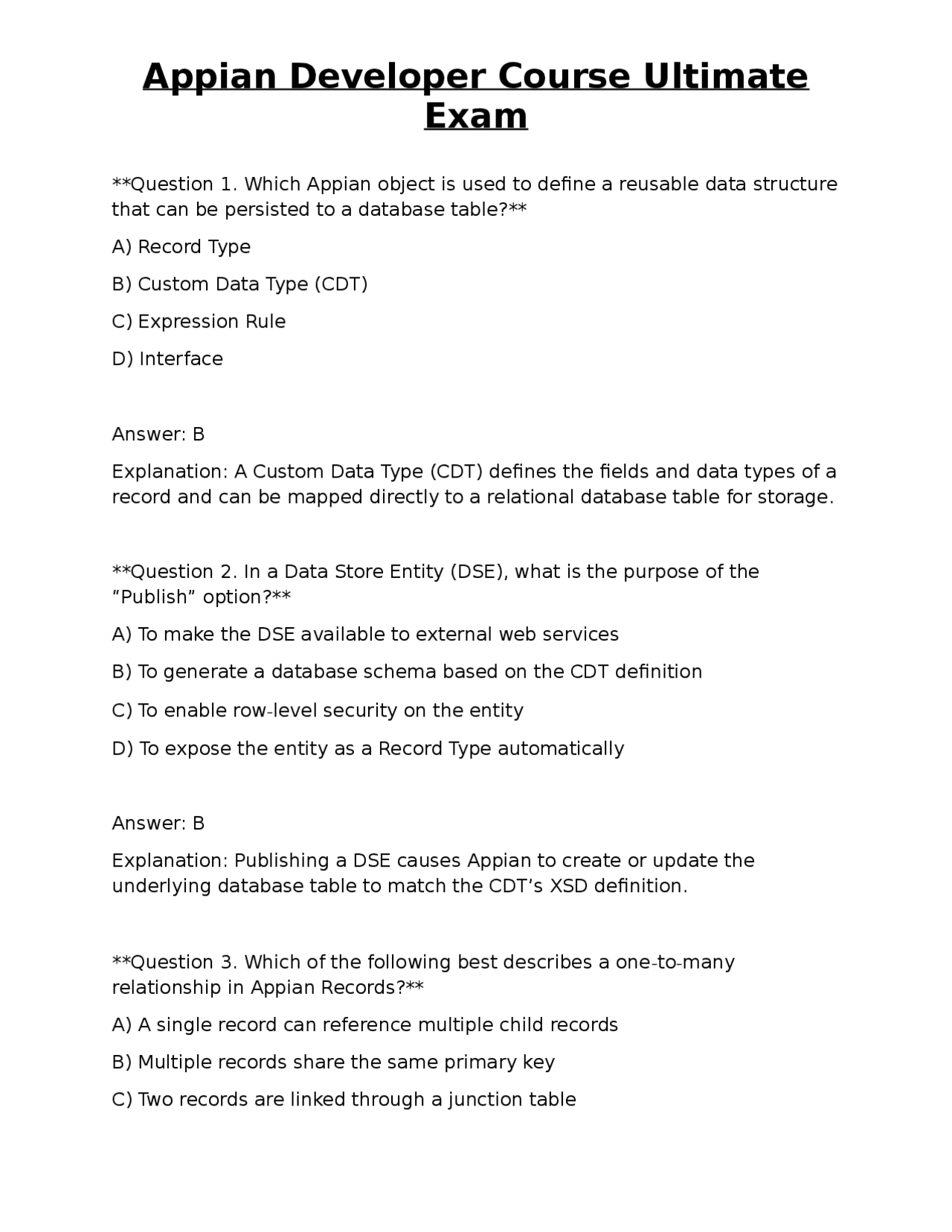

Question 1. Which Appian object is used to define a reusable data structure that can be persisted to a database table? A) Record Type B) Custom Data Type (CDT) C) Expression Rule D) Interface Answer: B Explanation: A Custom Data Type (CDT) defines the fields and data types of a record and can be mapped directly to a relational database table for storage. Question 2. In a Data Store Entity (DSE), what is the purpose of the “Publish” option? A) To make the DSE available to external web services B) To generate a database schema based on the CDT definition C) To enable row-level security on the entity D) To expose the entity as a Record Type automatically Answer: B Explanation: Publishing a DSE causes Appian to create or update the underlying database table to match the CDT’s XSD definition. Question 3. Which of the following best describes a one-to-many relationship in Appian Records? A) A single record can reference multiple child records B) Multiple records share the same primary key C) Two records are linked through a junction table
Exam
D) Each record can have only one parent record Answer: A Explanation: In a one-to-many relationship, one parent record can be associated with many child records, such as a Customer record linked to many Order records. Question 4. Which function is used to retrieve records from a Record Type with pagination support? A) a!queryEntity() B) a!queryRecordType() C) a!read() D) a!fetchRecords() Answer: B Explanation: a!queryRecordType() returns a!recordData that includes paging information, allowing developers to display large datasets efficiently. Question 5. When using a!queryRecordType(), which clause would you use to filter records where the “Status” field equals “Approved”? A) filter: a!queryFilter( field: "status", operator: "=", value: "Approved") B) filter: a!queryFilter( field: "Status", operator: "=", value: "Approved") C) criteria: a!queryCriteria( field: "Status", operator: "=", value: "Approved") D) where: "Status = 'Approved'" Answer: B Explanation: The filter property expects a!queryFilter() with the exact field name (case-sensitive) and the equality operator.
Exam
D) Looping back to a previous node Answer: B Explanation: An XOR (exclusive) gateway evaluates conditions and selects exactly one outgoing path based on those evaluations. Question 9. Which of the following is a best practice for naming Process Variables? A) Use generic names like “var1” for flexibility B) Prefix with “pv_” and use camelCase to indicate scope C) Include spaces for readability D) Use all uppercase letters to denote constants Answer: B Explanation: Prefixing with “pv_” and using camelCase clarifies that the variable is a process variable and improves maintainability. Question 10. How does an escalation timer differ from a regular timer event? A) It restarts the process automatically after timeout B) It triggers a predefined escalation path only if the task is still open after the timeout C) It sends an email to the process owner D) It cancels the process instance Answer: B Explanation: An escalation timer monitors a user task; if the task remains incomplete after the timer expires, it follows an escalation flow.
Exam
Question 11. Which of the following statements about asynchronous processing in Appian is true? A) Asynchronous nodes block the UI until they complete B) They are executed in parallel on separate threads, improving performance for long-running tasks C) They can only be used within sub-processes D) They require a custom Java plugin to function Answer: B Explanation: Asynchronous processing runs in the background, freeing the UI thread and allowing long-running operations without user wait. Question 12. Which Appian component is used to send a message to a running process instance? A) Web API B) Message Event C) Service Task D) Integration Answer: B Explanation: A Message Event can be triggered externally (e.g., via a Web API) to deliver data or signals to a waiting process node. Question 13. In SAIL, which layout component automatically distributes child components horizontally with equal width? A) a!columnLayout() B) a!gridLayout()
Exam
Question 16. Which of the following best describes a “Picklist” component in Appian? A) A component that displays data in a tabular format B) A component that allows users to select one or multiple values from a predefined list C) A component that renders a chart based on numeric data D) A component that captures free-form text input Answer: B Explanation: A Picklist (a!picklistField()) provides a searchable dropdown for selecting single or multiple items. Question 17. What is the purpose of a “Site” object in Appian? A) To store global constants B) To package a collection of interfaces, reports, and other objects for end-users with branding and navigation C) To define database connections D) To manage process scheduling Answer: B Explanation: A Site aggregates interfaces, dashboards, and other components into a cohesive, branded user experience. Question 18. Which attribute of an Interface input determines whether the interface can be called from a web API? A) “allowAnonymous” flag B) “exposeToWebApi” property
Exam
C) “isWebEnabled” setting D) Interfaces are always callable; no special attribute is needed Answer: D Explanation: Any Appian interface can be invoked from a Web API as long as the API’s rule calls it; there is no separate exposure flag. Question 19. Which of the following is a recommended technique for improving mobile performance of an Appian interface? A) Use a!gridLayout() with many columns B) Load all data on page load, regardless of size C) Implement lazy loading with a!fetchData() and pagination D) Disable caching to ensure fresh data Answer: C Explanation: Lazy loading and pagination reduce the amount of data transferred, leading to faster load times on mobile devices. Question 20. Which function allows you to define a reusable piece of logic that can be called from multiple interfaces or expression rules? A) a!localVariables() B) a!constant() C) a!expressionRule() D) a!save() Answer: C Explanation: a!expressionRule() references a stored Expression Rule, enabling reuse across interfaces, process models, and integrations.
Exam
C) They enable dynamic typing of variables D) They replace the need for expression rules Answer: B Explanation: Constants centralize values such as URLs or thresholds, making it easy to adjust them per environment (dev, test, prod) without code changes. Question 24. Which tool helps identify “expensive” expressions that may degrade performance? A) Process Model Dashboard B) Expression Profiler c) Health Check Report D) Application Analyzer Answer: B Explanation: The Expression Profiler measures execution time of expressions, highlighting those that consume significant resources. Question 25. When configuring a REST integration, which authentication type sends credentials in the HTTP header as a Base64-encoded string? A) OAuth 2. B) API Key C) Basic Auth D) SAML Answer: C
Exam
Explanation: Basic Authentication encodes the username and password in Base64 and includes them in the Authorization header. Question 26. Which Appian object is used to store the definition of an external SOAP service? A) Connected System B) Web API C) Integration Object D) Service Variable Answer: A Explanation: A Connected System can be configured for SOAP or REST, storing endpoint URLs, authentication, and other connection details. Question 27. In Appian Document Management, what is the purpose of a “Document Type”? A) To define the file extension allowed for upload B) To enforce metadata fields and versioning policies for a group of documents C) To encrypt documents automatically D) To restrict document access to a single user Answer: B Explanation: Document Types define required metadata, versioning behavior, and security settings for documents stored in the repository. Question 28. Which of the following statements about Web APIs in Appian is true? A) They can only expose data, not start processes
Exam
Explanation: RPA bots simulate user actions on external applications, allowing Appian processes to interact with legacy systems without APIs. Question 31. Which folder permission level in Appian allows a user to edit objects but not delete them? A) Viewer B) Editor C) Administrator D) Contributor Answer: B Explanation: The Editor role grants edit rights while restricting delete operations unless explicitly allowed. Question 32. What does the “Compare and Deploy” feature primarily help with? A) Synchronizing database schemas across environments B) Identifying differences between two application versions and deploying selected changes C) Monitoring real-time process performance D) Generating unit tests for expression rules Answer: B Explanation: Compare and Deploy shows object-level differences between source and target environments, enabling selective deployment. Question 33. In the Health Check report, which category indicates potential security vulnerabilities?
Exam
A) Performance B) Configuration C) Security D) Usability Answer: C Explanation: The Security section flags issues such as missing folder permissions, exposed constants, and weak authentication settings. Question 34. Which log source provides the most detailed information about expression rule execution failures? A) Cloud Logs – Appian Application B) Process Model Dashboard C) System Log – Audit D) Exception Log – Expression Answer: D Explanation: The Exception Log for Expressions captures stack traces and error messages specific to expression rule failures. Question 35. Which of the following is NOT a valid gateway type in Appian Process Modeling? A) XOR B) OR C) NAND D) Complex Answer: C
Exam
B) Mapping Process Variables in the Sub-process Call node’s “Input” tab C) Storing data in a CDT and reading it in the sub-process D) Sending a message event after the sub-process starts Answer: B Explanation: The Sub-process Call node allows the parent to map its variables to the sub-process’s input parameters. **Question 39. Which expression language operator is used for logical AND? ** A) && B) AND() C) & D) &&& Answer: A Explanation: The double-ampersand (&&) performs a logical AND operation between two boolean expressions. Question 40. Which of the following statements about “Local Variables” in SAIL is correct? A) They are persisted to the database automatically B) Their values survive page refreshes C) They exist only for the duration of the current UI rendering cycle D) They can be accessed by expression rules without passing as inputs Answer: C
Exam
Explanation: Local variables are transient, existing only during the current UI session; they reset on a full page refresh. Question 41. Which Appian feature allows you to enforce that a user can only see records that they own? A) Record Type Security – Row-Level Access B) Folder Permissions – Viewer only C) Application Container – Private D) Process Variable Scoping Answer: A Explanation: Row-level security on a Record Type can be configured to filter records based on the current user’s identity. Question 42. When building an Integration that calls an external REST endpoint, which property defines the HTTP method to use? A) Request Type B) HTTP Verb C) Action D) Method Answer: B Explanation: The “HTTP Verb” property selects GET, POST, PUT, DELETE, etc., for the outgoing request. Question 43. What is the default behavior of a Service Task that calls a Connected System integration? A) It runs asynchronously, immediately moving to the next node
Exam
Answer: B Explanation: The @constant annotation lets the rule directly reference a constant by name, simplifying the syntax. Question 46. Which of the following best describes the “Complex” gateway in Appian? A) It evaluates a single Boolean expression to decide the path B) It allows multiple conditions and weighted routing for outgoing flows C) It merges multiple incoming flows into one D) It automatically loops back to the previous node Answer: B Explanation: A Complex gateway can evaluate multiple conditions, assign priorities, and route execution accordingly. Question 47. Which Appian object is used to define a set of related data items that can be displayed in a grid with built-in pagination, sorting, and filtering? A) Record Type B) Data Store Entity C) Interface D) Application Answer: A Explanation: Record Types provide a structured view of data that includes built-in grid functionality with pagination, sorting, and filters.
Exam
Question 48. What is the effect of setting “Allow Anonymous Access” on a Site? A) Users must log in but do not need a specific role B) Anyone on the internet can view the Site without authentication C) Only users in the “Anonymous” group can access the Site D) The Site becomes inaccessible until a user logs in Answer: B Explanation: Enabling anonymous access removes the login requirement, making the Site publicly reachable. Question 49. Which of the following is a recommended approach to handle large result sets in a!queryEntity()? A) Retrieve all rows at once and hide them with CSS B) Use pagination with “pagingInfo” and limit the number of rows per request C) Disable server-side filtering to improve speed D) Increase the “maxRows” property to a very high number Answer: B Explanation: Pagination reduces memory usage and response time by fetching a manageable subset of rows per request. Question 50. Which expression function can be used to convert a text string to a DateTime value? A) date() B) datetime() C) toDate() D) toDateTime()
