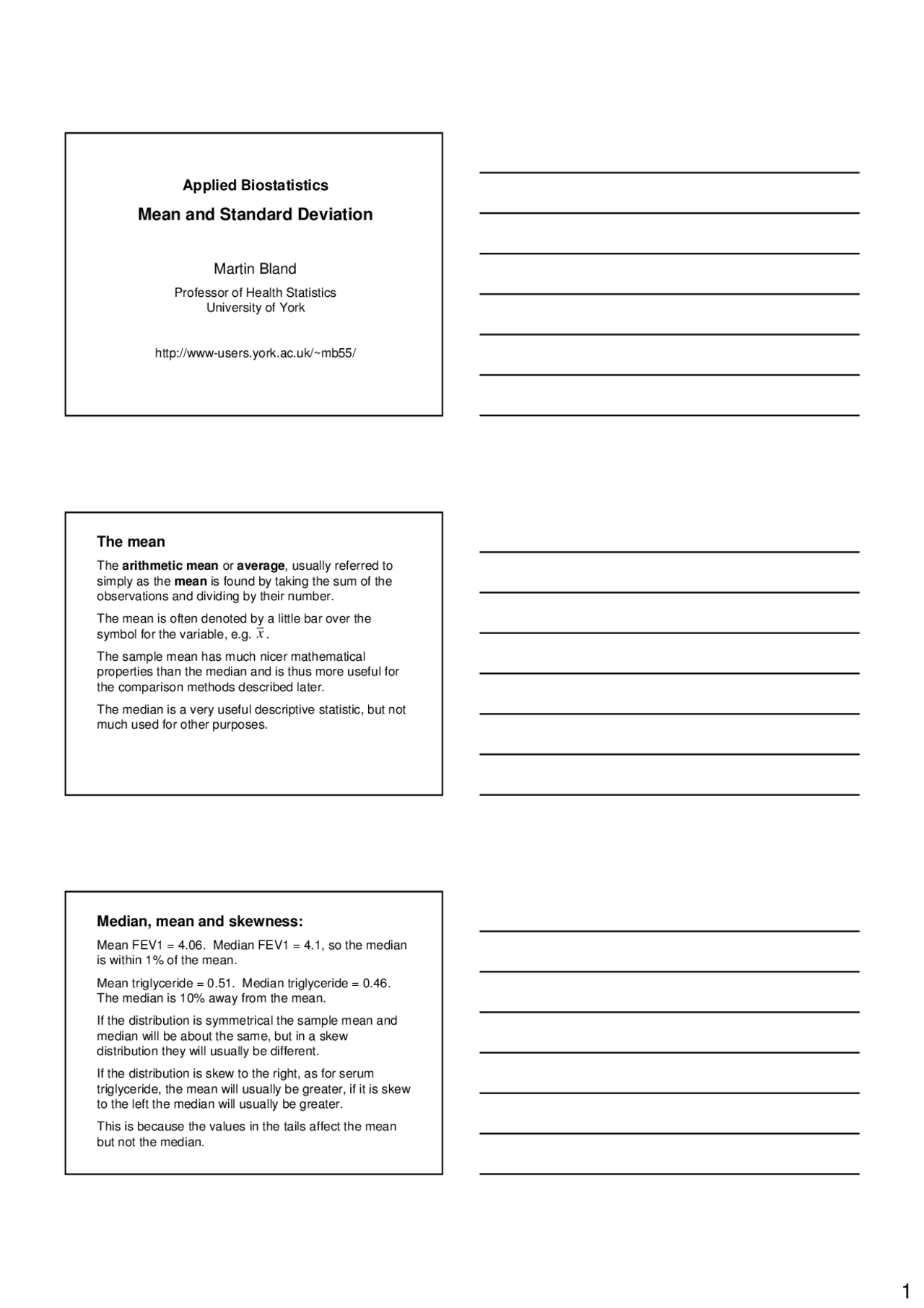

Applied Biostatistics
Mean and Standard Deviation
Martin Bland
Professor of Health Statistics University of York
http://www-users.york.ac.uk/~mb55/
The mean
The arithmetic mean or average , usually referred to simply as the mean is found by taking the sum of the observations and dividing by their number.
The mean is often denoted by a little bar over the symbol for the variable, e.g..
The sample mean has much nicer mathematical properties than the median and is thus more useful for the comparison methods described later.
The median is a very useful descriptive statistic, but not much used for other purposes.
x
Median, mean and skewness:
Mean FEV1 = 4.06. Median FEV1 = 4.1, so the median is within 1% of the mean.
Mean triglyceride = 0.51. Median triglyceride = 0.46. The median is 10% away from the mean.
If the distribution is symmetrical the sample mean and median will be about the same, but in a skew distribution they will usually be different.
If the distribution is skew to the right, as for serum triglyceride, the mean will usually be greater, if it is skew to the left the median will usually be greater.
This is because the values in the tails affect the mean but not the median.
Increasing the largest observation will pull the mean higher.
It will not affect the median.
0
20
40
60
80
Frequency
0 .5 1 1.5 2 Triglyceride Median Mean
Variability
The mean and median are measures of the central tendency or position of the middle of the distribution. We shall also need a measure of the spread, dispersion or variability of the distribution.
Variability
For use in the analysis of data, range and IQR are not satisfactory. Instead we use two other measures of variability: variance and standard deviation. These both measure how far observations are from the mean of the distribution. Variance is the average squared difference from the mean. Standard deviation is the square root of the variance.
Standard deviation
FEV1: s = 0.449 = 0.67 litres.
Frequency
2 3 4 5 6
0
5
10
15
20
FEV1 (litre)
x+2s x+s
x x-s
x-2s
Majority of observations within one SD of mean (usually about 2/3). Almost all within about two SD of mean (usually about 95%).
Standard deviation
Triglyceride: s = 0.04802 = 0.22 mmol/litre.
Majority of observations within one SD of mean (usually about 2/3). Almost all within about two SD of mean (usually about 95%), but those outside may be all at one end.
Frequency
Triglyceride
0 .5 1 1.5 2
0
20
40
60
80
x+2s x-s x+s
x-2s x
Standard deviation
Gestational age: s = 5.242 = 2.29 weeks.
Majority of observations within one SD of mean (usually about 2/3). Almost all within about two SD of mean (usually about 95%), but those outside may be all at one end.
x x-s x-2s x+s x+2s
0
100
200
300
400
500
Frequency
20 25 30 35 40 45 Gestational age (weeks)
Spotting skewness
If the mean is less than two standard deviations, two standard deviations below the mean will be negative.
For any variable which cannot be negative, this tells us that the distribution must be positively skew.
If the mean or the median is near to one end of the range or interquartile range, this tells us that the distribution must be skew. If the mean or median is near the lower limit it will be positively skew, if near the upper limit it will be negatively skew.
Spotting skewness
Triglyceride: median = 0.46, mean = 0.51, SD = 0.22, range = 0.15 to 1.66, IQR = 0.35 to 0. mmol/l.
These rules of thumb only work one way, e.g. mean may exceed two SD and distribution may still be skew.
Gestational age: median = 39, mean = 38.95, SD = 2.29, range = 21 to 44, IQR = 38 to 40 weeks.
The Normal distribution
Many statistical methods are only valid if we can assume that our data follow a distribution of a particular type, the Normal distribution. This is a continuous, symmetrical, unimodal distribution described by a mathematical equation, which we shall omit.
0
5
10
15
20
Frequency
2 3 4 5 6 FEV1 (litres)
The parameters (mean and variance) of a Normal distribution happen to be equal to the mean and variance. These two numbers tell us which member of the Normal family we have.
Mean=0, variance= is called the Standard Normal 0 distribution.
.
.
.
.
Relative frequency
density
-5-4-3-2-1 0 1 2 3 4 5 6 7 8 9 10 Normal variable Mn=0, Var=1 Mn=3, Var= Mn=3, Var=
The parameters (mean and variance) of a Normal distribution happen to be equal to the mean and variance. These two numbers tell us which member of the Normal family we have.
The distributions are the same in terms of standard deviations 0 from the mean.
.
.
.
.
Relative frequency
density
-5-4-3-2-1 0 1 2 3 4 5 6 7 8 9 10 Normal variable Mn=0, SD=1 Mn=3, SD= Mn=3, SD=
The Normal distribution is important for two reasons.
- Many natural variables follow it quite closely, certainly sufficiently closely for us to use statistical methods which require this.
- Even when we have a variable which does not follow a Normal distribution, if we the take the mean of a sample of observations, such means will follow a Normal distribution.
An illustration of the Central Limit Theorem
0
200
400
600
800
Frequency -.2 0 .2 .4 .6 .8 1 1. Uniform variable
Single Uniform variable
0
200
400
600
800
1000
Frequency -.2 0 .2 .4 .6 .8 1 1. Mean of two
Two Uniform variables
0
500
1000
1500
Frequency
-.2 0 .2 .4 .6 .8 1 1. Mean of four
Four Uniform variables
0
500
1000
1500
2000
Frequency
-.2 0 .2 .4 .6 .8 1 1. Mean of ten
Ten Uniform variables
There is no simple formula linking the variable and the area under the curve. Hence we cannot find a formula to calculate the frequency between two chosen values of the variable, nor the value which would be exceeded for a given proportion of observations. Numerical methods for calculating these things with acceptable accuracy were used to produce extensive tables of the Normal distribution. These numerical methods for calculating Normal frequencies have been built into statistical computer programs and computers can estimate them whenever they are needed.
Two numbers from tables of the Normal distribution:
- we expect 68% of observations to lie within one standard deviation from the mean,
- we expect 95% of observations to lie within 1. standard deviations from the mean. This is true for all Normal distributions, whatever the mean, variance, and standard deviation.
