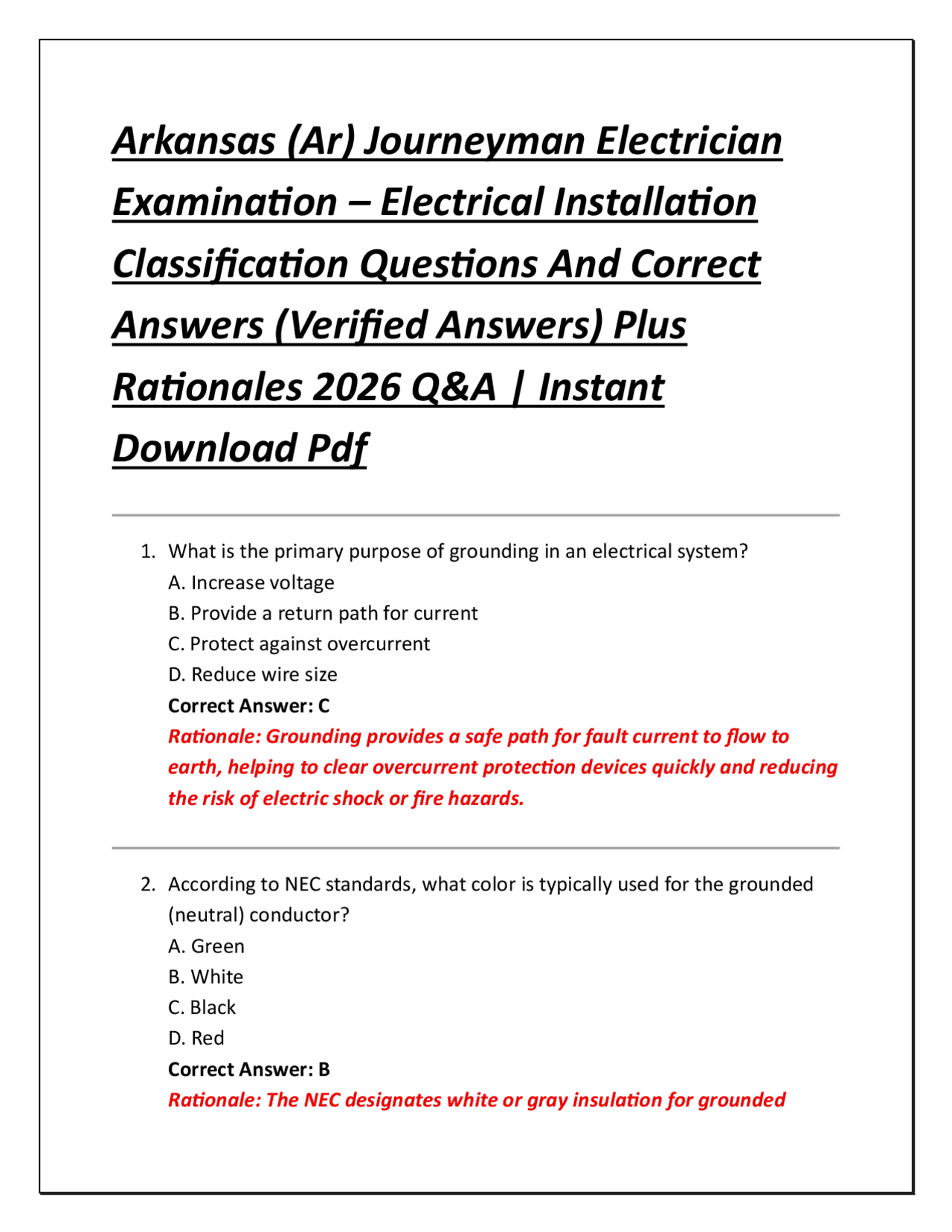

Arkansas (Ar) Journeyman Electrician
Examination – Electrical Installation
Classification Questions And Correct
Answers (Verified Answers) Plus
Rationales 2026 Q&A | Instant
Download Pdf
- What is the primary purpose of grounding in an electrical system? A. Increase voltage B. Provide a return path for current C. Protect against overcurrent D. Reduce wire size Correct Answer: C Rationale: Grounding provides a safe path for fault current to flow to earth, helping to clear overcurrent protection devices quickly and reducing the risk of electric shock or fire hazards.
- According to NEC standards, what color is typically used for the grounded (neutral) conductor? A. Green B. White C. Black D. Red Correct Answer: B Rationale: The NEC designates white or gray insulation for grounded
(neutral) conductors to clearly distinguish them from ungrounded (hot) conductors and ensure safe identification during installation and maintenance.
- What is the function of a circuit breaker? A. Increase current B. Store electrical energy C. Protect against overloads and short circuits D. Convert AC to DC Correct Answer: C Rationale: A circuit breaker automatically interrupts current flow when it detects overload or short-circuit conditions, protecting wiring and equipment from damage and reducing fire risk.
- Which tool is used to measure electrical current? A. Voltmeter B. Ammeter C. Ohmmeter D. Wattmeter Correct Answer: B Rationale: An ammeter is designed to measure the flow of electric current in amperes and is placed in series with the circuit to obtain accurate readings.
- What does Ohm’s Law state? A. V = I × R B. P = V × I C. I = P × R D. R = V × P Correct Answer: A
Correct Answer: B Rationale: The United States uses 60 Hz alternating current, which means the current changes direction 60 times per second, ensuring compatibility with standard electrical systems.
- Which material is commonly used for electrical conduit in corrosive environments? A. PVC B. Aluminum C. Steel D. Copper Correct Answer: A Rationale: PVC conduit is resistant to corrosion and moisture, making it ideal for underground or corrosive environments where metal conduits may degrade. 10.What is the purpose of a transformer? A. Store electricity B. Change voltage levels C. Measure resistance D. Break circuits Correct Answer: B Rationale: A transformer transfers electrical energy between circuits and changes voltage levels (step-up or step-down) using electromagnetic induction. 11.What type of current flows in one direction only? A. Alternating current B. Direct current C. Pulsating current
D. Reactive current Correct Answer: B Rationale: Direct current (DC) flows in a single, constant direction, commonly found in batteries and electronic devices. 12.What is the main function of a fuse? A. Store energy B. Limit voltage C. Protect against overcurrent D. Increase current Correct Answer: C Rationale: A fuse contains a metal element that melts when excessive current flows, breaking the circuit and protecting wiring and equipment. 13.Which wire is typically used as a grounding conductor? A. Black B. White C. Green or bare D. Red Correct Answer: C Rationale: Green or bare copper conductors are designated for grounding to safely carry fault current to earth and prevent shock hazards. 14.What is the unit of electrical resistance? A. Volt B. Ampere C. Ohm D. Watt Correct Answer: C
18.What does NEC stand for? A. National Electrical Code B. National Energy Control C. Network Electrical Circuit D. National Electric Company Correct Answer: A Rationale: NEC stands for National Electrical Code, which provides safety standards for electrical installation and design in the United States. 19.What type of motor is most commonly used in residential HVAC systems? A. DC motor B. Universal motor C. Induction motor D. Stepper motor Correct Answer: C Rationale: Induction motors are widely used in HVAC systems due to their reliability, efficiency, and ability to operate on AC power. 20.What is the main purpose of insulation on wires? A. Increase current flow B. Prevent electrical leakage and shock C. Reduce voltage D. Store energy Correct Answer: B Rationale: Insulation prevents unintended contact between conductors and protects against electrical shock, short circuits, and energy loss. 21.What is the standard voltage for residential service in the U.S.? A. 120/240V B. 277/480V
C. 600V
D. 12V
Correct Answer: A Rationale: Most residential systems use 120/240V split-phase power to supply both general outlets and high-power appliances. 22.What device is used to protect motors from overload? A. Relay B. Thermal overload relay C. Transformer D. Capacitor Correct Answer: B Rationale: Thermal overload relays protect motors by detecting excessive heat caused by overload conditions and disconnecting power before damage occurs. 23.What is the purpose of bonding in electrical systems? A. Increase voltage B. Ensure all metal parts are electrically connected C. Reduce resistance D. Store energy Correct Answer: B Rationale: Bonding connects metal parts together to ensure equal electrical potential and reduce the risk of shock due to voltage differences. 24.What is the formula for electrical power? A. P = V × I B. P = V ÷ I C. P = I ÷ R D. P = R × V
Rationale: LED lighting uses significantly less energy, lasts longer, and produces less heat compared to other lighting technologies. 28.What is the purpose of a capacitor in a motor circuit? A. Increase resistance B. Store and release electrical energy C. Reduce voltage D. Convert AC to DC Correct Answer: B Rationale: Capacitors store electrical energy and help start or run motors by improving phase shift and efficiency. 29.What is the main hazard of an overloaded circuit? A. Increased efficiency B. Reduced voltage only C. Fire risk due to overheating D. Faster current flow Correct Answer: C Rationale: Overloaded circuits generate excessive heat in conductors, which can degrade insulation and potentially cause electrical fires. 30.What is the purpose of a conduit? A. Store wires B. Protect and route electrical wiring C. Increase voltage D. Generate current Correct Answer: B Rationale: Conduit provides physical protection and organized routing for electrical conductors, improving safety and durability.
31.What does polarity refer to in electrical systems? A. Wire thickness B. Direction of current flow C. Resistance level D. Voltage strength Correct Answer: B Rationale: Polarity indicates the direction of current flow and proper connection of positive and negative terminals in DC systems or hot/neutral identification in AC systems. 32.What is the purpose of a neutral conductor? A. Carry fault current only B. Provide return path for current C. Ground equipment D. Increase voltage Correct Answer: B Rationale: The neutral conductor carries current back to the source under normal operation, completing the circuit in AC systems. 33.What is a short circuit? A. High resistance path B. Direct low-resistance path between conductors C. Open circuit condition D. Controlled current flow Correct Answer: B Rationale: A short circuit occurs when current bypasses normal load paths, resulting in excessive current flow that can damage equipment. 34.What is the purpose of a breaker panel? A. Generate electricity
Correct Answer: B Rationale: Surge protectors limit excessive voltage spikes caused by lightning or switching events, protecting sensitive electronic equipment. 38.What type of connection is used for most household outlets? A. Series B. Parallel C. Open D. Delta Correct Answer: B Rationale: Parallel connections ensure each outlet receives full voltage independently and allows devices to operate separately without affecting others. 39.What is the purpose of a junction box? A. Generate power B. Enclose wire connections safely C. Increase voltage D. Reduce resistance Correct Answer: B Rationale: Junction boxes protect and organize wire connections, preventing exposure and reducing fire and shock hazards. 40.What is the main function of a relay? A. Store power B. Control a circuit using a low-power signal C. Increase voltage D. Measure resistance Correct Answer: B
Rationale: A relay allows a low-power control circuit to switch a higher- power circuit safely and efficiently. 41.What is electrical resistance affected by? A. Wire color B. Material, length, and temperature C. Voltage only D. Current only Correct Answer: B Rationale: Resistance depends on conductor material, length, cross- sectional area, and temperature, influencing how current flows through a circuit. 42.What is the purpose of arc flash protection? A. Increase voltage B. Protect against explosive electrical discharge C. Reduce resistance D. Store energy Correct Answer: B Rationale: Arc flash protection reduces injury risk from sudden high- energy electrical discharges that can cause severe burns and equipment damage. 43.What is the function of a meter base? A. Store electricity B. Measure electrical usage C. Increase current D. Convert AC to DC Correct Answer: B
47.What is a common cause of voltage drop? A. Short wires B. Long conductor runs and resistance C. High insulation D. Low current Correct Answer: B Rationale: Voltage drop occurs when resistance in long wire runs reduces voltage available at the load. 48.What is the purpose of a panel schedule? A. Increase power B. Identify circuits in a panel C. Store energy D. Reduce voltage Correct Answer: B Rationale: A panel schedule lists all circuits in a breaker panel for identification, maintenance, and troubleshooting. 49.What is the purpose of a disconnecting means? A. Increase current B. Safely isolate equipment from power source C. Store electricity D. Reduce resistance Correct Answer: B Rationale: A disconnecting means allows safe shutdown of equipment for servicing and emergency situations. 50.What is the effect of high resistance in a circuit? A. Increased current B. Reduced current flow
C. Increased voltage D. No change Correct Answer: B Rationale: High resistance restricts electron flow, reducing current and potentially causing overheating at resistance points. CONTINUATION – QUESTIONS 51– 100 51.What is the purpose of a ground fault? A. Normal operation B. Unintended current path to ground C. Voltage increase D. Resistance reduction Correct Answer: B Rationale: A ground fault occurs when current flows unintentionally to ground, often due to insulation failure, creating shock and fire hazards. 52.What is the main purpose of a distribution transformer? A. Increase resistance B. Step voltage down for consumer use C. Store energy D. Convert DC to AC Correct Answer: B Rationale: Distribution transformers reduce high transmission voltages to safer, usable levels for residential and commercial use. 53.What is the function of an overload relay in motor control? A. Increase voltage B. Protect motor from excessive current C. Store energy D. Convert AC to DC
57.What is the purpose of insulation resistance testing? A. Measure current B. Check conductor integrity C. Increase voltage D. Reduce load Correct Answer: B Rationale: Insulation resistance testing verifies that wire insulation is intact and not allowing leakage current. 58.What is a common characteristic of aluminum wiring? A. Higher conductivity than copper B. Requires special connections due to expansion C. Does not require grounding D. Cannot carry current Correct Answer: B Rationale: Aluminum expands and contracts more than copper, requiring special connectors to prevent loose or hazardous connections. 59.What is the purpose of a circuit breaker trip curve? A. Measure voltage B. Define response time to overload C. Increase resistance D. Store energy Correct Answer: B Rationale: Trip curves show how quickly a breaker responds to different levels of overcurrent, ensuring proper protection coordination. 60.What is the purpose of a motor starter? A. Increase voltage
B. Safely start and stop motors C. Store energy D. Measure resistance Correct Answer: B Rationale: Motor starters control motor starting current and provide overload protection, ensuring safe operation. 61.What is the main function of a busbar? A. Insulate wires B. Conduct and distribute high current C. Store energy D. Reduce voltage Correct Answer: B Rationale: Busbars are metal strips that efficiently distribute large electrical currents within panels and switchgear. 62.What is the purpose of arc fault protection? A. Increase voltage B. Detect dangerous arcing conditions C. Store electricity D. Reduce resistance Correct Answer: B Rationale: Arc fault devices detect unintended electrical arcs that could cause fires and disconnect power quickly. 63.What is the function of a step-up transformer? A. Decrease voltage B. Increase voltage C. Store energy D. Convert DC to AC
