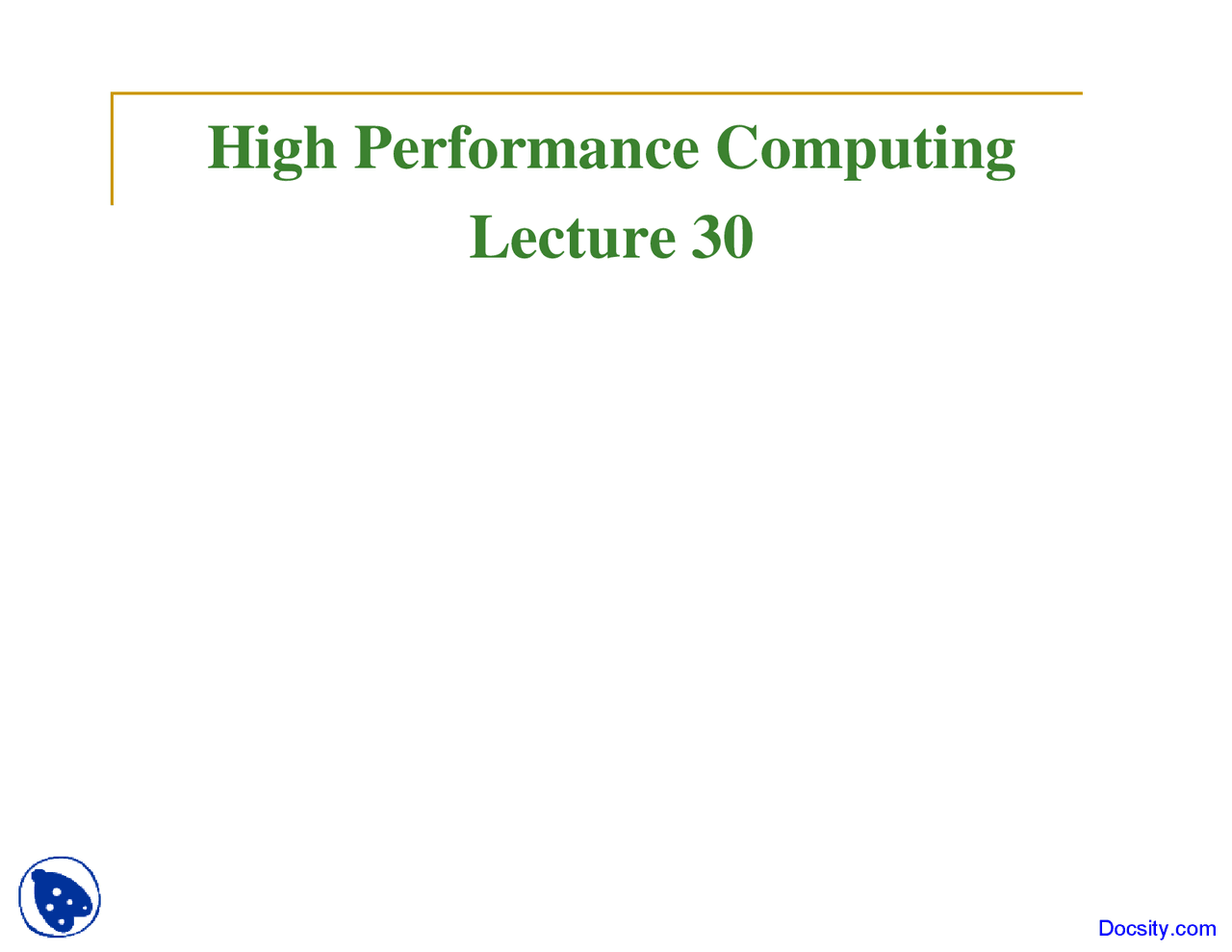

High Performance Computing

Lecture 30

2

Example 2 with Array Merging

What if we re-declare the arrays as

struct {double A, B;} array[2048]; for (i=0; i<2048, i++) sum += array[i]. Aarray[i].* B;

Hit ratio: 75%

4

Example 4: 2-d Matrix Sum

double A[1024][1024], B[1024][1024]; for (j=0;j<1024;j++) for (i=0;i<1024;i++) B[i][j] = A[i][j] + B[i][j];

 Reference Sequence:

load A[0,0] load B[0,0] store B[0,0] load A[1,0] load B[1,0] store B[1,0] …

 Question: In what order are the elements of a

multidimensional array stored in memory?

5

Storage of Multi-dimensional Arrays

 Row major order

 Example: for a 2-dimensional array, the elements of the first row of the array are followed by those of the 2 nd row of the array, the 3 rd row, and so on  This is what is used in C

 Column major order

 A 2-dimensional array is stored column by column in memory  Used in FORTRAN

7

Example 4 with Loop Interchange

double A[1024][1024], B[1024][1024]; for (j=0; j<1024; j++) for (i=0; i<1024; i++) B[i][j] = A[i][j] + B[i][j];

8

Example 4 with Loop Interchange.

double A[1024][1024], B[1024][1024]; for (i=0; i<1024; i++) for (j=0; j<1024; j++) B[i][j] = A[i][j] + B[i][j];

 Reference Sequence:

load A[0,0] load B[0,0] store B[0,0] load A[0,1] load B[0,1] store B[0,1] …

 Hit ratio: 83.3%
