Vascular Sonography VS Certification
Exam Guide

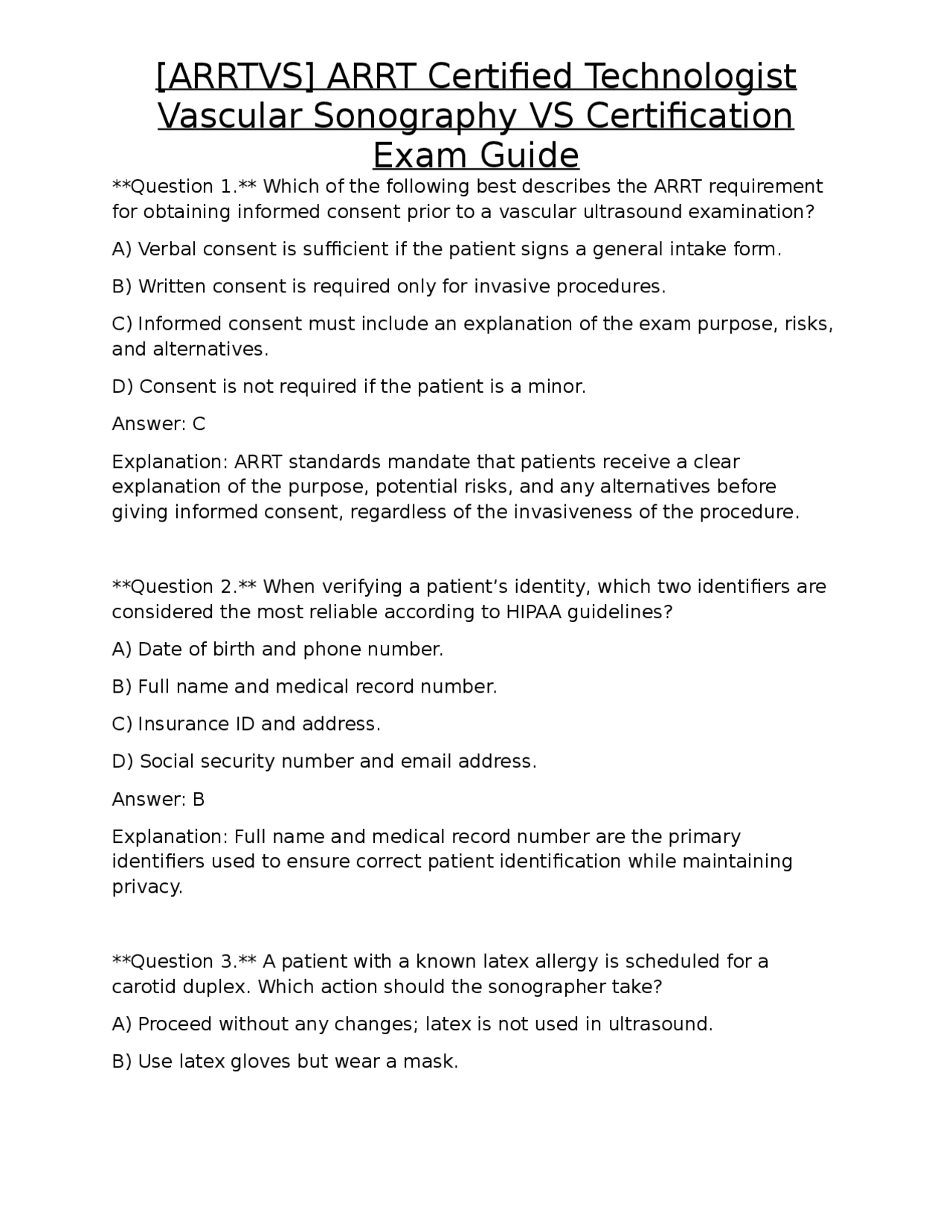

Question 1. Which of the following best describes the ARRT requirement for obtaining informed consent prior to a vascular ultrasound examination? A) Verbal consent is sufficient if the patient signs a general intake form. B) Written consent is required only for invasive procedures. C) Informed consent must include an explanation of the exam purpose, risks, and alternatives. D) Consent is not required if the patient is a minor. Answer: C Explanation: ARRT standards mandate that patients receive a clear explanation of the purpose, potential risks, and any alternatives before giving informed consent, regardless of the invasiveness of the procedure. Question 2. When verifying a patient’s identity, which two identifiers are considered the most reliable according to HIPAA guidelines? A) Date of birth and phone number. B) Full name and medical record number. C) Insurance ID and address. D) Social security number and email address. Answer: B Explanation: Full name and medical record number are the primary identifiers used to ensure correct patient identification while maintaining privacy. Question 3. A patient with a known latex allergy is scheduled for a carotid duplex. Which action should the sonographer take? A) Proceed without any changes; latex is not used in ultrasound. B) Use latex gloves but wear a mask.
Vascular Sonography VS Certification
Exam Guide
C) Replace latex gloves with nitrile gloves and ensure the exam room is latex-free. D) Cancel the exam until the allergy resolves. Answer: C Explanation: Patients with latex allergy require latex-free equipment and environment to prevent anaphylactic reactions. Question 4. During a vascular exam, a patient becomes short of breath and cyanotic. What is the sonographer’s first immediate action? A) Continue the exam and document the event. B) Call for emergency assistance and begin CPR if needed. C) Stop the exam, place the patient in a supine position, and assess airway. D) Increase the ultrasound gain to better visualize the heart. Answer: C Explanation: The sonographer should stop the exam, ensure the patient is safe, assess airway and breathing, and then call emergency services. Immediate life-saving measures precede documentation. Question 5. Which of the following body-mechanic techniques helps prevent lower-back injury when transferring a patient onto the examination table? A) Bending at the waist and lifting with the arms. B) Keeping the knees bent and using the legs to lift. C) Twisting the torso while lifting. D) Using a rapid jerking motion. Answer: B
Vascular Sonography VS Certification
Exam Guide
B) Decreased color box depth. C) Reduced likelihood of aliasing. D) Higher spatial resolution. Answer: C Explanation: Higher PRF raises the Nyquist limit, making aliasing less likely for high-velocity flows. Question 9. Which artifact is most commonly produced when an ultrasound beam encounters a highly reflective interface such as bone? A) Mirror image artifact. B) Acoustic shadowing. C) Reverberation artifact. D) Enhancement artifact. Answer: B Explanation: Strong reflection from bone creates an acoustic shadow distal to the interface, obscuring deeper structures. Question 10. In color Doppler imaging, the direction of flow toward the transducer is typically displayed as: A) Red. B) Blue. C) Green. D) Yellow. Answer: A Explanation: Standard color mapping shows flow toward the transducer in red and away in blue.
Vascular Sonography VS Certification
Exam Guide
Question 11. The Doppler shift equation includes an angle factor. At which angle is the Doppler shift most accurate? A) 0° (parallel to flow). B) 30°. C) 60°. D) 90°. Answer: A Explanation: The cosine of 0° is 1, providing the maximum Doppler shift and eliminating angle-related error; as the angle approaches 90°, the shift diminishes. Question 12. Which of the following best describes laminar flow in a peripheral artery? A) Turbulent eddies with chaotic velocity vectors. B) Uniform velocity across the vessel lumen. C) High velocity at the center and slower velocity near the walls. D) No flow at all. Answer: C Explanation: Laminar flow follows Poiseuille’s law, with a parabolic velocity profile—fastest centrally and slower near the vessel wall. Question 13. According to Bernoulli’s principle, what happens to pressure when blood velocity increases in a narrowed arterial segment? A) Pressure increases. B) Pressure remains unchanged. C) Pressure decreases. D) Pressure fluctuates randomly.
Vascular Sonography VS Certification
Exam Guide
C) ICA/CCA PSV ratio > 2. D) All of the above. Answer: D Explanation: All three criteria (PSV, EDV, and ICA/CCA ratio) are used together to grade ICA stenosis. Question 17. During a transcranial Doppler (TCD) study, which intracranial artery is most commonly insonated through the temporal bone window? A) Anterior cerebral artery. B) Middle cerebral artery. C) Posterior cerebral artery. D) Basilar artery. Answer: B Explanation: The middle cerebral artery (MCA) is accessed via the transtemporal window and is the primary vessel examined in TCD. Question 18. In a lower-extremity arterial exam, the Ankle-Brachial Index (ABI) is calculated by dividing: A) Ankle systolic pressure by brachial diastolic pressure. B) Ankle systolic pressure by brachial systolic pressure. C) Brachial systolic pressure by ankle systolic pressure. D) Mean arterial pressure at the ankle by mean arterial pressure at the brachial artery. Answer: B Explanation: ABI = ankle systolic pressure / brachial systolic pressure; values <0.90 suggest peripheral arterial disease.
Vascular Sonography VS Certification
Exam Guide
Question 19. Which of the following findings on a duplex scan is most indicative of a hemodynamically significant popliteal artery stenosis? A) PSV 45 cm/s, EDV 10 cm/s. B) PSV 200 cm/s, EDV 80 cm/s. C) PSV 80 cm/s, EDV 20 cm/s. D) PSV 120 cm/s, EDV 30 cm/s. Answer: B Explanation: High PSV (>180 cm/s) and elevated EDV suggest a >70% stenosis, indicating hemodynamic significance. Question 20. A patient presents with a swelling in the groin after femoral catheterization. Which sonographic sign confirms a pseudoaneurysm? A) Uniform anechoic cyst with posterior enhancement. B) “Yin-yang” color flow pattern with a to-and-fro spectral waveform at the neck. C) Continuous high-velocity flow throughout the sac. D) Absence of flow on color Doppler. Answer: B Explanation: Pseudoaneurysms show a characteristic “yin-yang” color pattern and a to-and-fro (bidirectional) waveform at the neck due to blood entering and exiting the sac. Question 21. In compression sonography for deep vein thrombosis (DVT), what is the expected finding in a normal compressible vein? A) Persistent lumen with no change. B) Complete obliteration of the lumen.
Vascular Sonography VS Certification
Exam Guide
Question 24. In a portal vein duplex, which spectral Doppler pattern is typical of normal portal flow? A) Pulsatile with high systolic peaks. B) Continuous, monophasic, low-velocity flow with slight respiratory variation. C) Bidirectional flow. D) High-velocity, turbulent flow. Answer: B Explanation: Portal venous flow is low-velocity, monophasic, and shows respiratory phasicity rather than cardiac pulsatility. Question 25. A renal artery stenosis is suspected. Which Doppler criterion is most reliable for diagnosing >60% stenosis? A) Renal artery PSV > 180 cm/s. B) Renal–aortic ratio (RAR) > 3.5. C) Presence of tardus-parvus waveform downstream. D) All of the above. Answer: D Explanation: Elevated PSV, a high renal-aortic ratio, and a tardus-parvus pattern collectively indicate significant renal artery stenosis. Question 26. During a transjugular intrahepatic portosystemic shunt (TIPS) evaluation, which finding suggests shunt patency? A) Absence of flow in the portal vein. B) High-velocity, low-resistance flow through the stent. C) Complete thrombosis of the hepatic veins. D) Reversal of hepatic arterial flow.
Vascular Sonography VS Certification
Exam Guide
Answer: B Explanation: A patent TIPS demonstrates continuous, high-velocity, low-resistance flow within the stent, confirming functional shunting. Question 27. Which of the following is a correct statement regarding the use of power Doppler in vascular imaging? A) It provides quantitative velocity measurements. B) It is angle-independent and more sensitive to low-flow states. C) It displays flow direction with color coding. D) It replaces spectral Doppler for all arterial assessments. Answer: B Explanation: Power Doppler is highly sensitive to low-flow signals and does not depend on the angle of insonation, but it does not provide velocity or direction information. Question 28. The term “dynamic range” in ultrasound image processing refers to: A) The range of depths that can be displayed. B) The ratio between the strongest and weakest echoes displayed. C) The frequency range of the transducer. D) The time interval between pulses. Answer: B Explanation: Dynamic range determines the grayscale contrast by setting the ratio between the maximum and minimum echo intensities displayed. Question 29. In a duplex study of the upper extremity, the subclavian artery shows a reversed flow pattern during arm elevation. This finding is most consistent with:
Vascular Sonography VS Certification
Exam Guide
Answer: B Explanation: Critical vascular findings require immediate verbal communication to the interpreting physician and documentation of that communication for patient safety. Question 32. Which of the following is the primary purpose of Time Gain Compensation (TGC) in vascular ultrasound? A) Adjust overall image brightness. B) Equalize gain at different depths to compensate for attenuation. C) Change the transducer frequency. D) Reduce aliasing. Answer: B Explanation: TGC allows the operator to selectively increase gain at deeper zones where attenuation is greater, ensuring uniform image brightness. Question 33. During a peripheral arterial exam, a segmental pressure is recorded as 85 mmHg in the posterior tibial artery while the brachial pressure is 130 mmHg. What is the segmental ABI for this segment? A) 0. B) 0. C) 1. D) 1. Answer: A Explanation: Segmental ABI = posterior tibial pressure (85) / brachial pressure (130) = 0.65, indicating moderate arterial disease. Question 34. In Doppler physics, what is the effect of increasing the pulse duration (i.e., longer pulse length) on axial resolution?
Vascular Sonography VS Certification
Exam Guide
A) Improves axial resolution. B) Degrades axial resolution. C) No effect on axial resolution. D) Improves lateral resolution. Answer: B Explanation: Longer pulse duration increases spatial pulse length, which reduces axial resolution because the ability to distinguish two closely spaced reflectors along the beam is diminished. Question 35. Which of the following is a typical sonographic appearance of a chronic deep vein thrombosis (DVT) on gray-scale imaging? A) Anechoic, well-defined cyst. B) Hyperechoic, partially recanalized lumen with echogenic material. C) Uniformly anechoic lumen. D) Completely absent vein. Answer: B Explanation: Chronic DVT often appears as echogenic thrombus with possible recanalization channels, reflecting organization of the clot. Question 36. When performing a transcranial Doppler (TCD) through the suboccipital window, which vessel is most commonly evaluated? A) Middle cerebral artery. B) Basilar artery. C) Anterior cerebral artery. D) Posterior inferior cerebellar artery. Answer: B
Vascular Sonography VS Certification
Exam Guide
B. Immediate surgical repair. C. Observation without follow-up. D. Endovascular repair only if diameter exceeds 6 cm. Answer: B Explanation: AAAs ≥5.5 cm are generally recommended for repair; at 5.2 cm, close surveillance (every 6–12 months) is typical, but many guidelines suggest repair at 5.5 cm. Since 5.2 cm is below that threshold, the correct answer is A. (Corrected) Explanation: Current guidelines recommend surveillance for AAAs measuring 4.0–5.4 cm, with follow-up intervals of 6–12 months; repair is usually considered at ≥5.5 cm. Question 40. Which of the following statements about the use of color Doppler gain is correct? A) Increasing gain always improves color sensitivity without side effects. B) Too high gain can cause color blooming and obscure flow boundaries. C) Gain does not affect the detection of low-velocity flow. D) Gain should be set to the maximum level for all studies. Answer: B Explanation: Excessive gain leads to color blooming, where color extends beyond the true vessel border, reducing diagnostic accuracy. Question 41. In the evaluation of a suspected renal artery stenosis, the “parvus” component of tardus-parvus refers to: A) Decreased peak systolic velocity. B) Increased diastolic flow. C) Delayed systolic upstroke. D) Turbulent flow pattern.
Vascular Sonography VS Certification
Exam Guide
Answer: C Explanation: “Parvus” denotes a delayed systolic upstroke, while “tardus” refers to the overall slow rise of the waveform. Question 42. A sonographer is performing a lower extremity venous study and notices respiratory phasicity in the femoral vein Doppler trace. What does this indicate? A) Venous thrombosis. B) Normal venous flow. C) Arterial contamination. D) High-output cardiac state. Answer: B Explanation: Respiratory phasicity (variation in flow with breathing) is a normal finding in deep veins, reflecting changes in intra-abdominal pressure. Question 43. Which of the following is the most appropriate method for confirming the presence of a subclavian steal? A) Measuring brachial artery pressure only. B) Demonstrating retrograde flow in the ipsilateral vertebral artery on Doppler. C) Performing a CT angiogram. D) Observing a bruit over the clavicle. Answer: B Explanation: Subclavian steal is diagnosed by detecting reversed flow in the vertebral artery distal to a proximal subclavian stenosis. Question 44. In a duplex exam of the carotid bifurcation, a “string sign” on B-mode imaging most likely represents:
Vascular Sonography VS Certification
Exam Guide
Explanation: Hepatic veins exhibit a triphasic waveform reflecting cardiac cycle influences: forward flow during systole, brief reversal during atrial contraction, and a second forward component. Question 47. Which of the following statements about the “pulse repetition frequency (PRF) limit” is correct? A) The maximum measurable velocity is directly proportional to PRF. B) PRF has no impact on the Nyquist limit. C) Low PRF increases the likelihood of aliasing. D) High PRF always improves image resolution. Answer: C Explanation: Low PRF reduces the Nyquist limit, making aliasing more likely when high velocities are present. Question 48. In a peripheral arterial duplex, the presence of a “post-stenotic turbulence” on color Doppler is most indicative of: A) Normal flow. B) Severe proximal stenosis. C) Distal arterial occlusion. D) Venous insufficiency. Answer: B Explanation: Turbulent color flow distal to a narrowing is a hallmark of significant upstream stenosis. Question 49. When documenting a vascular ultrasound study, which element is NOT required according to ARRT standards? A) Patient demographic data.
Vascular Sonography VS Certification
Exam Guide
B) Detailed technical parameters (frequency, PRF, gain). C. The sonographer’s favorite color. D) Clinical indication and findings. Answer: C Explanation: Personal preferences such as favorite color are irrelevant to professional documentation. Question 50. A patient with chronic renal insufficiency is undergoing a renal artery duplex. Which adjustment is most appropriate to improve visualization of small intrarenal arteries? A) Decrease the transducer frequency to 2 MHz. B) Increase the frequency to 7–10 MHz. C) Increase the depth setting. D) Turn off color Doppler. Answer: B Explanation: Higher frequencies provide better resolution needed for small intrarenal vessels, though penetration may be limited; the kidney is superficial enough for 7–10 MHz. Question 51. Which of the following is the primary cause of acoustic shadowing artifact? A) Low attenuation tissue. B. Highly attenuating structures such as bone or calcifications. C. Rapid probe movement. D. Excessive gain. Answer: B
