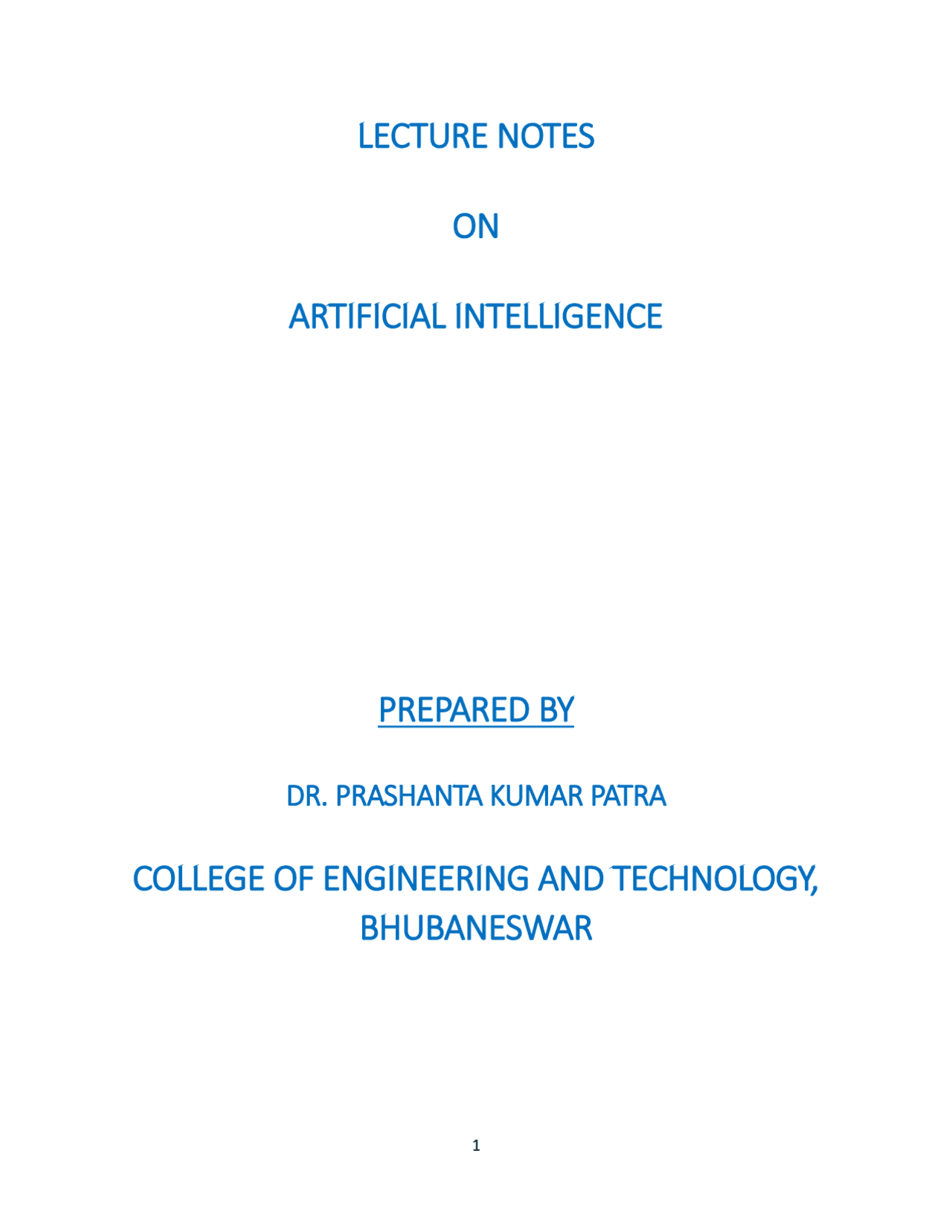

LECTURE NOTES

ON

ARTIFICIAL INTELLIGENCE

PREPARED BY

DR. PRASHANTA KUMAR PATRA

COLLEGE OF ENGINEERING AND TECHNOLOGY,

BHUBANESWAR

ARTIFICIAL INTELLIGENCE SYLLABUS Module 1 12Hrs What is Artificial Intelligence? AI Technique, Level of the Model,Problem Spaces, and Search: Defining the Problem as a State Space Search, Production Systems, Problem Characteristics, Production System Characteristics, Issues in the Design of Search Programs. Heuristic Search Techniques: Generate-and- Test, Hill Climbing, Best-first Search, Problem Reduction, Constraint Satisfaction, Means-ends Analysis, Knowledge Representation: Representations and Mappings, Approaches to Knowledge Representation, Using Predicate Logic: Representing Simple Facts in Logic, Representing Instance and ISA Relationships, Computable Functions and Predicates, Resolution, Natural Deduction.Using Rules: Procedural Versus Declarative Knowledge, Logic Programming, Forward Versus Backward Reasoning, Matching, Control Knowledge.Symbolic Reasoning Under Uncertainty: Introduction to Nonmonotonic Reasoning, Logics for Nonmonotonic Reasoning, Implementation Issues, Augmenting a Problem-solver, Depth-first Search, Breadthfirst Search.Weak and Strong Slot-and-Filler Structures: Semantic Nets, Frames, Conceptual Dependency Scripts, CYC. Module 2 10Hrs Game Playing: The Minimax Search Procedure, Adding Alpha-beta Cutoffs, Iterative Deepening.Planning: The Blocks World, Components of a Planning System, Goal Stack Planning, Nonlinear Planning Using Constraint Posting, Hierarchical PlanningOther Planning Techniques.Understanding: What is Understanding, What Makes Understanding Hard?, Understanding as Constraint Satisfaction.Natural Language Processing: Introduction, Syntactic Processing, Semantic Analysis, Discourse and Pragmatic Processing, Statistical Natural Language Processing, Spell Checking. Module 3 8Hrs Learning: Rote Learning, learning by Taking Advice, Learning in Problem-solving, Learning from Examples: Induction, Explanation-based Learning, Discovery, Analogy, Formal Learning Theory, Neural Net Learning and Genetic Learning. Expert Systems: Representing and Using Domain Knowledge, Expert System Shells, Explanation, Knowledge Acquisition. Text Book:

**1. Elaine Rich, Kevin Knight, & Shivashankar B Nair, Artificial Intelligence, McGraw Hill, 3rd ed., References:

1. Introduction to Artificial Intelligence & Expert Systems, Dan W Patterson, PHI.,
2. S Kaushik, Artificial Intelligence, Cengage Learning, 1st ed.**

Science based goals of AI pertain to developing concepts, mechanisms and understanding biological intelligent behaviour. The emphasis is on understanding intelligent behaviour. Engineering based goals of AI relate to developing concepts, theory and practice of building intelligent machines. The emphasis is on system building. AI Techniques depict how we represent, manipulate and reason with knowledge in order to solve problems. Knowledge is a collection of ‘facts’. To manipulate these facts by a program, a suitable representation is required. A good representation facilitates problem solving. Learning means that programs learn from what facts or behaviour can represent. Learning denotes changes in the systems that are adaptive in other words, it enables the system to do the same task(s) more efficiently next time. Applications of AI refers to problem solving, search and control strategies, speech recognition, natural language understanding, computer vision, expert systems, etc.

Problems of AI:

Intelligence does not imply perfect understanding; every intelligent being has limited perception, memory and computation. Many points on the spectrum of intelligence versus cost are viable, from insects to humans. AI seeks to understand the computations required from intelligent behaviour and to produce computer systems that exhibit intelligence. Aspects of intelligence studied by AI include perception, communicational using human languages, reasoning, planning, learning and memory. The following questions are to be considered before we can step forward:

1. What are the underlying assumptions about intelligence?
2. What kinds of techniques will be useful for solving AI problems?
3. At what level human intelligence can be modelled?
4. When will it be realized when an intelligent program has been built?

Branches of AI:

A list of branches of AI is given below. However some branches are surely missing, because no one has identified them yet. Some of these may be regarded as concepts or topics rather than full branches. Logical AI — In general the facts of the specific situation in which it must act, and its goals are all represented by sentences of some mathematical logical language. The program decides what to do by inferring that certain actions are appropriate for achieving its goals.

Search — Artificial Intelligence programs often examine large numbers of possibilities – for example, moves in a chess game and inferences by a theorem proving program. Discoveries are frequently made about how to do this more efficiently in various domains. Pattern Recognition — When a program makes observations of some kind, it is often planned to compare what it sees with a pattern. For example, a vision program may try to match a pattern of eyes and a nose in a scene in order to find a face. More complex patterns are like a natural language text, a chess position or in the history of some event. These more complex patterns require quite different methods than do the simple patterns that have been studied the most. Representation — Usually languages of mathematical logic are used to represent the facts about the world. Inference — Others can be inferred from some facts. Mathematical logical deduction is sufficient for some purposes, but new methods of non-monotonic inference have been added to the logic since the 1970s. The simplest kind of non-monotonic reasoning is default reasoning in which a conclusion is to be inferred by default. But the conclusion can be withdrawn if there is evidence to the divergent. For example, when we hear of a bird, we infer that it can fly, but this conclusion can be reversed when we hear that it is a penguin. It is the possibility that a conclusion may have to be withdrawn that constitutes the non-monotonic character of the reasoning. Normal logical reasoning is monotonic, in that the set of conclusions can be drawn from a set of premises, i.e. monotonic increasing function of the premises. Circumscription is another form of non-monotonic reasoning. Common sense knowledge and Reasoning — This is the area in which AI is farthest from the human level, in spite of the fact that it has been an active research area since the 1950s. While there has been considerable progress in developing systems of non-monotonic reasoning and theories of action, yet more new ideas are needed. Learning from experience — There are some rules expressed in logic for learning. Programs can only learn what facts or behaviour their formalisms can represent, and unfortunately learning systems are almost all based on very limited abilities to represent information. Planning — Planning starts with general facts about the world (especially facts about the effects of actions), facts about the particular situation and a statement of a goal. From these, planning programs generate a strategy for achieving the goal. In the most common cases, the strategy is just a sequence of actions. Epistemology — This is a study of the kinds of knowledge that are required for solving problems in the world. Ontology — Ontology is the study of the kinds of things that exist. In AI the programs and sentences deal with various kinds of objects and we study what these kinds are and what their basic properties are. Ontology assumed importance from the 1990s.

An AI technique is a method that exploits knowledge that is represented so that:  The knowledge captures generalizations that share properties, are grouped together, rather than being allowed separate representation.  It can be understood by people who must provide it—even though for many programs bulk of the data comes automatically from readings.  In many AI domains, how the people understand the same people must supply the knowledge to a program.  It can be easily modified to correct errors and reflect changes in real conditions.  It can be widely used even if it is incomplete or inaccurate.  It can be used to help overcome its own sheer bulk by helping to narrow the range of possibilities that must be usually considered. In order to characterize an AI technique let us consider initially OXO or tic-tac-toe and use a series of different approaches to play the game. The programs increase in complexity, their use of generalizations, the clarity of their knowledge and the extensibility of their approach. In this way they move towards being representations of AI techniques.

Example-1: Tic-Tac-Toe

1.1 The first approach (simple) The Tic-Tac-Toe game consists of a nine element vector called BOARD; it represents the numbers 1 to 9 in three rows. An element contains the value 0 for blank, 1 for X and 2 for O. A MOVETABLE vector consists of 19,683 elements (3^9 ) and is needed where each element is a nine element vector. The contents of the vector are especially chosen to help the algorithm. The algorithm makes moves by pursuing the following:

1. View the vector as a ternary number. Convert it to a decimal number.
2. Use the decimal number as an index in MOVETABLE and access the vector.
3. Set BOARD to this vector indicating how the board looks after the move. This approach is capable in time but it has several disadvantages. It takes more space and requires stunning

effort to calculate the decimal numbers. This method is specific to this game and cannot be completed. 1.2 The second approach The structure of the data is as before but we use 2 for a blank, 3 for an X and 5 for an O. A variable called TURN indicates 1 for the first move and 9 for the last. The algorithm consists of three actions: MAKE2 which returns 5 if the centre square is blank; otherwise it returns any blank non- corner square, i.e. 2, 4, 6 or 8. POSSWIN (p) returns 0 if player p cannot win on the next move and otherwise returns the number of the square that gives a winning move. It checks each line using products 332 = 18 gives a win for X, 552=50 gives a win for O, and the winning move is the holder of the blank. GO (n) makes a move to square n setting BOARD[n] to 3 or 5. This algorithm is more involved and takes longer but it is more efficient in storage which compensates for its longer time. It depends on the programmer’s skill. 1.3 The final approach The structure of the data consists of BOARD which contains a nine element vector, a list of board positions that could result from the next move and a number representing an estimation of how the board position leads to an ultimate win for the player to move. This algorithm looks ahead to make a decision on the next move by deciding which the most promising move or the most suitable move at any stage would be and selects the same. Consider all possible moves and replies that the program can make. Continue this process for as long as time permits until a winner emerges, and then choose the move that leads to the computer program winning, if possible in the shortest time. Actually this is most difficult to program by a good limit but it is as far that the technique can be extended to in any game. This method makes relatively fewer loads on the programmer in terms of the game technique but the overall game strategy must be known to the adviser.

Example- 2 : Question Answering

Let us consider Question Answering systems that accept input in English and provide answers also in English. This problem is harder than the previous one as it is more difficult to specify the problem properly. Another area of difficulty concerns deciding whether the answer obtained is correct, or not, and further what is meant by ‘correct’. For example, consider the following situation: 2.1 Text Rani went shopping for a new Coat. She found a red one she really liked. When she got home, she found that it went perfectly with her favourite dress. 2.2 Question

1. What did Rani go shopping for?

Method 2 2.7 Data Structures A structure called English consists of a dictionary, grammar and some semantics about the vocabulary we are likely to come across. This data structure provides the knowledge to convert English text into a storable internal form and also to convert the response back into English. The structured representation of the text is a processed form and defines the context of the input text by making explicit all references such as pronouns. There are three types of such knowledge representation systems: production rules of the form ‘if x then y’, slot and filler systems and statements in mathematical logic. The system used here will be the slot and filler system. Take, for example sentence: ‘She found a red one she really liked’. Event2 Event instance: finding instance: liking tense: past tense: past agent: Rani modifier: much object: Thing1 object: Thing Thing instance: coat colour: red The question is stored in two forms: as input and in the above form. 2.8 Algorithm  Convert the question to a structured form using English know how, then use a marker to indicate the substring (like ‘who’ or ‘what’) of the structure, that should be returned as an answer. If a slot and filler system is used a special marker can be placed in more than one slot.  The answer appears by matching this structured form against the structured text.  The structured form is matched against the text and the requested segments of the question are returned. 2.9 Examples Both questions 1 and 2 generate answers via a new coat and a red coat respectively. Question 3 cannot be answered, because there is no direct response. 2.10 Comments This approach is more meaningful than the previous one and so is more effective. The extra power given must be paid for by additional search time in the knowledge bases. A warning

must be given here: that is – to generate unambiguous English knowledge base is a complex task and must be left until later in the course. The problems of handling pronouns are difficult. For example: Rani walked up to the salesperson: she asked where the toy department was. Rani walked up to the salesperson: she asked her if she needed any help. Whereas in the original text the linkage of ‘she’ to ‘Rani’ is easy, linkage of ‘she’ in each of the above sentences to Rani and to the salesperson requires additional knowledge about the context via the people in a shop. Method 3 2.11 Data Structures World model contains knowledge about objects, actions and situations that are described in the input text. This structure is used to create integrated text from input text. The diagram shows how the system’s knowledge of shopping might be represented and stored. This information is known as a script and in this case is a shopping script. ( See figure 1.1 next page ) 1.8.2.12 Algorithm Convert the question to a structured form using both the knowledge contained in Method 2 and the World model, generating even more possible structures, since even more knowledge is being used. Sometimes filters are introduced to prune the possible answers. To answer a question, the scheme followed is: Convert the question to a structured form as before but use the world model to resolve any ambiguities that may occur. The structured form is matched against the text and the requested segments of the question are returned. 2.13 Example Both questions 1 and 2 generate answers, as in the previous program. Question 3 can now be answered. The shopping script is instantiated and from the last sentence the path through step 14 is the one used to form the representation. ‘M’ is bound to the red coat-got home. ‘ Rani buys a red coat’ comes from step 10 and the integrated text generates that she bought a red coat.

2.14 Comments

This program is more powerful than both the previous programs because it has more knowledge. Thus, like the last game program it is exploiting AI techniques. However, we are not yet in a position to handle any English question. The major omission is that of a general reasoning mechanism known as inference to be used when the required answer is not explicitly given in the input text. But this approach can handle, with some modifications, questions of the following form with the answer—Saturday morning Rani went shopping. Her brother tried to call her but she did not answer. Question: Why couldn’t Rani’s brother reach her?

LEVEL OF THE AI MODEL

‘What is our goal in trying to produce programs that do the intelligent things that people do?’ Are we trying to produce programs that do the tasks the same way that people do? OR Are we trying to produce programs that simply do the tasks the easiest way that is possible? Programs in the first class attempt to solve problems that a computer can easily solve and do not usually use AI techniques. AI techniques usually include a search, as no direct method is available, the use of knowledge about the objects involved in the problem area and abstraction on which allows an element of pruning to occur, and to enable a solution to be found in real time; otherwise, the data could explode in size. Examples of these trivial problems in the first class, which are now of interest only to psychologists are EPAM (Elementary Perceiver and Memorizer) which memorized garbage syllables. The second class of problems attempts to solve problems that are non-trivial for a computer and use AI techniques. We wish to model human performance on these:

1. To test psychological theories of human performance. Ex. PARRY [Colby, 1975] – a program to simulate the conversational behavior of a paranoid person.
2. To enable computers to understand human reasoning – for example, programs that answer questions based upon newspaper articles indicating human behavior.
3. To enable people to understand computer reasoning. Some people are reluctant to accept computer results unless they understand the mechanisms involved in arriving at the results.
4. To exploit the knowledge gained by people who are best at gathering information. This persuaded the earlier workers to simulate human behavior in the SB part of AISB simulated behavior. Examples of this type of approach led to GPS (General Problem Solver). Questions for Practice:
5. What is intelligence? How do we measure it? Are these measurements useful?
6. When the temperature falls and the thermostat turns the heater on, does it act because it believes the room to be too cold? Does it feel cold? What sorts of things can have beliefs or feelings? Is this related to the idea of consciousness?
7. Some people believe that the relationship between your mind (a non-physical thing) and your brain (the physical thing inside your skull) is exactly like the relationship between a computational process (a non-physical thing) and a physical computer. Do you agree?
8. How good are machines at playing chess? If a machine can consistently beat all the best human chess players, does this prove that the machine is intelligent?
9. What is AI Technique? Explain Tic-Tac-Toe Problem using AI Technique.

PROBLEMS, PROBLEM SPACES AND SEARCH To solve the problem of building a system you should take the following steps:

1. Define the problem accurately including detailed specifications and what constitutes a suitable solution.
2. Scrutinize the problem carefully, for some features may have a central affect on the chosen method of solution.
3. Segregate and represent the background knowledge needed in the solution of the problem.
4. Choose the best solving techniques for the problem to solve a solution. Problem solving is a process of generating solutions from observed data.

• a ‘problem’ is characterized by a set of goals ,
• a set of objects , and
• a set of operations. These could be ill-defined and may evolve during problem solving.
• A ‘ problem space ’ is an abstract space.  A problem space encompasses all valid states that can be generated by the application of any combination of operators on any combination of objects.  The problem space may contain one or more solutions. A solution is a combination of operations and objects that achieve the goals.
• A ‘ search ’ refers to the search for a solution in a problem space.  Search proceeds with different types of ‘ search control strategies ’.  The depth-first search and breadth-first search are the two common search strategies. 2.1 AI - General Problem Solving Problem solving has been the key area of concern for Artificial Intelligence. Problem solving is a process of generating solutions from observed or given data. It is however not always possible to use direct methods (i.e. go directly from data to solution). Instead, problem solving often needs to use indirect or modelbased methods. General Problem Solver (GPS) was a computer program created in 1957 by Simon and Newell to build a universal problem solver machine. GPS was based on Simon and Newell’s theoretical work on logic machines. GPS in principle can solve any formalized symbolic problem, such as theorems proof and geometric problems and chess playing. GPS solved many simple problems, such as the Towers of Hanoi, that could be sufficiently formalized, but GPS could not solve any real-world problems. To build a system to solve a particular problem, we need to:  Define the problem precisely – find input situations as well as final situations for an acceptable solution to the problem

• Problem solving: The term, Problem Solving relates to analysis in AI. Problem solving may be characterized as a systematic search through a range of possible actions to reach some predefined goal or solution. Problem-solving methods are categorized as special purpose and general purpose.
• A special-purpose method is tailor-made for a particular problem, often exploits very specific features of the situation in which the problem is embedded.
• A general-purpose method is applicable to a wide variety of problems. One General-purpose technique used in AI is ‘means-end analysis’: a step-bystep, or incremental, reduction of the difference between current state and final goal.

2.3 DEFINING PROBLEM AS A STATE SPACE SEARCH

To solve the problem of playing a game, we require the rules of the game and targets for winning as well as representing positions in the game. The opening position can be defined as the initial state and a winning position as a goal state. Moves from initial state to other states leading to the goal state follow legally. However, the rules are far too abundant in most games— especially in chess, where they exceed the number of particles in the universe. Thus, the rules cannot be supplied accurately and computer programs cannot handle easily. The storage also presents another problem but searching can be achieved by hashing. The number of rules that are used must be minimized and the set can be created by expressing each rule in a form as possible. The representation of games leads to a state space representation and it is common for well-organized games with some structure. This representation allows for the formal definition of a problem that needs the movement from a set of initial positions to one of a set of target positions. It means that the solution involves using known techniques and a systematic search. This is quite a common method in Artificial Intelligence. 2.3.1 State Space Search A state space represents a problem in terms of states and operators that change states. A state space consists of:  A representation of the states the system can be in. For example, in a board game, the board represents the current state of the game.  A set of operators that can change one state into another state. In a board game, the operators are the legal moves from any given state. Often the operators are represented as programs that change a state representation to represent the new state.  An initial state.  A set of final states ; some of these may be desirable, others undesirable. This set is often represented implicitly by a program that detects terminal states. 2.3.2 The Water Jug Problem In this problem, we use two jugs called four and three; four holds a maximum of four gallons of water and three a maximum of three gallons of water. How can we get two gallons of water in the four jug? The state space is a set of prearranged pairs giving the number of gallons of water in the pair of jugs at any time, i.e., ( four, three ) where fou r = 0, 1, 2, 3 or 4 and three = 0, 1, 2 or 3. The start state is (0, 0) and the goal state is (2, n) where n may be any but it is limited to three holding from 0 to 3 gallons of water or empty. Three and four shows the name and numerical number shows the amount of water in jugs for solving the water jug problem. The major production rules for solving this problem are shown below:

 A control strategy that specifies the order in which the rules will be compared with facts in the database and also specifies how to resolve conflicts in selection of several rules or selection of more facts.  A rule firing module. The production rules operate on the knowledge database. Each rule has a precondition—that is, either satisfied or not by the knowledge database. If the precondition is satisfied, the rule can be applied. Application of the rule changes the knowledge database. The control system chooses which applicable rule should be applied and ceases computation when a termination condition on the knowledge database is satisfied. Example: Eight puzzle (8-Puzzle) The 8-puzzle is a 3 × 3 array containing eight square pieces, numbered 1 through 8, and one empty space. A piece can be moved horizontally or vertically into the empty space, in effect exchanging the positions of the piece and the empty space. There are four possible moves, UP (move the blank space up), DOWN, LEFT and RIGHT. The aim of the game is to make a sequence of moves that will convert the board from the start state into the goal state: This example can be solved by the operator sequence UP, RIGHT, UP, LEFT, DOWN. Example: Missionaries and Cannibals The Missionaries and Cannibals problem illustrates the use of state space search for planning under constraints: Three missionaries and three cannibals wish to cross a river using a two person boat. If at any time the cannibals outnumber the missionaries on either side of the river, they will eat the missionaries. How can a sequence of boat trips be performed that will get everyone to the other side of the river without any missionaries being eaten? State representation:

1. BOAT position: original (T) or final (NIL) side of the river.
2. Number of Missionaries and Cannibals on the original side of the river.
3. Start is (T 3 3); Goal is (NIL 0 0). Operators:
