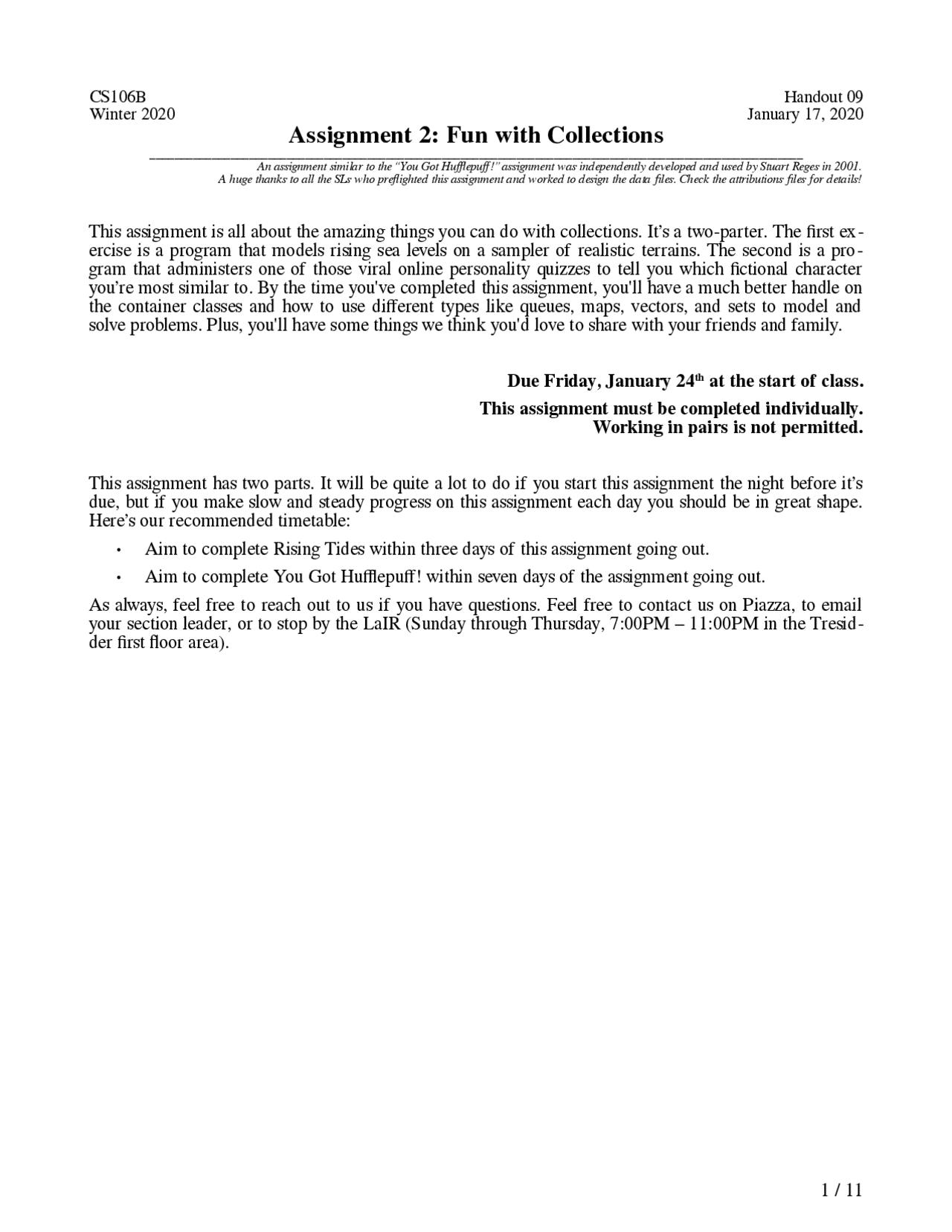

CS106B Winter 2020 Handout 09 January 17, 2020
Assignment 2: Fun with Collections
_________________________________________________________________________________________________________ An assignment similar to the “You Got Hufflepuff!” assignment was independently developed and used by Stuart Reges in 2001. A huge thanks to all the SLs who preflighted this assignment and worked to design the data files. Check the attributions files for details! This assignment is all about the amazing things you can do with collections. It’s a two-parter. The first ex- ercise is a program that models rising sea levels on a sampler of realistic terrains. The second is a pro - gram that administers one of those viral online personality quizzes to tell you which fictional character you’re most similar to. By the time you've completed this assignment, you'll have a much better handle on the container classes and how to use different types like queues, maps, vectors, and sets to model and solve problems. Plus, you'll have some things we think you'd love to share with your friends and family. Due Friday, January 24th^ at the start of class. This assignment must be completed individually. Working in pairs is not permitted. This assignment has two parts. It will be quite a lot to do if you start this assignment the night before it’s due, but if you make slow and steady progress on this assignment each day you should be in great shape. Here’s our recommended timetable:
- Aim to complete Rising Tides within three days of this assignment going out.
- Aim to complete You Got Hufflepuff! within seven days of the assignment going out. As always, feel free to reach out to us if you have questions. Feel free to contact us on Piazza, to email your section leader, or to stop by the LaIR (Sunday through Thursday, 7:00PM – 11:00PM in the Tresid- der first floor area).
Problem One: Rising Tides
Global sea levels have been rising, and the most recent data suggest that the rate at which sea levels are rising is increasing. This means that city planners in coastal areas need to start designing developments so that an extra meter of water doesn’t flood people out of their homes. Your task in this part of the assignment is to build a tool that models flooding due to sea level rise. To do so, we’re going to model terrains as grids of doubles, where each double represents the altitude of a par- ticular square region on Earth. Higher values indicate higher elevations, while lower values indicate lower elevations. For example, take a look at the three grids to the right. Before moving on, take a minute to think over the following questions, which you don’t need to submit. Which picture represents a small hill? Which one represents a long, sloping in- cline? Which one represents a lowland area surrounded by levees? We can model the flow of water as follows. We’ll imagine that there’s a water source somewhere in the world and that we have a known height for the water. Water will then flow anywhere it can reach by mov- ing in the four cardinal directions (up/down/left/right) without moving to a location at a higher elevation than the initial water height. For example, suppose that the upper-left corner of each of the three above worlds is the water source. Here’s what would be underwater given several different water heights: Water source at top-left corner Height: 0m Height: 1m Height: 2m A few things to notice here. First, notice that the water height is independent of the height of the terrain at its starting point. For example, in the bottom row, the water height is always two meters, even though the terrain height of the upper-left corner is either 0m or -1m, depending on the world. Second, in the ter- rain used in the middle column, notice that the water stays above the upper diagonal line of 4 ’s, since we assume water can only move up, down, left, and right and therefore can’t move diagonally through the gaps. Although there’s a lot of terrain below the water height, it doesn’t end up under water until the height reaches that of the barrier.
GridLocation location; location.row = 137; location.col = 42; GridLocation otherLocation = { 106, 103 }; // Row 106, column 103 otherLocation.row++; // Increment the row. cout << otherLocation.col << endl; // Prints 103 Now that we’ve talked about the types involved here, let’s address how to solve this problem. How, ex- actly, do you determine what’s going to be underwater? Doing so requires you to determine which grid lo- cations are both (1) below the water level and (2) places water can flow to from one of the sources. Fortunately, there’s a beautiful algorithm you can use to solve this problem called breadth-first search. The idea is to simulate having the water flow out from each of the sources at greater and greater distances. First, you consider the water sources themselves. Then, you visit each location one step away from the wa- ter sources. Then, you visit each location two steps away from the water sources, then three steps, four steps, etc. In that way, the algorithm ends up eventually finding all places the water can flow to, and it does so fairly quickly! Breadth-first search is typically implemented by using a queue that will process every flooded location. The idea is the following: we begin by enqueuing each water source, or at least the sources that aren’t above the water line. That means that the queue ends up holding all the flooded locations zero steps away from the sources. We’ll then enqueue a next group of elements, corresponding to all the flooded locations one step away from the sources. Then we’ll enqueue all flooded locations two steps away from the sources, then three steps away, etc. Eventually, this process will end up visiting every flooded location in the map. Let’s make this a bit more concrete. To get the process started, you add to the queue each of the individ- ual water sources that happen to be at least as high as the grid cell they’re located in. From then on, the al- gorithm operates by dequeuing a location from the front of the queue. Once you have that location, you look at each of the location’s neighbors in the four cardinal directions. For each of those neighbors, if that neighbor is already flooded, you don’t need to do anything because the search has already considered that square. Similarly, if that neighbor is above the water line, there’s nothing to do because that square shouldn’t end up under water. However, if neither of those conditions hold, you then add the neighbor to the queue, meaning “I’m going to process this one later on.” By delaying processing that neighbor, you get to incrementally explore at greater and greater distances from the water sources. The process stops once the queue is empty; when that happens, every location that needs to be considered will have been visited. At each step in this process, you’re removing the location from the queue that’s been sitting there the longest. Take a minute to convince yourself that this means that you’ll first visit everything zero steps from a water source, then one step from a water source, then two steps, etc. To spell out the individual steps of the algorithm, here’s some pseudocode for breadth-first search: create an empty queue; for ( each water source at or below the water level ) { flood that square ; add that square to the queue ; } while ( the queue is not empty ) { dequeue a position from the front of the queue; for ( each square adjacent to the position in a cardinal direction ) { if ( that square at or below the water level and isn't yet flooded ) { flood that square; add that square to the queue; } } }
As is generally the case with pseudocode, several of the operations that are expressed in English need to be fleshed out a bit. For example, the loop that reads for ( each square adjacent to the position in a cardinal direction ) is a conceptual description of the code that belongs there. It’s up to you to determine how to code this up; this might be a loop, or it might be several loops, or it may be something totally different. The basic idea, however, should still make sense. What you need to do is iterate over all the locations that are one posi- tion away from the current position. How you do that is up to you. It’s important to ensure that the code you write works correctly here, and to help you with that we’ve pro- vided a suite of test cases with the starter files. These test cases look at a few examples, but they aren’t ex- haustive. You’ll need to add at least one custom test case – and, preferably, more than one – using the handy ADD_TEST macro that you saw in the first programming assignment. We don’t recommend copying one of the test cases from the handout, since (1) that’s really tedious and time-consuming and (2) it’s bet- ter to more directly test particular tricky behaviors with smaller, more focused examples. To summarize, here’s what you need to do for this assignment:
- Implement the floodedRegionsIn function in RisingTides.cpp. Your code should use the breadth-first search algorithm outlined above in pseudocode to determine which regions are under water. Water flows up, down, left, and right and will submerge any region whose height is less than or equal to the global water level passed in as a parameter. Test as you go.
- Add in at least one custom test case into RisingTides.cpp – preferably, not one from the assignment handout – and see how things go. Some notes on this problem:
- The provided demo will crash if you try running it without first having implemented the flood- edRegionsIn function. This is normal, and happens because the default implementation of floodedRegionsIn returns an empty grid. Generally speaking, our demos are designed to show off your code once it’s working correctly and aren’t really designed to be used for testing purposes. To test whether your code is working, use the “Run Tests” button and the ADD_TEST macro.
- Need a refresher on Grid type? Check the Stanford C++ Library Documentation.
- The initial height of the water at a source may be below the level of the terrain there. If that hap- pens, that water source doesn’t flood anything, including its initial terrain cell. (This is an edge case where both the “flood it” and “don’t flood it” options end up being weird, and for consistency we decided to tiebreak in the “don’t flood it” direction.)
- The heights of adjacent cells in the grid may have no relation to one another. For example, if you have the topography of Preikestolen in Norway, you might have a cell of altitude 0m immediately adjacent to a cell of altitude 604m. If you have a low-resolution scan of Mount Whitney and Death Valley, you might have a cell of altitude 4,421m next to a cell of altitude -85m.
- Curious about an edge case? Check the examples on the previous pages. Once you’re passing all the tests, click the “Rising Tides” option to see your code in action! When you pull up the “Rising Tides” demo, it will use your code to flood-fill the sample world you’ve chosen. Some of these sample worlds are large, and it might take a while for that flood-fill to finish. However, it should probably take no more than 30 seconds for the program to finish running your code. If you find that it’s taking more than 30 seconds to load a terrain, it may mean that you have an inefficiency somewhere in your code. Make sure that you aren’t passing large objects into functions by value (that is, if you’re pass- ing around a Grid or Queue or something like that, it should be done by reference or const reference). The demo app we’ve included will let you simulate changes to the sea levels for several geographical re- gions of the United States. The data here is taken from the National Oceanographic and Atmospheric Ad- ministration (NOAA), which provides detailed topological maps for the US. Play around with the data sets – what do you find?
On the other hand, if you chose “Disagree,” then you’d get -1 point in category A and -1 point in category O. Finally, if you chose “Strongly Disagree,” then you’d get -2 points in category A and -2 points in cate - gory O. (Negative numbers don’t represent negative personality traits. Positive scores in category O indi- cate a low barrier to trying new things, while negative scores indicate more caution in trying new things. Neither of these is the “right” way to do things.) Here’s another sample question: -N +C I try to impress others. If your program chooses to ask this question, it would do so like this: How much do you agree with this statement? I try to impress others. ○ Strongly disagree Strongly disagree ○ Strongly disagree Disagree ○ Strongly disagree Neutral ○ Strongly disagree Agree ○ Strongly disagree Strongly agree The -N +C here means that this question is designed to count negatively in category N ( n euroticism) and positively in category C ( c onscientiousness). So, for example, answering with “Strongly Agree” would add -2 to your N score and +2 to your C score, and answering with “Strongly Disagree” would add +2 to your N score and -2 to your C score. Answering with “Neutral” wouldn’t change your score. As a last example, consider this question: +E I am the life of the party. The +E on this question means that it counts positively in factor E (“extraversion”). An answer of “Neu- tral” wouldn’t impact your score in the E category. An answer of “Agree” would add +1 to your E score, and an answer of “Strongly Disagree” would add -2 to your E score. Let’s drop a bit lower to the level of actual C++ code. The function you’re writing works with a type called Question, which is represented as follows: struct Question { string questionText; HashMap< char , int > factors; }; This struct has two fields. First, there’s questionText, which is a string representing the text of the question. The second field, factors, is a map from characters to integers. This factors map is our way of representing the information about which categories the question asks about, and whether those cate- gories count positively or negatively. For example, the question -A +C I listen to my brain rather than my heart. would be represented as Question whose question field is "I listen to my brain rather than my heart" and whose factors map would associate 'A' with the number -1 and 'C' with the number +1. Similarly, the question +C -O I do things by the book. would be represented as a Question whose question field is "I do things by the book" and whose factors map associates 'C' with +1 and 'O' with -1. By asking a series of questions and updating the O, C, E, A, and N scores for the user based on how they respond to the questions, you can administer a personality quiz and get five numbers representing the user’s personality. In fact, that’s what we’d like you to do as the first milestone for this part of the assign - ment.
Step One: Administer a Personality Quiz Begin your implementation of administerQuiz. Your function should do the following:
- Ask a series of numQuestions questions chosen randomly from questions to the user. You should not ask the same question twice. To ask a question to the user, use this helper function that we’ve provided to you: int askPersonalityQuestion( const Question& question); This function takes as input a Question object, then asks the user to choose one of the five options mentioned earlier. The function returns a number between 1 and 5, inclusive, where 1 means “strongly disagree” and 5 means “strongly agree.” You may also want to use randomElement, which is provided in "hashset.h" and returns (but does not remove) a random element of a HashSet. You can use it by calling Type var = randomElement( your-hash-set );
- As you ask questions in Step 1, keep track of the user’s O, C, E, A, and N scores, updating them based on the factors each question asks and the strengths of the user’s answers.
- Print out the user’s O, C, E, A, and N scores. To do so, use the handy function void displayScores( const HashMap< char , int >& scores); which takes in a HashMap from categories to scores, then displays them in the window. To aid with testing, we recommend that you check the “Show Factors on Questions” checkbox; this will show which categories each question assesses, along with whether they count posi- tively or negatively in those categories. At this point you have five numbers – your scores for each of O, C, E, A, and N – that make up your re- sults. That might be interesting in and of itself, but usually the online quizzes won’t directly show you these numbers and will instead make a pronouncement like “your Marvel Superhero is Black Panther!” or “your Disney character is Elsa!” How exactly do these quizzes do this? Once you have a five-number score for the user, you can comparing the user’s scores against scores for a bunch of fictional characters. You’d then report the fictional character whose scores were “closest” to the user’s score, for some definition of “closest.” We’ve provided a collection of data files, each of which has a collection of characters with their associated O, C, E, A, and N scores. Each person is represented by the following handy struct: struct Person { string name; HashMap< char , int > scores; }; Here, name represents the person’s name, and scores is a HashMap from the five categories to the user’s score in those categories. Once we have these scores, we need to find character is “closest” to the user’s scores. There are many ways to define “closest,” but one of the most common ways to do this uses something called the cosine similarity , which is described below. First, an observation. Suppose one person takes a personality quiz and answers ten questions, and a sec - ond, similar person takes a personality quiz and answers twenty questions. Suppose they get these scores: O C E A N Person 1 6 -7 8 1 - Person 2 11 -14 17 2 -
Once you’ve done this, all that’s left is final polish and having some fun. Test your code extensively to make sure that it works correctly. You might want to consider, as a debug feature, having your program print out the categories associated with each question so that you can make sure that the final computed scores match what you expect to find. You may want to show the similarities of all the characters in the file and check them by hand to make sure they’re computed correctly. Then, feel free to create or edit our lists of characters! Pretend to be some fictional character (or someone else you know, or something inanimate, etc.) and take a quiz. You can then stash the numbers you got into your own sample file. In fact, that’s how we generated the sample files shipped with the program! Some notes on this part of the assignment:
- If there are many characters tied with the user for most similar, you can break ties in whatever way seems easiest to you.
- Our provided starter code already converts questions from the form where there are pluses and minuses at the front of the question into Question structs, where the factors HashMap has that information stored in an easier-to-access way. You don’t need to – and in fact shouldn’t – need to do any file or string parsing in the course of completing this assignment.
- You can assume that numQuestions is never negative and never more than the number of ques- tions in the questions HashSet.
- Make sure not to ask the same question twice.
- If you’d like, you can assume that no question will assign a number other than +1 or -1 to a partic- ular category, though there’s no fundamental reason why this would necessarily be the case.
- It’s possible for questions to adjust scores in any number of the categories, not just one or two.
- The number produced by the formula for cosine similarity only works with normalized scores. Don’t forget to normalize both the user’s scores and the scores associated with each fictional per- son before computing their cosine similarity; if you do, the similarity scores you’ll get back will be way off. A note on testing: the function administerQuiz is not one that you can directly test via ADD_TEST, both because administerQuiz requires user interaction and because administerQuiz doesn’t actually return a value. However, we expect that in the course of writing administerQuiz, you’ll need to add in helper functions that perform various calculations. You are encouraged to add your own custom tests for those functions by using ADD_TEST, though you aren’t required to. If you do write those custom tests, note that the test suite will not let you call askPersonalityQuestion, displayScores, or displayMessage, since those functions require either graphics or user interaction.
Part Three: (Optional) Extensions
If you'd like to run wild with these assignments, go for it! Here are some suggestions.
- Rising Tides: The sample worlds here have their data taken from the NOAA, which is specific to the United States, but we’d love to see what other data sets you can find. Get some topographical data from other sources, modify it to fit our file format, and load it into the program. (You can find information about the file format in the res/CreatingYourOwnTerrains.txt file.) What information – either for good or for ill – does that forecast? Or, consider the following question: suppose you have a terrain map of your area and know your home’s position within that area. Can you determine how much higher the water can rise without flooding your home?
- You Got Hufflepuff: Once you have a five-factor score for someone, you can do all sorts of things. For example, what happens if you have five-factor scores for a bunch of different people? Could you play matchmaker in the style of the Stanford Marriage Pact? Could you explore ways in which different groups of people (Stanford students, professional bricklayers, airline pilots, etc.) are similar to or different from one another? Cosine similarities have uses way beyond personality quizzes. More generally, given a collection of data points, you can use cosine similarity as a way of determining how closely aligned they are. What other data sets could you apply this idea to? You can also create your own groups of characters! We’d love to see what you come up with. The five-factor model is only one of many different ways of computing a “personality score” for a person. Research some other way to do this, and see if you can design a better personality quiz than the one we gave here.
Submission Instructions
Once you’re sure you’ve done everything correctly, including going through the Assignment Submission Checklist, submit the files RisingTides.cpp and YouGotHufflepuff.cpp, plus any other files that you modified in the course of coding up your solutions, at https://paperless.stanford.edu/. And that’s it! You’re done! Good luck, and have fun!
